| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 03 | ||||
| B79224903 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE79-0001 | aa | ||
| SBE0001-01 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE79-0035 | ab | ||
| SBE0035-01 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE79-0087 | ac | ||
| SBE0087-01 | OIL-SCAVENGE OIL TUBES-ENGINE | ad | ||
| 100 | 5R8111 | • TUBE - A/O NO.4 SCAV PRE SBE79-0001 | aa | 1 |
| 100A | 5R8138 | • TUBE - A/O NO.4 SCAV POST SBE79-0001 PRE SBE79-0035 | ab | 1 |
| 100B | 6A5367 | • TUBE - ASSY OF POST SBE79-0035 PRE SBE79-0087 | ab-ac | 1 |
| 100C | 6A6195 | • TUBE - A/O OIL-NO.4BRG SCAV DIF CASE TO BIF PANEL POST SBE79-0087 | ad | 1 |
| 160 | AS62416 | • CLIP - 25.40 MM (1.000) U1653 POST SBE79-0087 | ad | 1 |
| 200 | AS15785 | • • WIRE - THRUST U1653 POST SBE79-0087 | ad | 1 |
| 201 | AS15709 | • • NUT - TUBE COUPLING U1653 POST SBE79-0087 | ad | 1 |
| 202 | AS15738 | • • FERRULE - WELDING TUBE U1653 POST SBE79-0087 | ad | 1 |
| 212 | 5W1067 | • • LUG - BRAZED PRE SBE79-0001 | aa | 5 |
| 212A | 5W1067 | • • LUG - BRAZED POST SBE79-0001 PRE SBE79-0035 | ab | 4 |
| 212B | UP11158 | • • BRACKET - INTER TUBE SUPPORT POST SBE79-0035 PRE SBE79-0087 | ac | 4 |
| 214 | UP11158 | • • BRACKET - INTER TUBE SUPPORT POST SBE79-0087 | ad | 2 |
| 218 | 5D6608 | • • ADAPTOR - TEE | aa-ad | 1 |
| 240 | AS15785 | • • WIRE - THRUST U1653 PRE SBE79-0087 | aa-ac | 2 |
| 240A | AS15785 | • • WIRE - THRUST U1653 POST SBE79-0087 | ad | 1 |
| 241 | AS15709 | • • NUT - TUBE COUPLING U1653 PRE SBE79-0087 | aa-ac | 2 |
| 241A | AS15709 | • • NUT - TUBE COUPLING U1653 POST SBE79-0087 | ad | 1 |
| 242 | AS15738 | • • FERRULE - WELDING TUBE U1653 PRE SBE79-0087 | aa-ac | 2 |
| 242A | AS15738 | • • FERRULE - WELDING TUBE U1653 POST SBE79-0087 | ad | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

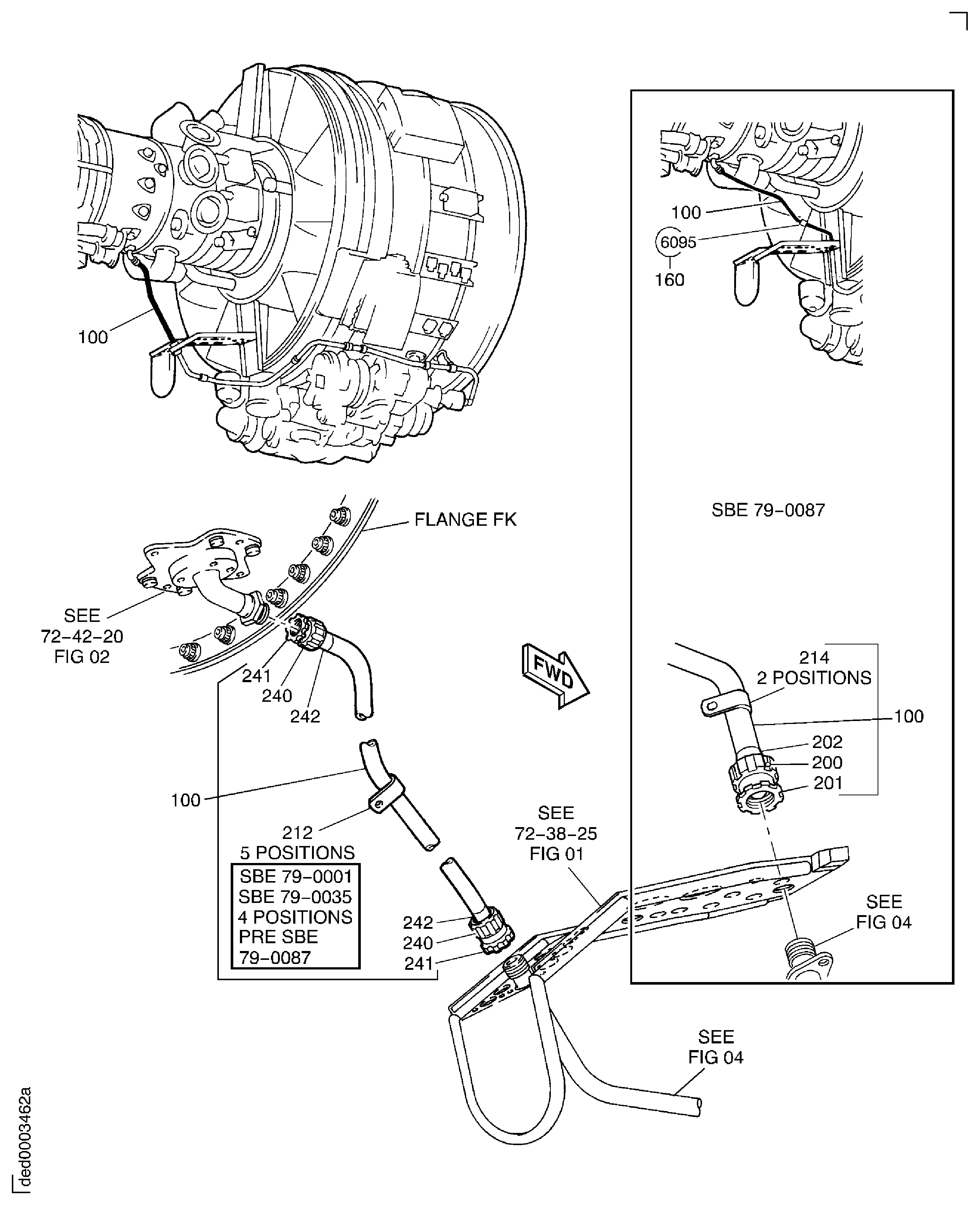

Figure: OIL-SCAVENGE OIL TUBES-ENGINE
SCAVENGE OIL TUBES ENGINE
