DMC:V2500-A1-79-22-49-04A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 04 | ||||
| B79224904 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE70-0158 | aa | ||
| SBE0158-01 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE73-0061 | ab | ||
| SBE0061-01 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE79-0087 | ac | ||
| SBE0087-01 | OIL-SCAVENGE OIL TUBES-ENGINE | ad | ||
| 091 | AS15777 | • • WIRE - THRUST U1653 | aa-ad | 1 |
| 092 | AS15701 | • • NUT - TUBE COUPLING U1653 | aa-ad | 1 |
| 093 | AS15837 | • • FERRULE - TUBE CLOSURE U1653 | aa-ad | 1 |
| 100 | 5A9083 | • TUBE - A/O PRE SBE79-0087 | aa-ac | 1 |
| 100A | 6A6206 | • TUBE - A/O OIL-NO.4BRG DISCON TO DISCON POST SBE79-0087 | ad | 1 |
| 102 | 4W0002 | • NUT - .250 DIA Optional Part 4W0002 | aa-ad | 2 |
| 106 | 4W0163 | • BOLT - .250 DIA X .562 Optional Part 4W0163 | aa-ad | 2 |
| 128 | 400WSS16 | • CLIP 83930 PRE SBE79-0087 | aa-ac | 1 |
| 141 | 4W0104 | • BOLT - .190 DIA X .562 Optional Part 4W0104 POST SBE79-0087 | ad | 1 |
| 142 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ad | 1 |
| 144 | AS62424 | • CLIP - 38.10 MM (1.500) U1653 POST SBE79-0087 | ad | 1 |
| 148 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE79-0087 | ad | 1 |
| 149 | 4W0104 | • BOLT - .190 DIA X .562 Optional Part 4W0104 POST SBE79-0087 | ad | 1 |
| 150 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ad | 1 |
| 152 | AS62424 | • CLIP - 38.10 MM (1.500) U1653 POST SBE79-0087 | ad | 1 |
| 156 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE79-0087 | ad | 1 |
| 157 | 4W0103 | • BOLT - .190 DIA X .500 Optional Part 4W0103 POST SBE79-0087 | ad | 1 |
| 158 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ad | 1 |
| 160 | AS62424 | • CLIP - 38.10 MM (1.500) U1653 POST SBE79-0087 | ad | 1 |
| 164 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE79-0087 | ad | 1 |
| 165 | 4W0104 | • BOLT - .190 DIA X .562 POST SBE79-0087 | ad | 1 |
| 166 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ad | 1 |
| 168 | AS62416 | • CLIP - 25.40 MM (1.000) U1653 POST SBE79-0087 | ad | 1 |
| 172 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE79-0087 | ad | 1 |
| 202 | 5W8026 | • • ADAPTOR - UNION FLANGED | aa-ad | 1 |
| 214 | 5W1067 | • • LUG - BRAZED PRE SBE79-0087 | aa-ac | 6 |
| 214A | UP11158 | • • BRACKET - INTER TUBE SUPPORT POST SBE79-0087 | ad | 1 |
| 215 | UP11160 | • • BRACKET - INTER TUBE SUPPORT POST SBE79-0087 | ad | 5 |
| 222 | 5W8126 | • • CONNECTR - TEE | aa-ad | 1 |
| 226 | 6A8154 | • • ADAPTOR POST SBE79-0087 | ad | 1 |
| 236 | 6A8154 | • • ADAPTOR POST SBE79-0087 | ad | 1 |
| 240 | AS15785 | • • WIRE - THRUST U1653 | aa-ad | 1 |
| 241 | AS15709 | • • NUT - TUBE COUPLING U1653 | aa-ad | 1 |
| 242 | AS15738 | • • FERRULE - WELDING TUBE U1653 PRE SBE79-0087 | aa-ac | 1 |
| 242A | 6A8164 | • • ADAPTOR - TEE POST SBE79-0087 | ad | 1 |
| 470 | 5W8512 | • BRACKET PRE SBE70-0158 | aa-ad | 1 |
| 470A | 6A4711 | • BRACKET POST SBE70-0158 | aa-ad | 1 |
| 471 | 4W0002 | • NUT - .250 DIA | aa-ad | 2 |
| 474 | 4W0164 | • BOLT - .250 DIA X .625 | aa-ad | 2 |
| 500 | 5A9084 | • TUBE - A/O PRE SBE79-0087 | aa-ac | 1 |
| 500A | 6A6205 | • TUBE - A/O OIL-NO.4BRG DISCON TO SCAV VALVE POST SBE79-0087 | ad | 1 |
| 525 | 4W0103 | • BOLT - .190 DIA X .500 PRE SBE73-0061 | aa-ab | 1 |
| 525A | 4W0104 | • BOLT - .190 DIA X .562 POST SBE73-0061 PRE SBE79-0087 | aa-ac | 1 |
| 526 | 5W1086 | • WASHER PRE SBE79-0087 | aa-ac | 1 |
| 528 | 400WSS16 | • CLIP 83930 PRE SBE73-0061 | aa-ab | 1 |
| 528A | AS62416 | • CLIP - 25.40 MM (1.000) U1653 POST SBE73-0061 PRE SBE79-0087 | aa-ac | 1 |
| 532 | 4W0043 | • NUT - .190 DIA PRE SBE79-0087 | aa-ac | 1 |
| 533 | 4W0102 | • BOLT - .190 DIA X .438 | aa-ad | 1 |
| 534 | 5W1086 | • WASHER PRE SBE79-0087 | aa-ac | 1 |
| 536 | 400WSS16 | • CLIP 83930 PRE SBE73-0061 | aa-ab | 1 |
| 536A | AS62416 | • CLIP - 25.40 MM (1.000) U1653 POST SBE73-0061 PRE SBE79-0087 | aa-ac | 1 |
| 540 | 4W0043 | • NUT - .190 DIA | aa-ad | 1 |
| 600 | AS15785 | • • WIRE - THRUST U1653 PRE SBE79-0087 | aa-ac | 2 |
| 601 | AS15709 | • • NUT - TUBE COUPLING U1653 PRE SBE79-0087 | aa-ac | 2 |
| 602 | AS15818 | • • ADAPTOR - STRAIGHT TUBE U1653 | aa-ad | 1 |
| 614 | 5W1067 | • • LUG - BRAZED PRE SBE79-0087 | aa-ac | 7 |
| 622 | 5W8126 | • • CONNECTR - TEE PRE SBE79-0087 | aa-ac | 1 |
| 640 | AS15785 | • • WIRE - THRUST U1653 | aa-ad | 1 |
| 641 | AS15709 | • • NUT - TUBE COUPLING U1653 | aa-ad | 1 |
| 642 | 5W8151 | • • FERRULE - ELBOW PRE SBE79-0087 | aa-ac | 1 |
| 642A | K17440 | • • ADAPTOR - ELBOW POST SBE79-0087 | ad | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

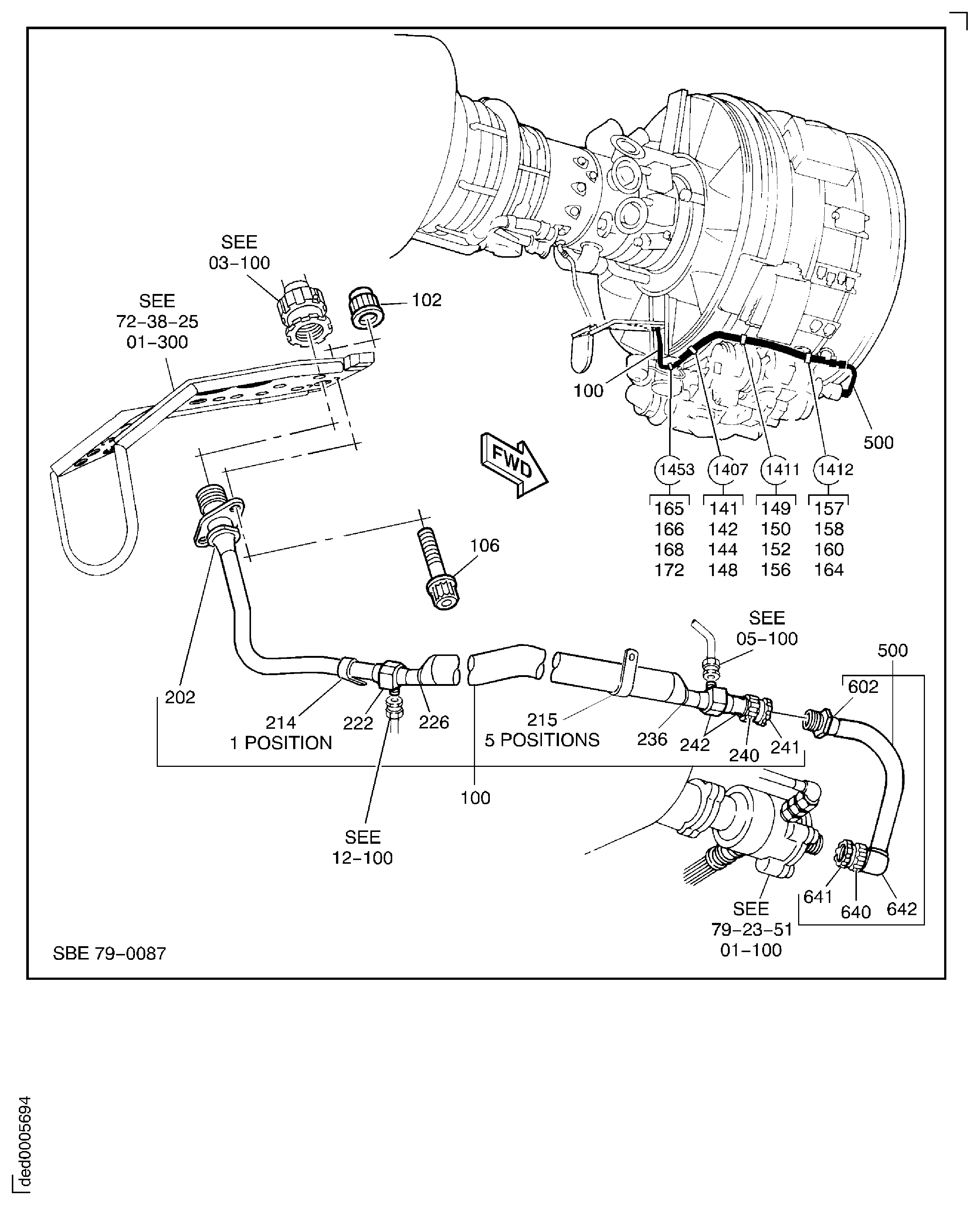

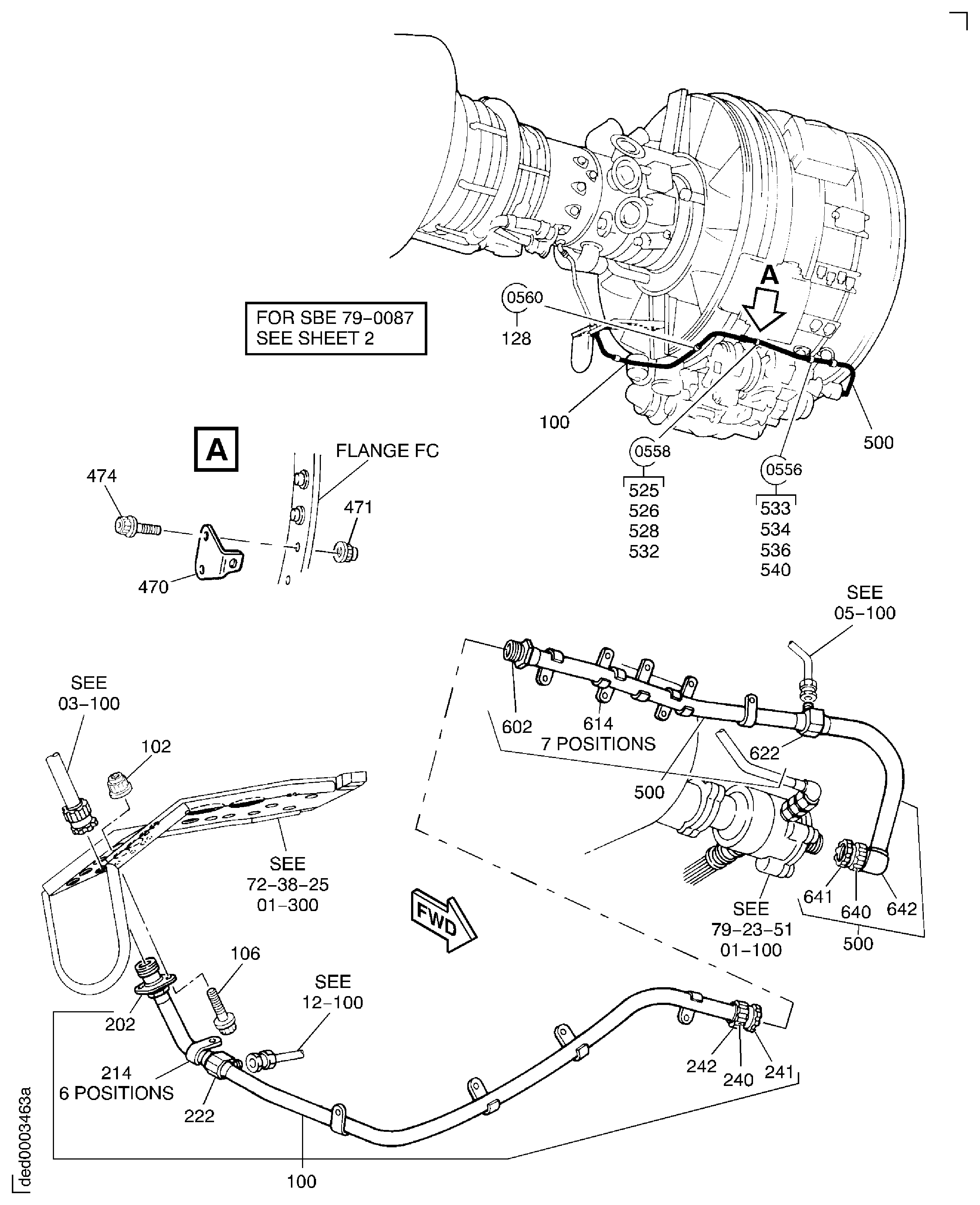

Figure: OIL-SCAVENGE OIL TUBES-ENGINE
SCAVENGE OIL TUBES ENGINE
SCAVENGE OIL TUBES ENGINE
