OIL-SCAVENGE OIL TUBES-ENGINE

DMC:V2500-A1-79-22-49-05A-941A-D|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
05
000B79224905OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE79-0087aa
000SBE0087-01OIL-SCAVENGE OIL TUBES-ENGINEab
1001005A8573• TUBE - A/O
PRE SBE79-0087		aa1
100100A6A6207• TUBE - A/O OIL-NO.4BRG SCAV T TO PRESS TRANS
POST SBE79-0087		ab1
1491494W0103• BOLT - .190 DIA X .500
POST SBE79-0087		ab1
150150K8831• WASHER - .190 DIA X 0,51 THK
POST SBE79-0087		ab1
152152AS62404• CLIP - 6.35 MM (0.250)
U1653
POST SBE79-0087		ab1
1561564W0001• NUT - .190 DIA
POST SBE79-0087		ab1
200200AS15777• • WIRE - THRUST
U1653
PRE SBE79-0087		aa2
200200AAS15777• • WIRE - THRUST
U1653
POST SBE79-0087		ab1
201201AS15701• • NUT - TUBE COUPLING
U1653
PRE SBE79-0087		aa2
201201AAS15701• • NUT - TUBE COUPLING
U1653
POST SBE79-0087		ab1
202202AS15768• • FERRULE - ASSY
U1653
PRE SBE79-0087		aa2
202202AAS15768• • FERRULE - ASSY
U1653
POST SBE79-0087		ab1
240240AS15777• • WIRE - THRUST
U1653
POST SBE79-0087		ab1
241241AS15701• • NUT - TUBE COUPLING
U1653
POST SBE79-0087		ab1
242242AS15768• • FERRULE - ASSY
U1653
POST SBE79-0087		ab1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

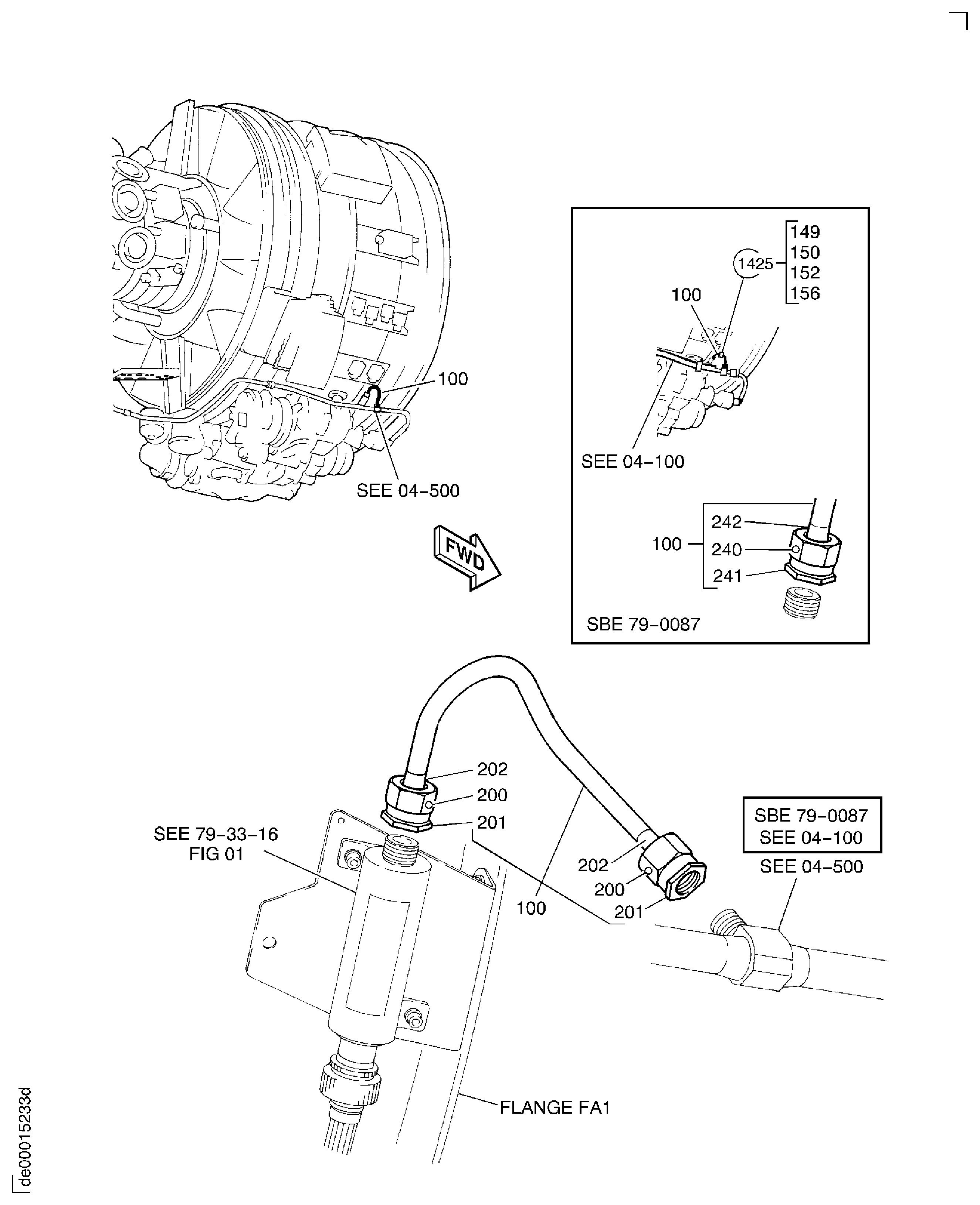

Figure: OIL-SCAVENGE OIL TUBES-ENGINE

SCAVENGE OIL TUBES ENGINE

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:83930
Enterprise Name:TRANSDIGM INC
BU Name:TRANSDIGM INC
Department:ADEL FASTENERS
Building:SANDWELL INDUSTRIAL ESTATE
Street:5000 TRIGGS STREET
City:LOS ANGELES
State:WEST MIDLANDS
Zip Code:B66 1QJ
Country:USA
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:400WSS4
Part Name:CLIP
Manufacturer Code:83930
Optional Parts
Part NumberPart NameManufacturer
AS62404CLIP - 6.35 MM (0.250)U1653
Part Number:4W0001
Part Name:NUT, OPTION - .190 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS20624NUT, SELF LOCKING DBL HEX - .190 DIAU1653
Part Number:4W0103
Part Name:BOLT - .190 DIA X .500
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21408BOLT - 0.19 DIA X 0.500U1653
Part Number:5A8573
Part Name:TUBE - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A6207
Part Name:TUBE - OIL, NO.4 BEARING SCAV T TO PRESS TRANS, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:AS15701
Part Name:NUT - TUBE COUPLING
Manufacturer Code:U1653
Part Number:AS15768
Part Name:FERRULE - ASSEMBLY
Manufacturer Code:U1653
Part Number:AS15777
Part Name:WIRE - THRUST
Manufacturer Code:U1653
Part Number:AS20624
Part Name:NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:U1653
Part Number:AS21408
Part Name:BOLT - 0.19 DIA X 0.500
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
MS9556-06BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.50096906
Part Number:AS62404
Part Name:CLIP - 6.35 MM (0.250)
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
400WSS4CLIP83930
Part Number:K8831
Part Name:WASHER - .190 DIA X 0.51 THK
Manufacturer Code:0AM53
Part Number:MS9556-06
Part Name:BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500
Manufacturer Code:96906
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
AS21408BOLT - 0.19 DIA X 0.500U1653
