| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 10 | ||||
| B79224910 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE71-0049 | aa | ||
| SBE0049-01 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE70-0158 | ab | ||
| SBE0158-01 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE71-0105 | ac | ||
| SBE0105-01 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE79-0069 | ad | ||
| SBE0069-01 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE79-0089 | ae | ||
| SBE0089-01 | OIL-SCAVENGE OIL TUBES-ENGINE | af | ||
| 070 | 5W1983 | • BRACKET | aa-af | 1 |
| 071 | 4W0002 | • NUT - .250 DIA | aa-af | 2 |
| 074 | 4W0164 | • BOLT - .250 DIA X .625 | aa-af | 2 |
| 096 | AS43013-120 | • RING - SEALING TOROIDAL U1653 | aa-af | 1 |
| 100 | 5A8748 | • TUBE - A/O | aa-af | 1 |
| 133 | 4W0102 | • BOLT - .190 DIA X .438 | aa-af | 1 |
| 134 | 5W1086 | • WASHER | aa-af | 1 |
| 136 | 400WSS16 | • CLIP 83930 | aa-af | 1 |
| 140 | 4W0043 | • NUT - .190 DIA | aa-af | 1 |
| 202 | AS27687 | • • ADAPTOR - ELBOW TUBE U1653 | aa-af | 1 |
| 222 | 5W1067 | • • LUG - BRAZED | aa-af | 1 |
| 242 | 5A8608 | • • HOUSING - RESTRICTOR | aa-af | 1 |
| 470 | 5W8248 | • BRACKET PRE SBE70-0158 | aa-ad | 1 |
| 470A | 6A4712 | • BRACKET POST SBE70-0158 PRE SBE79-0069 | aa-ad | 1 |
| 470B | 6A7634 | • BRACKET POST SBE79-0069 | ae-af | 1 |
| 500 | 5A9088 | • TUBE - A/O PRE SBE71-0049 | aa | 1 |
| 500A | 5A8790 | • TUBE - A/O POST SBE71-0049 PRE SBE71-0105 | ab-ac | 1 |
| 500B | 5A8801 | • TUBE - A/O POST SBE71-0105 | ad-af | 1 |
| 514 | 4W0165 | • BOLT - .250 DIA X .688 | aa-af | 3 |
| 516 | MS9967-218 | • RING 96906 PRE SBE79-0089 | aa-af | 1 |
| 516A | AS43013-218 | • RING - 31.34 MM I/DIA X 3,53 U1653 POST SBE79-0089 | aa-af | 1 |
| 533 | 4W0104 | • BOLT - .190 DIA X .562 | aa-af | 1 |
| 534 | 5W1086 | • WASHER | aa-af | 1 |
| 536 | 400WSS16 | • CLIP 83930 | aa-af | 1 |
| 540 | 4W0043 | • NUT - .190 DIA | aa-af | 1 |
| 544 | 400WSS16 | • CLIP 83930 POST SBE71-0049 PRE SBE71-0105 | ab-ac | 1 |
| 600 | AS15785 | • • WIRE - THRUST U1653 | aa-af | 1 |
| 601 | AS15709 | • • NUT - TUBE COUPLING U1653 | aa-af | 1 |
| 602 | AS15738 | • • FERRULE - WELDING TUBE U1653 | aa-af | 1 |
| 614 | 5W1067 | • • LUG - BRAZED PRE SBE71-0049 | aa | 6 |
| 614A | 5W1067 | • • LUG - BRAZED POST SBE71-0049 PRE SBE71-0105 | ab-ac | 5 |
| 614B | 5W0123 | • • LUG POST SBE71-0105 | ad-af | 6 |
| 641 | 5W1698 | • • COLLAR - RETAINING | aa-af | 1 |
| 642 | 5A8619 | • • CONNECTR - SWIVEL | aa-af | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

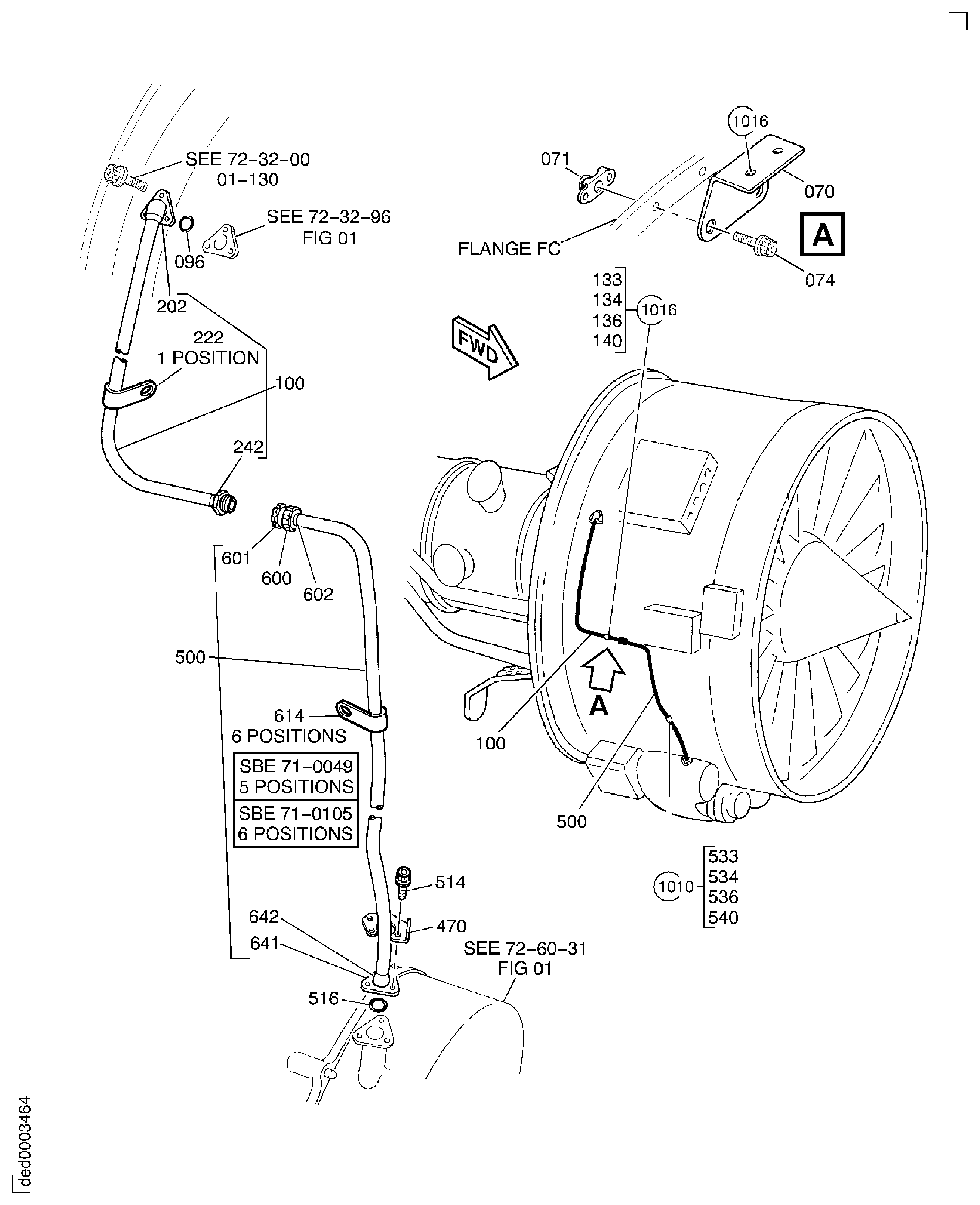

Figure: OIL-SCAVENGE OIL TUBES-ENGINE
SCAVENGE OIL TUBES ENGINE
