DMC:V2500-A1-79-22-49-13A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 13 | ||||
| B79224913 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE71-0004 | aa | ||
| SBE0004-01 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE79-0020 | ab | ||
| SBE0020-01 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBN70-0143 | ac | ||
| SBN0143-01 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE75-0010 | ad | ||
| SBE0010-01 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE70-0962 | ae | ||
| SBE0962-01 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE72-0503 | af | ||
| SBE0503-01 | OIL-SCAVENGE OIL TUBES-ENGINE | ag | ||
| -005 | 740-5019-503 | ARRGT - OIL SYSTEM INDIC 51563 | aa-ag | REF |
| -005A | 740-5019-515 | ARRGT - OIL SYSTEM INDICATING 51563 | aa-ag | REF |
| -005B | 740-5019-517 | ARRGT - OIL SYSTEM INDICATING 51563 PRE SBN70-0143 | aa-ac | REF |
| -005C | 740-5019-519 | ARRGT - OIL SYSTEM INDICATING 51563 POST SBN70-0143 | ad-ag | REF |
| -005D | 740-5019-521 | ARRGT - OIL SYSTEM INDICATING 51563 POST SBE75-0010 PRE SBE70-0962 | ae | REF |
| -005E | 740-5019-529 | ARRNGMNT 51563 POST SBE70-0962 | af-ag | REF |
| 100 | 740-5769-509 | • TUBE - ASSY OIL SCAVENGE 51563 | aa-ag | 1 |
| 100A | 740-5757-507 | • TUBE - ASSY OIL PRESSURE 51563 PRE SBN70-0143 | aa-ag | 1 |
| 100B | 740-5757-509 | • TUBE - ASSY OIL PRESSURE 51563 POST SBN70-0143 | aa-ag | 1 |
| 128 | 400WSS4 | • CLIP 83930 | aa-ag | 1 |
| 136 | 400WSS4 | • CLIP 83930 | aa-ag | 1 |
| 136A | 400WSS4 | • CLIP 83930 PRE SBE71-0004 | aa | 1 |
| 144 | 400WSS4 | • CLIP 83930 | aa-ag | 1 |
| 149 | AS21408 | • BOLT - .190 DIA X .500 U1653 | aa-ag | 1 |
| 150 | SP154D | • WASHER - .190 DIA K7766 | aa-ag | 2 |
| 152 | 400WSS4 | • CLIP 83930 | aa-ag | 1 |
| 156 | AS20624 | • NUT - .190 DIA U1653 | aa-ag | 1 |
| 157 | 4W0103 | • BOLT - .190 DIA X .500 | aa-ag | 1 |
| 158 | SP154D | • WASHER - .190 DIA K7766 | aa-ag | 1 |
| 160 | 400WSS4 | • CLIP 83930 | aa-ag | 1 |
| 164 | 4W0001 | • NUT - .190 DIA | aa-ag | 1 |
| 165 | AS21408 | • BOLT - .190 DIA X .500 U1653 PRE SBE71-0004 | aa | 1 |
| 166 | SP154D | • WASHER - .190 DIA K7766 PRE SBE71-0004 | aa | 2 |
| 168 | 400WSS4 | • CLIP 83930 PRE SBE71-0004 | aa | 1 |
| 172 | AS20624 | • NUT - .190 DIA U1653 PRE SBE71-0004 | aa | 1 |
| 173 | 4W0103 | • BOLT - .190 DIA X .500 | aa-ag | 1 |
| 174 | SP154D | • WASHER - .190 DIA K7766 | aa-ag | 1 |
| 176 | 400WSS4 | • CLIP 83930 | aa-ag | 1 |
| 180 | AS41104 | • NUT - .190 DIA U1653 | aa-ag | 1 |
| 181 | 4W0103 | • BOLT - .190 DIA X .500 | aa-ag | 1 |
| 182 | SP154D | • WASHER - .190 DIA K7766 | aa-ag | 1 |
| 184 | 400WSS4 | • CLIP 83930 | aa-ag | 1 |
| 188 | 4W0001 | • NUT - .190 DIA | aa-ag | 1 |
| 192 | 400WSS4 | • CLIP 83930 POST SBE71-0004 | ab-ag | 1 |
| 500 | 740-5763-507 | • TUBE - ASSY OIL 51563 | aa-ag | 1 |
| 510 | MS21902-04S | • UNION 96906 | aa-ag | 1 |
| 514 | AS43003-904 | • RING - 8.92 MM X 1.83 MM U1653 | aa-ag | 1 |
| 525 | 4W0103 | • BOLT - .190 DIA X .500 | aa-ag | 1 |
| 526 | SP154D | • WASHER - .190 DIA K7766 | aa-ag | 1 |
| 528 | 400WSS4 | • CLIP 83930 | aa-ag | 1 |
| 532 | 4W0001 | • NUT - .190 DIA | aa-ag | 1 |
| 900 | 740-5779-501 | • BRACKET 51563 PRE SBE75-0010 | aa-ad | 1 |
| 900A | 740-5782-501 | • PLATE - ASSY COLLECTOR 51563 POST SBE75-0010 PRE SBE70-0962 | aa-ae | 1 |
| 900B | 740-5779-501 | • BRACKET 51563 POST SBE70-0962 | aa-ag | 1 |
| 901 | 4W0002 | • NUT - .250 DIA PRE SBE70-0962 | aa-ae | 2 |
| 901A | 4W0002 | • NUT - .250 DIA POST SBE70-0962 | af-ag | 3 |
| 902 | SP155E | • WASHER K7766 PRE SBE70-0962 | aa-ae | 2 |
| 902A | SP155E | • WASHER K7766 POST SBE70-0962 | af-ag | 3 |
| 904 | 4W0166 | • BOLT - .250 DIA X .750 PRE SBE79-0020 | aa-ab | 2 |
| 904A | 4W0168 | • BOLT - .250 DIA X .875 POST SBE79-0020 PRE SBE70-0962 | ac-ae | 2 |
| 904B | 4W0168 | • BOLT - .250 DIA X .875 POST SBE70-0962 | af-ag | 3 |
| 904C | AS22515 | • BOLT - .250 DIA X .938 U1653 POST SBE72-0503 | ag | 2 |
| 904D | AS22515 | • BOLT - .250 DIA X .938 U1653 POST SBE72-0503 | ag | 2 |
| 904E | AS22515 | • BOLT - .250 DIA X .938 U1653 POST SBE72-0503 | ag | 2 |
| -906 | NAS1149C0463R | • WASHER 80205 POST SBE72-0503 | ag | 1 |
| 906A | NAS1149C0463R | • WASHER 80205 POST SBE72-0503 | ag | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

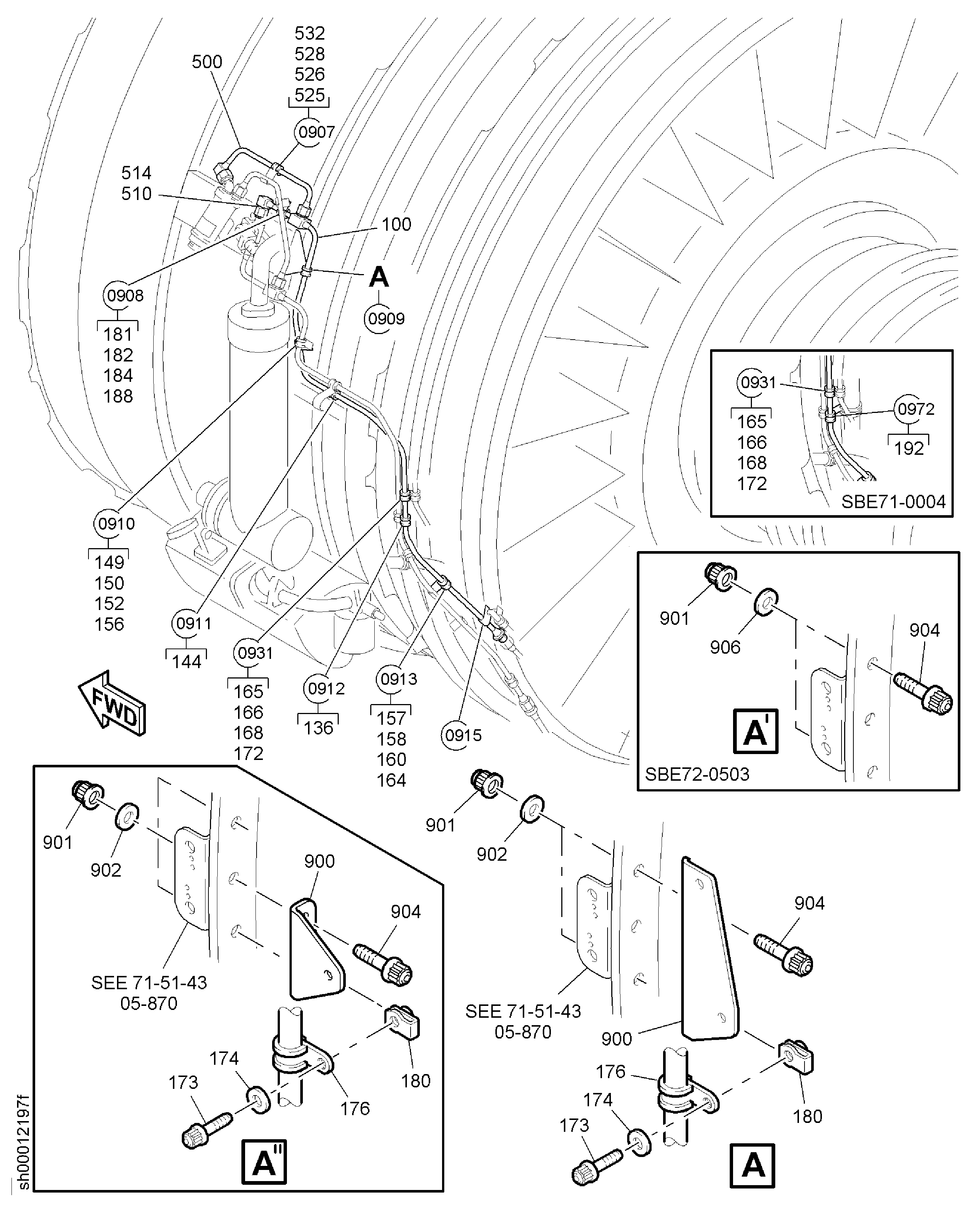

Figure: OIL-SCAVENGE OIL TUBES-ENGINE
SCAVENGE OIL TUBES-ENGINE
