| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B79235101 | OIL-NO.4 BEARING COMPARTMENT SCAVENGE VALVE, PRE SBE79-0018 | aa | ||
| SBE0018-01 | OIL-NO.4 BEARING COMPARTMENT SCAVENGE VALVE, PRE SBE70-0099 | ab | ||
| SBE0099-01 | OIL-NO.4 BEARING COMPARTMENT SCAVENGE VALVE, PRE SBE79-0044 | ac | ||
| SBE0044-01 | OIL-NO.4 BEARING COMPARTMENT SCAVENGE VALVE, PRE SBE79-0057 | ad | ||
| SBE0057-01 | OIL-NO.4 BEARING COMPARTMENT SCAVENGE VALVE, PRE SBE72-0664 | ae | ||
| SBE0664-01 | OIL-NO.4 BEARING COMPARTMENT SCAVENGE VALVE | af | ||
| 100 | 1648MK1 | • VALVE - NO.4 BEARING SCAVENGE K0131 REF No. 5L0005 | aa-ae | 1 |
| 100A | 1648MK2 | • VALVE - SCAVENGE K0131 REF No. 5L0022 PRE SBE79-0044 | aa-ae | 1 |
| 100B | 1779MK2 | • VALVE - SCAVENGE-NO.4 BRG K0131 REF No. 5L0062 POST SBE79-0044 PRE SBE79-0057 | aa-ae | 1 |
| 100C | 32F0003 | • VALVE - SCAVENGE B1316 POST SBE79-0057 | aa-ae | 1 |
| 120 | 4W0163 | • BOLT - .250 DIA X .562 Optional Part 4W0163 PRE SBE79-0018 | aa | 3 |
| 120A | 4W0165 | • BOLT - .250 DIA X .688 Optional Part 4W0165 POST SBE79-0018 | aa-ae | 3 |
| 130 | AS43013-221 | • RING - SEALING TOROIDAL, 36.10 MM I/DIA X 3,53 U1653 | aa-ae | 1 |
| 140 | AS27468 | • • UNION - DOUBLE ENDED TUBE U1653 POST SBE70-0099 | ac-ae | 1 |
| 143 | STD831-16 | • • RING - SEALING TOROIDAL K0131 POST SBE70-0099 PRE SBE72-0664 | ac-ae | 1 |
| 143A | STD1031-4907 | • • RING - SEALING TOROIDAL U1602 POST SBE72-0664 | ak | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

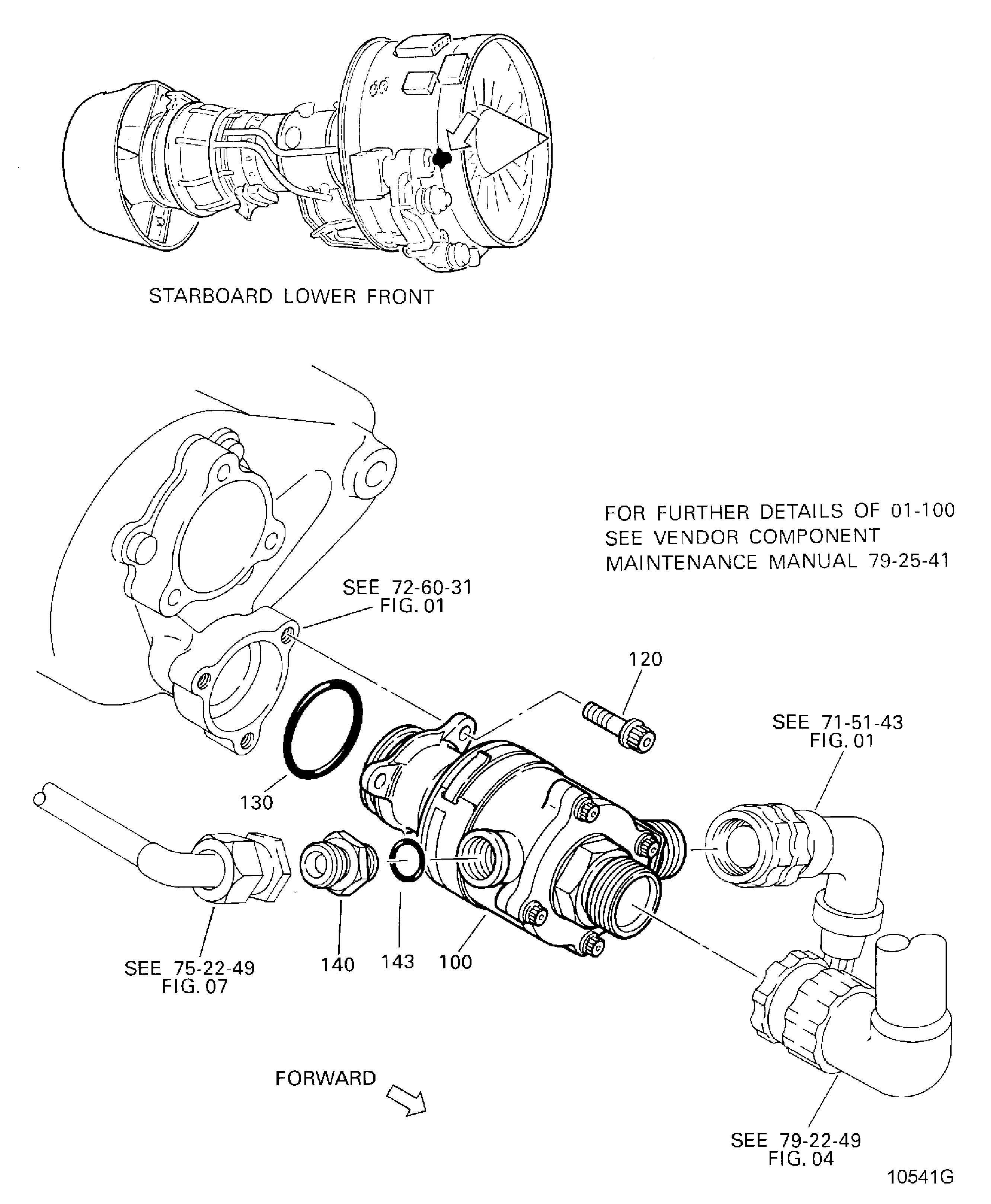

Figure: OIL-NO.4 BEARING COMPARTMENT SCAVENGE VALVE
NO.4 BEARING COMPARTMENT
