DMC:V2500-A1-79-31-15-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B79311501 | OIL-OIL QUANTITY TRANSMITTER, PRE SBE79-0017 | aa | ||
| SBE0017-01 | OIL-OIL QUANTITY TRANSMITTER, PRE SBN70-0143 | ab | ||
| SBN0143-01 | OIL-OIL QUANTITY TRANSMITTER, PRE SBE75-0010 | ac | ||
| SBE0010-01 | OIL-OIL QUANTITY TRANSMITTER, PRE SBE71-0118 | ad | ||
| SBE0118-01 | OIL-OIL QUANTITY TRANSMITTER, PRE SBE70-0962 | ae | ||
| SBE0962-01 | OIL-OIL QUANTITY TRANSMITTER, PRE SBE79-0065 | af | ||
| SBE0065-01 | OIL-OIL QUANTITY TRANSMITTER, PRE SBE70-0965 | ag | ||
| SBE0965-01 | OIL-OIL QUANTITY TRANSMITTER | ah | ||
| -005 | 740-5019-503 | ARRGT - OIL SYSTEM INDIC 51563 | aa-ah | REF |
| -005A | 740-5019-513 | ARRGT - OIL SYSTEM INDICATING 51563 | aa-ah | REF |
| -005B | 740-5019-515 | ARRGT - OIL SYSTEM INDICATING 51563 | aa-ah | REF |
| -005C | 740-5019-517 | ARRGT - OIL SYSTEM INDICATING 51563 PRE SBN70-0143 | aa-ab | REF |
| -005D | 740-5019-519 | ARRGT - OIL SYSTEM INDICATING 51563 POST SBN70-0143 | ac-ah | REF |
| -005E | 740-5019-521 | ARRGT - OIL SYSTEM INDICATING 51563 POST SBE75-0010 PRE SBE70-0962 | ad-ae | REF |
| -005F | 740-5019-529 | ARRNGMNT 51563 POST SBE70-0962 | af-ah | REF |
| 010 | 76-167-1A | • TRNSMTTR - OIL QTY 58880 | aa-ah | 1 |
| 010A | 76-167-1 | • TRNSMTTR - OIL QUANTITY 58880 | aa-ah | 1 |
| 010B | 76-167-1 | • TRNSMTTR - OIL QUANTITY 58880 | aa-ah | 1 |
| 010C | 76-167-2 | • TRNSMTTR - OIL QUANTITY 58880 PRE SBE79-0065 | aa-af | 1 |
| 010D | 76-167-4 | • TRNSMTTR 58880 POST SBE79-0065 PRE SBE70-0965 | ag-ah | 1 |
| 010E | 76-167-10 | • TRNSMTTR - OIL QUANTITY 58880 POST SBE70-0965 | ag-ah | 1 |
| 015 | 6A5746 | • BRACKET POST SBE71-0118 | ae-ah | 1 |
| 020 | AS21511 | • BOLT - .250 DIA X .688 U1653 PRE SBE79-0017 | aa | 4 |
| 020A | 4W0169 | • BOLT - .250 DIA X .938 POST SBE79-0017 | ab-ah | 4 |
| 025 | 740-5140-501 | • SPACER 51563 POST SBE79-0017 | ab-ah | 1 |
| 030 | AS43013-145 | • RING U1653 | aa-ah | 1 |
| 032 | AS43013-151 | • RING U1653 POST SBE79-0017 | ab-ah | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

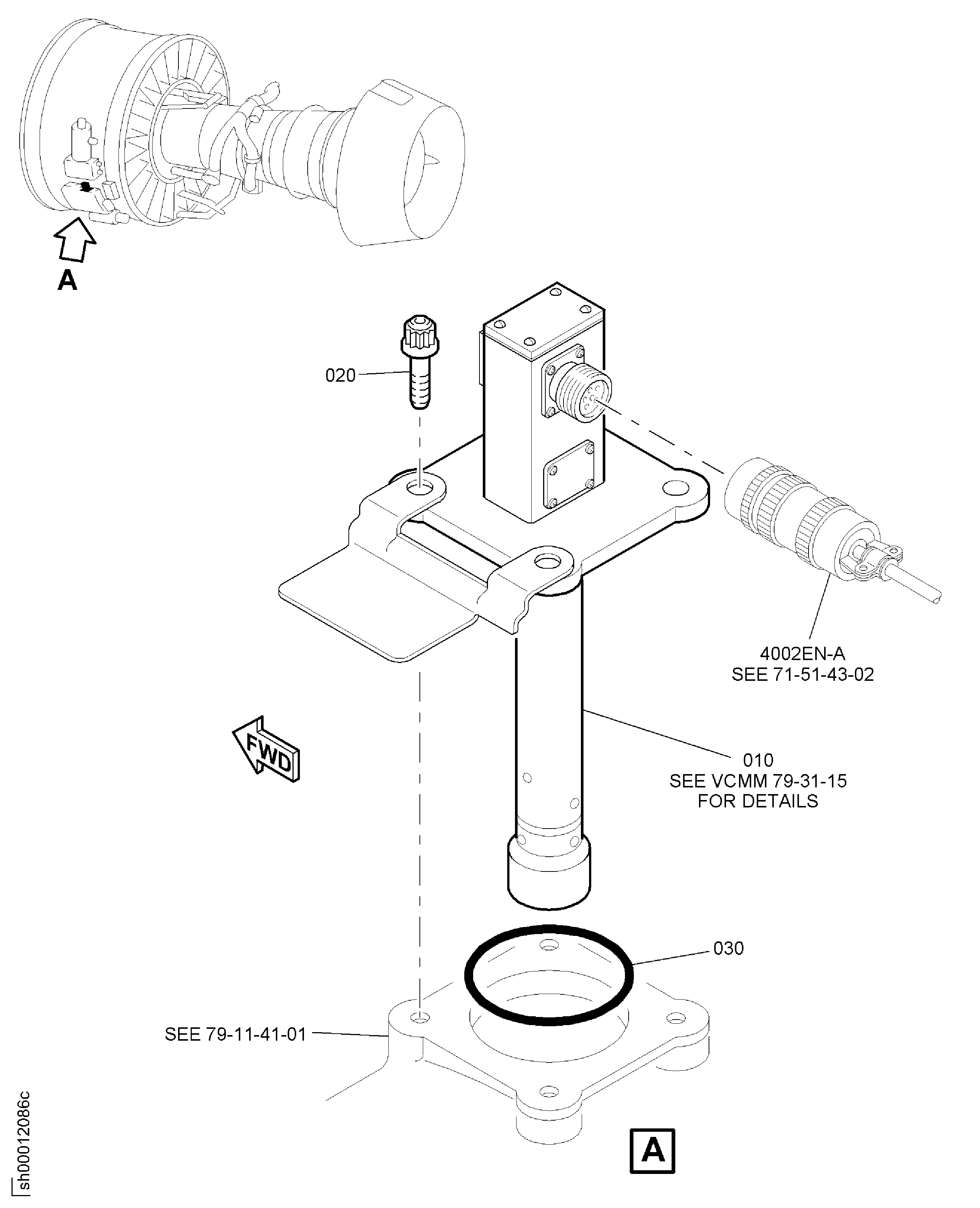

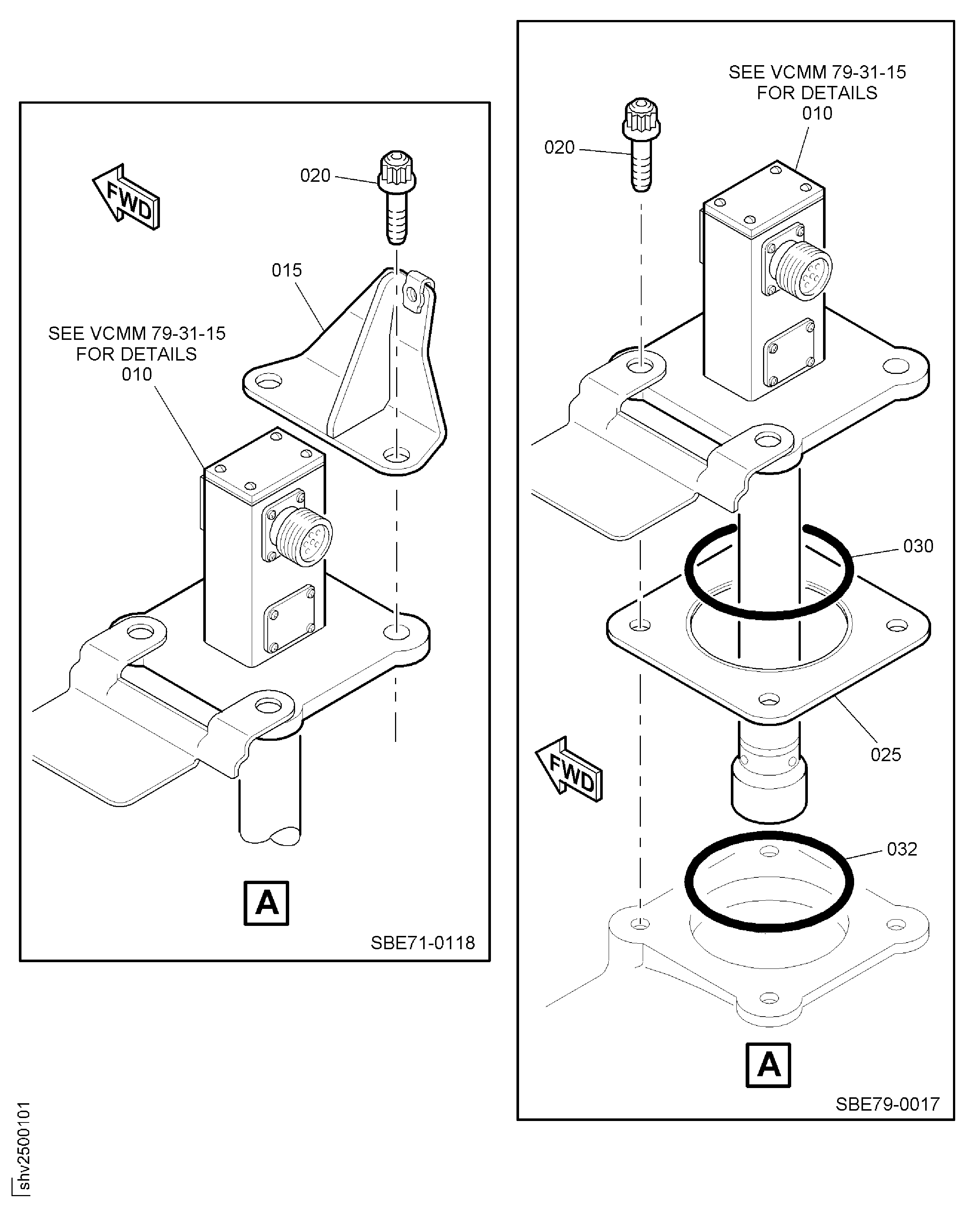

Figure: OIL-OIL QUANTITY TRANSMITTER
TRANSMITTER OIL QUANTITY
TRANSMITTER OIL QUANTITY
