DMC:V2500-A1-79-32-16-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B79321601 | OIL-SCAVENGE OIL TEMPERATURE THERMOCOUPLE | aa | ||
| -002 | 4W6070 | ARR | aa | REF |
| 010 | 56B98A | • THERMCPL - OIL SCAV TEMP 58880 | aa | 1 |
| 010A | 56B98 | • THERMCPL - OIL SCAV TEMP 58880 | aa | 1 |
| 020 | AS43003-907 | • RING - SEALING TOROIDAL, .530 I/DIA X .082 U1653 | aa | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

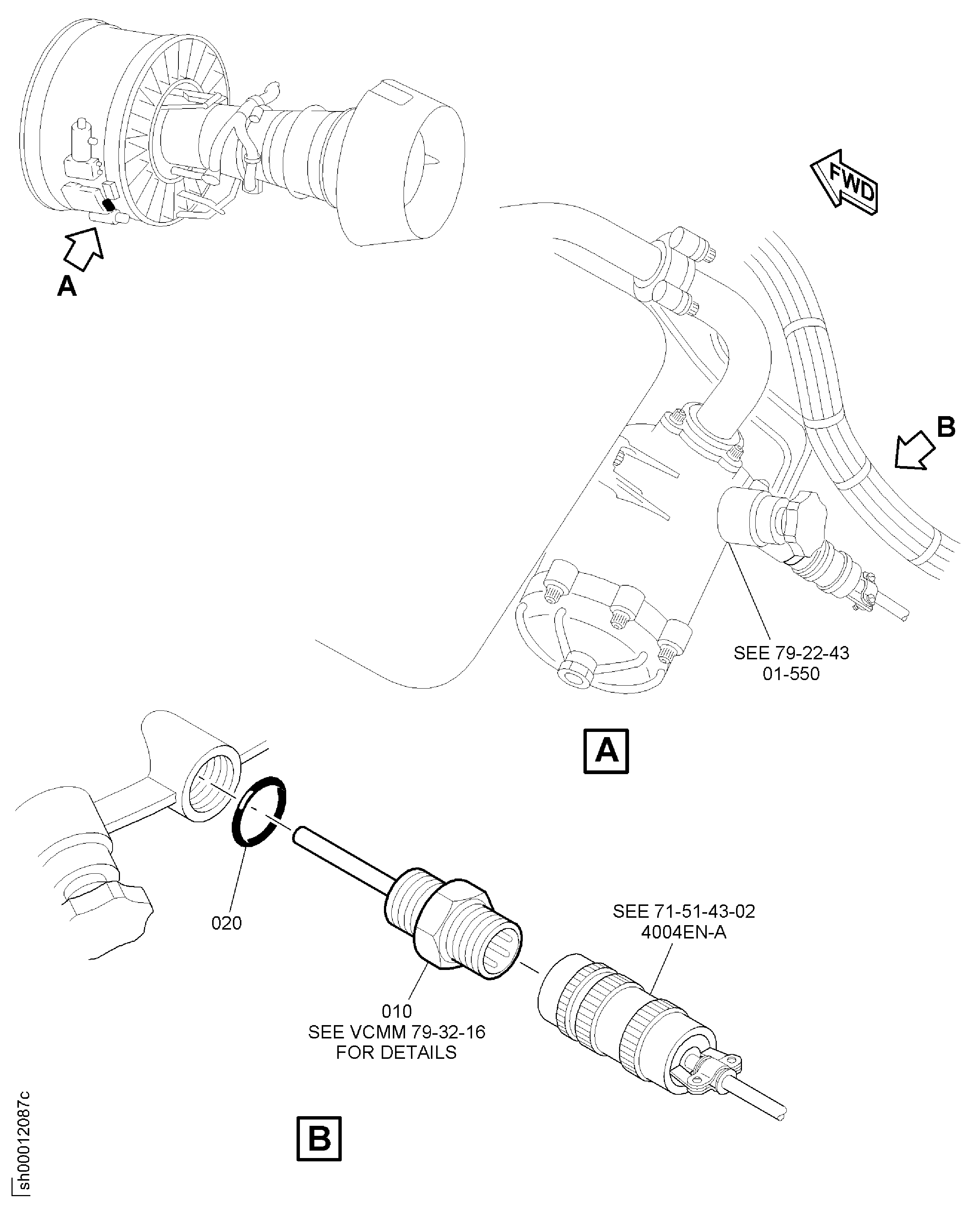

Figure: OIL-SCAVENGE OIL TEMPERATURE THERMOCOUPLE
THERMOCOUPLE SCAVENGER
