LOW OIL PRESSURE SWITCH

DMC:V2500-A1-79-34-15-01A-941A-D|Issue No:003|Issue Date:2018-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
01
000	B79341501	LOW OIL PRESSURE SWITCH, PRE SBE75-0010	aa
000	SBE0010-01	LOW OIL PRESSURE SWITCH, PRE SBE70-0962	ab
000	SBE0962-01	LOW OIL PRESSURE SWITCH, PRE SBE70-0727	ac
000	SBE0727-01	LOW OIL PRESSURE SWITCH	ad
-005005	740-5019-503	ARRANGEMENT - OIL SYSTEM INDICATING 51563	aa-ac	REF
-005005A	740-5019-513	ARRANGEMENT - OIL SYSTEM INDICATING 51563	aa-ac	REF
-005005B	740-5019-515	ARRANGEMENT - OIL SYSTEM INDICATING 51563	aa-ac	REF
-005005C	740-5019-517	ARRANGEMENT - OIL SYSTEM INDICATING 51563	aa	REF
-005005D	740-5019-519	ARRANGEMENT - OIL SYSTEM INDICATING 51563 PRE SBE75-0010	aa	REF
-005005E	740-5019-521	ARRANGEMENT - OIL SYSTEM INDICATING 51563 POST SBE75-0010 PRE SBE70-0962	ab	REF
-005005F	740-5019-529	ARRANGEMENT - OIL SYSTEM INDICATING 51563 POST SBE70-0962	ac	REF

007007	AS43003-904	• RING - 8.92 MM X 1.83 MM U1653	aa-ac	2
009009	MS21902-4S	• UNION 96906 PRE SBE70-0727	aa-ac	2
009009A	MS21902-4R	• UNION 96906 POST SBE70-0727	ad	2

010010	21SN04-275	• SWITCH - LOW PRESS OIL DIFF 02750	aa-ac	1
010010A	21SN04-275A	• SWITCH - LOW OIL PRESSURE 02750	aa-ac	1

020020	4W0104	• BOLT - .190 DIA X .562	aa-ac	3

- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

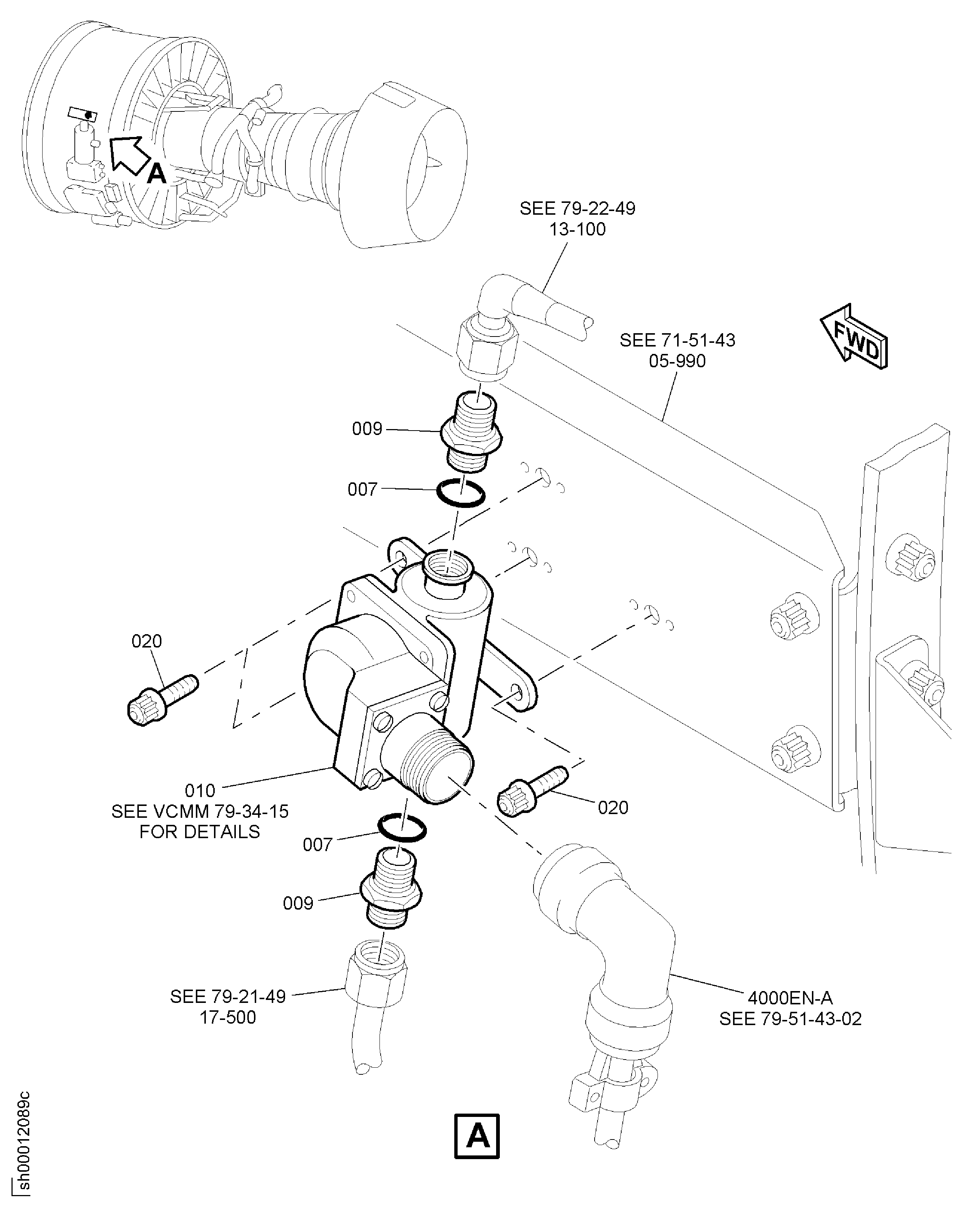

LOW OIL PRESSURE DIFFERENTIAL SWITCH

Change Type:

Removed Incorrect SB Reference And Corrected Applicability.

Manufacturer Code:	02750
Enterprise Name:	EATON CORPORATION
BU Name:	EATON CORPORATION
Department:	AEROSPACE CONTROLS DIVISION
Street:	15 DURANT AVENUE
P.O. Box:	504
City:	BETHEL
State:	CONNECTICUT
Zip Code:	06801
Country:	USA

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	51563
Enterprise Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
Street:	850 LAGOON DRIVE
City:	CHULA VISTA
State:	CA
Zip Code:	91910-2098
Country:	USA
Phone Number:	1-619-691-2089
Fax Number:	1-619-691-6195

Manufacturer Code:	96906
Enterprise Name:	MILITARY STANDARDS MANUAL 4120 3-M
BU Name:	MILITARY STANDARDS MANUAL 4120 3-M
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

Part Number:	21SN04-275A
Part Name:	SWITCH - LOW OIL PRESSURE
Manufacturer Code:	02750

Part Number:	21SN04-275
Part Name:	SWITCH - LOW PRESS OIL DIFF
Manufacturer Code:	02750

Part Number:

4W0104

Part Name:

BOLT - .190 DIA X .562

Manufacturer Code:

0AM53

Optional Parts

Part Number	Part Name	Manufacturer
4W0344	BOLT , BIHEX HD - .190 DIA X .562	0AM53
