STARTING-STARTER DUCT

DMC:V2500-A1-80-13-49-01A-941A-D|Issue No:003|Issue Date:2020-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig. Item		Part No.	Description	Effect/Model Applic.	UPA
01
000		B80134901	STARTING - STARTER DUCT, PRE SBN70-0132	aa
000		SBN0132-01	STARTING - STARTER DUCT, PRE SBE80-0001	ab
000		SBE0001-01	STARTING - STARTER DUCT, PRE SBN80-0006	ac
000		SBN0006-01	STARTING - STARTER DUCT, PRE SBN70-0439	ad
000		SBN0439-01	STARTING - STARTER DUCT, PRE SBE70-0670	ae
000		SBE0670-01	STARTING - STARTER DUCT, PRE SBN70-0744	af
000		SBN0744-01	STARTING - STARTER DUCT	ag
010010		740-5121-505	• DUCT - UPPER, ASSEMBLY OF 51563 PRE SBN70-0132	aa-ac	1
010010A		740-5121-507	• DUCT - UPPER, ASSEMBLY OF 51563 POST SBN70-0132 PRE SBN80-0006	aa-ag	1
010010B		740-5121-509	• DUCT - UPPER, ASSEMBLY OF 51563 POST SBN80-0006	aa-ag	1

020020		AS23024	• BOLT U1653	aa-ag	2
030030		740-5111-501	• BUSHING - FLANGED 51563	aa-ag	2
040040		SP156E	• WASHER K7766	aa-ag	2
050050		AS20625	• NUT, SELF LOCKING, BIHEX, .250 DIA U1653	aa-ag	2
060060		RFY04UJ	• BEARING K7067 PRE SBN70-0439	aa-ad	1
060060A		P3A1830	• BEARING K7067 POST SBN70-0439	aa-ag	1
060060B		B0308015	• BEARING K4585 POST SBN70-0744	ag	1
070070		RMY04UJ	• BEARING - LINK, MALE K7067 PRE SBN70-0439	aa-ad	1
070070A		P3A1820	• BEARING - ROD END, ASSEMBLY OF K7067 POST SBN70-0439	aa-ag	1
072072		A105GT	• NUT - 0.312 DIA K7766	aa-ag	1
073073		SP108G	• WASHER - TAB K7766	aa-ag	1

075075		740-5135-501	• BRACKET - LINK 51563	aa-ag	1
076076		NAS6303U4	• BOLT 80205 POST SBE80-0001	ac-ag	1

077077		NAS6303U3	• BOLT 80205 PRE SBE80-0001	aa-ab	2
077077A		NAS6303U3	• BOLT 80205 POST SBE80-0001	ac-ag	1
080080		740-5111-501	• BUSHING - FLANGED 51563	aa-ag	2
081081		SP156E	• WASHER K7766	aa-ag	2
083083		AS23024	• BOLT U1653	aa-ag	2
085085		AS20625	• NUT, SELF LOCKING, BIHEX, .250 DIA U1653	aa-ag	2
088088		RFY04UJ	• BEARING K7067 PRE SBN70-0439	aa-ad	2
088088A		P3A1830	• BEARING K7067 POST SBN70-0439	aa-ag	2
088088B		B0308015	• BEARING K4585 POST SBN70-0744	ag	2
090090		740-5169-503	• ROD 51563	aa-ag	1
092092		A105GT	• NUT - 0.312 DIA K7766	aa-ag	2
093093		SP108G	• WASHER - TAB K7766	aa-ag	2
111111		AS23024	• BOLT U1653	aa-ag	2
115115		740-5111-501	• BUSHING - FLANGED 51563	aa-ag	2
119119		SP156E	• WASHER K7766	aa-ag	2
122122		AS20625	• NUT, SELF LOCKING, BIHEX, .250 DIA U1653	aa-ag	2
125125		RFY04UJ	• BEARING K7067 PRE SBN70-0439	aa-ad	2
125125A		P3A1830	• BEARING K7067 POST SBN70-0439	aa-ag	2
125125B		B0308015	• BEARING K4585 POST SBN70-0744	ag	2
130130		740-5123-503	• ROD 51563	aa-ag	1
132132		A105GT	• NUT - 0.312 DIA K7766	aa-ag	2
133133		SP108G	• WASHER - TAB K7766	aa-ag	2
140140		AS23024	• BOLT U1653	aa-ag	2
150150		740-5111-501	• BUSHING - FLANGED 51563	aa-ag	2
160160		SP156E	• WASHER K7766	aa-ag	2
170170		AS20625	• NUT, SELF LOCKING, BIHEX, .250 DIA U1653	aa-ag	2
180180		RFY04UJ	• BEARING K7067 PRE SBN70-0439	aa-ad	2
180180A		P3A1830	• BEARING K7067 POST SBN70-0439	aa-ag	2
180180B		B0308015	• BEARING K4585 POST SBN70-0744	ag	2
190190		740-5123-505	• ROD 51563	aa-ag	1
192192		A105GT	• NUT - 0.312 DIA K7766	aa-ag	2
193193		SP108G	• WASHER - TAB K7766	aa-ag	2
200200		6299256-0400	• COUPLING K6712	aa-ag	1

-300300		HS790424	• VALVE - STARTER CONTROL 73030	aa-ag	REF
500500		740-5122-501	• DUCT - LOWER, ASSEMBLY OF 51563	aa-ag	1

510510		6299258-0400	• COUPLING K6712	aa-ag	1
520520		NK103102-0400	• SEAL 00624 PRE SBE70-0670	aa-ae	1
520520A		NK103102-0400	• SEAL 00624 ALT S2347-400 POST SBE70-0670	af-ag	1
520520B		S2347-400	• SEAL 51563 ALT NK103102-0400 POST SBE70-0670	af-ag	2
-900900	X	740-5124-504	• BRACKET - SUPPORT 51563	aa-ag	REF
-905905	X	740-5124-502	• BRACKET - SUPPORT 51563	aa-ag	REF
-920920	X	740-5124-503	• BRACKET - SUPPORT 51563	aa-ag	REF
-925925	X	740-5124-501	• BRACKET - SUPPORT 51563	aa-ag	REF

- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

DUCT-STARTER SYSTEM

Change Type:

Corrected SB Reference.

Manufacturer Code:	00624
Enterprise Name:	AEROQUIP CORPORATION
BU Name:	AEROQUIP CORPORATION
Department:	AEROSPACE DIVISION
Building:	RUSTINGTON
Street:	300 S E AVENUE
City:	JACKSON
State:	MICHIGAN
Zip Code:	49203-1972
Country:	USA

Manufacturer Code:	51563
Enterprise Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
Street:	850 LAGOON DRIVE
City:	CHULA VISTA
State:	CA
Zip Code:	91910-2098
Country:	USA
Phone Number:	1-619-691-2089
Fax Number:	1-619-691-6195

Manufacturer Code:	73030
Enterprise Name:	UNITED TECHNOLOGIES INTERNATIONAL INC
BU Name:	UNITED TECHNOLOGIES INTERNATIONAL INC
Department:	HAMILTON STANDARD DIVISION
Street:	ONE HAMILTON ROAD
City:	WINDSOR LOCKS
State:	CONNECTICUT
Zip Code:	06096
Country:	USA

Manufacturer Code:	80205
Enterprise Name:	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
BU Name:	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	K4585
Enterprise Name:	SHORT BROS PLC
BU Name:	NULL
Street:	AIRPORT ROAD
P.O. Box:	PO BOX 241 BT3
City:	QUEENS ISLAND
State:	BELFAST
Zip Code:	9DZ
Country:	UNITED KINGDOM

Manufacturer Code:	K6712
Enterprise Name:	R F SAYWELL LTD
BU Name:	R F SAYWELL LTD
Street:	GATWICK AIRPORT SOUTH
City:	GATWICK
State:	SURREY
Country:	ENGLAND

Manufacturer Code:	K7067
Enterprise Name:	ROSE BEARINGS LTD
BU Name:	ROSE BEARINGS LTD
Street:	DODDINGTON ROAD
City:	LINCOLN
State:	CALIFORNIA
Zip Code:	LN6 3RA
Country:	ENGLAND

Manufacturer Code:	K7766
Enterprise Name:	K7766
BU Name:	British Standards Institution
Street:	2 Park Street
City:	London
Zip Code:	AW1A 2BS
Country:	England

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

Part Number:	6299256-0400
Part Name:	COUPLING
Manufacturer Code:	K6712

Part Number:	6299258-0400
Part Name:	COUPLING
Manufacturer Code:	K6712

Part Number:	740-5111-501
Part Name:	BUSHING - FLANGED
Manufacturer Code:	51563

Part Number:	740-5121-505
Part Name:	DUCT - UPPER, ASSEMBLY OF
Manufacturer Code:	51563

Part Number:	740-5121-507
Part Name:	DUCT - UPPER, ASSEMBLY OF
Manufacturer Code:	51563

Part Number:	740-5121-509
Part Name:	DUCT - UPPER, ASSEMBLY OF
Manufacturer Code:	51563

Part Number:	740-5122-501
Part Name:	DUCT - LOWER, ASSEMBLY OF
Manufacturer Code:	51563

Part Number:	740-5123-503
Part Name:	ROD
Manufacturer Code:	51563

Part Number:	740-5123-505
Part Name:	ROD
Manufacturer Code:	51563

Part Number:	740-5124-501
Part Name:	BRACKET - SUPPORT
Manufacturer Code:	51563

Part Number:	740-5124-502
Part Name:	BRACKET - SUPPORT
Manufacturer Code:	51563

Part Number:	740-5124-503
Part Name:	BRACKET - SUPPORT
Manufacturer Code:	51563

Part Number:	740-5124-504
Part Name:	BRACKET - SUPPORT
Manufacturer Code:	51563

Part Number:	740-5135-501
Part Name:	BRACKET - LINK
Manufacturer Code:	51563

Part Number:	740-5169-503
Part Name:	ROD
Manufacturer Code:	51563

Part Number:	A105GT
Part Name:	NUT - 0.312 DIA
Manufacturer Code:	K7766

Part Number:	AS20625
Part Name:	NUT, SELF LOCKING, BIHEX, .250 DIA
Manufacturer Code:	U1653
Unit Of Issue:	EA

Part Number:

AS23024

Part Name:

BOLT

Manufacturer Code:

U1653

Optional Parts

Part Number	Part Name	Manufacturer
AS57224	BOLT	U1653
AS61424	BOLT - 0.250 UNJF	U1653

Part Number:

AS54624

Part Name:

BOLT, .250 DIA X 1.500

Manufacturer Code:

U1653

Unit Of Issue:

Optional Parts

Part Number	Part Name	Manufacturer
AS23524	BOLT - 0.250 DIA X 1.500	U1653

Part Number:

AS57224

Part Name:

BOLT

Manufacturer Code:

U1653

Unit Of Issue:

Optional Parts

Part Number	Part Name	Manufacturer
AS54624	BOLT, .250 DIA X 1.500	U1653
AS61424	BOLT - 0.250 UNJF	U1653

Part Number:

AS61424

Part Name:

BOLT - 0.250 UNJF

Manufacturer Code:

U1653

Unit Of Issue:

Optional Parts

Part Number	Part Name	Manufacturer
AS54624	BOLT, .250 DIA X 1.500	U1653
AS57224	BOLT	U1653

Part Number:	B0308015
Part Name:	BEARING
Manufacturer Code:	K4585

Part Number:	HS790424
Part Name:	VALVE - STARTER CONTROL
Manufacturer Code:	73030

Part Number:	NAS6303U3
Part Name:	BOLT
Manufacturer Code:	80205

Part Number:	NAS6303U4
Part Name:	BOLT - HEXAGON
Manufacturer Code:	80205

Part Number:

NK103102-0400

Part Name:

SEAL

Manufacturer Code:

00624

Optional Parts

Part Number	Part Name	Manufacturer
S2347-400	SEAL	51563

Part Number:	P3A1820
Part Name:	BEARING - ROD END, ASSEMBLY OF
Manufacturer Code:	K7067

Part Number:	P3A1830
Part Name:	BEARING
Manufacturer Code:	K7067

Part Number:	RFY04UJ
Part Name:	BEARING
Manufacturer Code:	K7067

Part Number:	RMY04UJ
Part Name:	BEARING - LINK, MALE
Manufacturer Code:	K7067

Part Number:

S2347-400

Part Name:

SEAL

Manufacturer Code:

51563

Optional Parts

Part Number	Part Name	Manufacturer
NK103102-0400	SEALSEAL	00624

Part Number:	SP108G
Part Name:	WASHER - TAB
Manufacturer Code:	K7766

Part Number:	SP156E
Part Name:	WASHER
Manufacturer Code:	K7766

STARTING-STARTER DUCT

Export Control

Copyright

Applicability

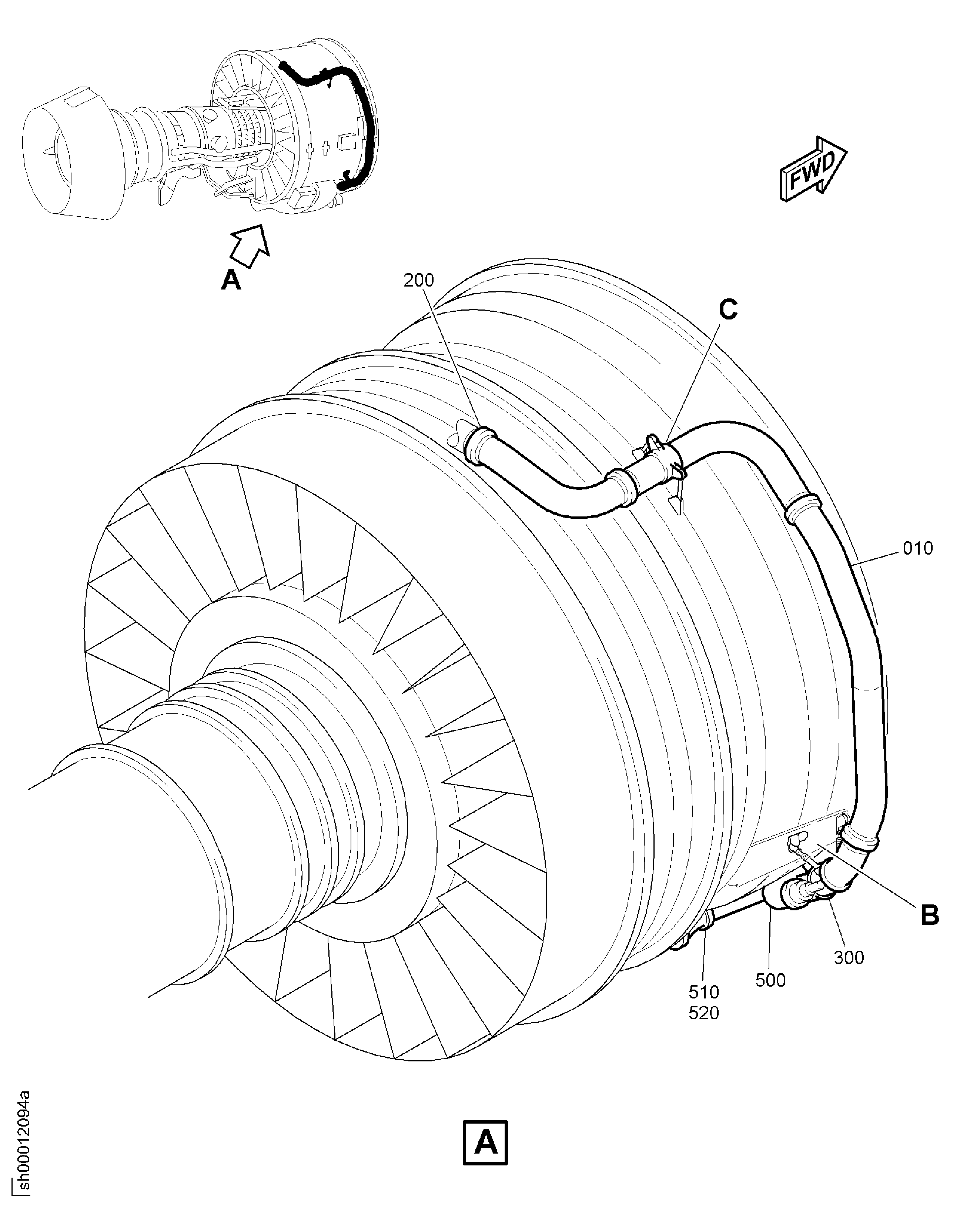

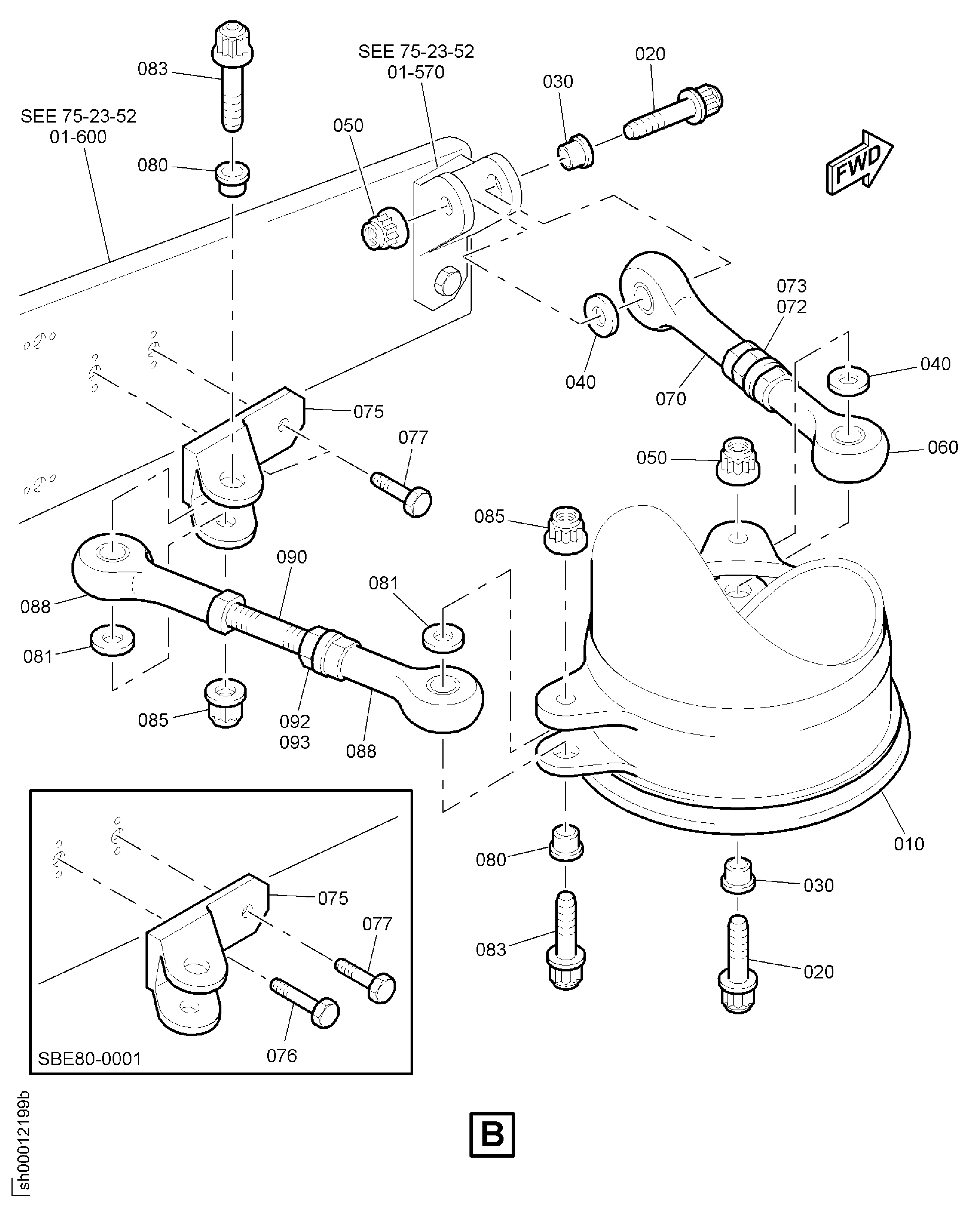

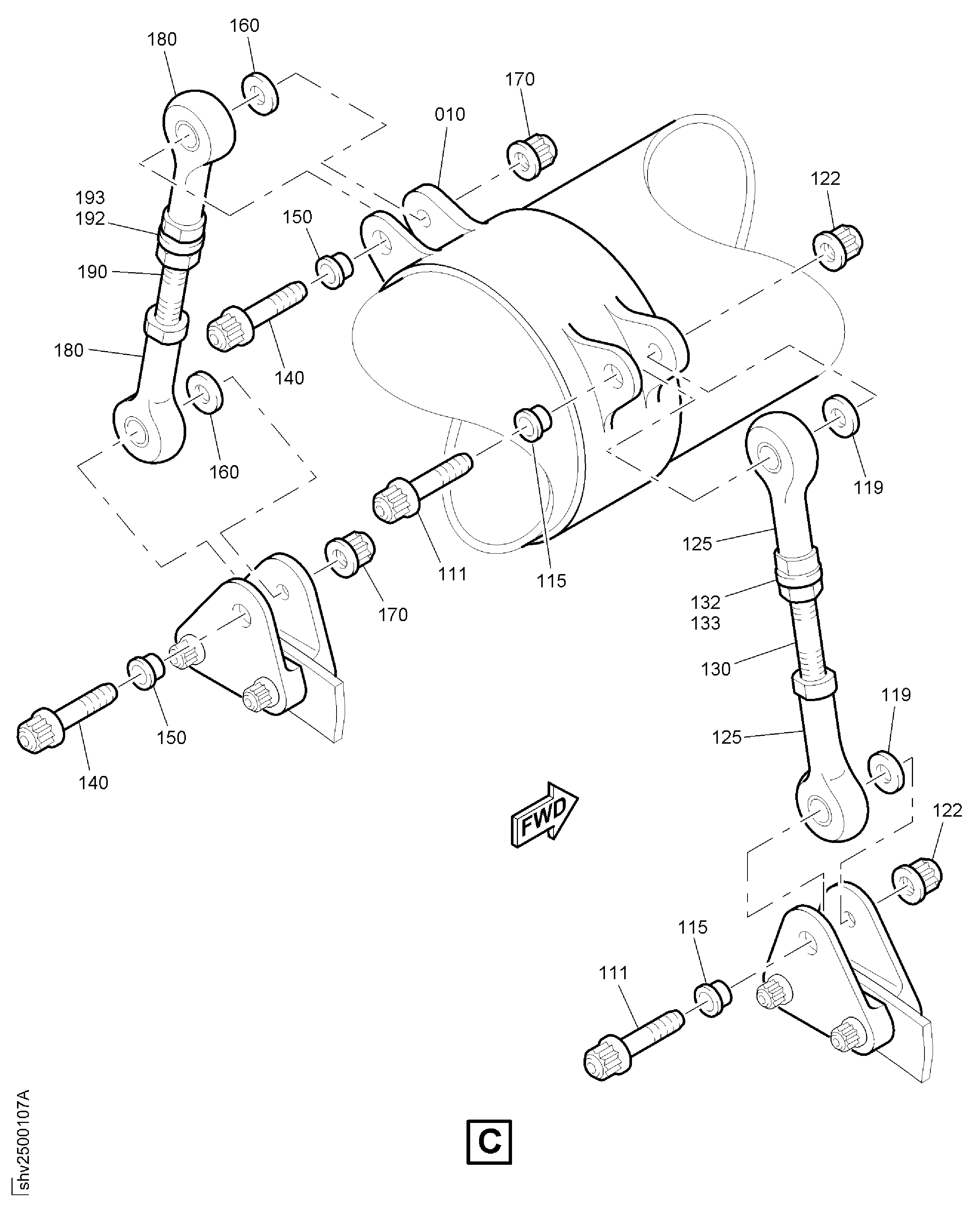

Figure: STARTING-STARTER DUCT
