| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B80135101 | STARTING - PNEUMATIC STARTER VALVE, PRE SBE80-0004 | aa | ||
| SBE0004-01 | STARTING - PNEUMATIC STARTER VALVE, PRE SBE80-0011 | ab | ||
| SBE0011-01 | STARTING - PNEUMATIC STARTER VALVE, PRE SBE80-0012 | ac | ||
| SBE0012-01 | STARTING - PNEUMATIC STARTER VALVE, PRE SBE80-0010 | ad | ||
| SBE0010-01 | STARTING - PNEUMATIC STARTER VALVE, PRE SBE70-0670 | ae | ||
| SBE0670-01 | STARTING - PNEUMATIC STARTER VALVE | af | ||
| 200 | 790424-3 | • VALVE SG215 | aa-af | 1 |
| 200A | 790424-4 | • VALVE SG215 PRE SBE80-0004 | aa-af | 1 |
| 200B | 790424-4 | • VALVE SG215 POST SBE80-0004 PRE SBE80-0011 | aa-af | 1 |
| 200C | 790424-4 | • VALVE SG215 POST SBE80-0011 PRE SBE80-0012 | aa-af | 1 |
| 200D | 790424-4 | • VALVE SG215 POST SBE80-0012 PRE SBE80-0010 | aa-af | 1 |
| 200E | 790424-4 | • VALVE SG215 POST SBE80-0010 | aa-af | 1 |
| 210 | 6299258-0400 | • COUPLING K6712 | aa-af | 2 |
| 220 | NK103102-0400 | • SEAL 00624 PRE SBE70-0670 | aa-ae | 2 |
| 220A | NK103102-0400 | • SEAL 00624 ALT S2347-400 POST SBE70-0670 | af | 2 |
| 220B | S2347-400 | • SEAL 51563 ALT NK103102-0400 POST SBE70-0670 | af | 2 |
| 248 | 69494J902 | • • RING - SEALING SG215 | aa-af | 1 |
| 250 | AN814-2DL | • • PLUG - BLEED | aa-af | 1 |
| 270 | 728872-1 | • • FILTER SG215 | aa-af | 1 |
| 275 | 788090-1 | • • SPRING SG215 | aa-af | 1 |
| 288 | 69494J906 | • • RING - SEALING SG215 | aa-af | 1 |
| 290 | AN814-6DL | • • PLUG | aa-af | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

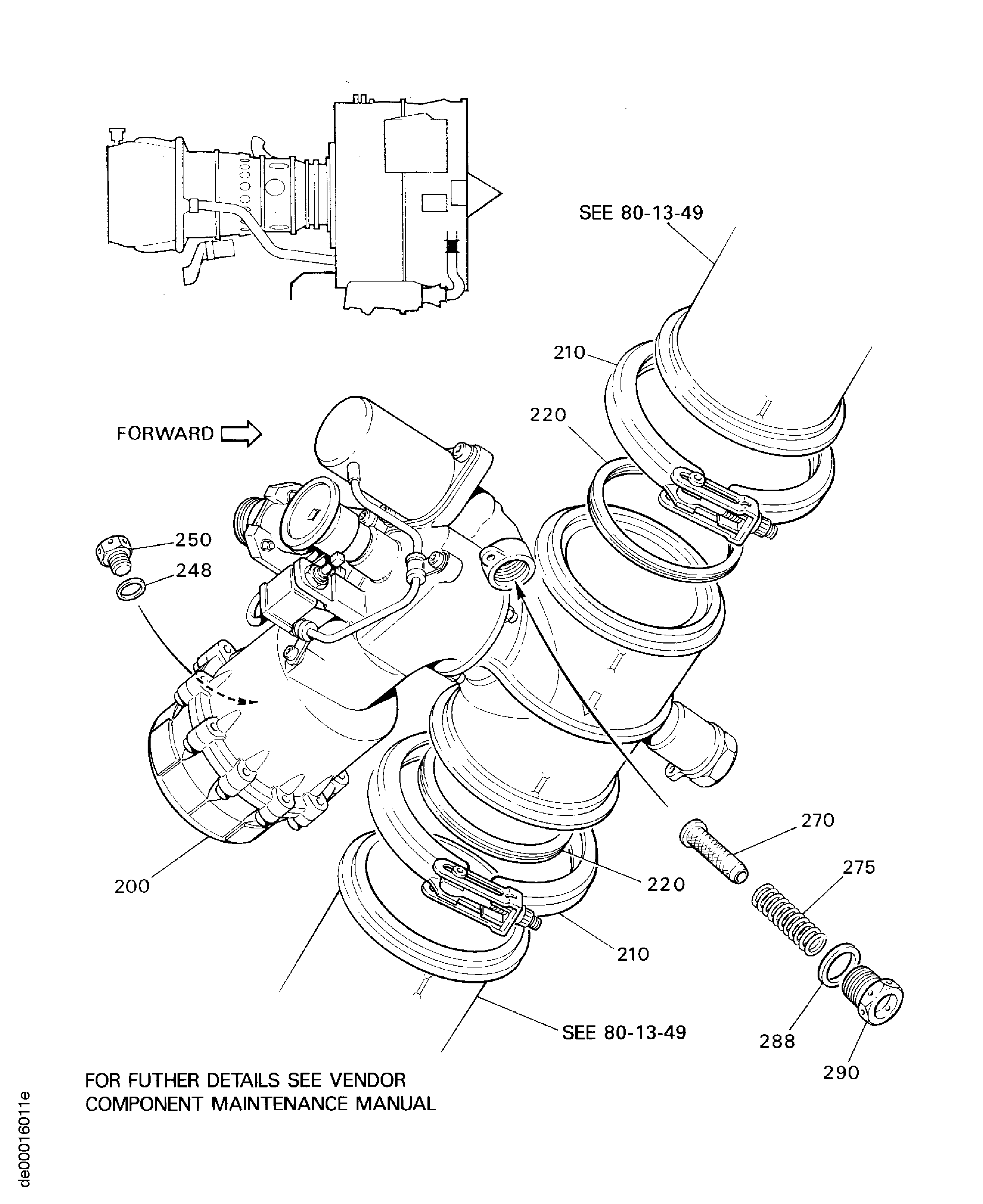

Figure: STARTING-PNEUMATIC STARTER VALVE
Pneumatic Starter Control Valve
