V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B24211501 | IDG OIL TEMPERATURE THERMOCOUPLE, PRE SBE70-0334 | aa | ||
| SBE0334-01 | IDG OIL TEMPERATURE THERMOCOUPLE | ab | ||
| 100 | 73984300 | • THERMCPL - OIL TEMP (REF NO 5U0030) | aa-ab | 1 |
| 100A | 73983700 | • THERMCPL - OIL TEMP (REF NO 5U0026) POST SBE70–0334 | ab | 1 |
| 110 | 4W0169 | • BOLT - .250 DIA X .938 Optional Part AS21515 | aa-ab | 2 |
| 120 | AS43013-112 | • RING - SEALING TOROIDAL, 12.37 MM I/D X 2.62 MM U1653 | aa-ab | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

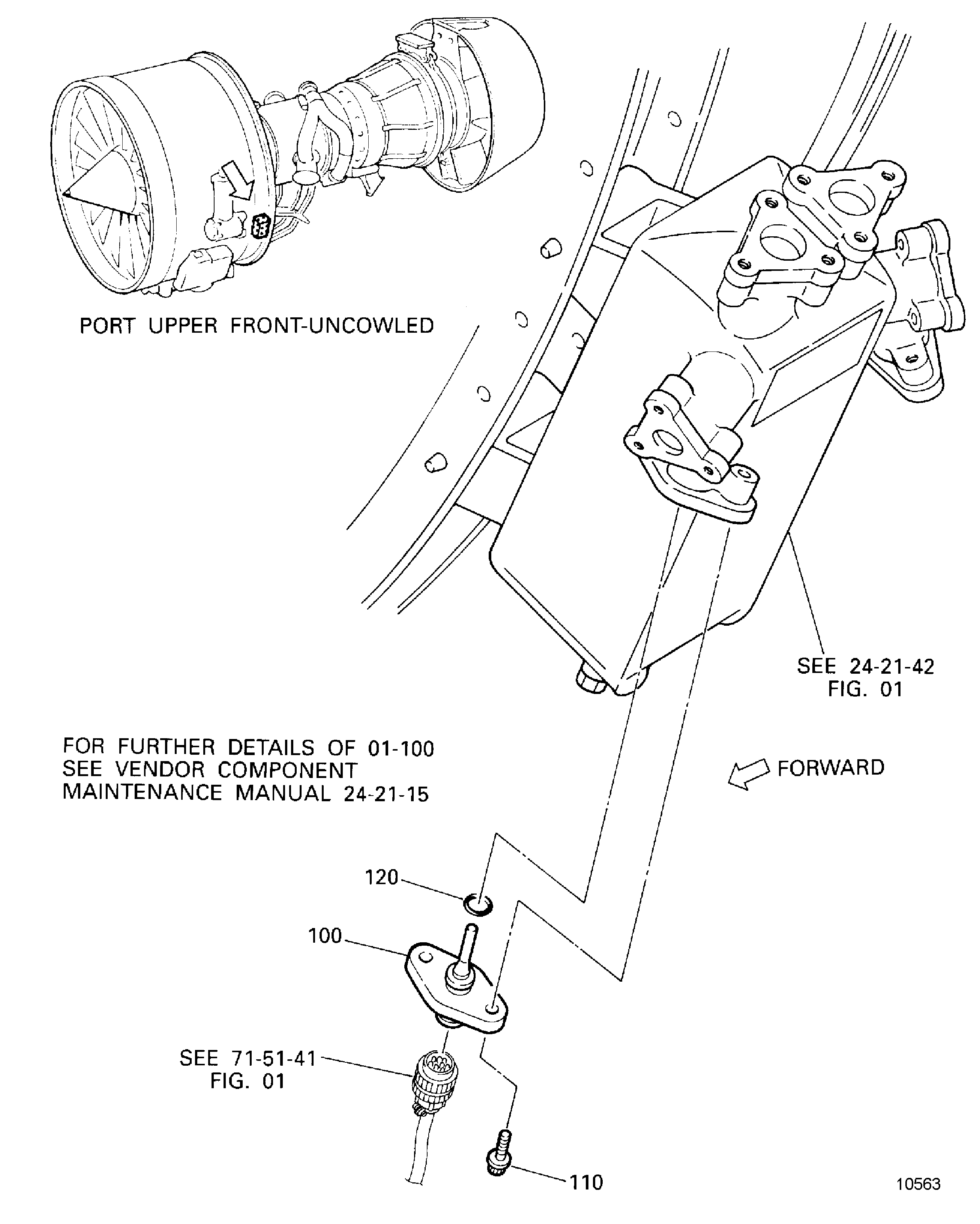

Figure: IDG OIL TEMPERATURE THERMOCOUPLE
IDG OIL TEMPERATURE THERMOCOUPLE
