DMC:V2500-A5-24-21-42-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B24214201 | Electrical Power-Fuel Cooled IDG Oil Cooler | aa | ||
| 100 | 16844-000 | • COOLER - IDG OIL 12536 (REF NO 5L0040) | aa | 1 |
| 115 | 5A5418 | • PIN | aa | 1 |
| 125 | 5A0254 | • BUSH | aa | 1 |
| 127 | MS21209F4-25 | • • INSERT - WIRE THREAD 96906 ALT MS21209F4-25L | aa | 1 |
| -127A | MS21209F4-25L | • • INSERT - WIRE THREAD 96906 ALT MS21209F4-25 | aa | REF |
| 165 | 5A5418 | • PIN | aa | 1 |
| 170 | 5A0253 | • BUSH | aa | 1 |
| 172 | MS21209F4-25 | • • INSERT - WIRE THREAD 96906 ALT MS21209F4-25L | aa | 1 |
| -172A | MS21209F4-25L | • • INSERT - WIRE THREAD 96906 ALT MS21209F4-25 | aa | REF |
| 235 | AN814-4DL | • • PLUG - & BLEEDER 81352 | aa | 1 |
| 240 | M83248-1-012 | • • SEAL - RING 81349 | aa | 1 |
| 250 | AN814-4DL | • • PLUG - & BLEEDER 81352 | aa | 1 |
| 255 | M83248-1-012 | • • SEAL - RING 81349 | aa | 1 |
| -400 | AS43013-112 | • RING - SEALING TOROIDAL, 12.37 MM I/D X 2.62 MM U1653 (SEE 24-21-15-01-120) | aa | REF |
| -410 | AS43013-114 | • RING - SEALING TOROIDAL, 15.54 MM I/D X 2.62 MM U1653 (SEE 24-21-49-03-514) | aa | REF |
| -420 | AS43013-120 | • RING - SEALING TOROIDAL U1653 (SEE 73-11-49-03-508) | aa | REF |
| -430 | AS43013-214 | • RING - SEALING TOROIDAL, 24.99 MM I/D X 3.53 MM U1653 (SEE 73-11-49-03-098) | aa | REF |
| -440 | AS43013-120 | • RING - SEALING TOROIDAL U1653 (SEE 73-11-49-03-116) | aa | REF |
| -450 | AS43013-116 | • RING - SEALING TOROIDAL, 18.72 MM I/DIA X 2,62 U1653 (SEE 24-21-49-01-106) | aa | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

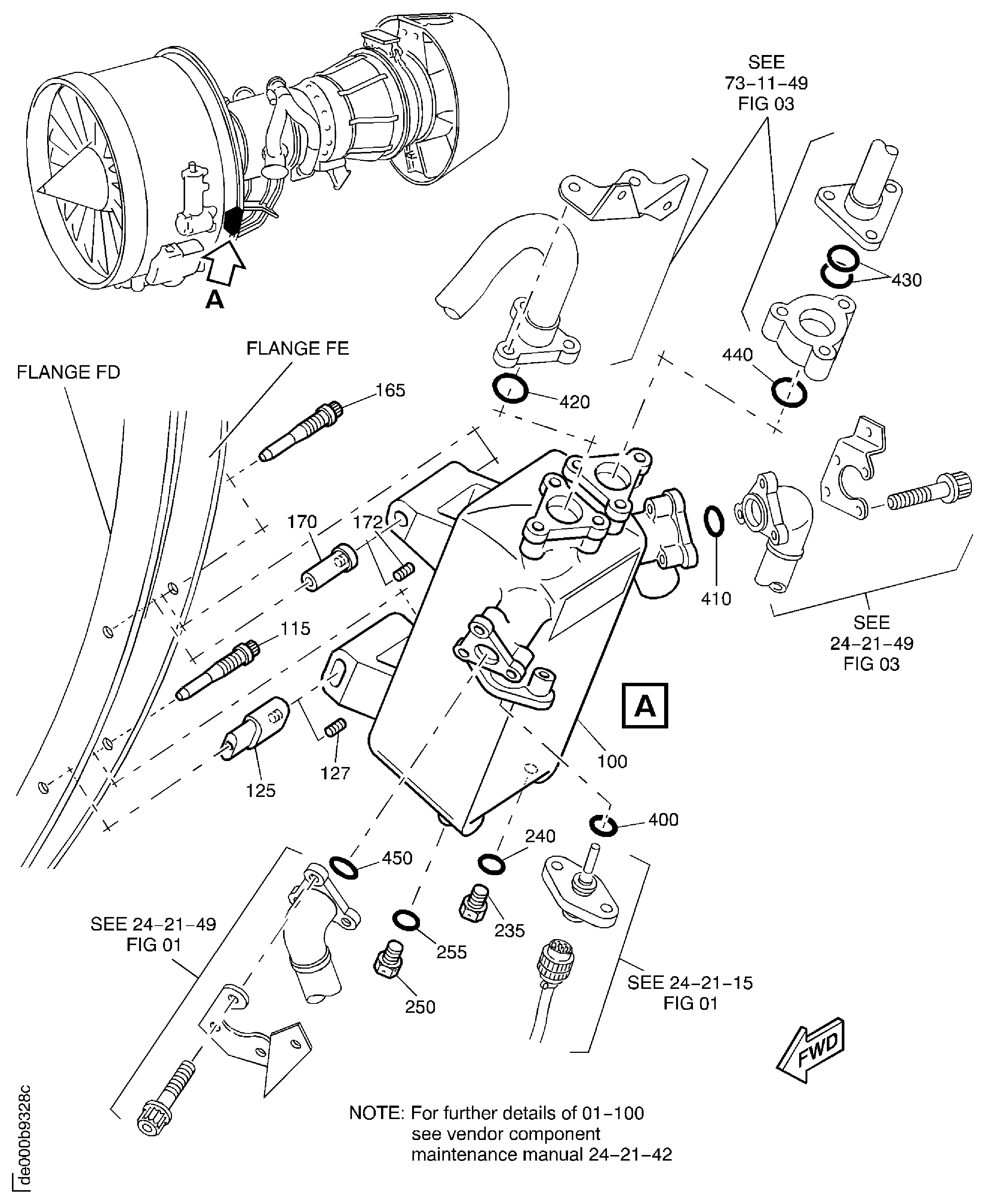

Figure: Electrical Power-Fuel Cooled IDG Oil Cooler
FUEL COOLED IDG OIL COOLER
