| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 03 | ||||
| B24214903 | ELECTRICAL POWER-IDG OIL COOLING TUBES | aa | ||
| -005 | 740-5021-511 | ARRGT - IDG COOLING 51563 | aa | REF |
| 100 | 740-5275-503 | • TUBE - ASSY,COOLING 51563 | aa | 1 |
| 125 | 4W0103 | • BOLT - .190 DIA X .500 | aa | 1 |
| 126 | 5W1086 | • WASHER | aa | 1 |
| 128 | 400WSS10 | • CLIP 83930 | aa | 1 |
| 132 | 4W0001 | • NUT - .190 DIA | aa | 1 |
| 136 | 400WSS10 | • CLIP 83930 | aa | 1 |
| 144 | 400WSS10 | • CLIP 83930 | aa | 1 |
| 470 | 6A5751 | • BRACKET | aa | 1 |
| 500 | 740-5737-511 | • TUBE - ASSY COOLING 51563 | aa | 1 |
| 510 | 4W0169 | • BOLT - .250 DIA X .938 | aa | 3 |
| 514 | AS43013-114 | • RING - 15.54 MM I/D X 2.62 MM U1653 | aa | 1 |
| 528 | 400WSS10 | • CLIP 83930 | aa | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

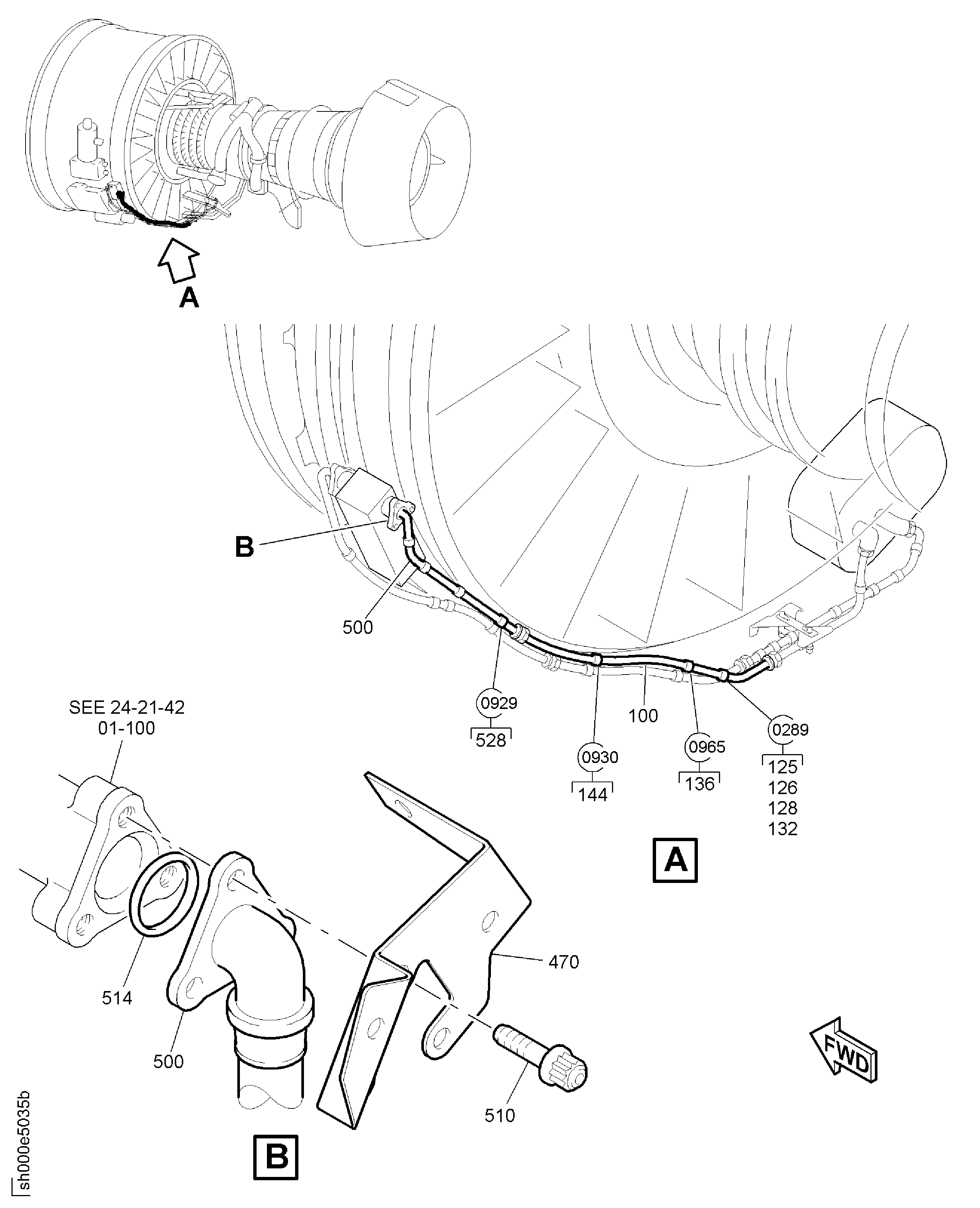

Figure: ELECTRICAL POWER-IDG OIL COOLING TUBES
TUBES-IDG OIL COOLING
