ACCESSORY ZONE FIRE DETECTOR-RIGHT

DMC:V2500-A5-26-12-15-01A-941A-D|Issue No:003|Issue Date:2021-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
01
000	B26121501	ACCESSORY ZONE FIRE DETECTOR - RIGHT, PRE SBN26-0005	aa
000	SBN0005-01	ACCESSORY ZONE FIRE DETECTOR - RIGHT, PRE SBN71-0273	ab
000	SBN0273-01	ACCESSORY ZONE FIRE DETECTOR - RIGHT, PRE SBN70-0589	ac
000	SBN0589-01	ACCESSORY ZONE FIRE DETECTOR - RIGHT	ad
100100	7702-02	• DETECTOR - ASSEMBLY OF 25693 PRE SBN26-0005	aa	1
100100A	7702-03	• DETECTOR - ASSEMBLY OF 25693 POST SBN26-0005 PRE SBN71-0273 PRE SBN70-0589	ab	1
100100B	473873-1	• DETECTOR, FIRE (FANCASE) 61423 POST SBN70-0589	ae	1
100100C	7702-04	• DETECTOR - ASSEMBLY OF 25693 POST SBN71-0273	ac-ad	1
100100D	473873-7	• DETECTOR - FIRE, ASSEMBLY OF 51563 POST SBN71-0273	ac-ad	1

102102	4W0103	• BOLT - .190 DIA X .500 POST SBN26-0005 PRE SBN71-0273	ab	1
104104	SP154D	• WASHER - 0.190 DIA K7766 POST SBN26-0005 PRE SBN71-0273	ab	1
106106	400WSS8	• CLIP 83930 POST SBN26-0005 PRE SBN71-0273	ab	1
108108	4W0001	• NUT, OPTION - .190 DIA POST SBN26-0005 PRE SBN71-0273	ab	1
110110	4W0103	• BOLT - .190 DIA X .500 POST SBN26-0005 PRE SBN71-0273	ab	1
112112	SP154D	• WASHER - 0.190 DIA K7766 POST SBN26-0005 PRE SBN71-0273	ab	1
114114	400WSS8	• CLIP 83930 POST SBN26-0005 PRE SBN71-0273	ab	1
116116	4W0001	• NUT, OPTION - .190 DIA POST SBN26-0005 PRE SBN71-0273	ab	1
118118	4W0103	• BOLT - .190 DIA X .500 POST SBN26-0005 PRE SBN71-0273	ab	1
120120	SP154D	• WASHER - 0.190 DIA K7766 POST SBN26-0005 PRE SBN71-0273	ab	1
122122	400WSS4	• CLIP 83930 PRE SBN71-0273	aa-ab	1
122122A	400WSS8	• CLIP 83930 POST SBN26-0005	ab-ad	1
124124	4W0001	• NUT, OPTION - .190 DIA POST SBN26-0005 PRE SBN71-0273	ab	1
125125	AS21408	• BOLT - .190 DIA X .500 U1653 PRE SBN26-0005	aa	1
127127	SP154D	• WASHER - 0.190 DIA K7766 PRE SBN26-0005	aa	1
129129	400WSS8	• CLIP 83930 PRE SBN26-0005	aa	1
131131	SP154D	• WASHER - 0.190 DIA K7766 PRE SBN26-0005	aa	1
132132	AS20624	• NUT, SELF LOCKING DBL HEX - .190 DIA U1653 PRE SBN26-0005	aa	1
135135	SP154D	• WASHER - 0.190 DIA K7766 PRE SBN26-0005	aa	1
137137	400WSS8	• CLIP 83930 PRE SBN26-0005	aa	1
139139	SP154D	• WASHER - 0.190 DIA K7766 PRE SBN26-0005	aa	1
140140	AS20624	• NUT, SELF LOCKING DBL HEX - .190 DIA U1653 PRE SBN26-0005	aa	1
141141	AS21408	• BOLT - .190 DIA X .500 U1653 PRE SBN26-0005	aa	1
143143	SP154D	• WASHER - 0.190 DIA K7766 PRE SBN26-0005	aa	1
148148	400WSS8	• CLIP 83930 PRE SBN26-0005	aa	1
149149	AS21408	• BOLT - .190 DIA X .500 U1653	aa-ad	1
149149A	AS21408	• BOLT - .190 DIA X .500 U1653 ALT MS9556-06	aa-ad	1
-149149B	MS9556-06	• BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500 96906 ALT AS21408	aa-ad	REF
153153	SP154D	• WASHER - 0.190 DIA K7766	aa-ad	1
156156	400WSS8	• CLIP 83930	aa-ad	1
157157	AS21408	• BOLT - .190 DIA X .500 U1653	aa-ad	1
157157A	AS21408	• BOLT - .190 DIA X .500 U1653 ALT MS9556-06	aa-ad	1
-157157B	MS9556-06	• BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500 96906 ALT AS21408	aa-ad	REF
159159	400WSS8	• CLIP 83930	aa-ad	1
165165	AS21408	• BOLT - .190 DIA X .500 U1653	aa-ad	1
165165A	AS21408	• BOLT - .190 DIA X .500 U1653 ALT MS9556-06	aa-ad	1
-165165B	MS9556-06	• BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500 96906 ALT AS21408	aa-ad	REF
167167	SP154D	• WASHER - 0.190 DIA K7766	aa-ad	1
169169	400WSS8	• CLIP 83930	aa-ad	1
173173	AS21408	• BOLT - .190 DIA X .500 U1653	aa-ad	1
173173A	AS21408	• BOLT - .190 DIA X .500 U1653 ALT MS9556-06	aa-ad	1
-173173B	MS9556-06	• BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500 96906 ALT AS21408	aa-ad	REF
174174	SP154D	• WASHER - 0.190 DIA K7766	aa-ad	1
176176	400WSS8	• CLIP 83930	aa-ad	1
178178	SP154D	• WASHER - 0.190 DIA K7766	aa-ad	1
180180	AS20624	• NUT, SELF LOCKING DBL HEX - .190 DIA U1653	aa-ad	1
181181	AS21408	• BOLT - .190 DIA X .500 U1653	aa-ad	1
181181A	4W0106	• BOLT - .190 DIA X .688	aa-ad	1
182182	SP154D	• WASHER - 0.190 DIA K7766	aa-ad	1

183183	ST1698D47	• SPACER (5MM) K4585	aa-ad	1

184184	400WSS8	• CLIP 83930	aa-ad	1
186186	SP154D	• WASHER - 0.190 DIA K7766	aa-ad	1
188188	AS20624	• NUT, SELF LOCKING DBL HEX - .190 DIA U1653	aa-ad	1
189189	AS21408	• BOLT - .190 DIA X .500 U1653	aa-ad	1
191191	SP154D	• WASHER - 0.190 DIA K7766	aa-ad	1
193193	400WSS8	• CLIP 83930	aa-ad	1
197197	AS21408	• BOLT - .190 DIA X .500 U1653	aa-ad	1
197197A	AS21408	• BOLT - .190 DIA X .500 U1653 ALT MS9556-06	aa-ad	1
-197197B	MS9556-06	• BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500 96906 ALT AS21408	aa-ad	REF
199199	SP154D	• WASHER - 0.190 DIA K7766	aa-ad	1
201201	400WSS8	• CLIP 83930	aa-ad	1
205205	AS21408	• BOLT - .190 DIA X .500 U1653	aa-ad	1
205205A	AS21408	• BOLT - .190 DIA X .500 U1653 ALT MS9556-06	aa-ad	1
-205205B	MS9556-06	• BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500 96906 ALT AS21408	aa-ad	REF
207207	400WSS8	• CLIP 83930	aa-ad	1
209209	SP154D	• WASHER - 0.190 DIA K7766	aa-ad	1
212212	AS20624	• NUT, SELF LOCKING DBL HEX - .190 DIA U1653	aa-ad	1
213213	AS21408	• BOLT - .190 DIA X .500 U1653	aa-ad	1
213213A	AS21408	• BOLT - .190 DIA X .500 U1653 ALT MS9556-06	aa-ad	1
-213213B	MS9556-06	• BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500 96906 ALT AS21408	aa-ad	REF
215215	SP154D	• WASHER - 0.190 DIA K7766	aa-ad	1
217217	400WSS8	• CLIP 83930	aa-ad	1

233233	400WSS8	• CLIP 83930 POST SBN71-0273	ac-ad	1
243243	400WSS8	• CLIP 83930 POST SBN71-0273	ac-ad	1

250250	AS21408	• BOLT - .190 DIA X .500 U1653 POST SBN71-0273	ac-ad	1
250250A	AS21408	• BOLT - .190 DIA X .500 U1653 ALT MS9556-06	aa-ad	1
-250250B	MS9556-06	• BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500 96906 ALT AS21408	aa-ad	REF

251251	SP154D	• WASHER - 0.190 DIA K7766 POST SBN71-0273	ac-ad	1
253253	400WSS8	• CLIP 83930 POST SBN71-0273	ac-ad	1
257257	4W0001	• NUT, OPTION - .190 DIA Optional Part AS20624 POST SBN71-0273	ac-ad	1
301301	4W0103	• BOLT - .190 DIA X .500 Optional Part AS21408	aa-ad	1
304304	400WSS8	• CLIP 83930	aa-ad	1
306306	SP154D	• WASHER - 0.190 DIA K7766	aa-ad	1
308308	4W0001	• NUT, OPTION - .190 DIA Optional Part AS20624	aa-ad	1
310310	4W0103	• BOLT - .190 DIA X .500 Optional Part AS21408	aa-ad	1
314314	400WSS8	CLIP 83930	aa-ad	1
316316	SP154D	• WASHER - 0.190 DIA K7766	aa-ad	1
318318	4W0001	• NUT, OPTION - .190 DIA Optional Part AS20624	aa-ad	1

700700	TA12C59H16CC	• CLIP 84971	aa-ad	4
705705	SP154D	• WASHER - 0.190 DIA K7766	aa-ad	2
710710	AS21408	• BOLT - .190 DIA X .500 U1653	aa-ad	2
710710A	AS21408	• BOLT - .190 DIA X .500 U1653 ALT MS9556-06	aa-ad	2
-710710B	MS9556-06	• BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500 96906 ALT AS21408	aa-ad	REF

-895895	740-5282-501	• BRACKET - ASSEMBLY OF 51563	aa-ad	REF
-900900	740-5043-503	• BRACKET 51563	aa-ad	REF
-930930	740-5050-503	• RAFT - ASSEMBLY OF 51563	aa-ad	REF
-940940	740-5180-505	• BRACKET - ASSEMBLY OF 51563	aa-ad	REF
-950950	740-5923-501	• PACKING, PIECE 51563	aa-ad	REF
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	25693
Enterprise Name:	MEGGITT - SAFETY SYSTEMS INC
BU Name:	MEGGITT - SAFETY SYSTEMS INC
Street:	1915 VOYAGER AVENUE
City:	SIMI VALLEY
State:	CALIFORNIA
Zip Code:	93063-3349
Country:	USA

Manufacturer Code:	51563
Enterprise Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
Street:	850 LAGOON DRIVE
City:	CHULA VISTA
State:	CA
Zip Code:	91910-2098
Country:	USA
Phone Number:	1-619-691-2089
Fax Number:	1-619-691-6195

Manufacturer Code:	83930
Enterprise Name:	TRANSDIGM INC
BU Name:	TRANSDIGM INC
Department:	ADEL FASTENERS
Building:	SANDWELL INDUSTRIAL ESTATE
Street:	5000 TRIGGS STREET
City:	LOS ANGELES
State:	WEST MIDLANDS
Zip Code:	B66 1QJ
Country:	USA

Manufacturer Code:	84971
Enterprise Name:	KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
BU Name:	KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
Department:	TA MFG LTD
Street:	28065 WEST FRANKLIN PARKWAY,VALENCIA
City:	SANTA CLARITA
State:	CALIFORNIA
Zip Code:	GL1 2BS
Country:	USA

ACCESSORY ZONE FIRE DETECTOR-RIGHT

Export Control

Copyright

Applicability

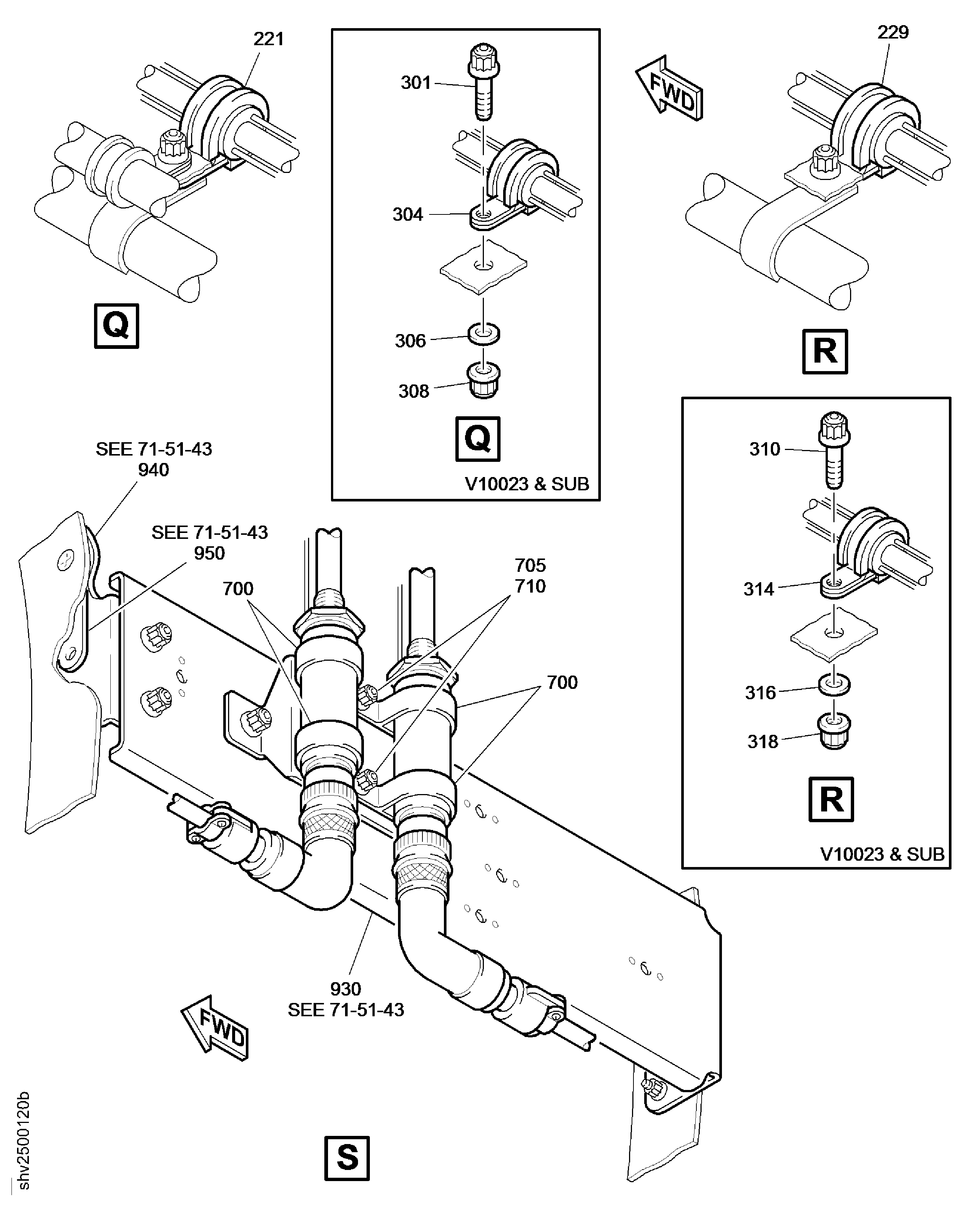

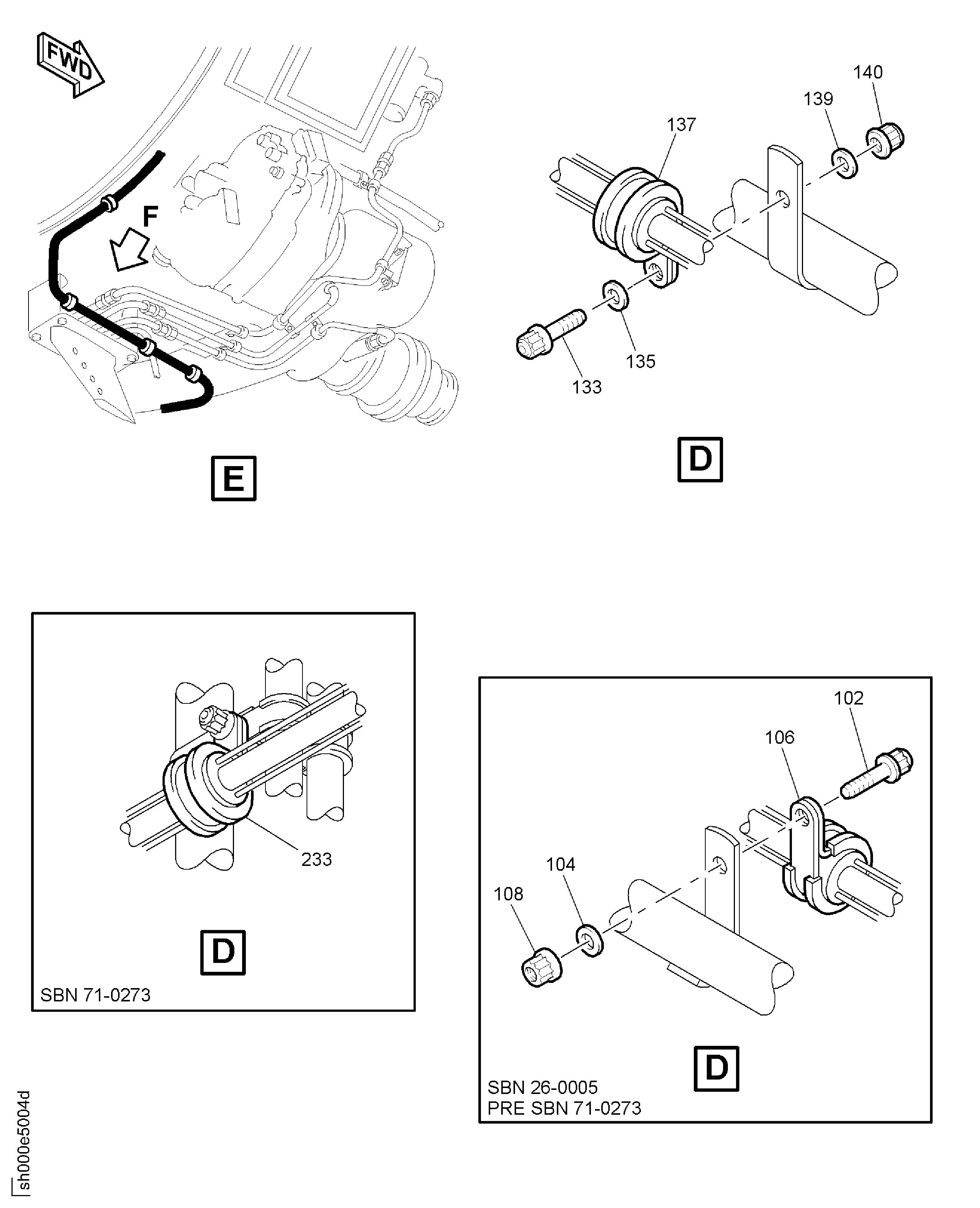

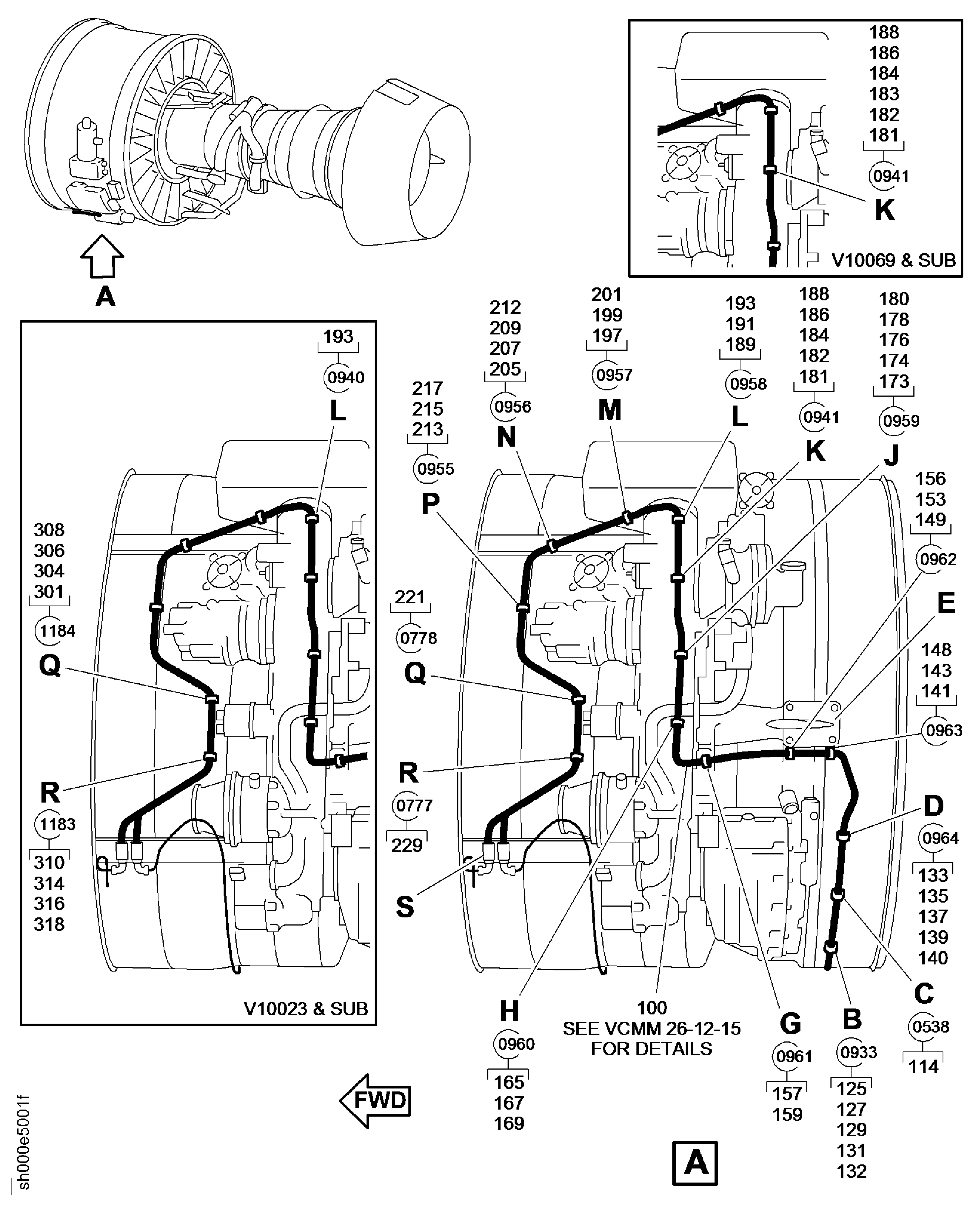

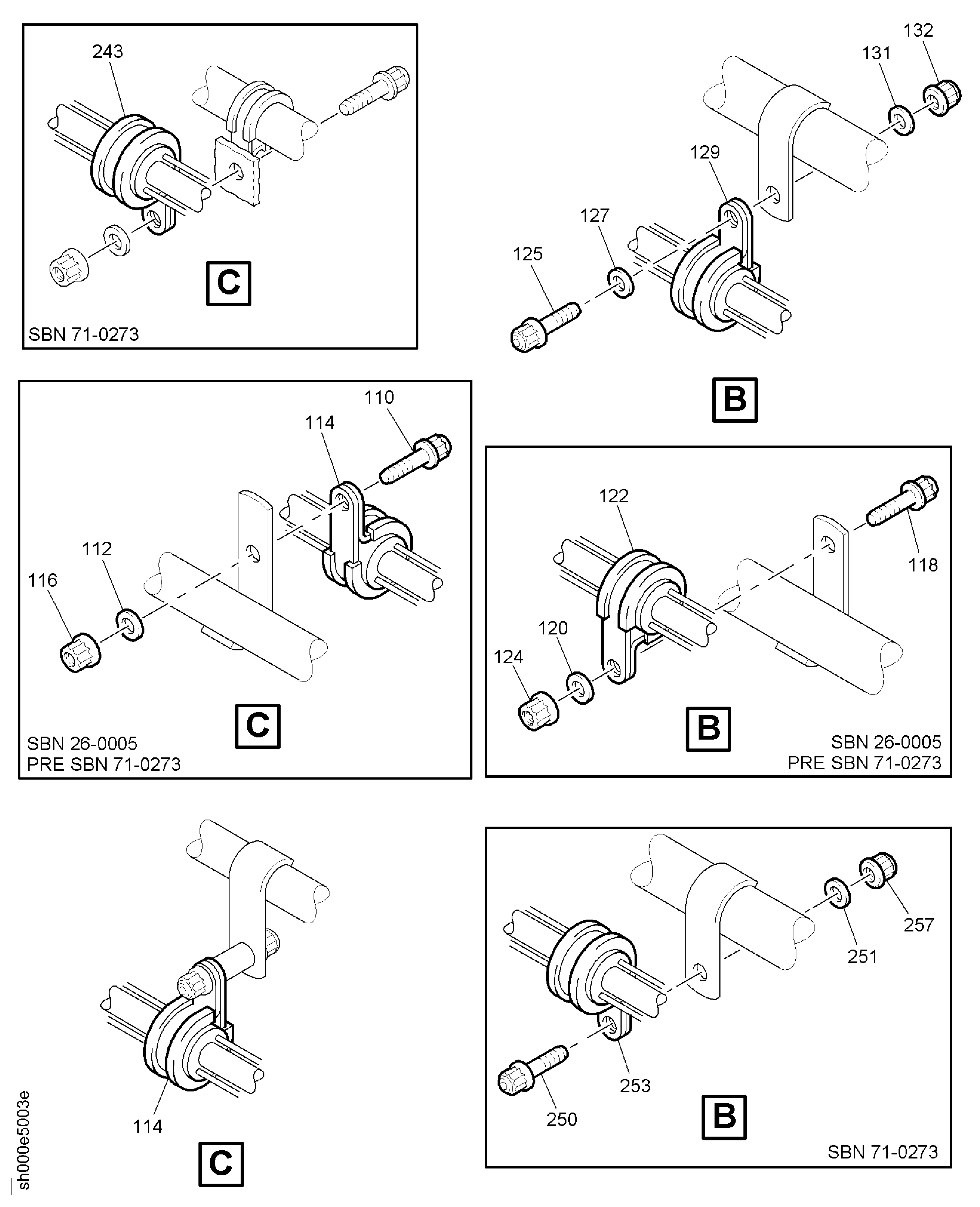

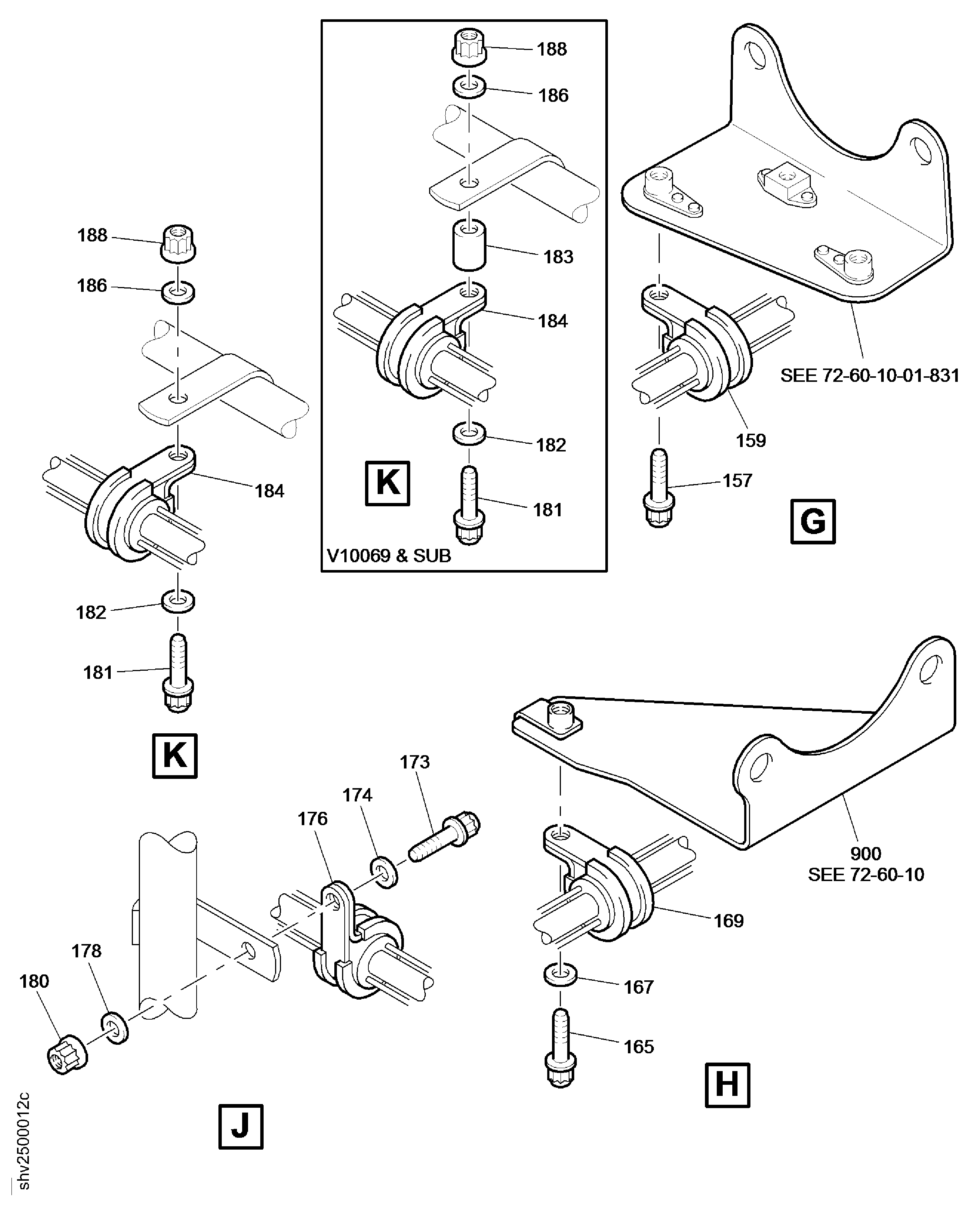

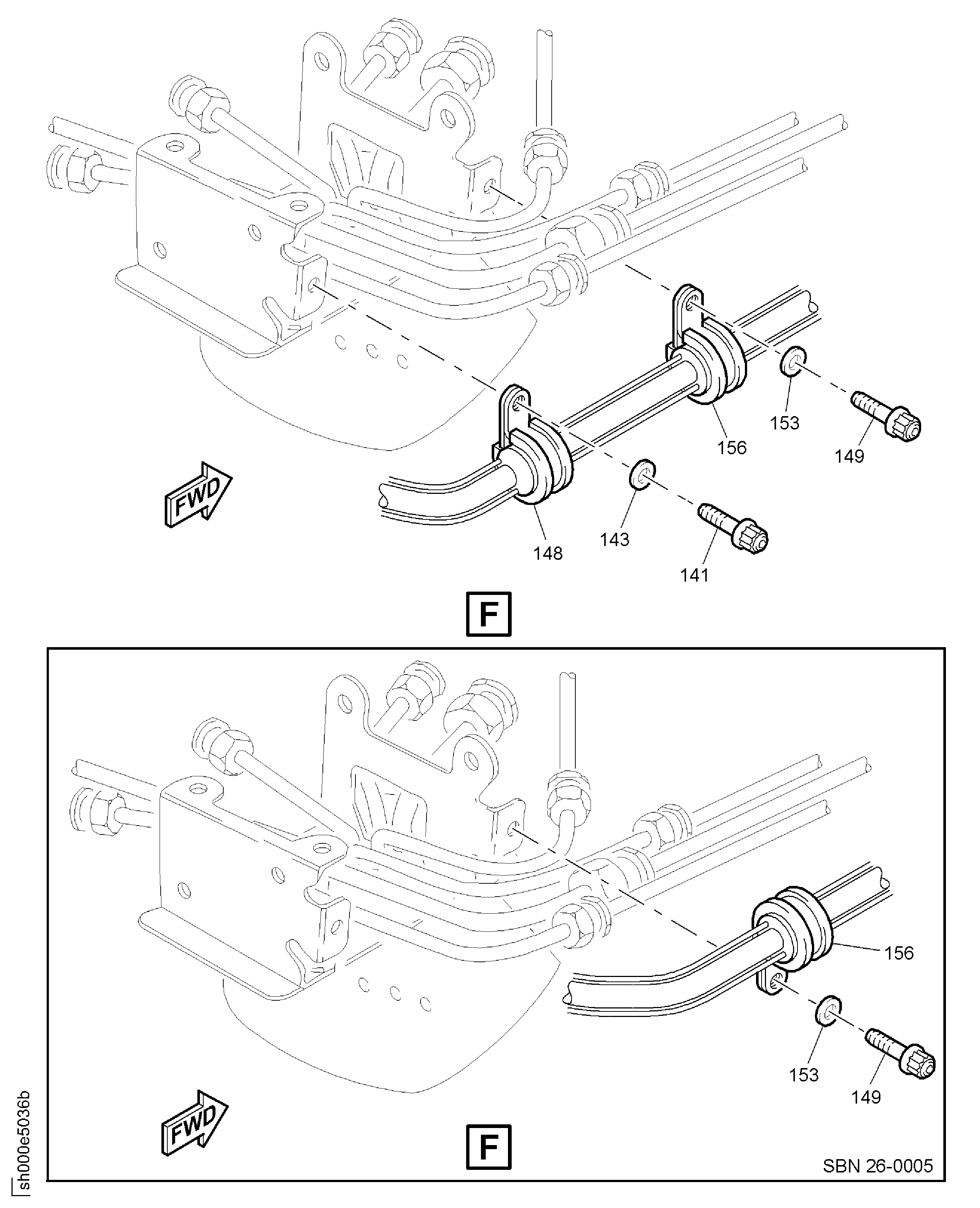

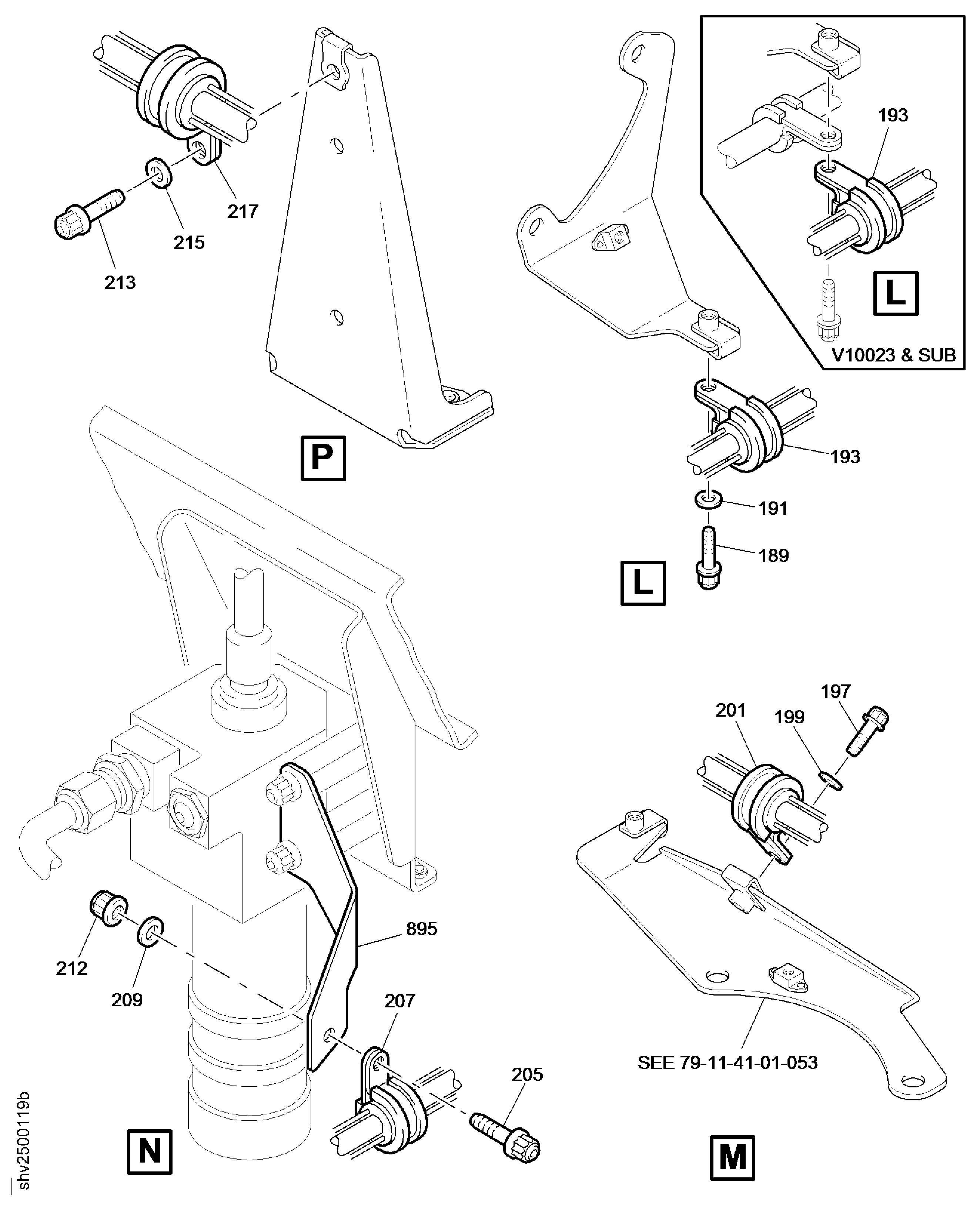

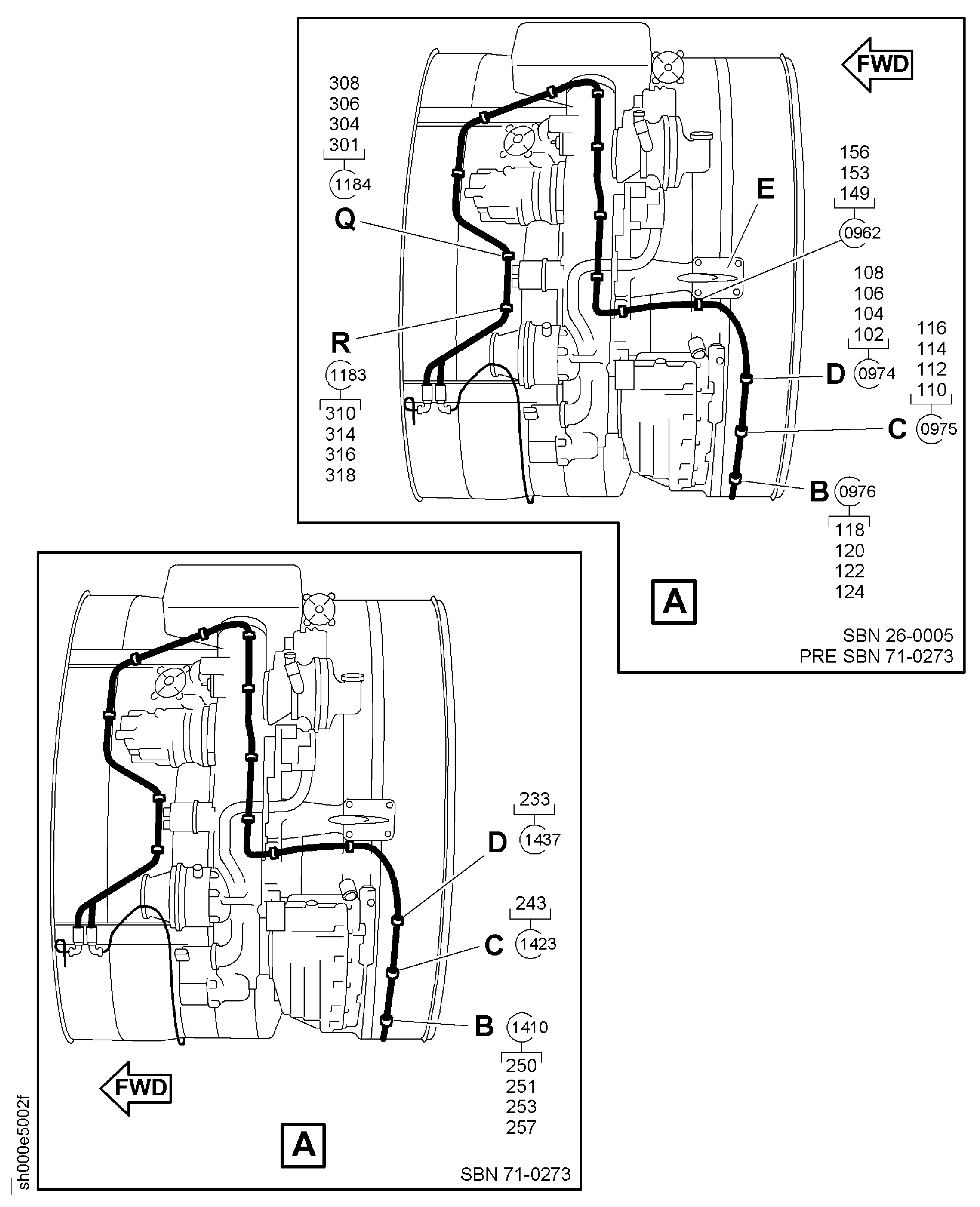

Figure: ACCESSORY ZONE FIRE DETECTOR-RIGHT

DETECTOR FIRE ACCESSORY

DETECTOR FIRE ACCESSORY

DETECTOR FIRE ACCESSORY

DETECTOR FIRE ACCESSORY

DETECTOR FIRE ACCESSORY

DETECTOR FIRE ACCESSORY

DETECTOR FIRE ACCESSORY

DETECTOR FIRE ACCESSORY

Manufacturer Code:	96906
Enterprise Name:	MILITARY STANDARDS MANUAL 4120 3-M
BU Name:	MILITARY STANDARDS MANUAL 4120 3-M
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	K4585
Enterprise Name:	SHORT BROS PLC
BU Name:	NULL
Street:	AIRPORT ROAD
P.O. Box:	PO BOX 241 BT3
City:	QUEENS ISLAND
State:	BELFAST
Zip Code:	9DZ
Country:	UNITED KINGDOM

Manufacturer Code:	K7766
Enterprise Name:	K7766
BU Name:	British Standards Institution
Street:	2 Park Street
City:	London
Zip Code:	AW1A 2BS
Country:	England

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

Part Number:	400WSS8
Part Name:	CLIP, LOOP TYPE
Manufacturer Code:	83930
