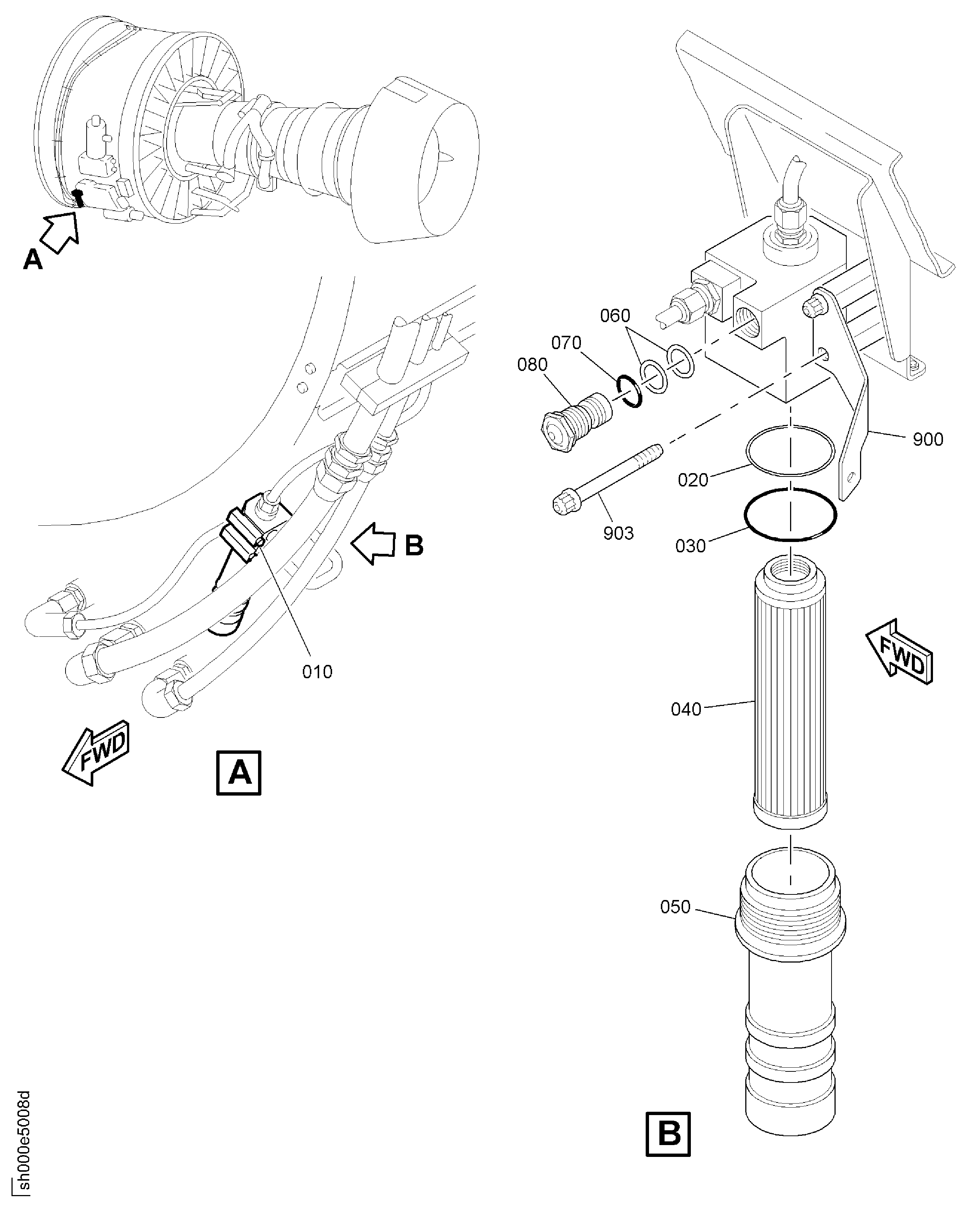

CASE DRAIN HYDRAULIC FILTER ASSEMBLY

DMC:V2500-A5-29-11-43-01A-941A-D|Issue No:002|Issue Date:2018-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
01
000	B29114301	CASE DRAIN HYDRAULIC FILTER ASSEMBLY, PRE SBN70-0743	aa
000	SBN0743-01	CASE DRAIN HYDRAULIC FILTER ASSEMBLY	ab
010010	QA06305	• FILTER - ASSY,HYD CASE DRAIN K6539	aa-ab	1
010010A	QA06305-01	• FILTER - ASSY, HYD CASE DRAIN K6539	ab	1
020020	NAS1611-138	• • PACKING - PREFORMED 80205	aa-ab	1
030030	QD1011-138	• • RING K6539	aa-ab	1
040040	QA05737	• • CARTRIDGE C0202	aa-ab	1
050050	QA13214	• • FILTER - BOWL C0202	aa-ab	1
060060	NAS1611-016	• • PACKING - PREFORMED 80205	aa-ab	2
070070	QD1011-016	• • RING K6539	aa-ab	1
080080	QA05924	• • INDICATOR - PRESSURE, DIFFERENTIAL C0202	aa-ab	1
900900	740-5282-501	• BRACKET - ASSEMBLY OF 51563	aa-ab	1
903903	AS21538	• BOLT - MACHINE, DOUBLE HEXAGON U1653 POST SBN70-0743	ab	4
903903A	AS21538	• BOLT - MACHINE, DOUBLE HEXAGON U1653 ALT MS9557-31	ab	4
-903903B	MS9557-31	• BOLT - DOUBLE HEXAGON 96906 ALT AS21538	ab	REF
