DMC:V2500-A5-29-11-49-01A-941A-DIssue No:003.00Issue Date:2019-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B29114901 | HYDRAULIC POWER - ENGINE MOUNTED HYDRAULIC TUBES, PRE SBE70-0623 | aa | ||
| SBE0623-01 | HYDRAULIC POWER - ENGINE MOUNTED HYDRAULIC TUBES | ab | ||
| 100 | AE707874-3 | • HOSE - FLEXIBLE K6712 | aa-ab | 1 |
| 102 | AE81266P | • COUPLING 00624 | aa-ab | 1 |
| 125 | 740-5648-501 | • CLAMP 51563 | aa-ab | 1 |
| 127 | AS21510 | • BOLT - 0.25 DIA X 0.625 U1653 | aa-ab | 2 |
| 500 | AE707875-2 | • HOSE - FLEXIBLE K6712 | aa-ab | 1 |
| 502 | AE96787N | • COUPLING - SELF SEALING 00624 | aa-ab | 1 |
| 540 | TA30700009-02 | • CLAMP - ASSEMBLY OF 84971 | aa-ab | 1 |
| 895 | 745-5143-501 | • PACKING PIECE 51563 POST SBE70-0623 | ab | 1 |
| 900 | 740-5649-501 | • BRACKET 51563 | aa-ab | 1 |
| 910 | AS21510 | • BOLT - 0.25 DIA X 0.625 U1653 | aa | 2 |
| 910A | AS21511 | • BOLT - 0.25 DIA X 0.688 U1653 ALT MS9557-09 | ab | 2 |
| -910B | MS9557-09 | • BOLT - MACHINE, DOUBLE HEXAGON, 0.250-28 X 0.688 96906 ALT AS21511 | ab | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

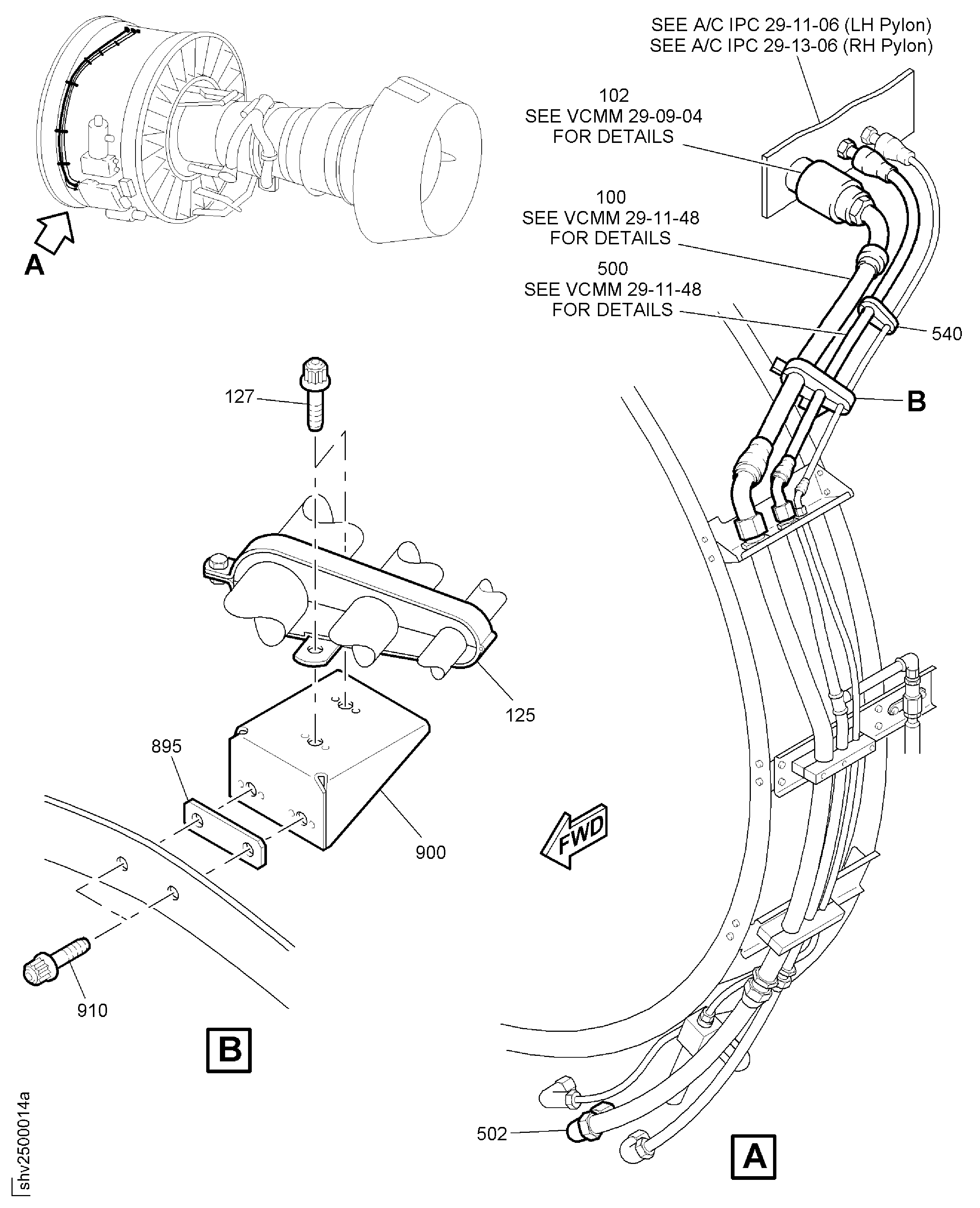

Figure: HYDRAULIC POWER-ENGINE MOUNTED HYDRAULIC TUBES
TUBES HYDRAULIC FLEX
