DMC:V2500-A5-29-11-49-02A-941A-DIssue No:002.00Issue Date:2019-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B29114902 | HYDRAULIC POWER - ENGINE MOUNTED HYDRAULIC TUBES, PRE SBN29-0263 | aa | ||
| SBN0263-01 | HYDRAULIC POWER - ENGINE MOUNTED HYDRAULIC TUBES, PRE SBE70-0727 | ab | ||
| SBE0727-01 | HYDRAULIC POWER - ENGINE MOUNTED HYDRAULIC TUBES | ac | ||
| 100 | AE707876-2 | • HOSE - FLEXIBLE K6712 | aa-ac | 1 |
| 500 | AE707910-1 | • HOSE - FLEXIBLE, ASSEMBLY OF K6712 PRE SBN29-0263 | aa | 1 |
| 500A | AE707910-2 | • HOSE - FLEXIBLE, ASSEMBLY OF K6712 POST SBN29-0263 | ab-ac | 1 |
| 501 | MS21902-4S | • UNION 96906 PRE SBE70-0727 | aa-ac | 1 |
| 501A | MS21902-4R | • UNION 96906 POST SBE70-0727 | aa-ac | 1 |
| 503 | 100-904-2397 | • PACKING 51563 | aa-ac | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

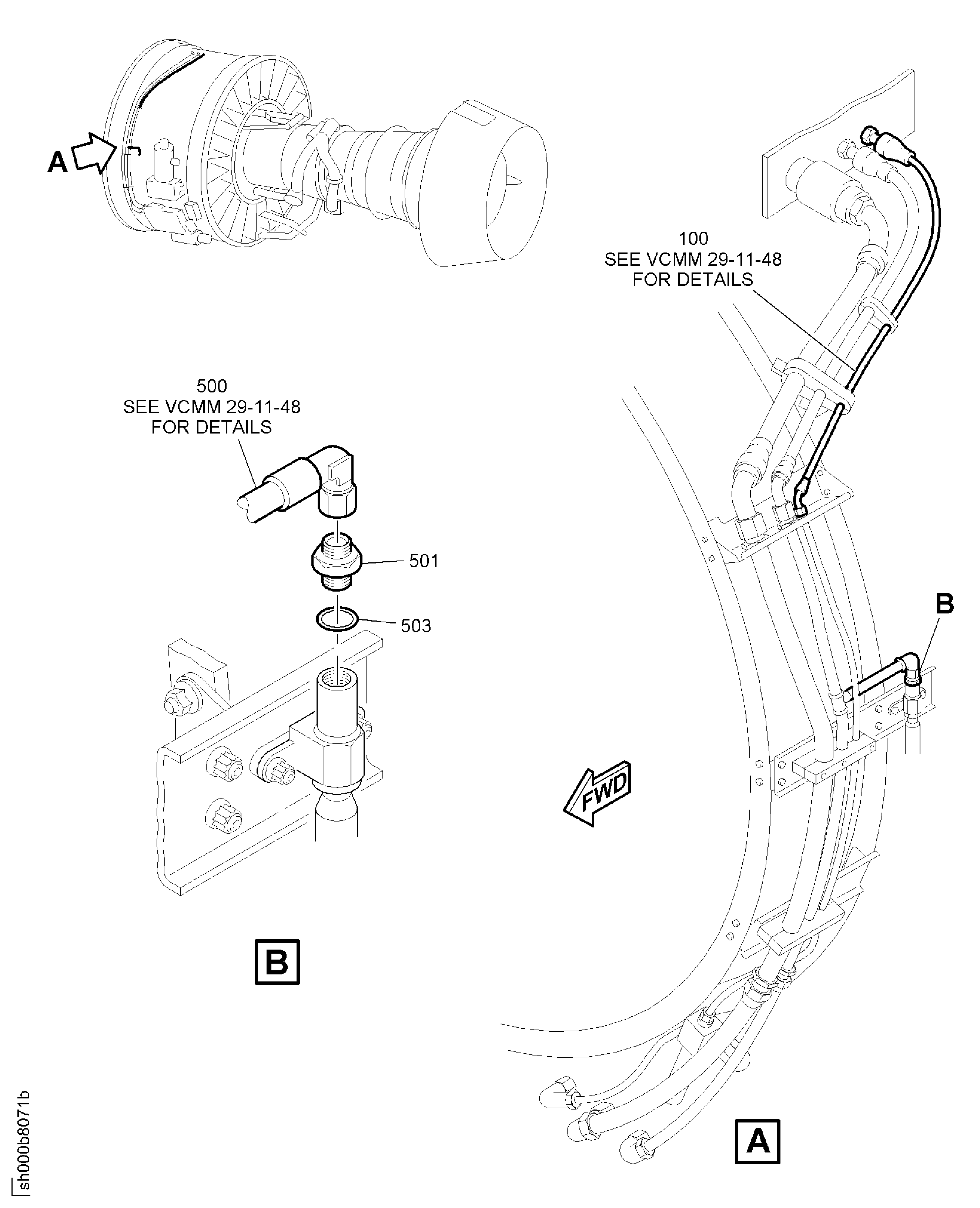

Figure: HYDRAULIC POWER-ENGINE MOUNTED HYDRAULIC TUBES
TUBES HYDRAULIC FLEX
