DMC:V2500-A5-29-11-49-05A-941A-DIssue No:008.00Issue Date:2020-08-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 05 | ||||
| B29114905 | HYDRAULIC POWER - ENGINE MOUNTED HYDRAULIC TUBES, PRE SBE70-0630 | aa | ||
| SBE0630-01 | HYDRAULIC POWER - ENGINE MOUNTED HYDRAULIC TUBES, PRE SBN29-0265 | ab | ||
| SBN0265-01 | HYDRAULIC POWER-ENGINE MOUNTED HYDRAULIC TUBES, PRE SBN29-0266 | ac | ||
| SBN0266-01 | HYDRAULIC POWER-ENGINE MOUNTED HYDRAULIC TUBES | ad | ||
| 100 | AE707874-2 | • HOSE - FLEXIBLE, SUCTION K6712 | aa-ab | 1 |
| 101 | MS21924-20S | • UNION 96906 PRE SBE70-0630 PRE SBN29-0266 | aa | 1 |
| 101A | MS21924-20S | • UNION 96906 ALT MS21924-20R POST SBE70-0630 PRE SBN29-0266 | ab-ac | 1 |
| 101B | MS21924-20R | • UNION 96906 ALT MS21924-20S POST SBE70-0630 PRE SBN29-0266 | ab-ac | 1 |
| 101C | MS21902J20 | • UNION POST SBN29-0266 | ae | 1 |
| 103 | 100-920-2397 | • PACKING 51563 | aa-ab | 1 |
| 400 | AE707875-1 | • HOSE - FLEX PRESSURE K7766 | aa-ab | 1 |
| 413 | 740-5233-501 | • UNION 51563 PRE SBN29-0265 | aa-ab | 1 |
| 415 | 100-916-2397 | • PACKING 51563 PRE SBN29-0265 | aa-ab | 1 |
| 417 | TF450-212A | • PACKING 51563 ALT C11236-212B PRE SBN29-0265 | aa-ab | 1 |
| -417A | C11236-212B | • PACKING 51563 ALT 2100-212 PRE SBN29-0265 | aa-ab | REF |
| -417B | 2100-212 | • PACKING 51563 ALT S30294-212-1 PRE SBN29-0265 | aa-ab | REF |
| -417C | S30294-212-1 | • PACKING 51563 ALT STF800-212 PRE SBN29-0265 | aa-acb | REF |
| -417D | STF800-212 | • PACKING 51563 ALT RMR12BM212 PRE SBN29-0265 | aa-ab | REF |
| -417E | RMR12BM212 | • PACKING 51563 ALT TF450-212A PRE SBN29-0265 | aa-ab | REF |
| 420 | 100-212-2397 | • PACKING 51563 PRE SBN29-0265 | aa-ab | 1 |
| 425 | 485000-14 | • DAMPENER K4585 POST SBN29-0265 | ac-ad | 1 |
| 430 | NAS1611-212A | • PACKING 80205 ALT EN6075-212 POST SBN29-0265 | ac-ad | 1 |
| -430A | EN6075-212 | • PACKING 80205 ALT NAS1611-212A POST SBN29-0265 | ac-ad | REF |
| 435 | M8791-1-212 | • RETAINER POST SBN29-0265 | ac-ad | 2 |
| 440 | NAS1612-16A | • PACKING 80205 ALT EN6076-16 POST SBN29-0265 | ac-ad | 1 |
| -440A | EN6076-16 | • PACKING 80205 ALT NAS1612-16A POST SBN29-0265 | ac-ad | REF |
| 700 | AE707876-1 | • HOSE K7766 | aa-ab | 1 |
| 705 | MS21902-6S | • UNION - TUBE, FLARELESS 96906 | aa-ad | 1 |
| 705A | MS21902-6R | • UNION 96906 | aa-ad | 1 |
| 708 | 100-906-2397 | • PACKING 51563 | aa-ab | 1 |
| 713 | MS21916-8-6S | • UNION 96906 | aa-ad | 1 |
| 713A | MS21916-8-6R | • UNION 96906 | aa-ad | 1 |
| 715 | 100-908-2397 | • PACKING 51563 | aa-ab | 1 |
| 716 | AS21408 | • BOLT - .190 DIA X .500 U1653 | aa-ab | 1 |
| 716A | AS21407 | • BOLT - .190 DIA X .500 U1653 ALT MS9556-05 | ab | 1 |
| -716B | MS9556-05 | • BOLT - DOUBLE HEXAGON 96906 ALT AS21407 | ab | REF |
| 717 | 400WSS11 | • CLIP 83930 | aa-ab | 1 |
| 717A | 400WSS12 | • CLIP 83930 | ab | 1 |
| 718 | SP154D | • WASHER - 0.190 DIA K7766 | aa-ab | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

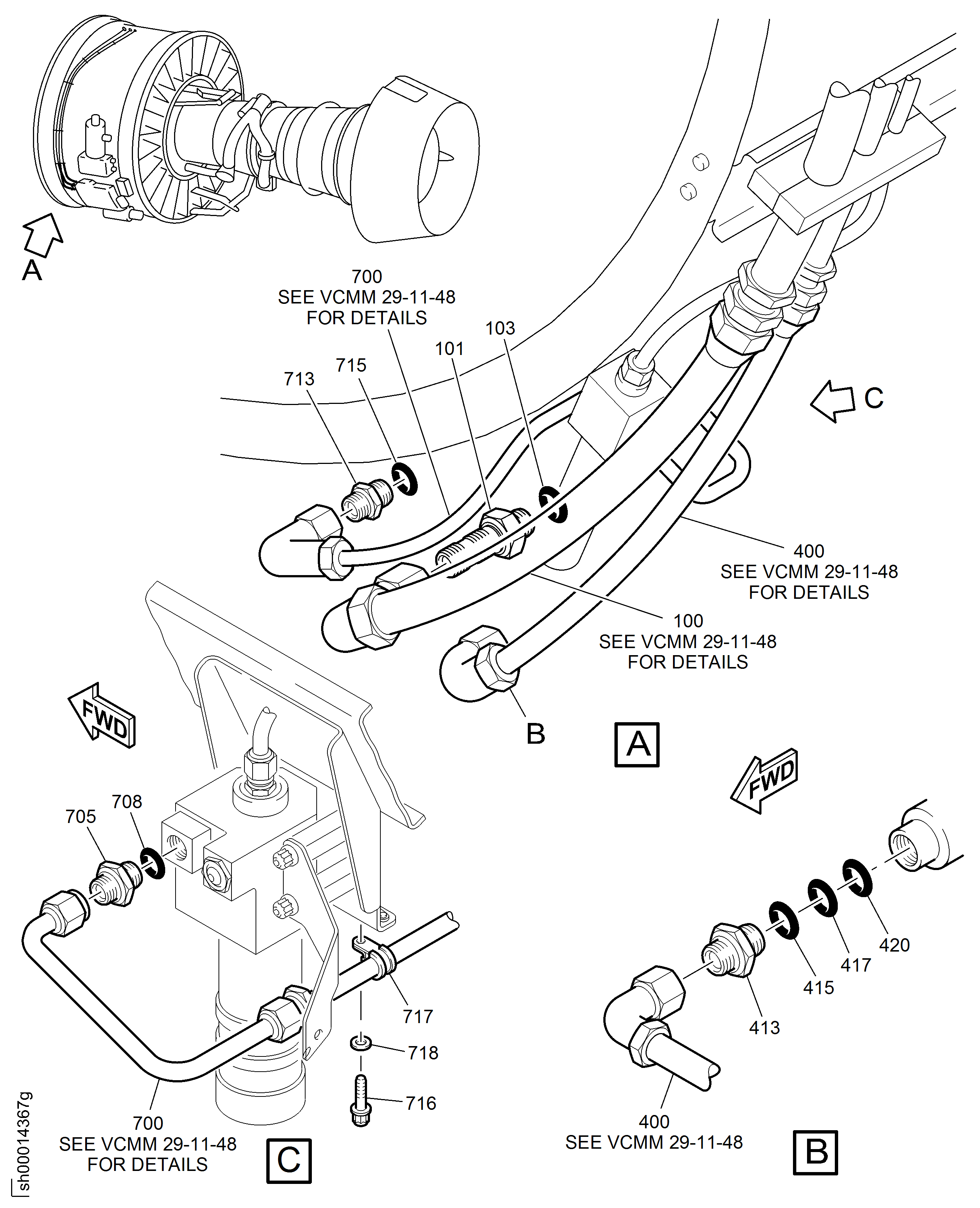

Figure: HYDRAULIC POWER - ENGINE MOUNTED HYDRAULIC TUBES
HYDRAULIC POWER - ENGINE MOUNTED HYDRAULIC TUBES

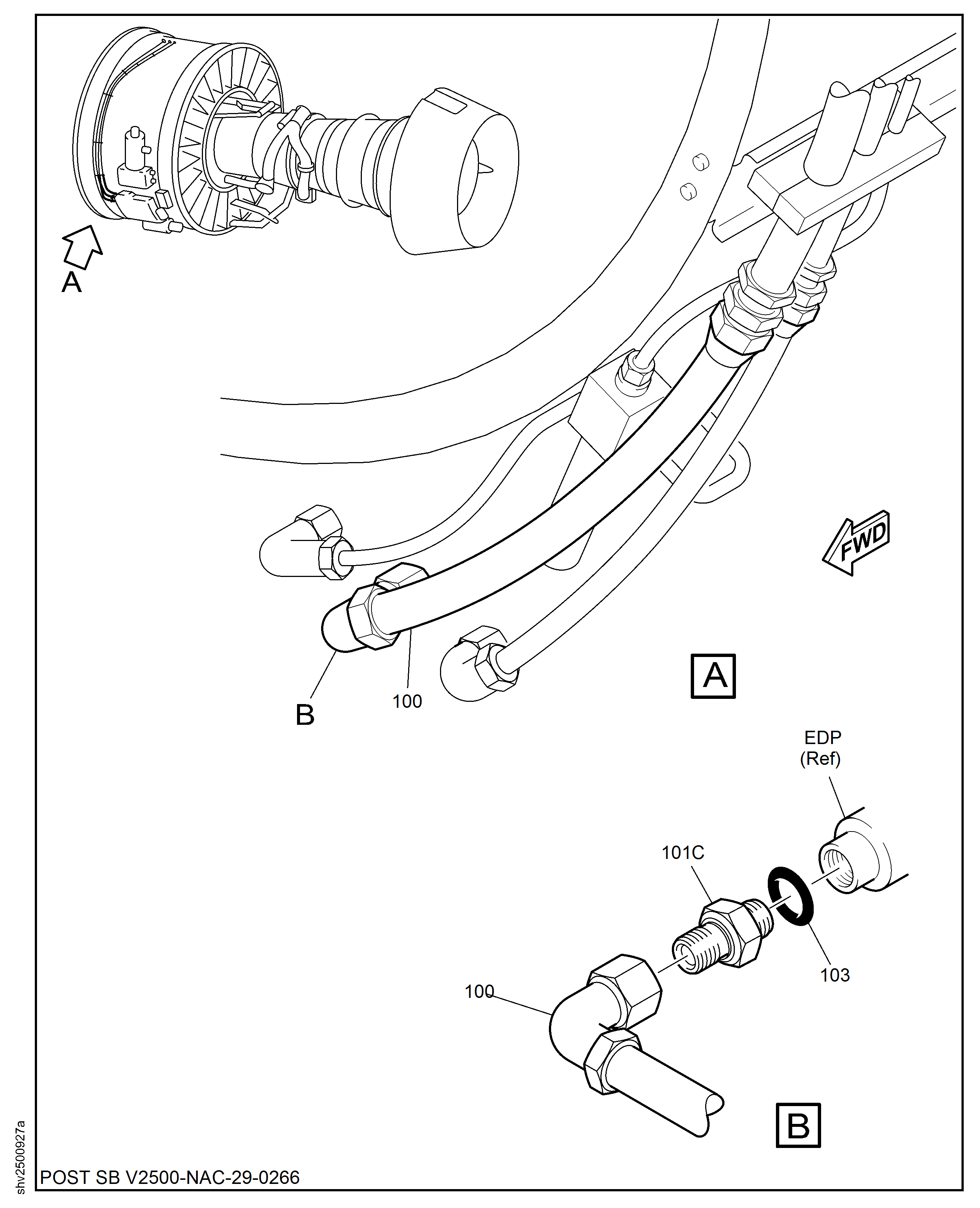

Figure: HYDRAULIC POWER - ENGINE MOUNTED HYDRAULIC TUBES

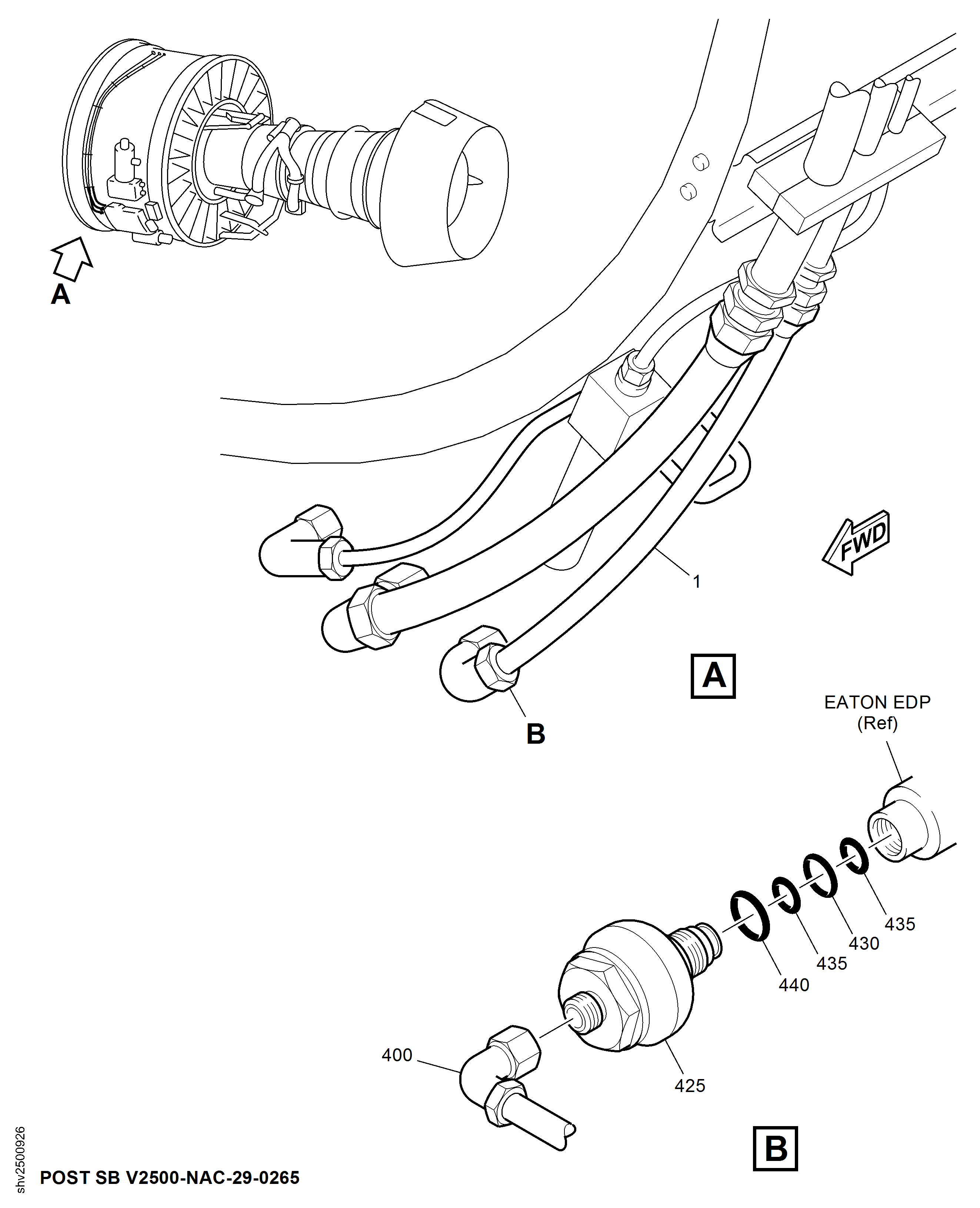

TUBES HYDRAULIC FLEX
Figure: HYDRAULIC POWER - ENGINE MOUNTED HYDRAULIC TUBES
HYDRAULIC POWER - ENGINE MOUNTED HYDRAULIC TUBES
