DMC:V2500-A5-29-11-51-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B29115101 | HYDRAULIC POWER-HYDRAULIC PUMP, PRE SBN70-0343 | aa | ||
| SBN0343-01 | HYDRAULIC POWER-HYDRAULIC PUMP, PRE SBN70-0912 | ab | ||
| SBN0912-01 | HYDRAULIC POWER-HYDRAULIC PUMP | ac | ||
| -001 | 740-6002-503 | HYD - PUMP INSTL, VICKERS 51563 ALT 740-6002-505 PRE SBN70-0343 | aa | REF |
| -001A | 740-6002-505 | HYD - PUMP INSTL, ABEX 51563 ALT 740-6002-509 PRE SBN70-0343 | aa | REF |
| -001B | 740-6002-503 | HYD - PUMP INSTL, VICKERS 51563 ALT 740-6002-507 POST SBN70-0343 PRE SBN70-0912 | ab | REF |
| -001C | 740-6002-507 | PUMP - HYD INSTL, VICKERS 51563 ALT 740-6002-503 POST SBN70-0343 PRE SBN70-0343 | ab | REF |
| -001D | 740-6002-509 | PUMP - PUMP, HYD INSTAL VICKERS 51563 ALT 740-6002-503 POST SBN70-0912 | aa | REF |
| 010 | 623977 | • PUMP - HYDRAULIC VICKERS 90166 ALT 42054-00 PRE SBN70-0343 | aa | 1 |
| -010A | 42054-00 | • PUMP - HYDRAULIC ABEX K1636 ALT 42054-01 PRE SBN70-0343 | aa | REF |
| -010B | 42054-01 | • PUMP K1636 ALT 623977 | aa | REF |
| 010C | 623977 | • PUMP - HYDRAULIC 90166 ALT 887673 POST SBN70-0343 PRE SBN70-0912 | aa | 1 |
| -010D | 887673 | • PUMP - HYDRAULIC 90166 ALT 623977 POST SBN70-0343 PRE SBN70-0343 | aa | REF |
| 010E | 3031863-001 | • PUMP - HYD VICKERS 51563 POST SBN70-0912 | ac | 1 |
| -010F | 42054-00 | • PUMP K1636 ALT 887673 POST SBN70-0912 | aa | REF |
| -010G | 887673 | • PUMP - HYDRAULIC 90166 ALT 42054-01 POST SBN70-0912 | ac | REF |
| -010H | 42054-01 | • PUMP K1636 ALT 42054-00 POST SBN70-0912 | aa | REF |
| 020 | 52Z2278-064 | • NUT 22599 | aa-ac | 4 |
| 030 | S700M0986 | • GASKET 51563 | aa-ac | 1 |
| 040 | M83248-1-216 | • SEAL 81349 | aa-ac | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

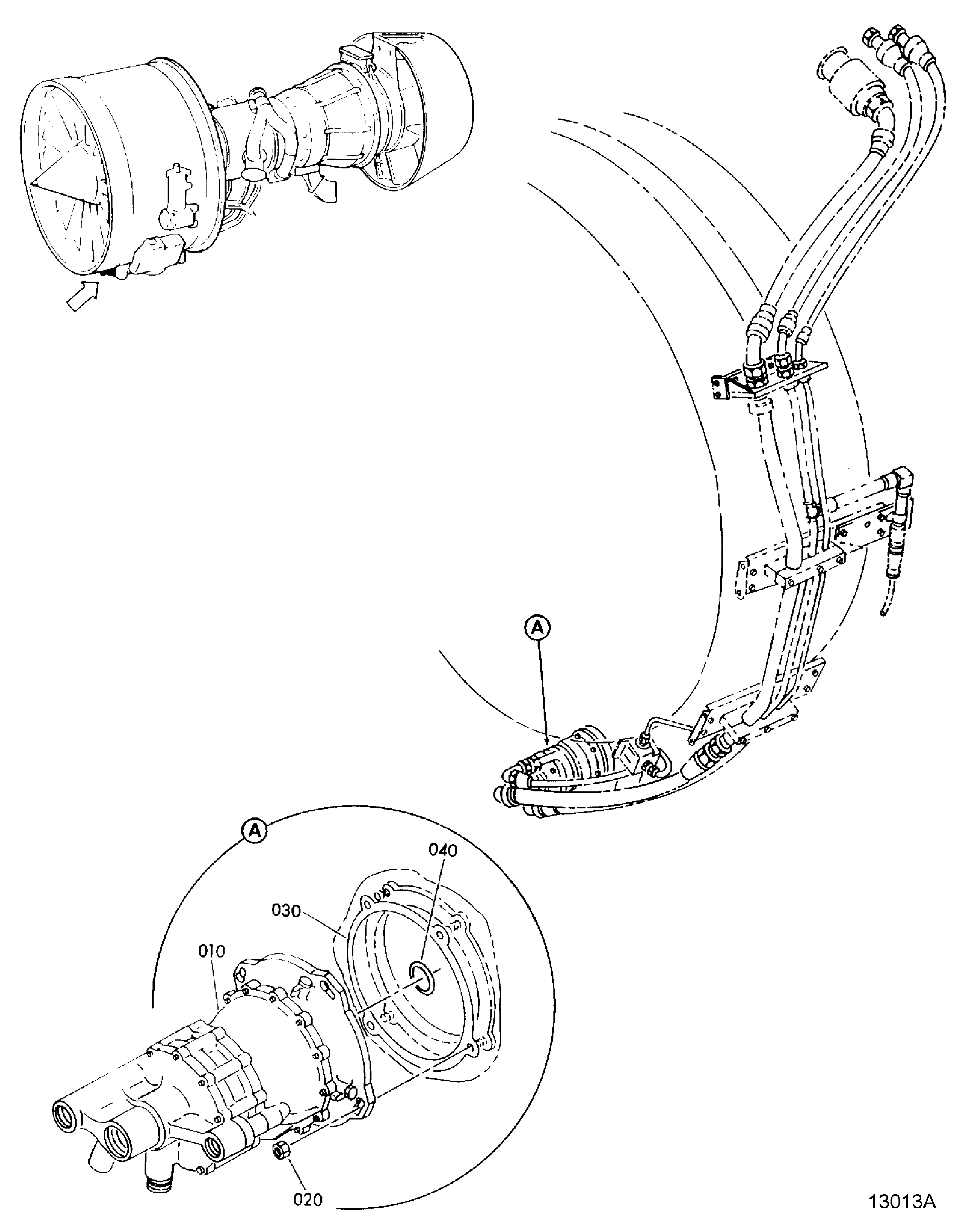

Figure: HYDRAULIC POWER-HYDRAULIC PUMP
PUMP HYDRAULIC
