DMC:V2500-A5-30-21-49-03A-941A-DIssue No:002.00Issue Date:2014-08-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 03 | ||||
| - | B30214903 | ICE AND RAIN PROTECTION - ANTI - ICE DUCTS, PRE SBN71-0184 | aa | |
| - | 01 | ICE AND RAIN PROTECTION - ANTI - ICE DUCTS | ab | |
| 090 | 1-07597-00-00 | • DUCT, INSULATION, TAI OUTER 51563 | aa-ab/01 | 1 |
| 100 | 740-3101-507 | • DUCT, ASSEMBLY OUTER ANTI - ICE 51563 PRE SBN71-0184 | aa/02 | 1 |
| 100A | 745-3101-501 | • DUCT, ASSEMBLY OUTER ANTI - ICE 51563 POST SBN71-0184 | aa-ab/01 | 1 |
| 100B | 745-3101-501 | • DUCT, ASSEMBLY OUTER ANTI - ICE 51563 *NOT FOR POST SCN17* POST SBN71-0184 | aa-ab/03 | 1 |
| 110 | S13953-11 | • PACK, 3 RING K1209 | aa-ab/01 | 1 |
| 120 | S16497-9 | • D, RING K1209 | aa-ab/01 | 1 |
| 500 | 740-3102-505 | • DUCT, ASSEMBLY INNER ANTI - ICE 51563 | aa-ab/01 | 1 |
| 510 | S13631-17 | • D, RING K1209 | aa-ab/01 | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

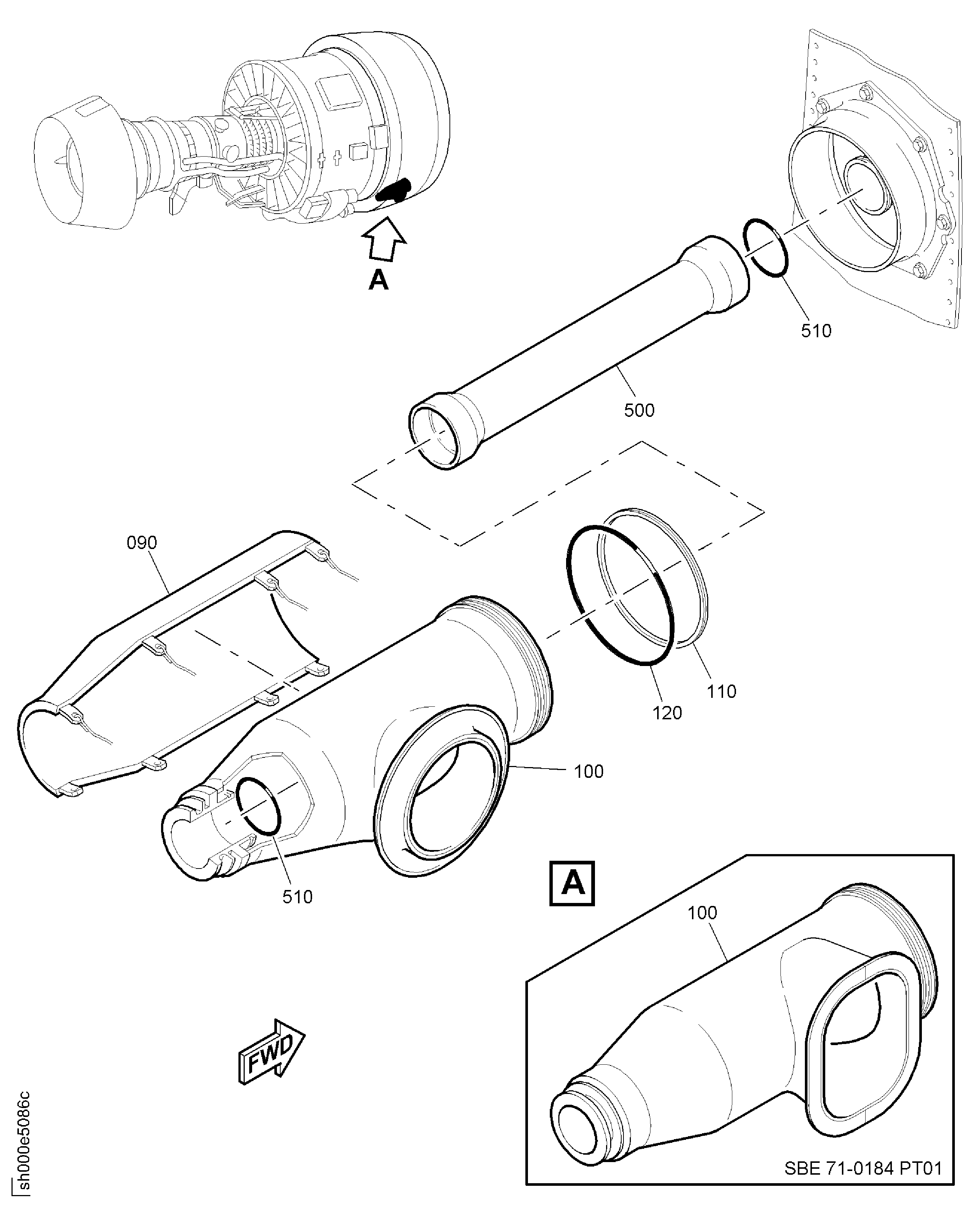

Figure: Anti-Ice Ducts
Anti-Ice Ducts
