V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B30215101 | ENGINE - AIR INTAKE ANTI ICE VALVE, PRE SBE70-0670 | aa | ||
| SBE0670-01 | ENGINE - AIR INTAKE ANTI ICE VALVE | ab | ||
| 010 | 326975 | • VALVE - INTAKE ANTI-ICE 79318 | aa-ab | 1 |
| 020 | 6299257-0200 | • COUPLING - ASSEMBLY OF 00624 | aa-ab | 2 |
| 030 | NK103102-0200 | • SEAL K6712 PRE SBE70-0670 | aa | 2 |
| 030A | NK103102-0200 | • SEAL K6712 ALT S2347-200 POST SBE70-0670 | ab | 2 |
| 030B | S2347-200 | • SEAL 51563 ALT NK103102-0200 POST SBE70-0670 | ab | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

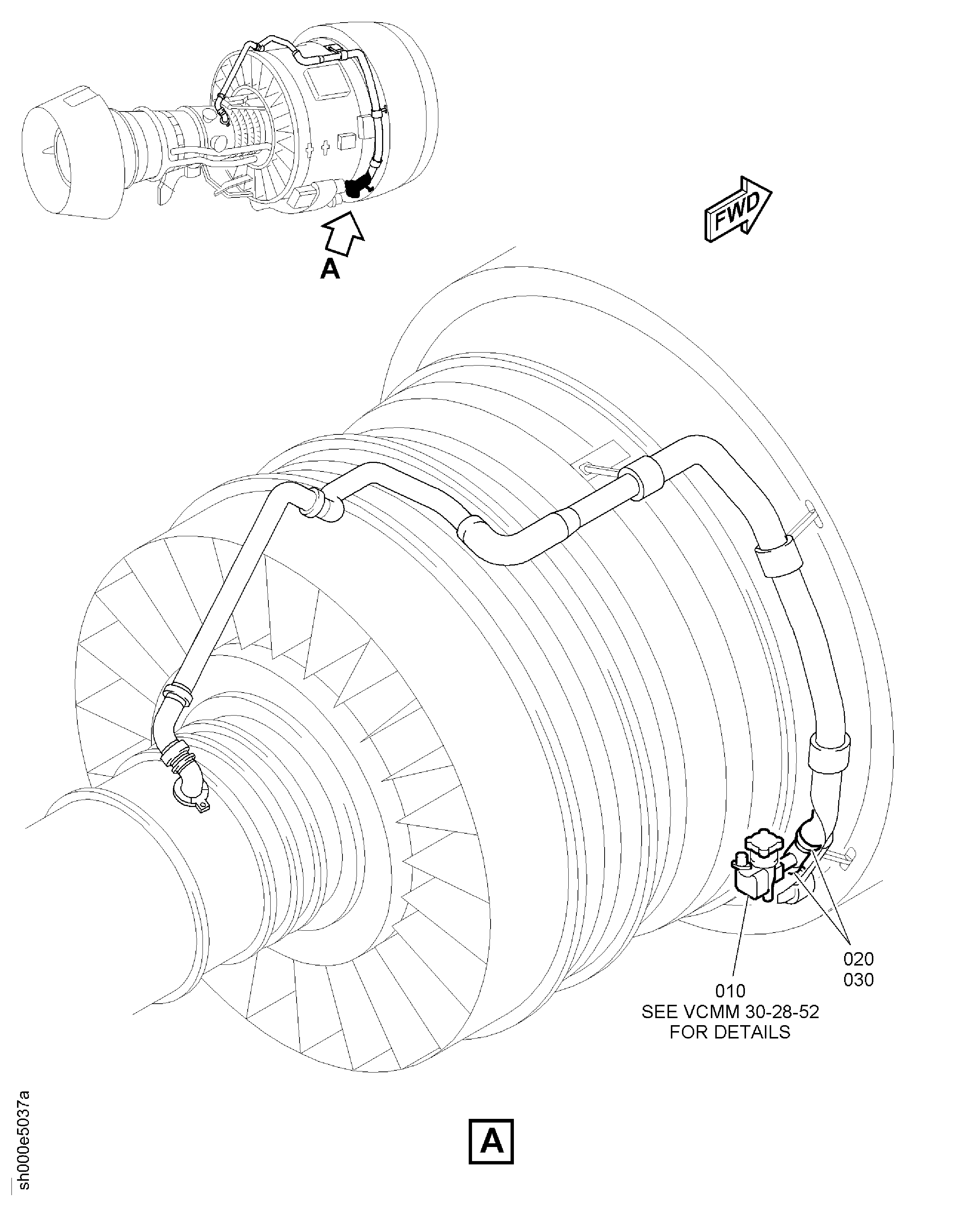

Figure: ENGINE-AIR INTAKE ANTI ICE VALVE
VALVE INTAKE ANTI ICE
