DMC:V2500-A5-36-11-47-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B36114701 | PNEUMATIC-TUBES-HP BLEED CONTROL AIR, PRE SBE72-0189 | aa | ||
| SBE0189-01 | PNEUMATIC-TUBES-HP BLEED CONTROL AIR, PRE SBE79-0088 | ab | ||
| SBE0088-01 | PNEUMATIC-TUBES-HP BLEED CONTROL AIR, PRE SBE79-0088 | ac | ||
| SBE0088-02 | PNEUMATIC-TUBES-HP BLEED CONTROL AIR, PRE SBE79-0088 | ad | ||
| SBE0088-03 | PNEUMATIC-TUBES-HP BLEED CONTROL AIR, PRE SBE73-0198 | ae | ||
| SBE0198-01 | PNEUMATIC-TUBES-HP BLEED CONTROL AIR, PRE SBE79-0102 | af | ||
| SBE0102-01 | PNEUMATIC-TUBES-HP BLEED CONTROL AIR | ag | ||
| 090 | AS27905 | • PLUG - SCREWED U1653 | aa-ag | 1 |
| 100 | 6A2136 | • TUBE - A/O-AIR STAGE 10 BV.OVERRIDE CONN TO BIFURCATION PRE SBE72-0189 | aa | 1 |
| 100A | 6A5391 | • TUBE - A/O-AIR POST SBE72-0189 | ab-ag | 1 |
| 100B | 6A5391 | • TUBE - A/O-AIR POST SBE79-0088 | ae-ag | 1 |
| 128 | 400WSS4 | • CLIP 83930 PRE SBE72-0189 | aa | 1 |
| 136 | 400WSS4 | • CLIP 83930 PRE SBE72-0189 | aa | 1 |
| 144 | 400WSS4 | • CLIP 83930 PRE SBE72-0189 | aa | 1 |
| 149 | 4W0102 | • BOLT - .190 DIA X .438 POST SBE79-0088 PRE SBE73-0198 | ad-af | 1 |
| 149A | 4W0102 | • BOLT - .190 DIA X .438 ALT 4W0342 POST SBE73-0198 PRE SBE79-0102 | ad-af | 1 |
| 149B | 4W0342 | • BOLT - .190 DIA X .438 ALT 4W0104 POST SBE73-0198 PRE SBE79-0102 | ad-af | 1 |
| 149C | 4W0104 | • BOLT - .190 DIA X .562 ALT 4W0344 POST SBE79-0102 | ad-af | 1 |
| -149D | 4W0344 | • BOLT - .190 DIA X .562 ALT 4W0102 POST SBE79-0102 | ad-ae | REF |
| 150 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0088 | ad-ag | 1 |
| 152 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE72-0189 | ab-ag | 1 |
| 152A | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0088 | ae-ag | 1 |
| 156 | 4W0001 | • NUT - .190 DIA POST SBE79-0088 | ad-ag | 1 |
| 156A | 4W0001 | • NUT - .190 DIA POST SBE73-0198 | af-ag | 1 |
| 160 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE72-0189 | ab-ag | 1 |
| 160A | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0088 | ae-ag | 1 |
| 168 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE72-0189 | ab-ag | 1 |
| 168A | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0088 | ae-ag | 1 |
| 200 | AS15777 | • • WIRE - THRUST U1653 | aa-ag | 1 |
| 201 | AS15701 | • • NUT - TUBE COUPLING U1653 | aa-ag | 1 |
| 202 | LK56511 | • • FERRULE - ASSY | aa-ag | 1 |
| 214 | LK39602 | • • CLIP PRE SBE72-0189 | aa | 1 |
| 214A | UP11152 | • • BRACKET - INTER TUBE SUPPORT POST SBE72-0189 | ab-ag | 2 |
| 214B | UP11152 | • • BRACKET - INTER TUBE SUPPORT POST SBE79-0088 | ae-ag | 2 |
| 240 | AS15777 | • • WIRE - THRUST U1653 | aa-ag | 1 |
| 241 | AS15701 | • • NUT - TUBE COUPLING U1653 | aa-ag | 1 |
| 242 | AS15768 | • • FERRULE - ASSY WELDING U1653 | aa-ag | 1 |
| 500 | 6A2139 | • TUBE - A/O-AIR STAGE 10 BV.OVERRIDE-BIFURCATION PANEL PRE SBE79-0088 | aa-ac | 1 |
| 500A | 6A6224 | • TUBE - A/O POST SBE79-0088 | ad-ag | 1 |
| 502 | 4W0002 | • NUT - .250 DIA | aa-ag | 2 |
| 506 | 4W0163 | • BOLT - .250 DIA X .562 | aa-ag | 2 |
| 528 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0088 | ad-ag | 1 |
| 536 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0088 | ad-ag | 1 |
| 602 | UP11028 | • • ADAPTOR | aa-ag | 1 |
| 614 | LK39602 | • • CLIP PRE SBE79-0088 | aa-ab | 1 |
| 614A | UP11152 | • • BRACKET - INTER TUBE SUPPORT POST SBE79-0088 | ac-ag | 1 |
| 642 | AS15802 | • • ADAPTOR U1653 | aa-ag | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

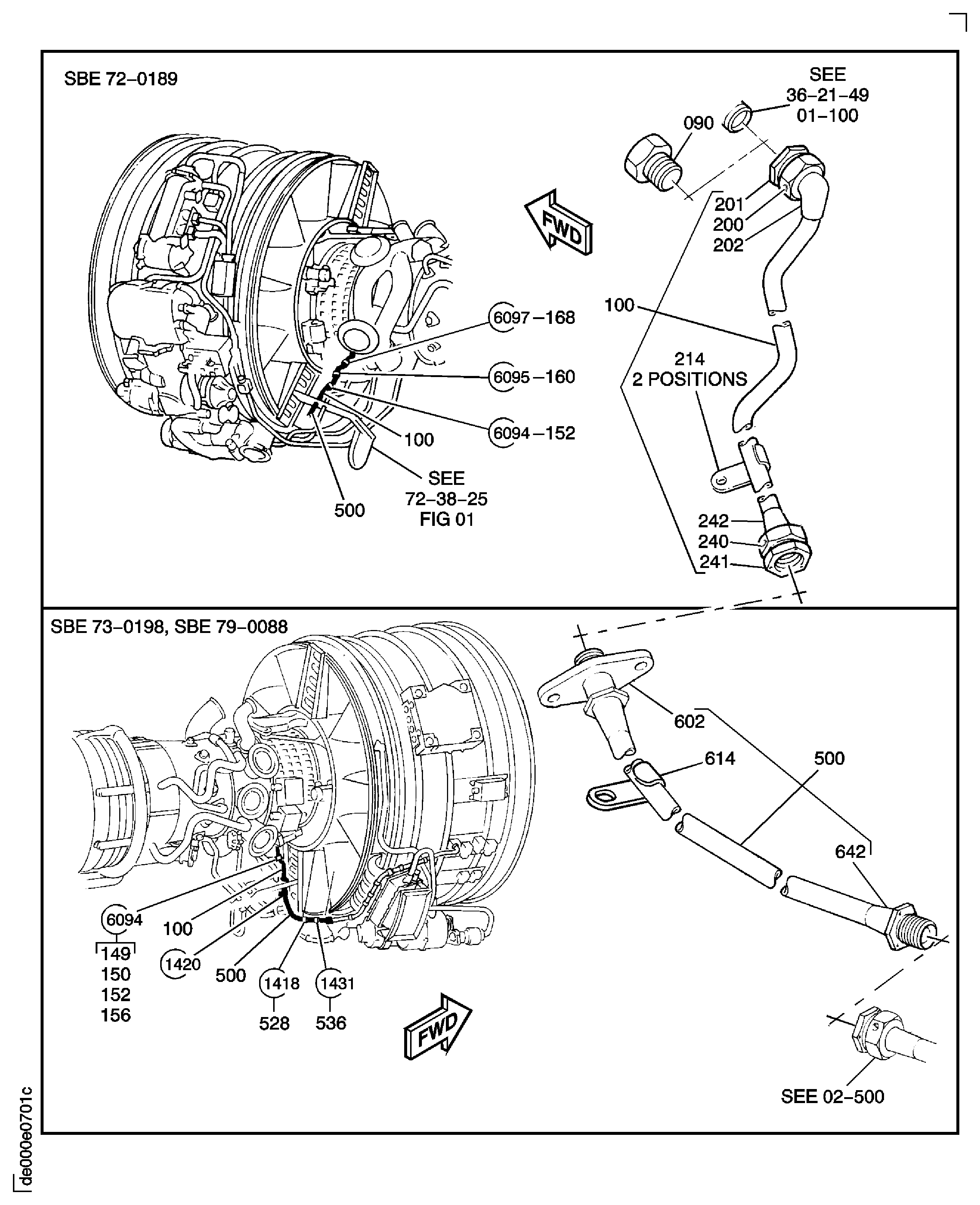

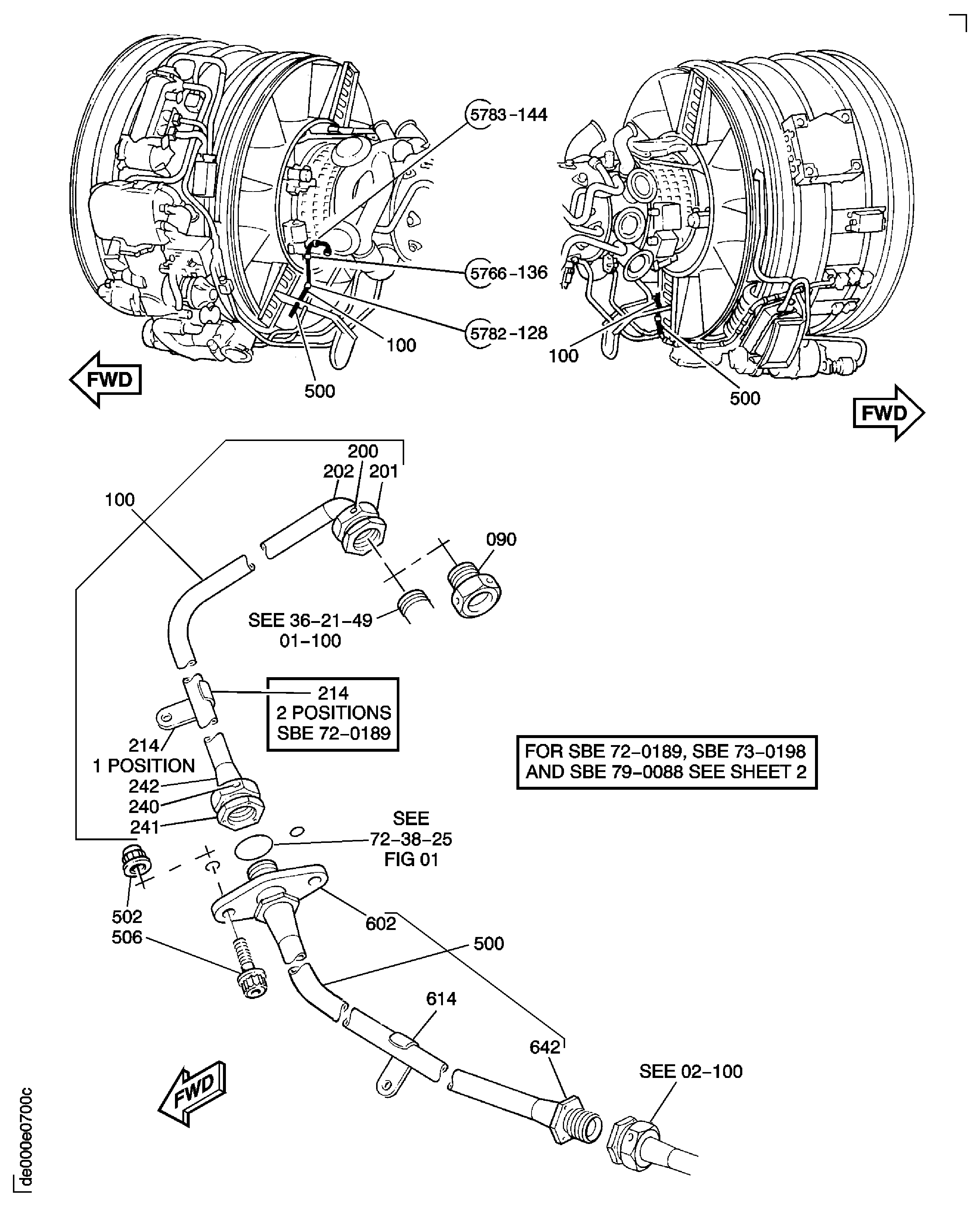

Figure: PNEUMATIC-TUBES-HP BLEED CONTROL AIR
PNEUMATIC TUBES HP BLEED
PNEUMATIC TUBES HP BLEED
