DMC:V2500-A5-36-11-47-02A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| - | B36114702 | PNEUMATIC-TUBES-HP BLEED CONTROL AIR, PRE SBE73-0061 | ||
| - | SBE0061-01 | PNEUMATIC-TUBES-HP BLEED CONTROL AIR, PRE SBE79-0088 | ||
| - | SBE0088-01 | PNEUMATIC-TUBES-HP BLEED CONTROL AIR | ||
| 100 | 6A2140 | • TUBE - AIR, STAGE 10 BLEED VALVE OVERRIDE - DISCONNECT 1, ASSEMBLY OF PRE SBE79-0088 | aa-ac/01 | 1 |
| 128 | 400WSS4 | • CLIP 83930 PRE SBE79-0088 | aa-ab/02 | 1 |
| 136 | 400WSS4 | • CLIP 83930 PRE SBE73-0061 | aa/02 | 1 |
| 136A | AS62404 | • CLIP, 6,35 MM (0.250) U1653 POST SBE73-0061 PRE SBE79-0088 | ab-ac/02 | 1 |
| 136B | AS62404 | • CLIP, 6,35 MM (0.250) U1653 PRE SBE79-0088 | ac/03 | 1 |
| 200 | AS15777 | • • WIRE U1653 PRE SBE79-0088 | aa-ab/01 | 1 |
| 201 | AS15701 | • • NUT, TUBE COUPLING U1653 PRE SBE79-0088 | aa-ab/01 | 1 |
| 202 | AS15768 | • • FERRULE, ASSEMBLY U1653 PRE SBE79-0088 | aa-ab/01 | 1 |
| 214 | LK39602 | • • CLIP PRE SBE79-0088 | aa-ab/01 | 1 |
| 242 | AS15802 | • • ADAPTER, STRAIGHT TUBE U1653 PRE SBE79-0088 | aa-ab/01 | 1 |
| 500 | 6A2138 | • TUBE - AIR, STAGE 10 BLEED VALVE OVERRIDE - DISCONNECT 2, ASSEMBLY OF PRE SBE79-0088 | aa-ac/01 | 1 |
| 500A | 6A6225 | • TUBE - AIR, STAGE 10 BLEED VALVE OVERRIDE - DISCONNECT 2, ASSEMBLY OF PRE SBE79-0088 | ad/01 | 1 |
| 528 | 400WSS4 | • CLIP 83930 PRE SBE73-0061 | aa/01 | 1 |
| 528A | AS62404 | • CLIP, 6,35 MM (0.250) U1653 POST SBE73-0061 PRE SBE79-0088 | aa-ac/02 | 1 |
| 528B | AS62404 | • CLIP, 6,35 MM (0.250) U1653 PRE SBE79-0088 | ac/03 | 1 |
| 536 | 400WSS4 | • CLIP 83930 | aa-ad/01 | 1 |
| 544 | 400WSS4 | • CLIP 83930 | aa-ad/01 | 1 |
| 552 | 400WSS4 | • CLIP 83930 | aa-ad/01 | 1 |
| 560 | AS62404 | • CLIP, 6,35 MM (0.250) U1653 POST SEB79–0088 | ad/01 | 1 |
| 568 | AS62404 | • CLIP, 6,35 MM (0.250) U1653 POST SEB79–0088 | ad/01 | 1 |
| 600 | AS15777 | • • WIRE U1653 PRE SEB79–0088 | aa-ab/01 | 2 |
| 600A | AS15777 | • • WIRE U1653 POST SEB79–0088 | ac-ad/01 | 1 |
| 601 | AS15701 | • • NUT, TUBE COUPLING U1653 PRE SEB79–0088 | aa-ab/01 | 2 |
| 601A | AS15701 | • • NUT, TUBE COUPLING U1653 POST SEB79–0088 | ac-ad/01 | 1 |
| 602 | AS15768 | • • FERRULE, ASSEMBLY U1653 PRE SEB79–0088 | aa-ab/01 | 2 |
| 602A | AS15768 | • • FERRULE, ASSEMBLY U1653 POST SEB79–0088 | ac-ad/01 | 1 |
| 640 | AS15777 | • • WIRE U1653 POST SEB79–0088 | ac-ad/01 | 1 |
| 641 | AS15701 | • • NUT, TUBE COUPLING U1653 POST SEB79–0088 | ac-ad/01 | 1 |
| 642 | AS15768 | • • FERRULE, ASSEMBLY U1653 POST SEB79–0088 | ac-ad/01 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

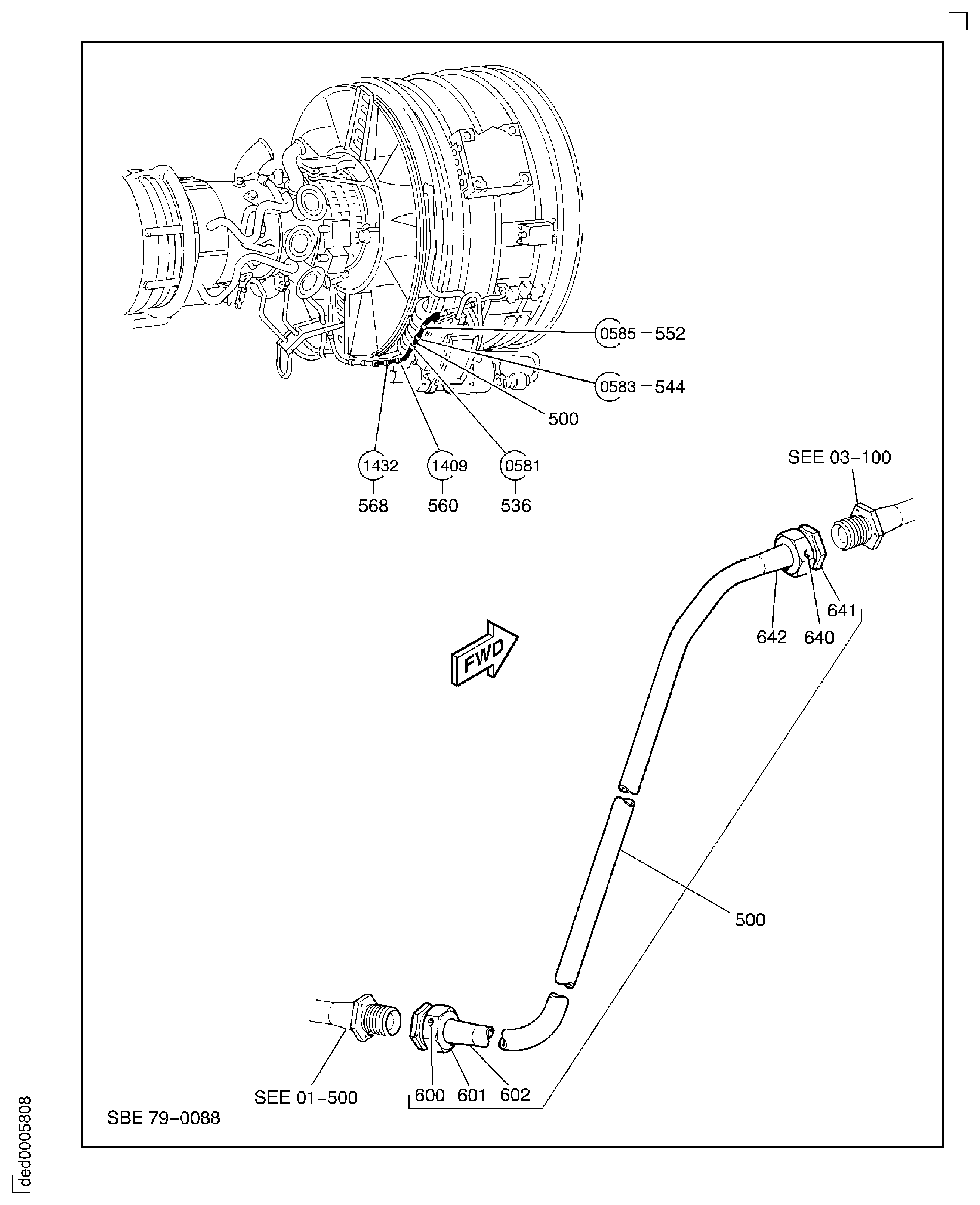

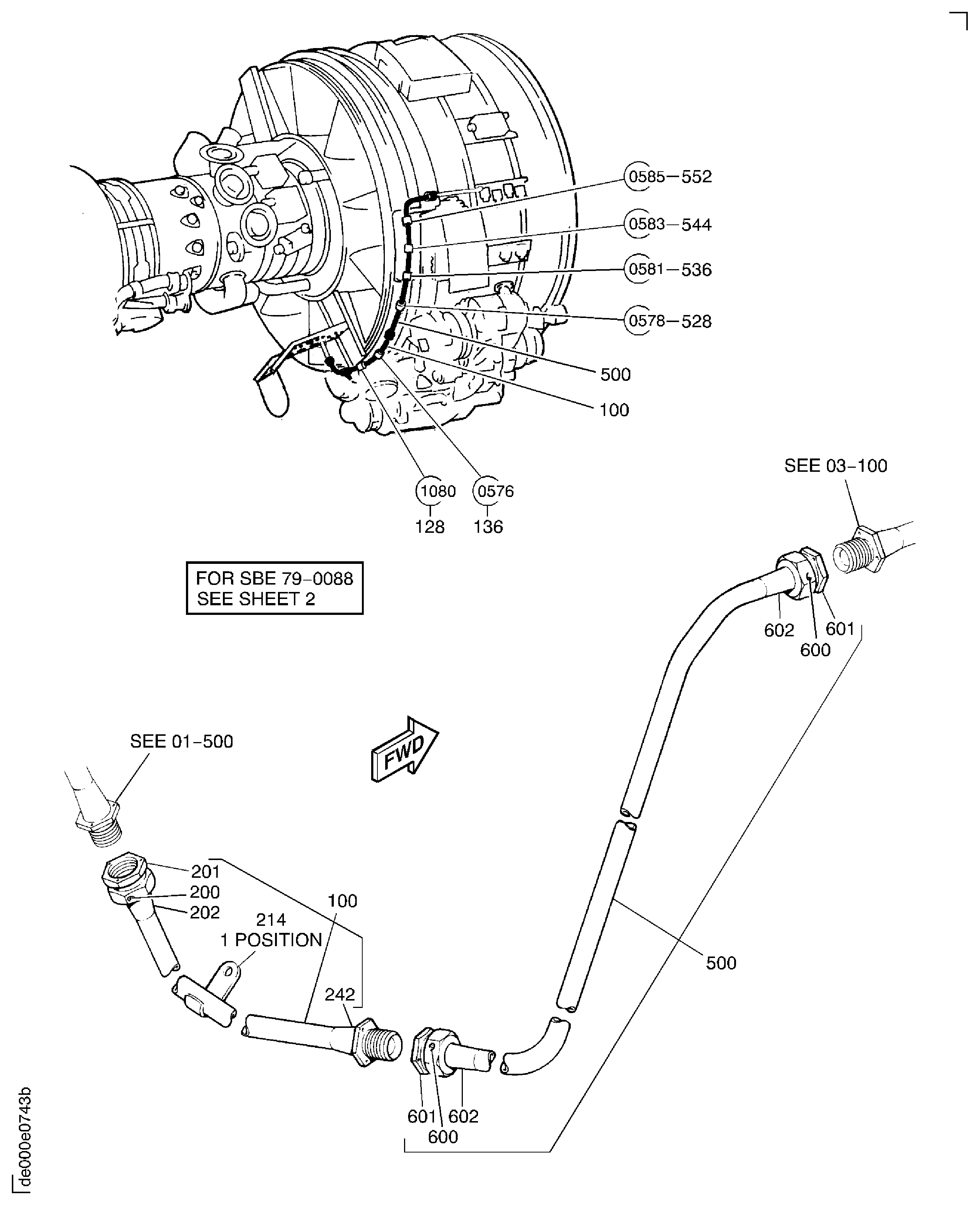

Figure: HP Bleed Control Air Tubes
HP Bleed Control Air Tubes
HP Bleed Control Air Tubes
