V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 03 | ||||
| B36114703 | PNEUMATIC-TUBES-HP BLEED CONTROL AIR | aa | ||
| 100 | 6A2137 | • TUBE - A/O-AIR STAGE 10 BV.OVERRIDE-DISCONN 3 TO SOL | aa | 1 |
| 128 | 400WSS4 | • CLIP 83930 | aa | 1 |
| 136 | 400WSS4 | • CLIP 83930 | aa | 1 |
| 202 | AS15802 | • • ADAPTOR U1653 | aa | 1 |
| 218 | JR16546 | • • REDUCER - TUBE | aa | 1 |
| 240 | AS15778 | • • WIRE - THRUST U1653 | aa | 1 |
| 241 | AS15702 | • • NUT - TUBE COUPLING U1653 | aa | 1 |
| 242 | LK40971 | • • ADAPTOR | aa | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

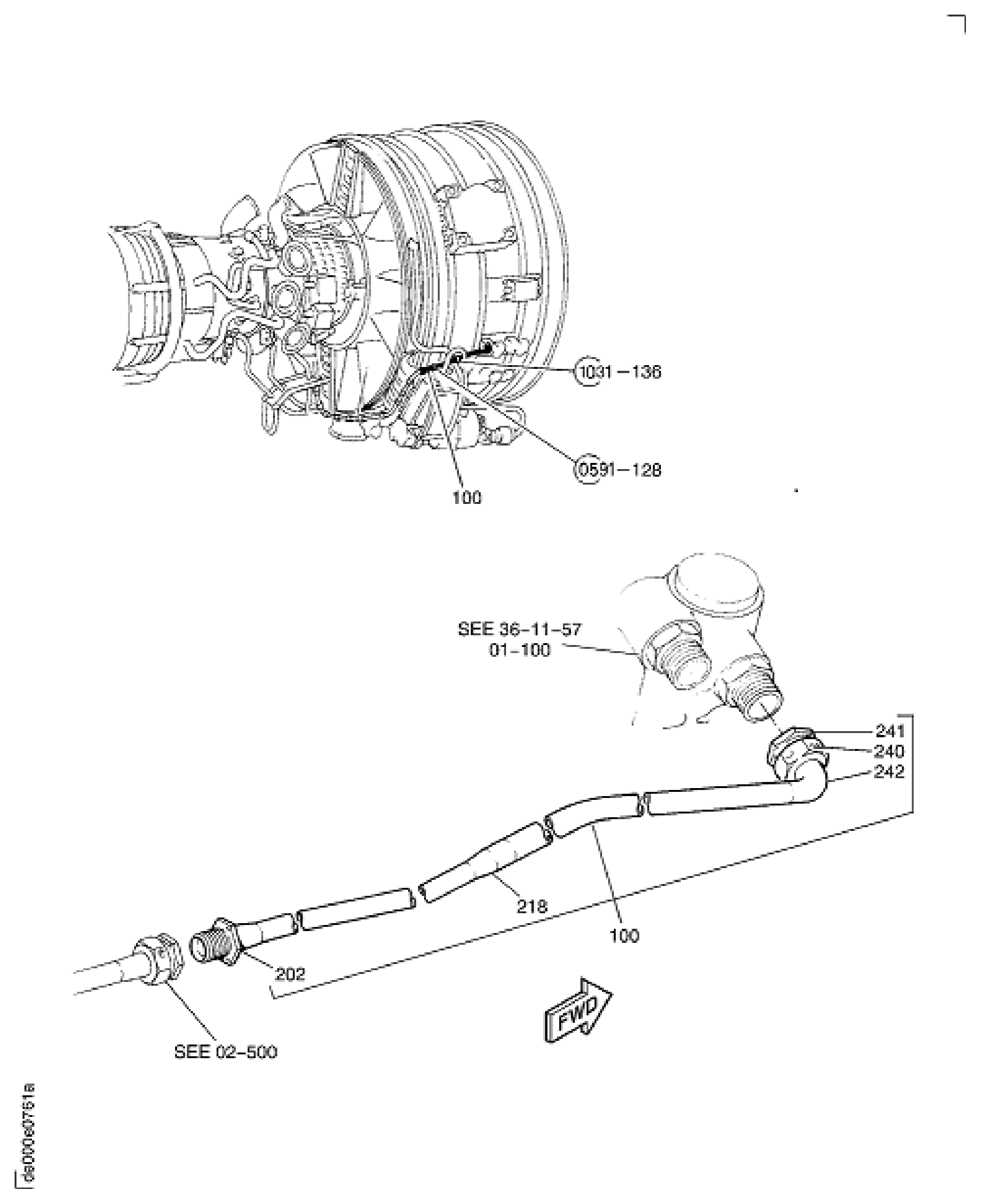

Figure: PNEUMATIC-TUBES-HP BLEED CONTROL AIR
PNEUMATIC-TUBES-HP BLEED CONTROL AIR
