DMC:V2500-A5-36-11-49-01A-941A-DIssue No:003.00Issue Date:2020-02-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B36114901 | PNEUMATIC - BLEED AIR DUCTS, PRE SBN70-0696 | aa | ||
| SBN0696-01 | PNEUMATIC - BLEED AIR DUCTS, PRE SBN70-0439 | ab | ||
| SBN0439-01 | PNEUMATIC - BLEED AIR DUCTS, PRE SBE70-0670 | ac | ||
| SBE0670-01 | PNEUMATIC - BLEED AIR DUCTS, PRE SBN70-0740 | ad | ||
| SBN0740-01 | PNEUMATIC - BLEED AIR DUCTS, PRE SBN70-0744 | ae | ||
| SBN0744-01 | PNEUMATIC - BLEED AIR DUCTS | af | ||
| 100 | 740-5060-505 | • DUCT - ASSEMBLY OF 51563 | aa-af | 1 |
| 110 | 6299256-0400 | • COUPLING K6712 | aa-af | 1 |
| 120 | NAS6704-16 | • BOLT 80205 | aa-af | 2 |
| 130 | MS21043-4 | • NUT 96906 ALT H41-4 | aa-af | 2 |
| 130A | H41-4 | • NUT - SELF LOCKING, 0.250 DIA 15653 ALT MS21043-4 | aa-af | 2 |
| 140 | SP156E | • WASHER K7766 | aa-af | 2 |
| 150 | 740-5111-501 | • BUSHING - FLANGED 51563 | aa-af | 2 |
| 160 | RFY04UJ | • BEARING - LINK FEMALE PRE SBN70-0439 | aa-ab | 2 |
| 160A | P3A1830 | • BEARING K7067 POST SBN70-0439 | aa-af | 2 |
| 160B | B0308015 | • BEARING K4585 POST SBN70-0744 | af | 2 |
| 170 | 740-5067-503 | • ROD 51563 | aa-af | 1 |
| 172 | A105GT | • NUT - 0.312 DIA K7766 | aa-af | 2 |
| 173 | SP108G | • WASHER - TAB K7766 | aa-af | 2 |
| 180 | NAS6704-16 | • BOLT 80205 | aa-af | 2 |
| 190 | MS21043-4 | • NUT 96906 ALT H41-4 | aa-af | 2 |
| -190A | H41-4 | • NUT - SELF LOCKING, 0.250 DIA 15653 ALT MS21043-4 | aa-af | REF |
| 200 | SP156E | • WASHER K7766 | aa-af | 2 |
| 210 | 740-5111-501 | • BUSHING - FLANGED 51563 | aa-af | 2 |
| 220 | RFY04UJ | • BEARING - LINK FEMALE PRE SBN70-0439 | aa-ab | 1 |
| 220A | P3A1830 | • BEARING K7067 POST SBN70-0439 | aa-af | 1 |
| 220B | B0308015 | • BEARING K4585 POST SBN70-0744 | af | 1 |
| 230 | RMY04UJA | • BEARING - LINK MALE PRE SBN70-0696 | aa | 1 |
| 230A | RMY04UJ | • BEARING - LINK, MALE POST SBN70-0696 | ab-af | 1 |
| 230B | P3A1820 | • BEARING - ROD END, ASSEMBLY OF K7067 POST SBN70-0439 | ac-af | 1 |
| 232 | A105GT | • NUT - 0.312 DIA K7766 | aa-af | 1 |
| 233 | SP108G | • WASHER - TAB K7766 | aa-af | 1 |
| 300 | 740-5051-505 | • DUCT 51563 PRE SBN70-0740 | aa-ad | 1 |
| 300A | 740-5051-507 | • DUCT 51563 POST SBN70-0740 | ae-af | 1 |
| 310 | 6299258-0350 | • COUPLING K6712 | aa-af | 1 |
| 320 | NK103102-0350 | • SEAL K6712 | aa-af | 1 |
| 320A | NK103102-0350 | • SEAL K6712 ALT S2347-350 POST SBE70-0670 | ad-af | 1 |
| 320B | S2347-350 | • SEAL 51563 ALT NK103102-0350 POST SBE70-0670 | ad-af | 1 |
| 330 | 6299258-0400 | • COUPLING K6712 | aa-af | 1 |
| 340 | NK103102-0400 | • SEAL K6712 | aa-af | 1 |
| 340A | NK103102-0400 | • SEAL K6712 ALT S2347-400 POST SBE70-0670 | ad-af | 1 |
| 340B | S2347-400 | • SEAL 51563 ALT NK103102-0400 POST SBE70-0670 | ad-af | 1 |
| 500 | 740-5059-505 | • DUCT - LOWER, ASSEMBLY OF 51563 | aa-af | 1 |
| -900 | 740-5063-501 | • BRACKET - SUPPORT 51563 | aa-af | REF |
| -910 | 740-5064-501 | • BRACKET - SUPPORT 51563 | aa-af | REF |
| -920 | 740-5068-501 | • BRACKET - SUPPORT 51563 | aa-af | REF |
| -920A | 745-5068-501 | • BRACKET - SUPPORT 51563 | aa-af | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

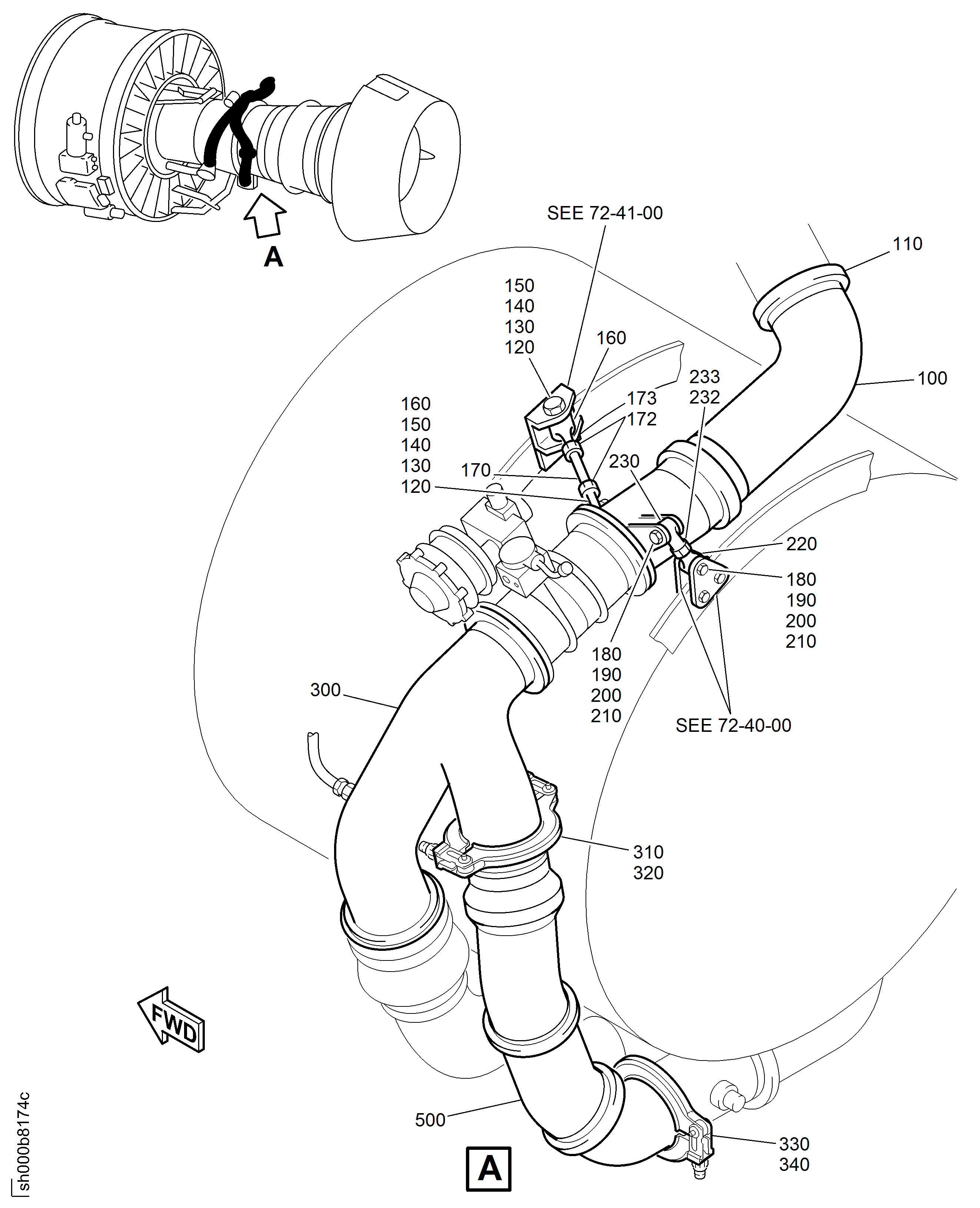

Figure: PNEUMATIC-BLEED AIR DUCTS
