DMC:V2500-A5-36-11-52-01A-941A-DIssue No:006.00Issue Date:2020-02-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B36115201 | PNEUMATIC - BLEED PRESSURE REGULATOR VALVE, PRE SBE70-0670 | aa | |
| - | SBE0670-01 | PNEUMATIC - BLEED PRESSURE REGULATOR VALVE, PRE SBN70-0614 | ab | |
| - | SBN0614-01 | PNEUMATIC - BLEED PRESSURE REGULATOR VALVE, PRE SBN70-0760 (A533 ONLY) | ac | |
| - | SBN0760-01 | PNEUMATIC - BLEED PRESSURE REGULATOR VALVE, PRE SBN70-0617 | ad | |
| - | SBN0617-01 | PNEUMATIC-BLEED PRESSURE REGULATOR VALVE | ae | |
| 050 | 6714A01 | • VALVE - BLEED PRESSURE,REGULATOR F0230 | aa-ae/01 | 1 |
| 050A | 6774F010000 | • VALVE - BLEED PRESS REGULATOR F0230 POST SBN70-0760 | ad-ae/01 | 1 |
| 050B | 6774G010000 | • VALVE - BLEED PRESS REGULATOR F0230 | aa-ae/01 | 1 |
| 050C | 6714D02 | • VALVE - PRESSURE, REGULATING F0230 PRE SBN70-0617 | aa-ae/01 | 1 |
| 050D | 6714D05 | • VALVE - PRESSURE, REGULATING F0230 POST SBN70-0617 PRE SBN70-0617 | ****/01 | 1 |
| 050E | 6714D06 | • VALVE - PRESSURE, REGULATING F0230 POST SBN70-0617 PRE SBN70-0617 | ****/01 | 1 |
| 050F | 6714D060000 | • VALVE - BLEED PRESS REGULATOR F0230 POST SBN70-0617 PRE SBN70-0617 | ****/01 | 1 |
| 050G | 6774E010000 | • VALVE - PRESSURE, REGULATING F0230 POST SBN70-0617 | af/01 | 1 |
| 060 | 6299258-0400 | • COUPLING K6712 | aa-ae/01 | 2 |
| 070 | NK103102-0400 | • SEAL K6712 PRE SBE70-0670 | aa/01 | 2 |
| 070A | NK103102-0400 | • SEAL K6712 ALT S2347-400 POST SBE70-0670 | ab-ae/01 | 2 |
| 070B | S2347-400 | • SEAL 51563 ALT NK103102-0400 POST SBE70-0670 | ab-ae/01 | 2 |
| 080 | 22M1057-103 | • SHIELD - HEAT ASSEMBLY.PRV,UPPER 25167 POST SBN70-0614 | ac-ae/01 | 1 |
| 090 | 22M1057-105 | • SHIELD - HEAT ASSEMBLY. HPV,LOWER 25167 POST SBN70-0614 | ac-ae/01 | 1 |
| 100 | HTM5015 | • HOSE CLAMP 25167 | aa-af/01 | 1 |
| 110 | HTM6086 | • HOSE CLAMP 25167 | aa-af/01 | 1 |
| 120 | HTM5594 | • HOSE CLAMP 25167 | aa-af/01 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

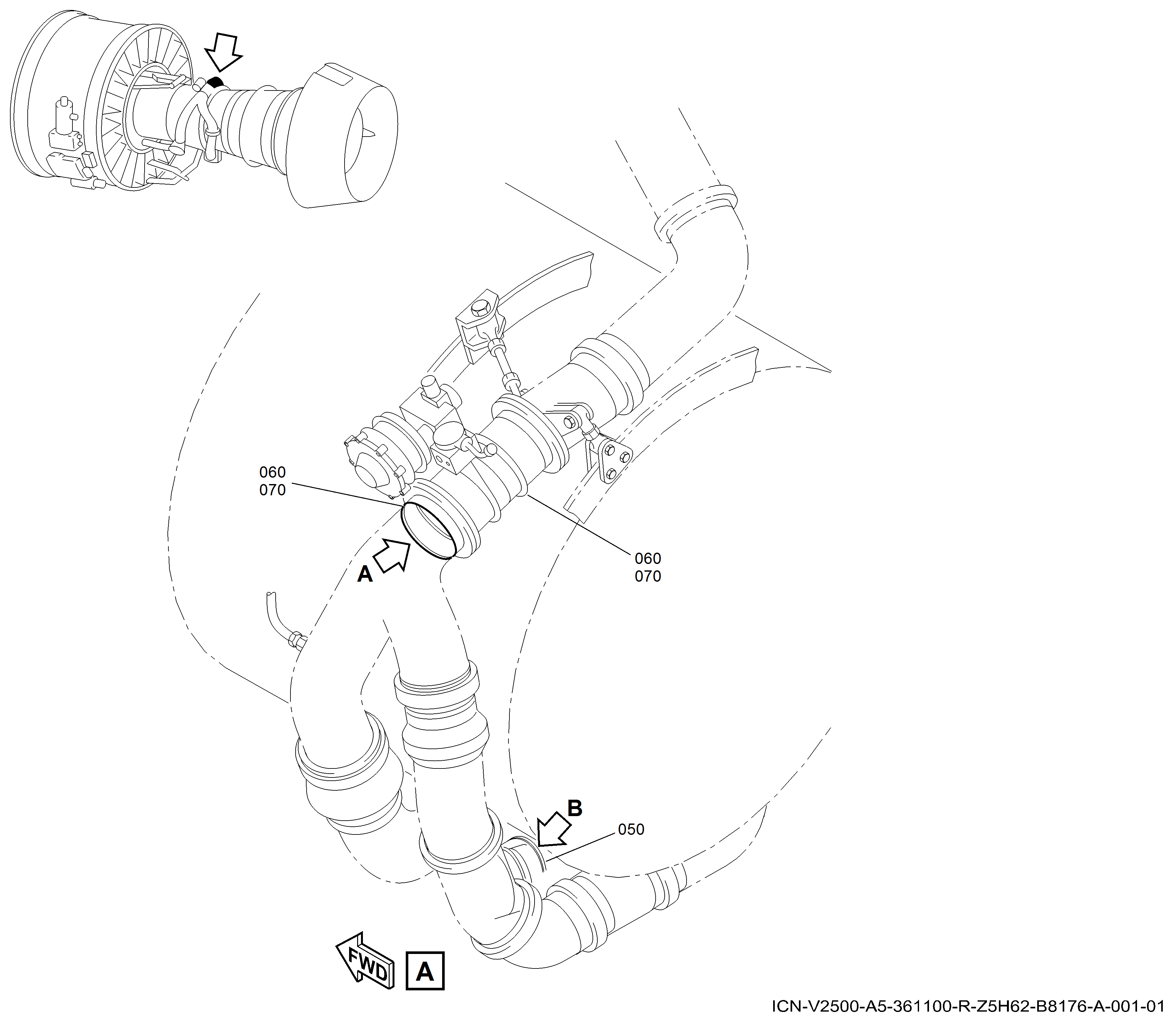

Figure: Bleed Pressure Regulator Valve

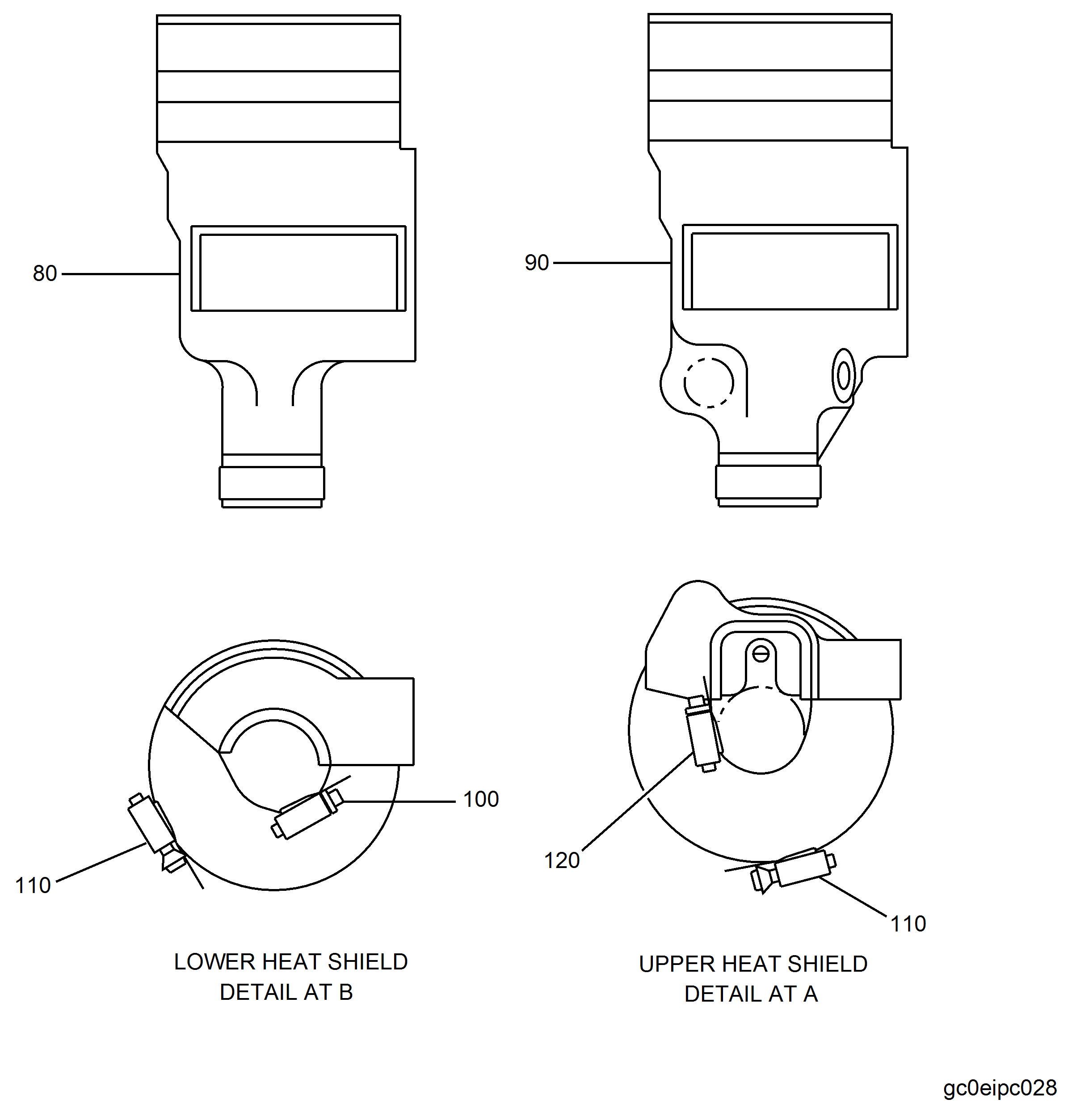

Bleed Pressure Regulator Valve
Bleed Pressure Regulator Valve
