DMC:V2500-A5-36-11-57-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B36115701 | STAGE 10 AIR SOLENOID VALVE, PRE SBE75-0047 | aa | ||
| SBE0047-01 | STAGE 10 AIR SOLENOID VALVE | ab | ||
| 100 | AC69576 | • VALVE - SOLENOID STAGE 10 BLEED 88041 | aa-ab | 1 |
| 102 | 4W0107 | • BOLT - .190 DIA X .750 PRE SBE75-0047 | aa | 3 |
| 102A | 4W0108 | • BOLT - .190 DIA X .812 POST SBE75-0047 | ab | 3 |
| 104 | 4W2621 | • WASHER | aa-ab | 3 |
| 106 | 4W0001 | • NUT - .190 DIA Optional Part AS20624 POST SBE75-0047 | ab | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

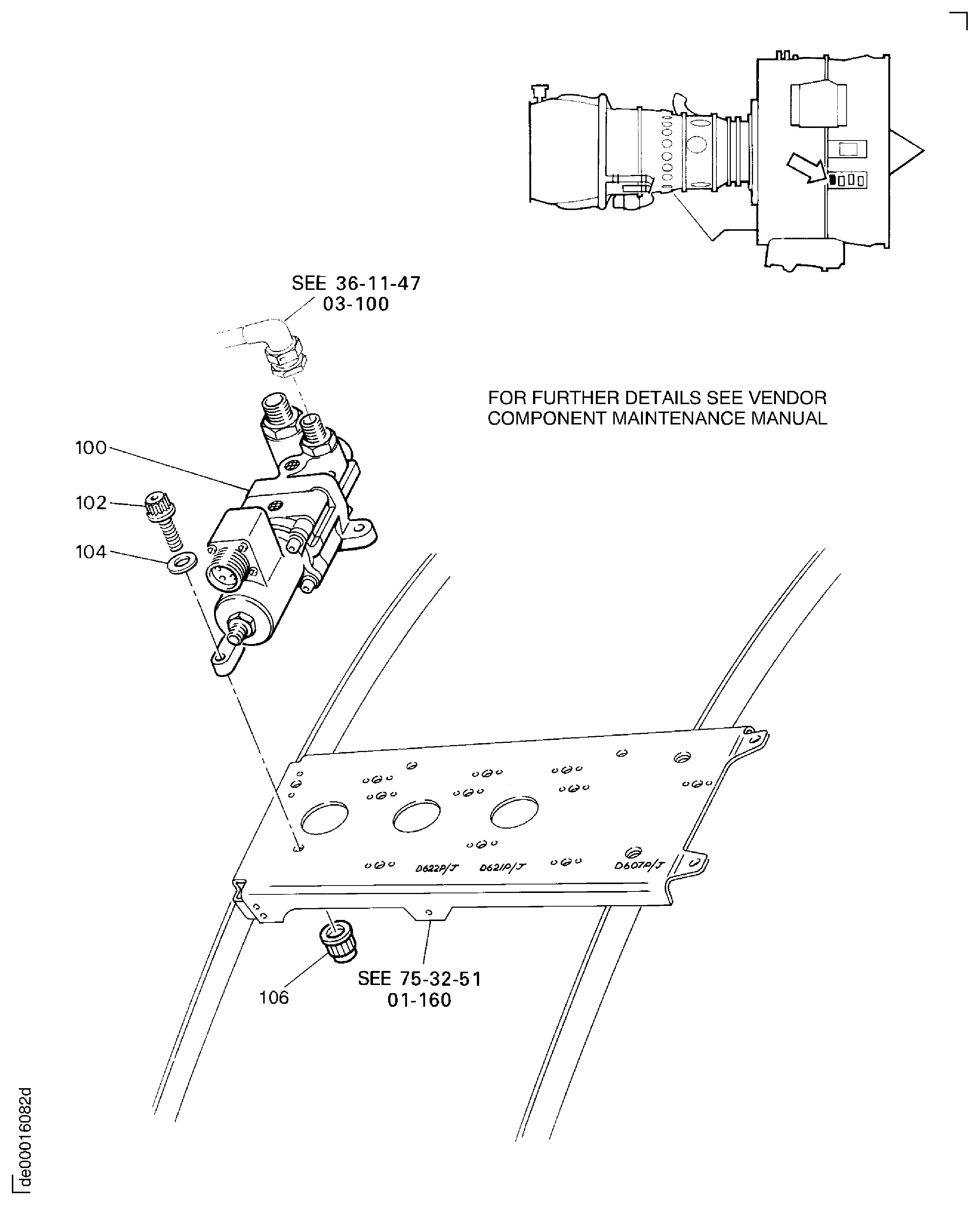

Figure: STAGE 10 AIR SOLENOID VALVE
AIR SOLENOID VALVE STAGE 10
