DMC:V2500-A5-36-21-49-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B36214901 | PNEUMATIC-PRESSURE INDICATING TUBES, PRE SBE72-0189 | aa | ||
| SBE0189-01 | PNEUMATIC-PRESSURE INDICATING TUBES, PRE SBN70-0468 | ab | ||
| SBN0468-01 | PNEUMATIC-PRESSURE INDICATING TUBES, PRE SBN36-0006 | ac | ||
| SBN0006-01 | PNEUMATIC-PRESSURE INDICATING TUBES, PRE SBE75-0081 | ad | ||
| SBE0081-01 | PNEUMATIC-PRESSURE INDICATING TUBES, PRE SBN36-0007 | ae | ||
| SBN0007-01 | PNEUMATIC-PRESSURE INDICATING TUBES, PRE SBN71-0273 | af | ||
| SBN0273-01 | PNEUMATIC-PRESSURE INDICATING TUBES | ag | ||
| 100 | 745-5645-501 | • TUBE - ASSY 51563 | aa-ag | 1 |
| 100A | 740-5089-503 | • TUBE - ASSY 51563 PRE SBE72-0189 | aa | 1 |
| 100B | 740-5089-505 | • TUBE - ASSY 51563 POST SBE72-0189 | ab-ag | 1 |
| 100C | 740-5089-505 | • TUBE - ASSY 51563 POST SBE72-0189 | ab-ag | 1 |
| 100D | 740-5089-507 | • TUBE - ASSY 51563 POST SBN70-0468 PRE SBN36-0007 | ac-ae | 1 |
| 125 | AS21414 | • BOLT - .190 DIA X .875 U1653 | aa-ag | 1 |
| 126 | SP155D | • WASHER K7766 | aa-ag | 1 |
| 127 | TA025022FT04 | • CLIP 84971 PRE SBN36-0006 | aa-ac | 1 |
| 127A | C10GT3-04 | • CLAMP 83930 POST SBN36-0006 | aa-ag | 1 |
| 128 | ST1698D48 | • SPACER K4585 | aa-ag | 1 |
| 130 | AS20624 | • NUT - .190 DIA U1653 | aa-ag | 1 |
| 133 | 4W0102 | • BOLT - .190 DIA X .438 | aa-ag | 1 |
| 133A | 4W0102 | • BOLT - .190 DIA X .438 POST SBN71-0273 | ag | 1 |
| 137 | TA025022FT04 | • CLIP 84971 PRE SBN36-0006 | aa-ac | 1 |
| 137A | C10GT3-04 | • CLAMP 83930 POST SBN36-0006 | aa-ag | 1 |
| 140 | AS41104 | • NUT - .190 DIA U1653 | aa-ag | 1 |
| 150 | 4W0101 | • BOLT - .190 DIA X .375 POST SBE72-0189 PRE SBN36-0007 | ab-ae | 1 |
| 150A | 4W0101 | • BOLT - .190 DIA X .375 POST SBE72-0189 PRE SBN36-0007 | ab-ae | 1 |
| 154 | TA025022FT04 | • CLIP 84971 POST SBE72-0189 PRE SBN36-0006 | ab-ac | 1 |
| 154A | TA025022FT04 | • CLIP 84971 POST SBE72-0189 PRE SBN36-0006 | ab-ac | 1 |
| 154B | C10GT3-04 | • CLAMP 83930 POST SBN36-0006 | ab-ag | 1 |
| 158 | 4W0043 | • NUT - .190 DIA POST SBE72-0189 PRE SBN36-0007 | ab-ae | 1 |
| 158A | 4W0043 | • NUT - .190 DIA POST SBE72-0189 PRE SBN36-0007 | ab-ae | 1 |
| 500 | 745-5644-501 | • TUBE - ASSY 51563 | aa-ag | 1 |
| 500A | 745-5644-505 | • TUBE - ASSY 51563 PRE SBN70-0468 | aa-ab | 1 |
| 500B | 745-5644-507 | • TUBE - ASSY 51563 POST SBN70-0468 PRE SBN36-0007 | aa-ae | 1 |
| 510 | 745-5645-503 | • TUBE - ASSY 51563 PRE SBE72-0189 | aa | 1 |
| 510A | 745-5645-505 | • TUBE - ASSY 51563 POST SBE72-0189 PRE SBN70-0468 | ab | 1 |
| 510B | 745-5645-505 | • TUBE - ASSY 51563 POST SBE72-0189 PRE SBN70-0468 | ab | 1 |
| 510C | 745-5645-507 | • TUBE - ASSY 51563 POST SBN70-0468 PRE SBN36-0007 | ab-ae | 1 |
| 525 | 4W0103 | • BOLT - .190 DIA X .500 | aa-ag | 1 |
| 529 | TA025022FT04 | • CLIP 84971 | aa-ag | 1 |
| 529A | C10GT3-04 | • CLAMP 83930 POST SBN36-0006 PRE SBN36-0007 | ad-ae | 1 |
| 531 | SP154D | • WASHER - .190 DIA K7766 PRE SBN36-0007 | aa-ae | 1 |
| 532 | 4W0001 | • NUT - .190 DIA PRE SBN36-0007 | aa-ae | 1 |
| 533 | 4W0103 | • BOLT - .190 DIA X .500 | aa-ag | 1 |
| 533A | 4W0106 | • BOLT - .190 DIA X .688 PRE SBN36-0007 | aa-ae | 1 |
| 534 | ST1698D47 | • SPACER K4585 PRE SBN36-0007 | aa-ae | 1 |
| 535 | TA025022FT04 | • CLIP 84971 | aa-ag | 1 |
| 535A | C10GT3-04 | • CLAMP 83930 POST SBN36-0006 PRE SBN36-0007 | ad-ae | 1 |
| 540 | AS41104 | • NUT - .190 DIA U1653 | aa-ag | 1 |
| 555 | TA025022FT04 | • CLIP 84971 PRE SBN36-0006 | aa-ac | 1 |
| 555A | C10GT3-04 | • CLAMP - ASSY 83930 POST SBN36-0006 PRE SBN36-0007 | aa-ae | 1 |
| 560 | TA025022FT04 | • CLIP 84971 PRE SBN36-0006 | aa-ac | 1 |
| 560A | C10GT3-04 | • CLAMP - ASSY 83930 POST SBN36-0006 PRE SBE75-0081 | aa-ad | 1 |
| 562 | C10GT3-04 | • CLAMP 83930 POST SBE75-0081 PRE SBN36-0007 | ae | 1 |
| 564 | ST1698D47 | • SPACER K4585 POST SBE75-0081 | ae-ag | 1 |
| 565 | 4W0101 | • BOLT - .190 DIA X .375 Optional Part 4W0101 PRE SBN36-0007 | aa-ae | 1 |
| 570 | TA025022FT04 | • CLIP 84971 PRE SBN36-0006 | aa-ac | 1 |
| 570A | C10GT3-04 | • CLAMP - ASSY 83930 POST SBN36-0006 PRE SBN36-0007 | aa-ae | 1 |
| 575 | AS41104 | • NUT - A/O SELF LOCKING, .190 DIA U1653 PRE SBN36-0007 | aa-ae | 1 |
| 600 | 745-5166-501 | • TUBE - ASSY 51563 POST SBN36-0007 | af-ag | 1 |
| 620 | C10GT3-04 | • CLAMP 83930 POST SBN36-0007 | af-ag | 1 |
| 630 | C10GT3-04 | • CLAMP 83930 POST SBN36-0007 | af-ag | 1 |
| 640 | C10GT3-04 | • CLAMP 83930 POST SBN36-0007 | af-ag | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

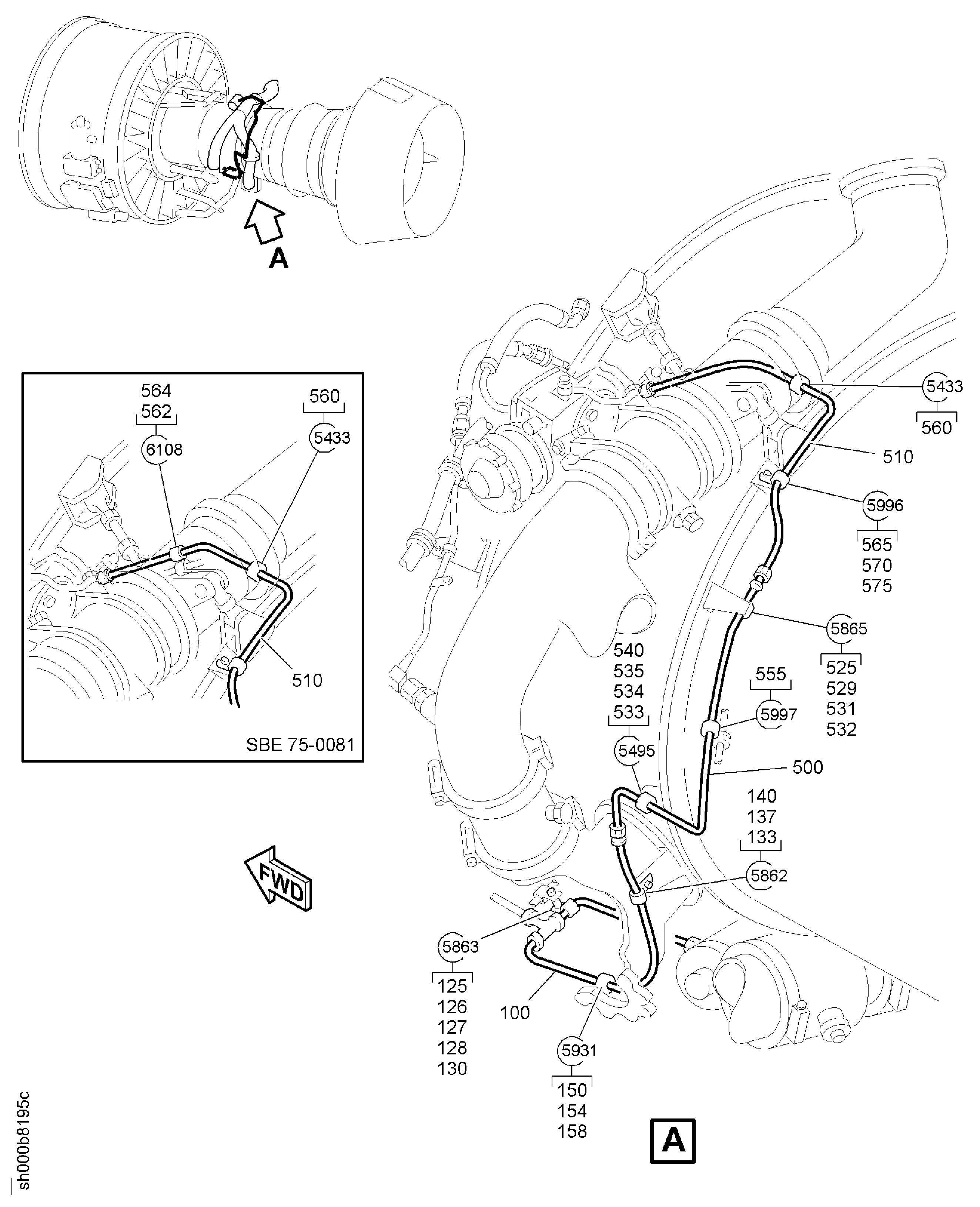

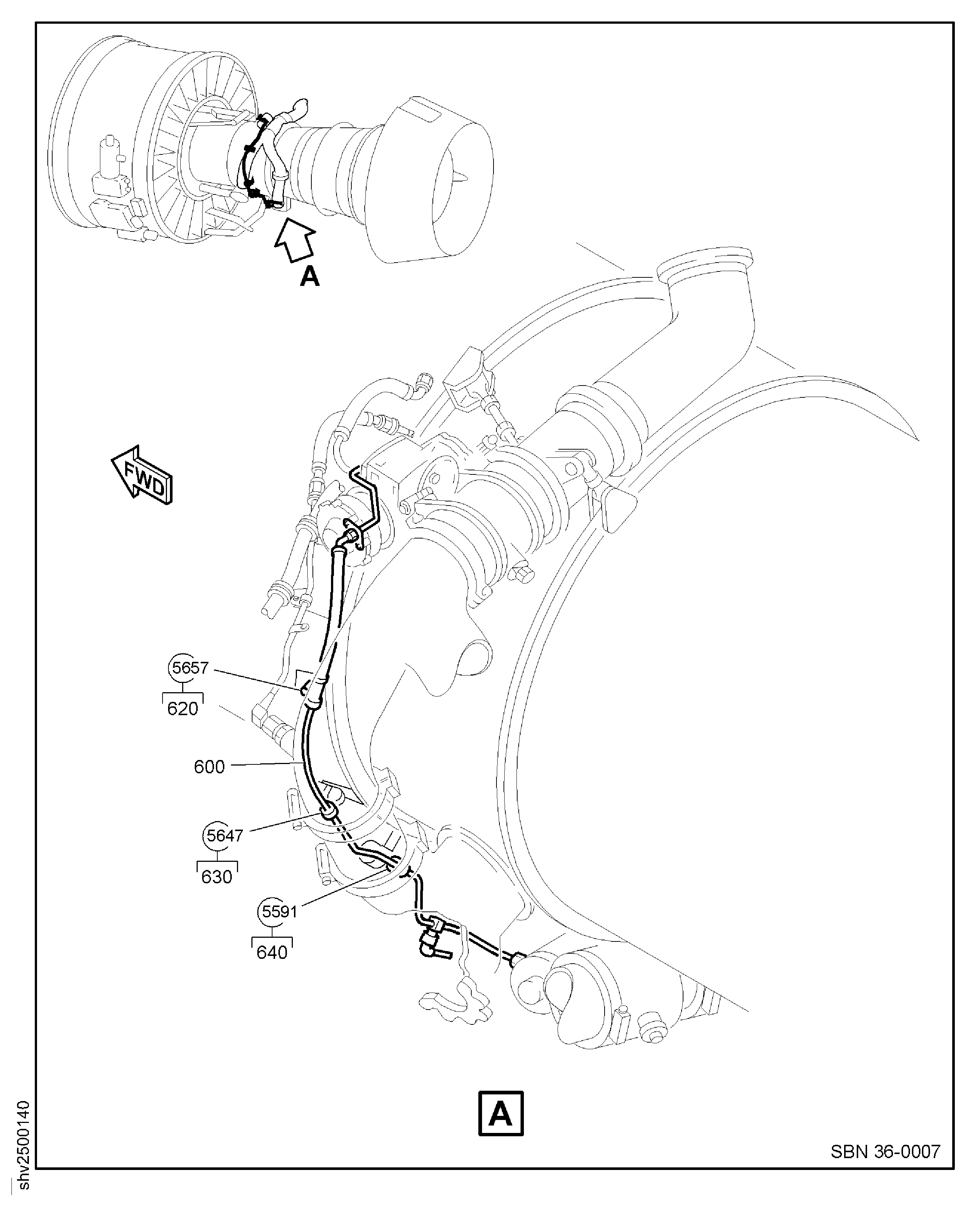

Figure: PNEUMATIC-PRESSURE INDICATING TUBES
TUBES PRESSURE INDICATING
TUBES PRESSURE INDICATING
