DMC:V2500-A5-36-21-49-02A-941A-DIssue No:003.00Issue Date:2020-08-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA | |
|---|---|---|---|---|---|
| 02 | |||||
| B36214902 | PNEUMATIC - PRESSURE INDICATING TUBES, PRE SBN70-0468 | aa | |||
| SBN0468-01 | PNEUMATIC - PRESSURE INDICATING TUBES, PRE SBN36-0006 | ab | |||
| SBN0006-01 | PNEUMATIC - PRESSURE INDICATING TUBES | ac | |||
| 100 | X | 740-5086-501 | • TUBE - ASSEMBLY OF 51563 | aa-ac | 1 |
| 128 | TA025022FT04 | • CLIP 84971 | aa-ac | 1 | |
| 200 | 556-1-15847-000 | • HOSE - 5/16 U1603 | aa-ac | 1 | |
| 200A | 556-1-15847-001 | • HOSE U1603 POST SBN70-0468 | ab-ac | 1 | |
| 500 | 745-5093-501 | • TUBE - ASSEMBLY OF 51563 | aa-ac | 1 | |
| 500A | 745-5093-503 | • TUBE - ASSEMBLY OF 51563 POST SBN70-0468 | ab-ac | 1 | |
| 515 | C10GT3-04 | • CLAMP 83930 POST SBN36-0006 | ac | 1 | |
| 560 | TA025022FT04 | • CLIP 84971 PRE SBN36-0006 | aa-ab | 1 | |
| 560A | TA0210046FT04 | • CLIP 84971 POST SBN36-0006 | aa-ac | 1 | |
| 562 | ST1698D49 | • SPACER - 15 MM K4585 | aa-ac | 1 | |
| 565 | TA025022FT04 | • CLIP 84971 PRE SBN36-0006 | aa-ab | 1 | |
| 565A | C10GT3-04 | • CLAMP 83930 POST SBN36-0006 | aa-ac | 1 | |
| 650 | MS219024S | • UNION 96906 PRE SBN70-0468 | aa | 1 | |
| 650A | 745-5197-501 | • UNION 51563 POST SBN70-0468 | aa-ac | 1 | |
| 655 | 12100AA4 | • SEAL 08199 | aa-ac | 1 | |
| 700 | 556-1-15306-000 | • HOSE U1603 PRE SBN70-0468 | aa | 1 | |
| 700A | 556-1-15306-001 | • HOSE U1603 POST SBN70-0468 | aa-ac | 1 | |
| 725 | 745-5097-501 | • TUBE - ASSEMBLY OF 51563 PRE SBN70-0468 | aa | 1 | |
| 725A | 745-5097-503 | • TUBE - ASSEMBLY OF 51563 POST SBN70-0468 | aa-ac | 1 | |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | |||||

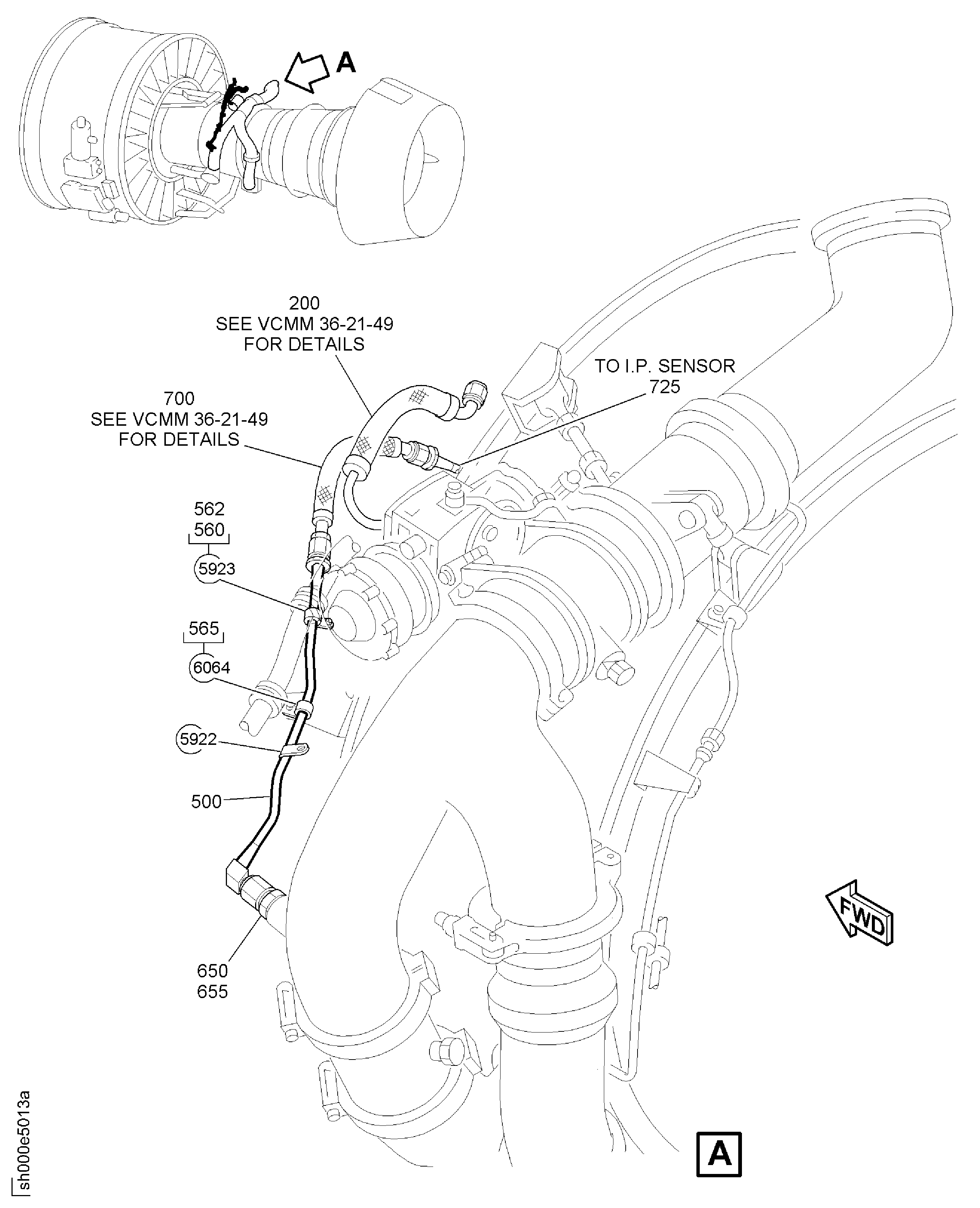

Figure: PNEUMATIC-PRESSURE INDICATING TUBES
TUBES PRESSURE INDICATING
