TASK 71-00-02-000-011-B00 (A5-PPBU) - Remove The 400VC to IDG Cable Assembly, Removal-011

DMC:V2500-A5-71-00-0200-10B-520A-B|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Common Information

TASK 71-00-02-000-011-B00 (A5-PPBU) - Remove The 400VC to IDG Cable Assembly, Removal-011

General

Fig/Item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/Item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/Item number.

Apply the approved CoMat 10-058 PENETRATING OIL before the removal of threaded parts. Let the parts soak before removal.

During the removal procedure make sure that the harnesses are held temporarily along their different lengths. This is to prevent too much strain on the harnesses, cables and electrical connectors.

During the removal procedure put the special plastic caps on the electrical connectors and receptacles. This is to give protection from unwanted fluids or materials.

During the removal procedure remove the lacing tape which attaches the different harnesses to each other.

Seal all openings when the tubes or components are disconnected to prevent contamination from unwanted material.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 06-086 TIES18992CoMat 06-086
CoMat 10-058 PENETRATING OIL0AM53CoMat 10-058

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 71-00-02-020-035 Remove the 400VC to IDG Cable Assembly

    1. Refer to Figure and Figure.

    2. Temporarily attach the IDG cable connector to a safe position on the LP compressor/intermediate case with CoMat 06-086 TIES.

    3. Remove the screws and the washers from the terminal cover.

    4. Remove the terminal cover.

    5. NOTE

      Alternative configuration, remove the four terminal nuts with captive washers from the four terminal posts.

      Remove the nuts and the washers from the four terminal posts.

    6. Disconnect the four IDG cables (Phase Leads).

    7. Remove the nut which attaches both cables to the earth position at the bracket. Remove the cable terminals from the bracket. Refer to the view at A.

    8. Remove the two bolts and the two nuts which attach the clamp to the flange brackets at the clip position 0882.

    9. Remove the bolts, the washers, the clips and the nuts which attach the cables to the brackets at the clip positions 0883 to 0886 and 0888. Remove the cable (previously attached to the earth position).

    10. NOTE

      The 400VC to IDG cable assembly removed in this procedure must have its maintenance completed, as given in the Component Maintenance Manual (CMM-EHC-V2500-1IA).

      Remove the CoMat 06-086 TIES which hold the IDG cable connector and remove remaining cable assembly.

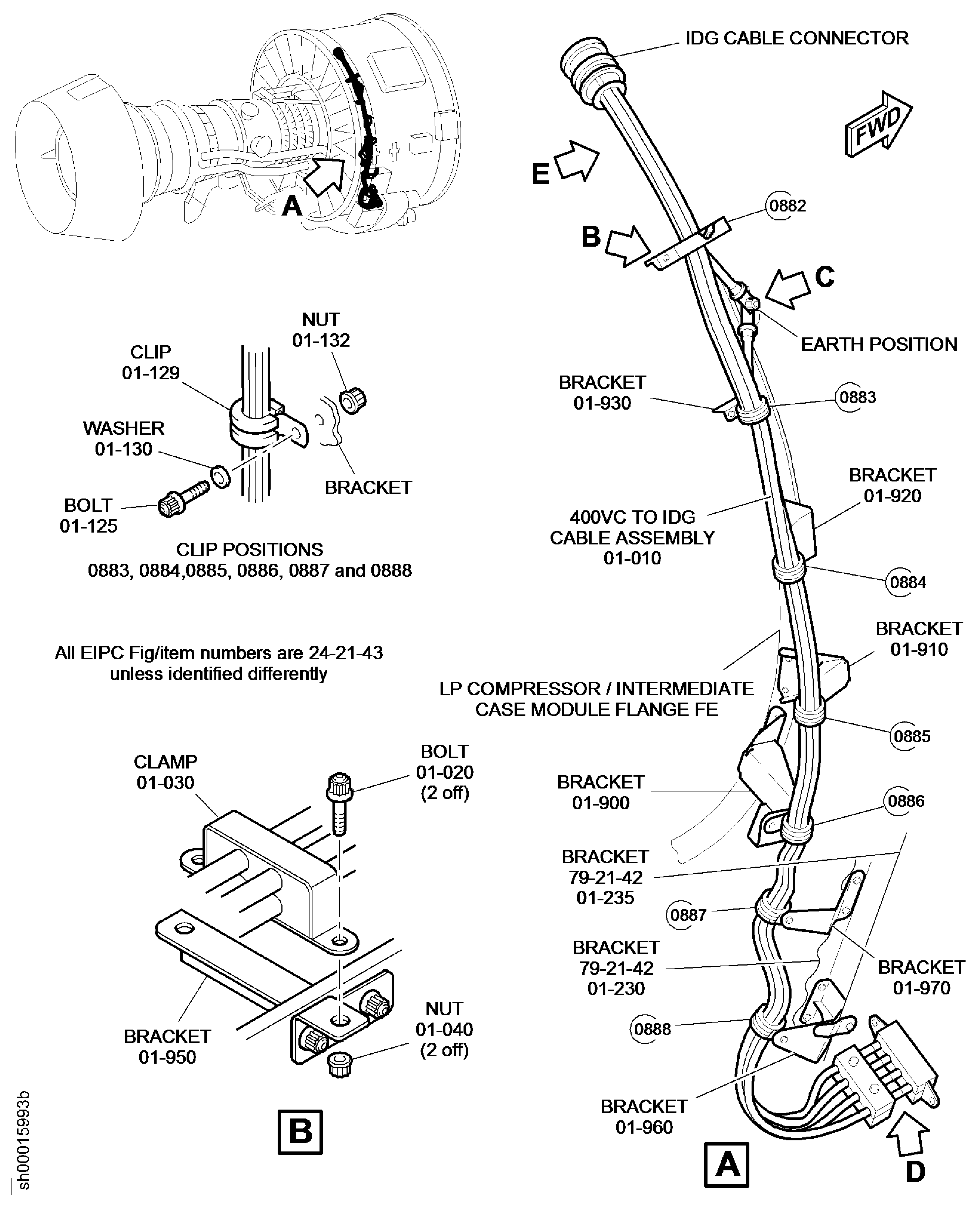

    2. Figure: Remove the 400VC to IDG Cable Assembly

    Sheet 1

    Legend
    Remove the 400VC to IDG Cable Assembly

    Sheet 1

    Close

    Figure: Remove the 400VC to IDG Cable Assembly

    Sheet 2

    Legend
    Remove the 400VC to IDG Cable Assembly

    Sheet 2

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
