V2500-A5
Common Information
TASK 71-00-02-000-013-B00 (A5-PPBU) - Remove The Fire Detection, The Nacelle Temperature And Cabin Services Harnesses, Removal-013
General
Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.
For all parts identified in a different Chapter/Section/Subject the applicable Chapter/Section/Subject comes before Fig./item number.
Apply the approved CoMat 10-058 PENETRATING OIL before the removal of threaded parts. Let the parts soak before removal.
When electrical connections are disconnected special plastic caps must be installed.
All the electrical harnesses removed in this procedure must have their maintenance completed as given in the Component Maintenance Manual (CMM-EHC-V2500-1IA).
Seal all openings to prevent contamination from unwanted materials.
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 10-058 PENETRATING OIL | 0AM53 | CoMat 10-058 |
Spares
NONESafety Requirements
NONEProcedure
Remove the nuts and the bolts that attach the four earth leads to the bracket HPC Assembly (72-41-00, 03-760).
Pre SBE 72-0189, Pre SBE 79-0088 and Pre SBN 71-0273: Remove the bolts, the nuts, the washers and the clips from the clip positions 5804, 5901, 5918, 5766, 5920, 5919, 5904, 5905, 5764, 5763, 5652, 5921, 5922, 6064, 5923, 6066, 5924, 5925 and 5913.
Pre SBE 72-0189, Pre SBE 79-0088 and SBN 71-0273: Remove the bolts, the nuts, the washers and the clips from the clip positions 6075, 6079, 6084, 6088, 6112, 5766, 5940, 6098, 5648, 5905, 5764, 5763, 5652, 5921, 5922, 6064, 5923, 6066, 5924, 5925 and 5913.
SBE 72-0189, Pre SBN 71-0273, Pre SBE 79-0088 and Pre SBE 75-0081: Remove the bolts, the nuts, the washers and the clips from the clip positions 5938, 5939, 5766, 5940, 5941, 6098, 5648, 5765, 5764, 5763, 5652, 5921, 5922, 6064, 5923, 6066, 5924, 5925 and 5913.
SBE 72-0189, SBN 71-0273, Pre SBE 79-0088 and Pre SBE 75-0081: Remove the bolts, the nuts, the washers and the clips from the clip positions 6075, 6079, 6084, 6088, 6112, 5766, 5940, 6098, 5648, 5765, 5764, 5763, 5652, 5921, 5922, 6064, 5923, 6066, 5924, 5925 and 5913.
SBE 72-0189, PRE SBN 71-0273 and SBE 75-0081: Remove the bolts, the nuts, the washers and the clips from the clip positions 5804, 5901, 5918, 5766, 5920, 5919, 5904, 5747, 6058, 6107, 5652, 5921, 6064, 5923, 6066, 5922, 5924, 5925 and 5990.
SBE 72-0189, SBN 71-0273, Pre SBE 79-0088 and SBE 75-0081: Remove the bolts, the nuts, the washers and the clips from the clip positions 6075, 6079, 6084, 6088, 6112, 5766, 5940, 6098, 5648, 5747, 6058, 6107, 5652, 5921, 5922, 6064, 5923, 6066, 5924, 5925 and 5990.
SBE 79-0088 and SBE 71-0295: Remove the bolts, the nuts, the washers, the spacers and the clips from the clip positions 6120, 6126, 6075, 6079, 6084, 6088, 6112, 5766, 5940, 6098, 5648, 5747, 6058, 6107, 5652, 5921, 5922, 6064, 5923, 6066, 5924, 5925 and 5990.
SBE 71-0295: Remove the bolts, the nuts, the washers, the spacers and the clips from the clip positions 6078, 6126, 6075, 6079, 6084, 6088, 6112, 5766, 5940, 6098, 5648, 5747, 6058, 6107, 5652, 5921, 5922, 6064, 5923, 6066, 5924, 5925 and 5990.
Remove the fire detection (system A) nacelle temperature and the cabin services harnesses.
SUBTASK 71-00-02-020-032 Remove the Fire Detection, the Nacelle Temperature and the Cabin Services Harnesses (Pre SBE 72-0189, SBE 72-0189, Pre SBE 75-0081, SBE 75-0081, Pre SBN 71-0273, SBN 71-0273, Pre SBE 79-0088, SBE 79-0088, Pre SBE 71-0295 and SBE 71-0295)
Figure: Pre SBE 72-0189, Pre SBE 75-0081 and Pre SBN 71-0273: Remove the Fire Detection, the Nacelle Temperature and Cabin Services Harnesses
Sheet 1
Figure: Remove the Fire Detection, the Nacelle Temperature and the Cabin Services Harnesses
Sheet 2
Figure: Remove the Fire Detection, the Nacelle Temperature and the Cabin Services Harnesses
Sheet 3
Figure: Remove the Fire Detection, the Nacelle Temperature and the Cabin Services Harnesses
Sheet 4
Figure: Remove the Fire Detection, the Nacelle Temperature and the Cabin Services Harnesses
Sheet 5
Figure: Remove the Fire Detection, the Nacelle Temperature and the Cabin Services Harnesses
Sheet 6
Figure: Remove the Fire Detection, the Nacelle Temperature and the Cabin Services Harnesses
Sheet 7
Figure: Remove the Fire Detection, the Nacelle Temperature and the Cabin Services Harnesses
Sheet 8
Figure: Remove the Fire Detection, the Nacelle Temperature and the Cabin Services Harnesses
Sheet 9
Figure: Remove the Fire Detection, the Nacelle Temperature and the Cabin Services Harnesses
Sheet 10
Figure: Remove the Fire Detection, the Nacelle Temperature and the Cabin Services Harnesses
Sheet 11

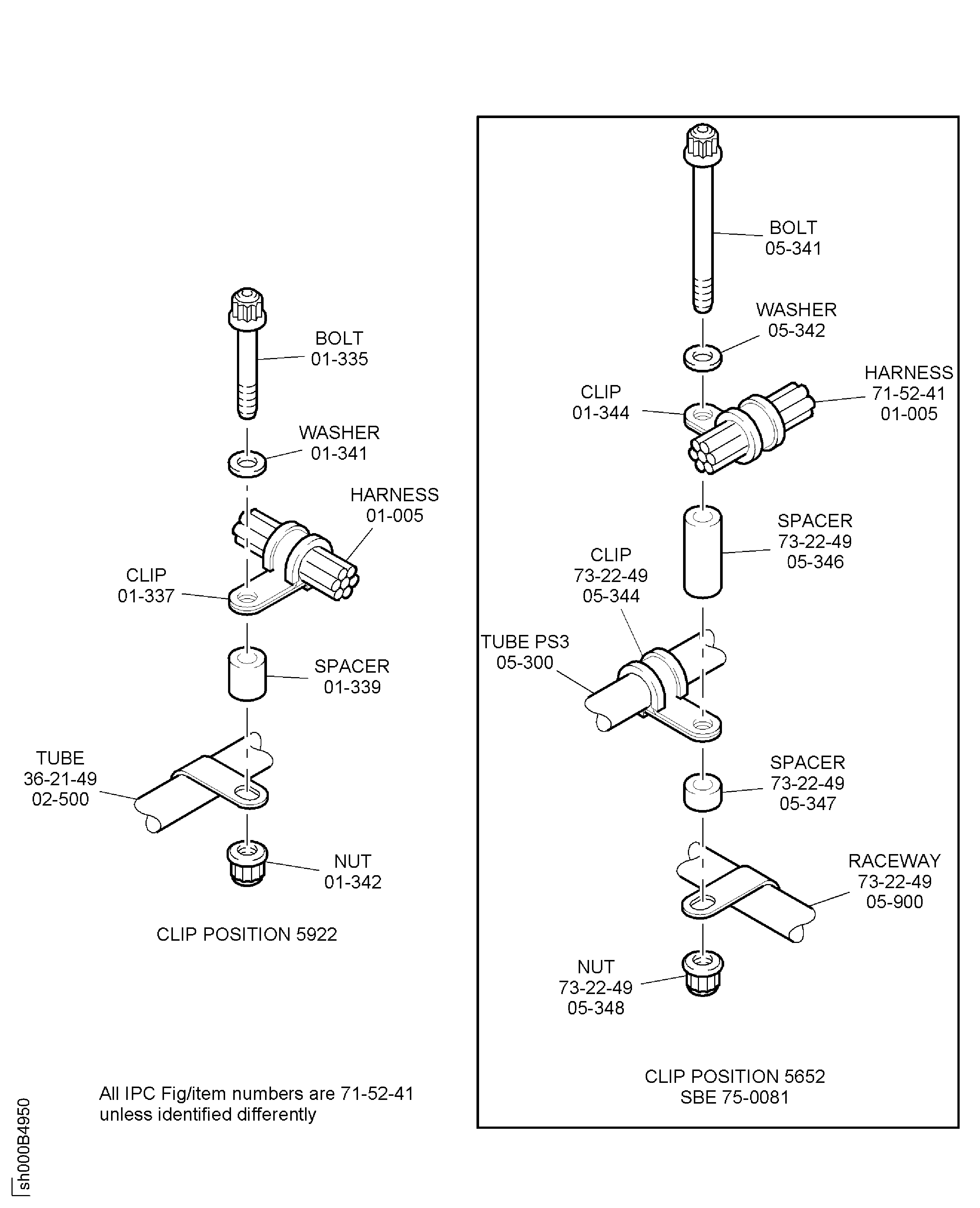

Figure: Remove the Fire Detection, the Nacelle Temperature and the Cabin Services Harnesses
Sheet 12
Figure: Remove the Fire Detection, the Nacelle Temperature and the Cabin Services Harnesses
Sheet 13
Figure: Remove the Fire Detection, the Nacelle Temperature and the Cabin Services Harnesses
Sheet 14
Figure: Remove the Fire Detection, the Nacelle Temperature and the Cabin Services Harnesses
Sheet 15
Figure: Remove the Fire Detection, the Nacelle Temperature and the Cabin Services Harnesses
Sheet 16
Figure: Remove the Fire Detection, the Nacelle Temperature and the Cabin Services Harnesses
Sheet 17
Figure: Remove the Fire Detection, the Nacelle Temperature and the Cabin Services Harnesses
Sheet 18
Figure: Remove the Fire Detection, the Nacelle Temperature and the Cabin Services Harnesses
Sheet 19

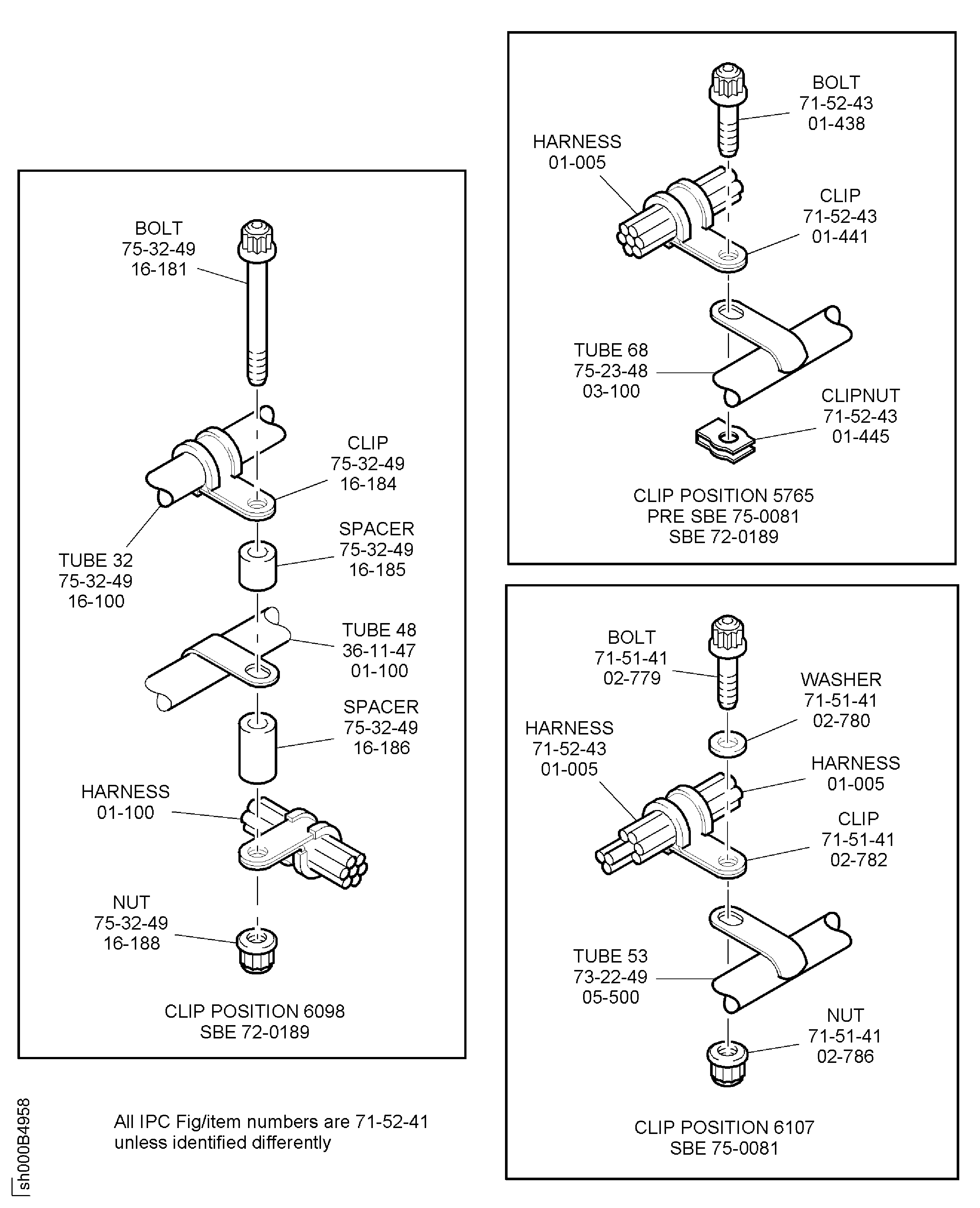

Figure: Remove the Fire Detection, the Nacelle Temperature and the Cabin Services Harnesses
Sheet 20

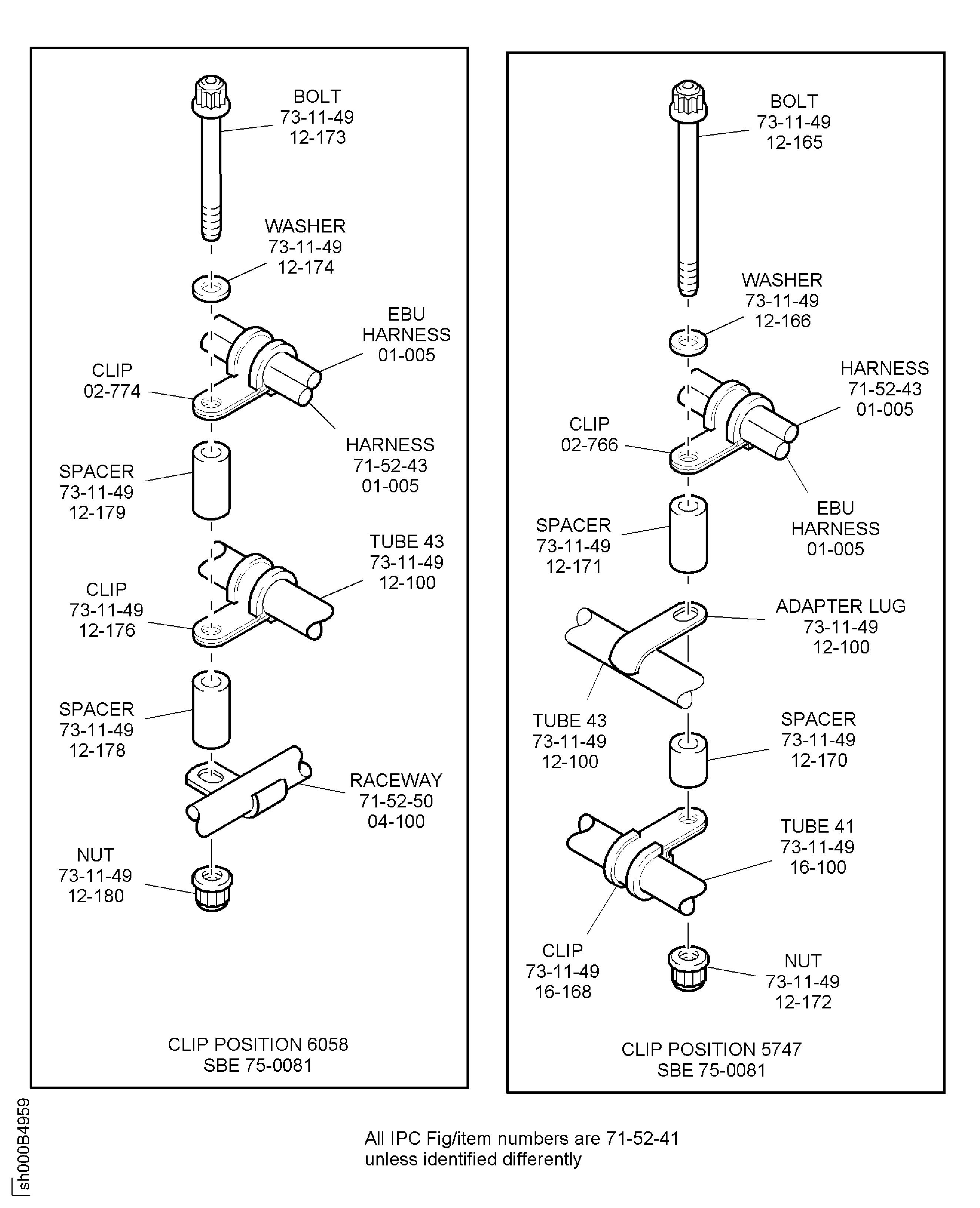

Figure: Remove the Fire Detection, the Nacelle Temperature and the Cabin Services Harnesses
Sheet 21

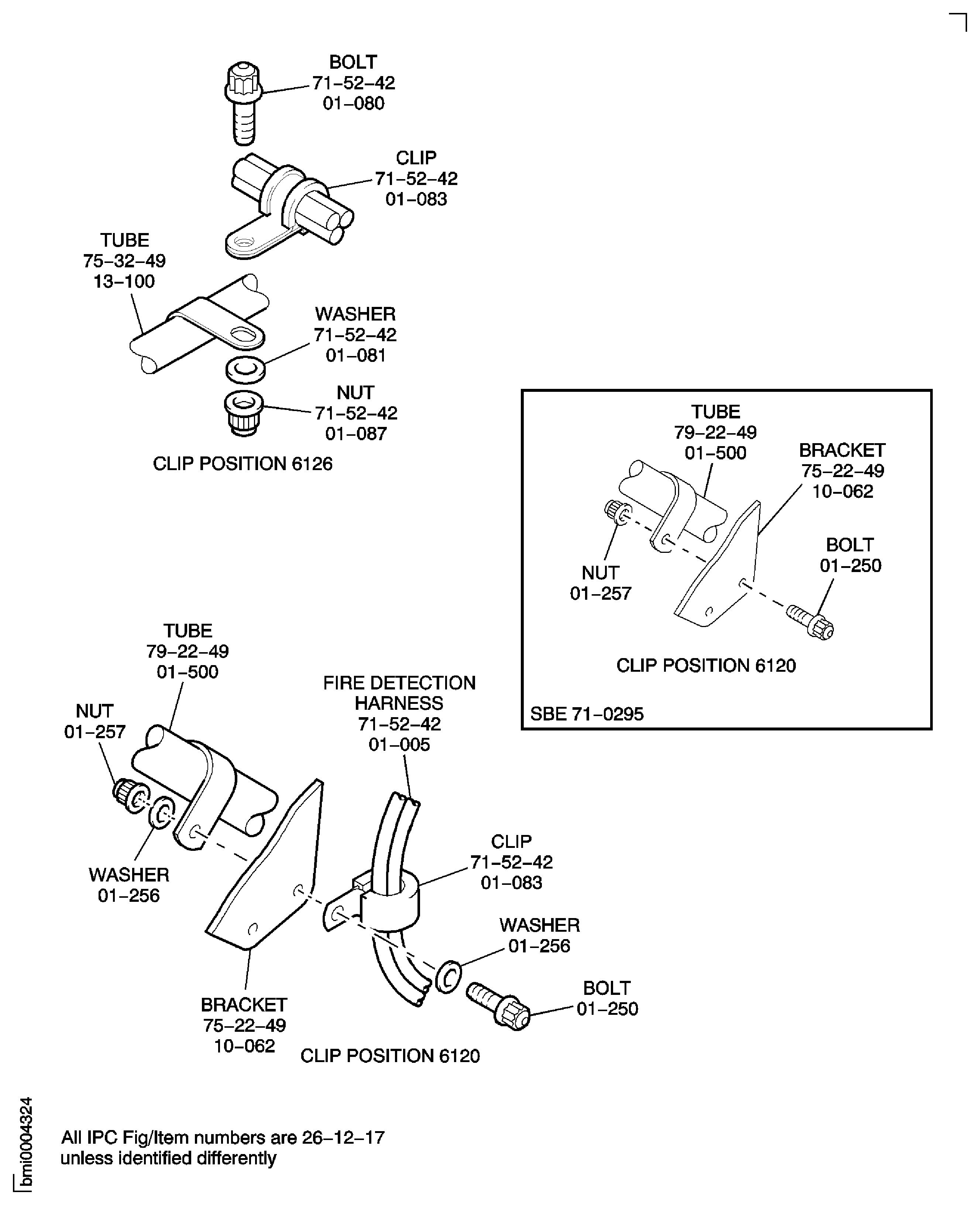

Figure: Remove the Fire Detection, the Nacelle Temperature and the Cabin Services Harnesses
Sheet 22
Figure: Remove the Fire Detection, the Nacelle Temperature and the Cabin Services Harnesses
Sheet 23
