| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B71002002 | POWER PLANT-DEMOUNTABLE, PRE SBN70-0867 | aa | ||
| SBN0867-01 | POWER PLANT-DEMOUNTABLE | ab | ||
| -001 | 745-6001-563 | • DEMOUNTABLE POWER PLANT 51563 | aa-ab | REF |
| -001A | 745-6001-565 | • DEMOUNTABLE POWER PLANT 51563 | aa-ab | REF |
| -001B | 745-6001-567 | • DEMOUNTABLE POWER PLANT 51563 | aa-ab | REF |
| -001C | 745-6001-569 | • DEMOUNTABLE POWER PLANT 51563 | aa-ab | REF |
| -001D | 745-6001-571 | • DEMOUNTABLE POWER PLANT 51563 | aa-ab | REF |
| -001E | 745-6001-573 | • DEMOUNTABLE POWER PLANT 51563 | aa-ab | REF |
| -001F | 745-6001-575 | • DEMOUNTABLE POWER PLANT 51563 | aa-ab | REF |
| 100 | 0MP2505-6 | • CAP - DUST 33068 | aa-ab | 1 |
| 110 | M83248-1-908 | • SEAL - RING 81349 | aa-ab | 1 |
| 120 | 0MP2505-9 | • COUPLING - HALF 33068 PRE SBN70-0867 | aa | 1 |
| 120A | 0MP2505-9 | • COUPLING - HALF 33068 ALT 0MP4261-1 POST SBN70-0867 | ab | 1 |
| 120B | 0MP4261-1 | • COUPLING - HALF 33068 ALT 0MP2505-9 POST SBN70-0867 | ab | 1 |
| 130 | 0MP2506-6 | • CAP - BLANKING 33068 | aa-ab | 1 |
| 140 | M83248-1-906 | • SEAL - RING 81349 | aa-ab | 1 |
| 150 | 0MP2506-9 | • COUPLING - HALF 33068 | aa-ab | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

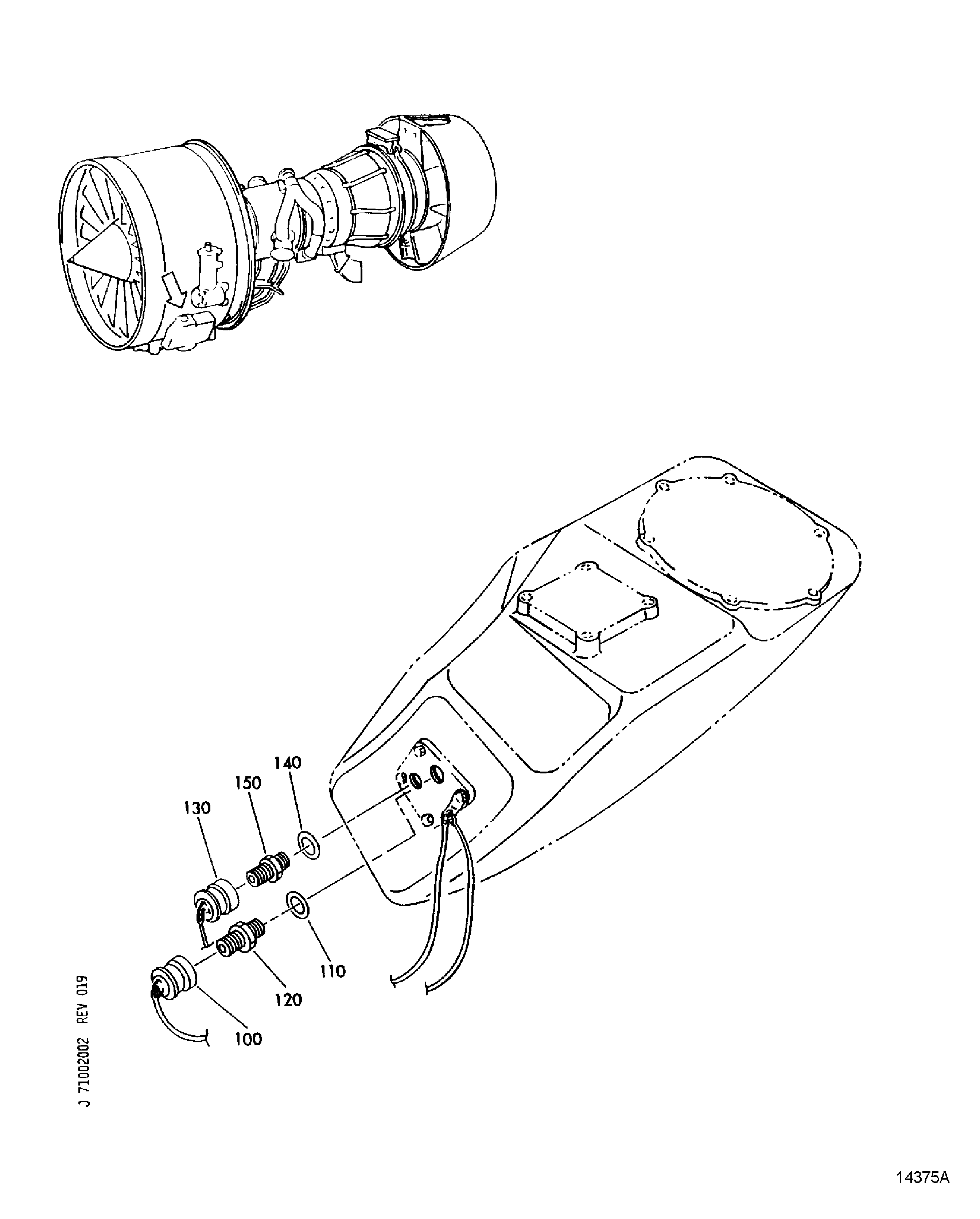

Figure: POWER PLANT-DEMOUNTABLE
POWER PLANT ASSY DEMOUNTABLE (OIL TANK)
