DMC:V2500-A5-71-11-11-04A-941A-DIssue No:002.00Issue Date:2021-02-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 04 | ||||
| B71111104 | POWER PLANT - AIR INTAKE COWL, PRE SBN70-0908 | aa | ||
| SBN0908-01 | POWER PLANT - AIR INTAKE COWL | ab | ||
| -001 | 745-3001-501 | • COWL - NOSE, ASSEMBLY OF 51563 | aa-ab | REF |
| -001A | 745-3401-501 | • COWL - AIR INTAKE 51563 POST SBN70-0908 | ab | REF |
| 015 | CCR264CS3-3 | • • RIVET 11815 | aa-ab | 36 |
| 025 | ST1729E20X | • • PACKER 77445 | aa-ab | 13 |
| 030 | NAS1791C4-3NP | • • NUT - ANCHOR 80205 | aa-ab | 5 |
| 035 | NAS1791C4-2NP | • • NUT - ANCHOR 80205 | aa-ab | 13 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

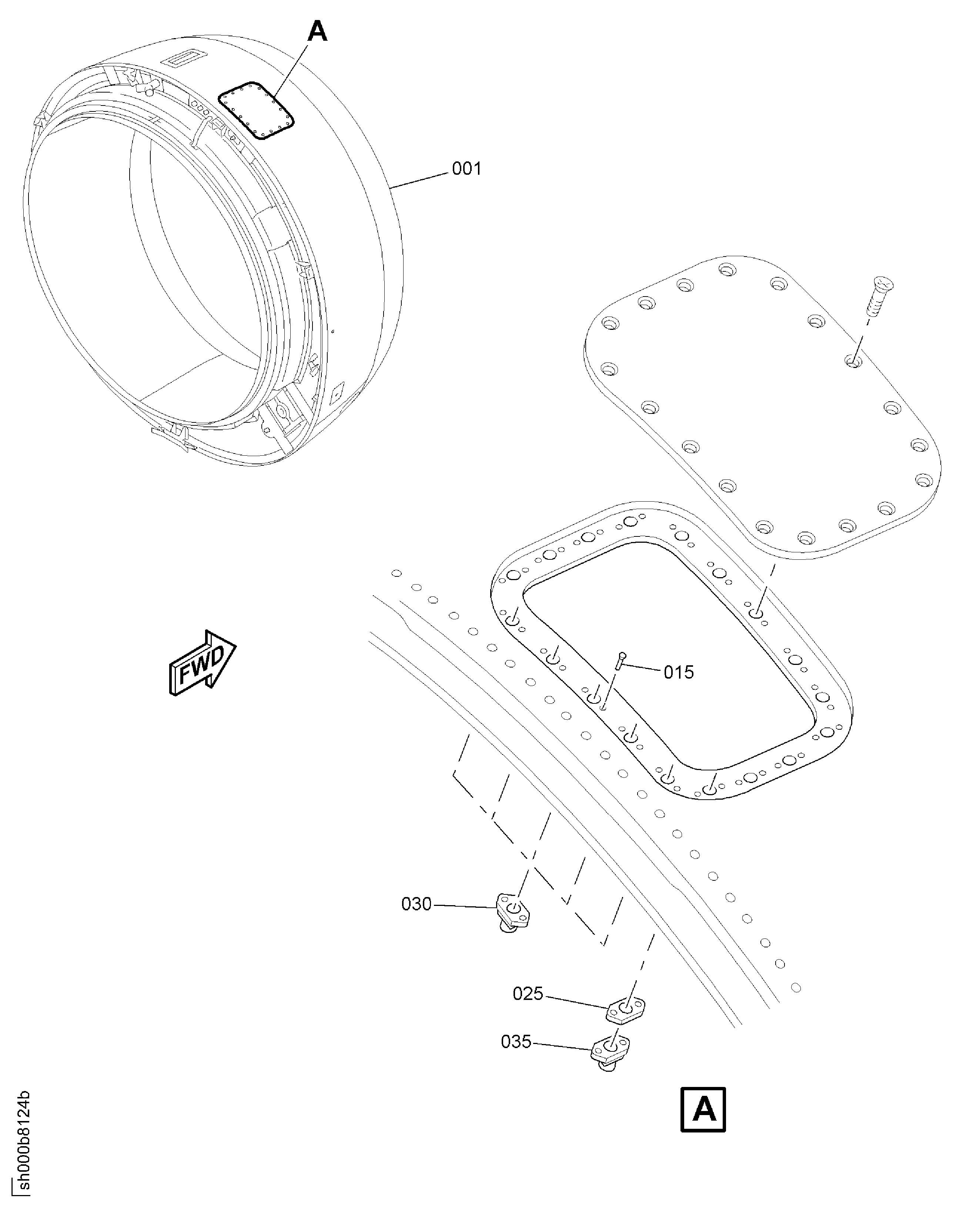

Figure: POWER PLANT-AIR INTAKE COWL
COWL AIR INTAKE
