V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 05 | ||||
| B71111105 | POWER PLANT-AIR INTAKE COWL, PRE SBN70-0908 | aa | ||
| SBN0908-01 | POWER PLANT-AIR INTAKE COWL | ab | ||
| -001 | 745-3001-501 | COWL - ASSY, NOSE 51563 | aa-ab | REF |
| -001A | 745-3401-501 | COWL - AIR INTAKE 51563 POST SBN70-0908 | ab | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

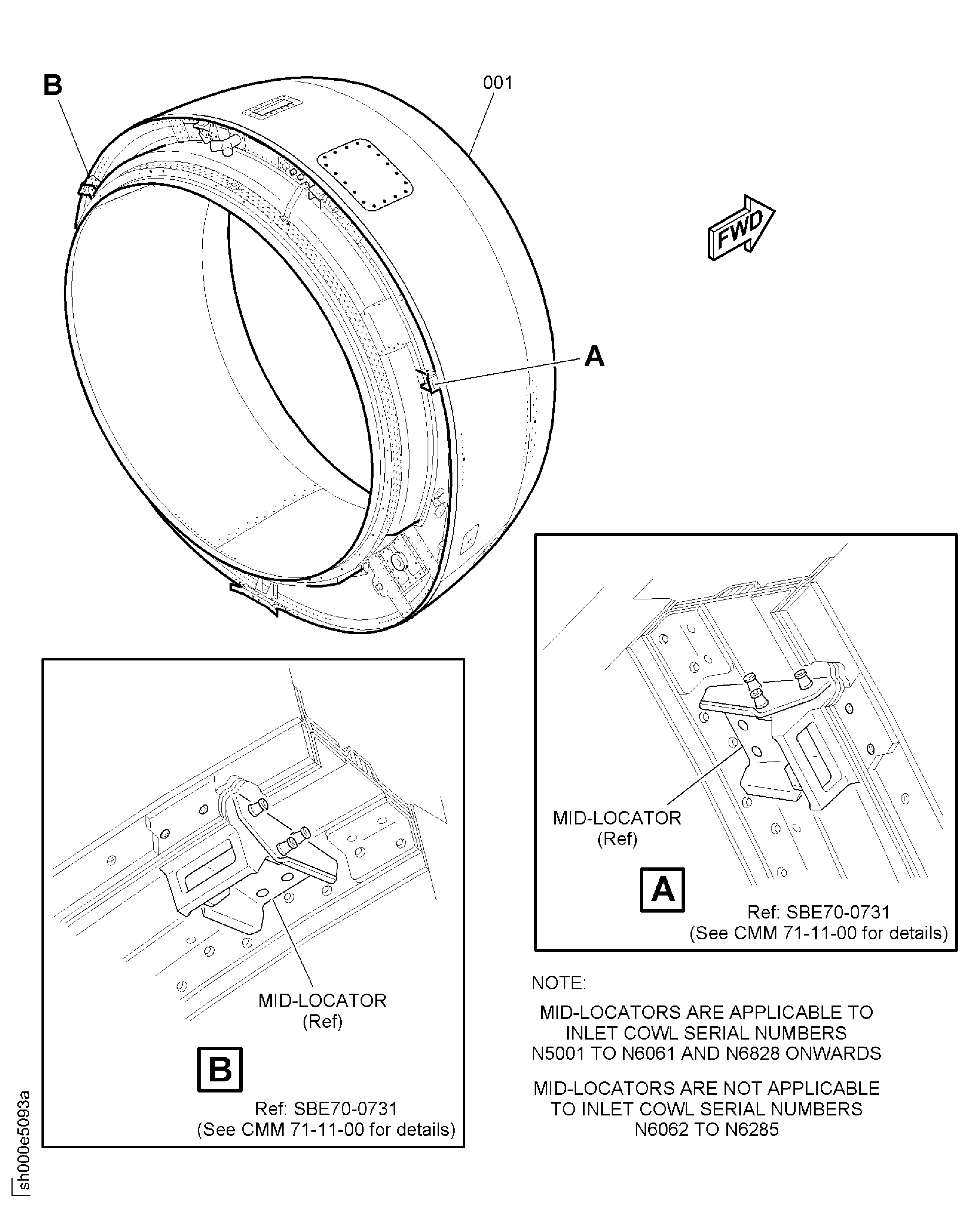

Figure: POWER PLANT-AIR INTAKE COWL
COWL AIR INTAKE
