DMC:V2500-A5-71-21-11-01A-941A-DIssue No:003.00Issue Date:2018-08-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA | |
|---|---|---|---|---|---|
| 01 | |||||
| - | B71211101 | POWER PLANT-FORWARD MOUNT SUPPORT, PRE SBE70-0251 | aa | ||
| - | SBE0251-01 | POWER PLANT-FORWARD MOUNT SUPPORT, PRE SBE70-0490 | ab | ||
| - | SBE0490-01 | POWER PLANT-FORWARD MOUNT SUPPORT | ac | ||
| 100 | 5A6024 | • RACE, OUTER TUBE, ASSEMBLY | aa-ac/01 | 1 | |
| 110 | 4W0004 | • NUT - .375 DIA | aa-ac/01 | 8 | |
| 129 | AS20670 | • • PIN, STRAIGHT,HEADLESS U1653 | aa-ac/01 | 4 | |
| 150 | 5A6025 | • MOUNT, TUBE, ENGINE FRONT, ASSEMBLY OF PRE SBE70-0490 | aa-ac/02 | 1 | |
| 150A | 5A6025 | • MOUNT, TUBE, ENGINE FRONT, ASSEMBLY OF ALT 5A1698 POST SBE70-0490 | ac/03 | 1 | |
| -150B | X | 5A1698 | • MOUNT ALT 5A6025 | aa-ac/02 | REF |
| -150C | 5A1698 | • MOUNT ALT 5A6025 POST SBE70-0490 | ac/02 | REF | |
| -150D | 5A1698 | • MOUNT | aa-ac/03 | REF | |
| 160 | AGS3735 | • • INSERT, SCREW THREAD | aa-ac/01 | 6 | |
| 500 | 5A1431 | • BRACKET, A/O T/MOUNT NO.2 PRE SBE70-0251 | aa-ac/02 | 1 | |
| 500A | 5A1422 | • BRACKET, THRUST MOUNT NO. 2, ASSEMBLY OF POST SBE70-0251 | ab-ac/02 | 1 | |
| 500B | 5A1422 | • BRACKET, THRUST MOUNT NO. 2, ASSEMBLY OF | aa-ac/03 | 1 | |
| 500C | 5A0900 | • BRACKET, THRUST MOUNT NO. 2, ASSEMBLY OF | aa-ac/02 | 1 | |
| 510 | 4W0005 | • NUT - .4375 DIA | aa-ac/02 | 6 | |
| 520 | AS31430 | • BOLT U1653 | aa-ac/01 | 6 | |
| 520A | AS31434 | • BOLT - MACHINE, DOUBLE HEX U1653 | aa-ac/02 | 6 | |
| 540 | 5A0994 | • • BUSHING, PIN THRUST | aa-ac/01 | 2 | |
| 700 | 5A1432 | • BRACKET PRE SBE70-0251 | aa-ac/02 | 1 | |
| 700A | 5A1423 | • BRACKET, THRUST MOUNT NO. 10, ASSEMBLY OF POST SBE70-0251 | ab-ac/02 | 1 | |
| 700B | 5A1423 | • BRACKET, THRUST MOUNT NO. 10, ASSEMBLY OF | aa-ac/03 | 1 | |
| 700C | 5A0901 | • BRACKET, THRUST MOUNT NO. 10, ASSEMBLY OF | aa-ac/02 | 1 | |
| 710 | 4W0005 | • NUT - .4375 DIA | aa-ac/02 | 6 | |
| 720 | AS31430 | • BOLT U1653 | aa-ac/01 | 6 | |
| 720A | AS31434 | • BOLT - MACHINE, DOUBLE HEX U1653 | aa-ac/02 | 6 | |
| 740 | 5A0994 | • • BUSHING, PIN THRUST | aa-ac/01 | 2 | |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | |||||

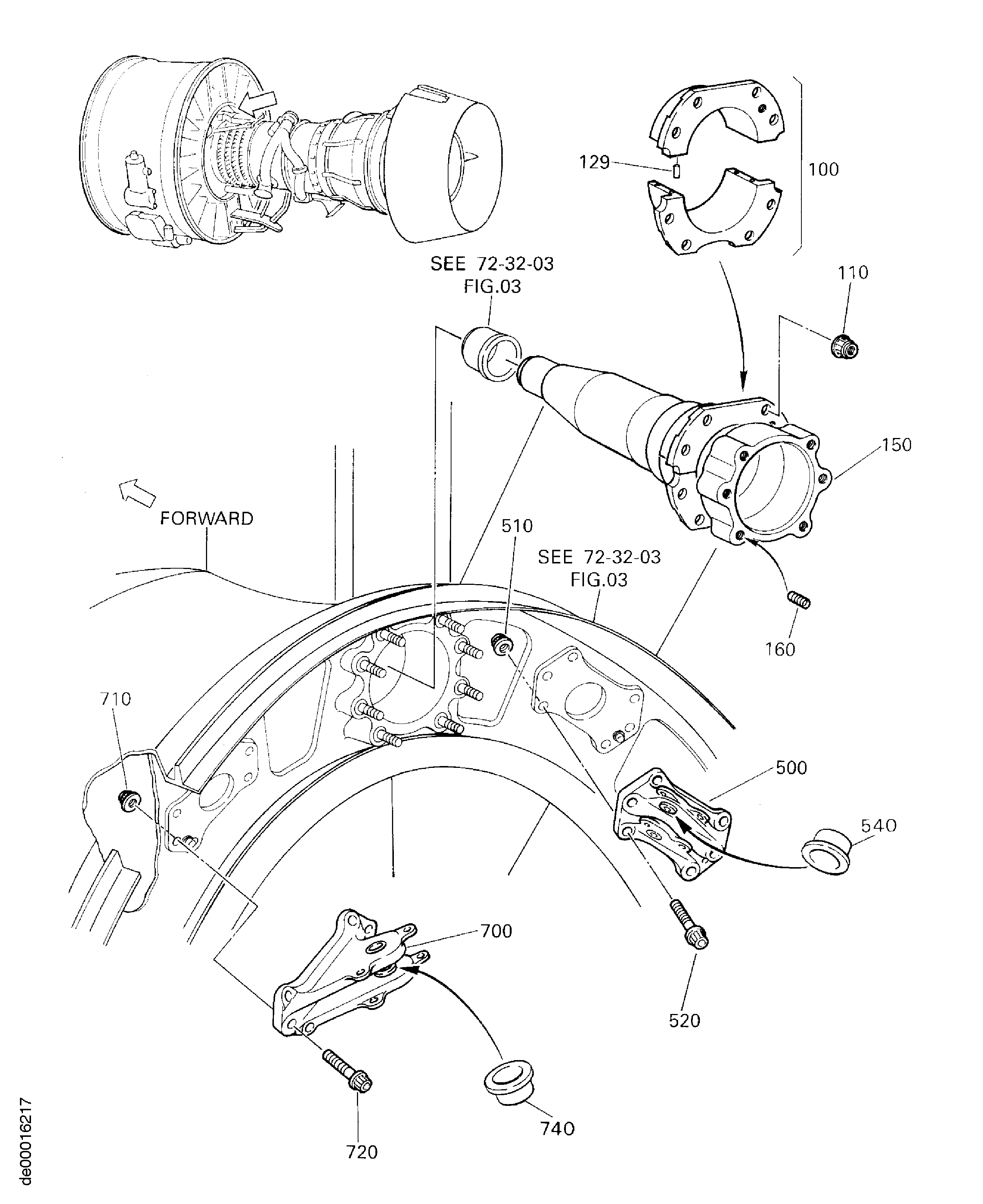

Figure: Front Mount Support Assembly And Mount Brackets
Front Mount Support Assembly And Mount Brackets
