| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B71221101 | POWER PLANT - AFT MOUNT | aa | ||
| -001 | 740-2000-509 | MOUNT - INSTALL, ENGINE AFT 51563 | aa | REF |
| -001A | 745-2000-503 | MOUNT - INSTALL, ENGINE AFT 51563 | aa | REF |
| 010 | 740-2040-503 | • MOUNT - INSTALL, ENGINE AFT 51563 | aa | 1 |
| 020 | MS21043-3 | • NUT - SELF LOCKING 96906 | aa | 12 |
| 030 | VN936NP3 | • WASHER 92215 | aa | 12 |
| 040 | VN936NP3C | • WASHER 92215 | aa | 12 |
| 045 | VN936NP16C | • WASHER 92215 | aa | 4 |
| 050 | NAS6303U4 | • BOLT 80205 | aa | 12 |
| 055 | 83769H16-14 | BOLT 56878 | aa | 4 |
| 060 | 740-2050-505 | • RETAINER 51563 | aa | 6 |
| 070 | 740-2049-505 | • PIN 51563 | aa | 3 |
| 080 | 740-2048-505 | • PIN 51563 | aa | 3 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

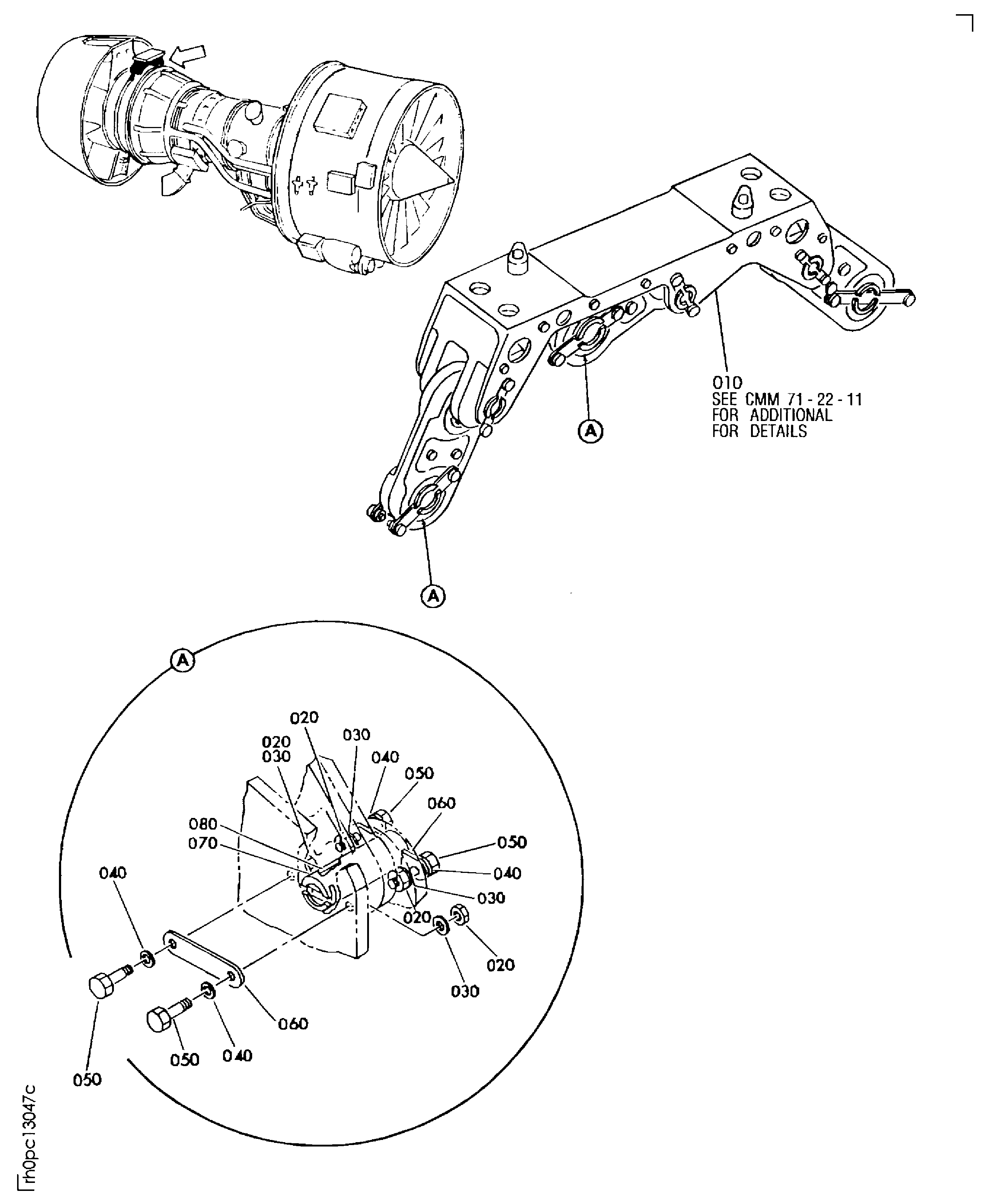

Figure: POWER PLANT-AFT MOUNT
AFT MOUNT ASSEMBLY
