DMC:V2500-A5-71-51-41-07A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 07 | ||||
| B71514107 | POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE70-0536 | aa | ||
| SBE0536-01 | POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE75-0081 | ab | ||
| SBE0081-01 | POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0288 | ac | ||
| SBE0288-01 | POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN | ad | ||
| 025 | 4W0106 | • BOLT - .190 DIA X .688 PRE SBE79-0088 | ***** | 1 |
| 026 | 5W1086 | • WASHER PRE SBE79-0088 | ***** | 1 |
| 028 | TA025074-16 | • CLAMP - LOOP STYLE,CUSHION, 1.000 DIA 84971 ALT AS61914 PRE SBE75-0081 | aa-ab | 1 |
| -028A | AS61914 | • CLAMP - LOOP STYLE,CUSHION, 25.40 MM (1.000) U1653 ALT TA025074-16 PRE SBE75-0081 | aa-ab | REF |
| 028B | AS62515 | • CLAMP - LOOP ASSY ELEC HARNES, 23.83 MM (0.938) U1653 POST SBE75-0081 PRE SBE79-0088 | ***** | 1 |
| 030 | 5W1029 | • SPACER - SLEEVE, (5MM) PRE SBE70-0536 | aa | 1 |
| 030A | UP10478 | • SPACER - 5MM ALT 5W1029 POST SBE70-0536 PRE SBE79-0088 | aa | 1 |
| -030B | 5W1029 | • SPACER - SLEEVE, (5MM) POST SBE70-0536 PRE SBE79-0088 | aa | REF |
| 032 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 PRE SBE79-0088 | ***** | 1 |
| 033 | 4W0102 | • BOLT - .190 DIA X .438 POST SBE71-0288 | ad | 1 |
| 034 | 5W1086 | • WASHER POST SBE71-0288 | ad | 1 |
| 036 | TA025074-03 | • CLAMP - .188 DIA 84971 POST SBE71-0288 | ad | 1 |
| -036A | AS61933 | • CLAMP - 4.78 MM (.188) U1653 POST SBE71-0288 | ad | REF |
| 040 | 4W0043 | • NUT - .190 DIA POST SBE71-0288 | ad | 1 |
| 041 | 4W0119 | • BOLT - .190 DIA X 1.500 POST SBE71-0288 | ad | 1 |
| 042 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE71-0288 | ad | 1 |
| 044 | AS62501 | • CLAMP - 1.57 MM (0.062) U1653 POST SBE71-0288 | ad | 1 |
| 046 | LK42781 | • SPACER POST SBE71-0288 | ad | 1 |
| 047 | LK68463 | • SPACER POST SBE71-0288 | ad | 1 |
| 048 | 4W0001 | • NUT - .190 DIA POST SBE71-0288 | ad | 1 |
| 049 | 4W0102 | • BOLT - .190 DIA X .438 POST SBE71-0288 | ad | 1 |
| 050 | 5W1086 | • WASHER POST SBE71-0288 | ad | 1 |
| 052 | TA025074-03 | • CLAMP - .188 DIA 84971 POST SBE71-0288 | ad | 1 |
| -052A | AS61933 | • CLAMP - 4.78 MM (.188) U1653 POST SBE71-0288 | ad | REF |
| 056 | 4W0043 | • NUT - .190 DIA POST SBE71-0288 | ad | 1 |
| 057 | 4W0107 | • BOLT - .190 DIA X .750 POST SBE71-0288 | ad | 1 |
| 058 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE71-0288 | ad | 2 |
| 060 | AS62508 | • CLAMP - 12.70 MM (0.500) U1653 POST SBE71-0288 | ad | 1 |
| 062 | LK64582 | • SPACER POST SBE71-0288 | ad | 1 |
| 064 | 4W0001 | • NUT - .190 DIA POST SBE71-0288 | ad | 1 |
| 065 | 4W0104 | • BOLT - .190 DIA X .562 POST SBE71-0288 | ad | 1 |
| 066 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE71-0288 | ad | 2 |
| 068 | AS62509 | • CLAMP - 14.27 MM (0.562) U1653 POST SBE71-0288 | ad | 1 |
| 072 | 4W0001 | • NUT - .190 DIA POST SBE71-0288 | ad | 1 |
| 076 | TA025074-03 | • CLAMP - .188 DIA 84971 POST SBE71-0288 | ad | 1 |
| -076A | AS61933 | • CLAMP - 4.78 MM (.188) U1653 POST SBE71-0288 | ad | REF |
| 081 | 4W0102 | • BOLT - .190 DIA X .438 POST SBE71-0288 | ad | 1 |
| 082 | 5W1086 | • WASHER POST SBE71-0288 | ad | 1 |
| 084 | AS62501 | • CLAMP - 1.57 MM (0.062) U1653 POST SBE71-0288 | ad | 1 |
| 088 | 4W0001 | • NUT - .190 DIA POST SBE71-0288 | ad | 1 |
| 089 | 4W0113 | • BOLT - .190 DIA X 1.125 POST SBE71-0288 | ad | 1 |
| 090 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE71-0288 | ad | 1 |
| 092 | AS62501 | • CLAMP - 1.57 MM (0.062) U1653 POST SBE71-0288 | ad | 1 |
| 094 | LK42781 | • SPACER POST SBE71-0288 | ad | 1 |
| 100 | AS62507 | • CLAMP - 11.13 MM (0.438) U1653 POST SBE71-0288 | ad | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

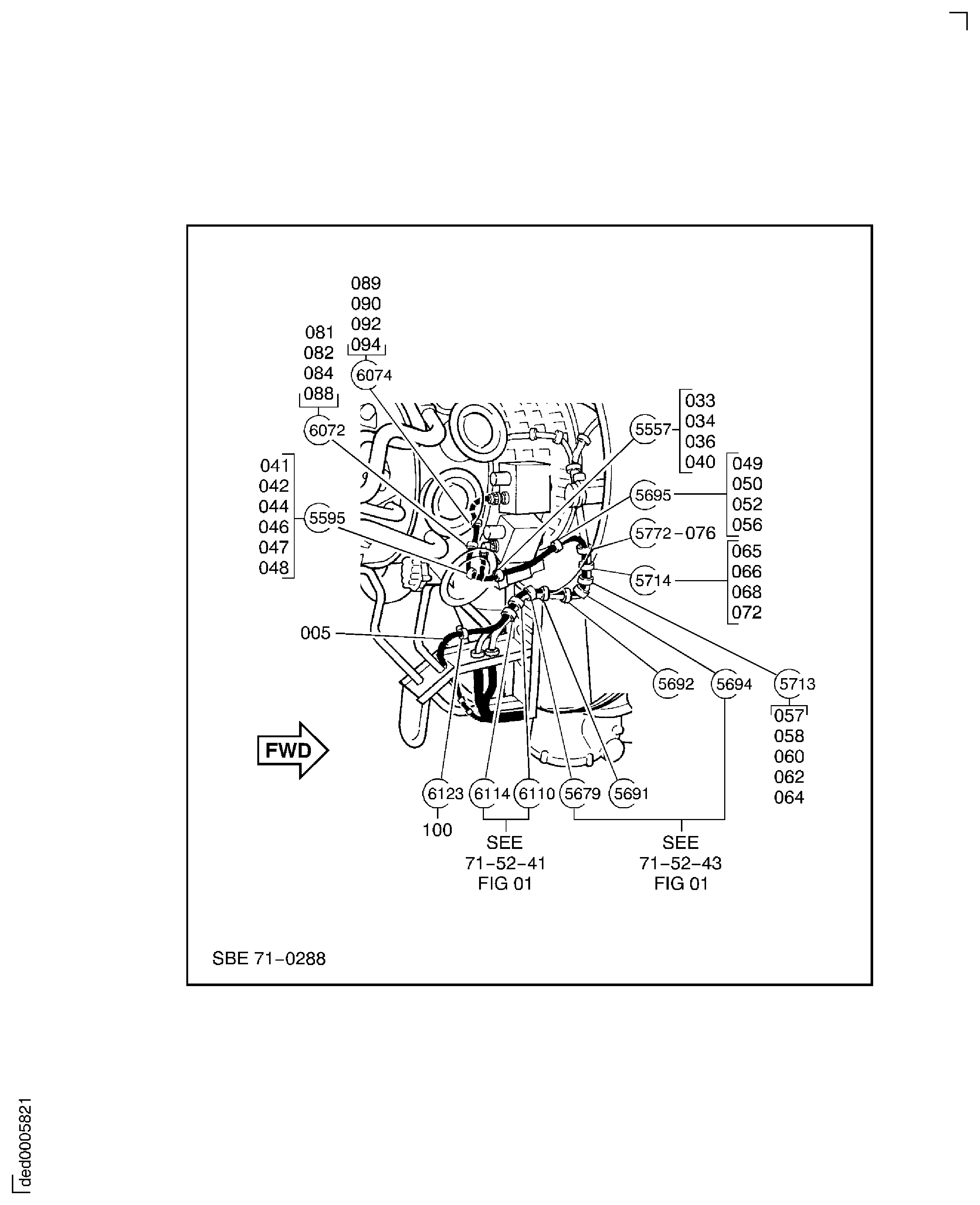

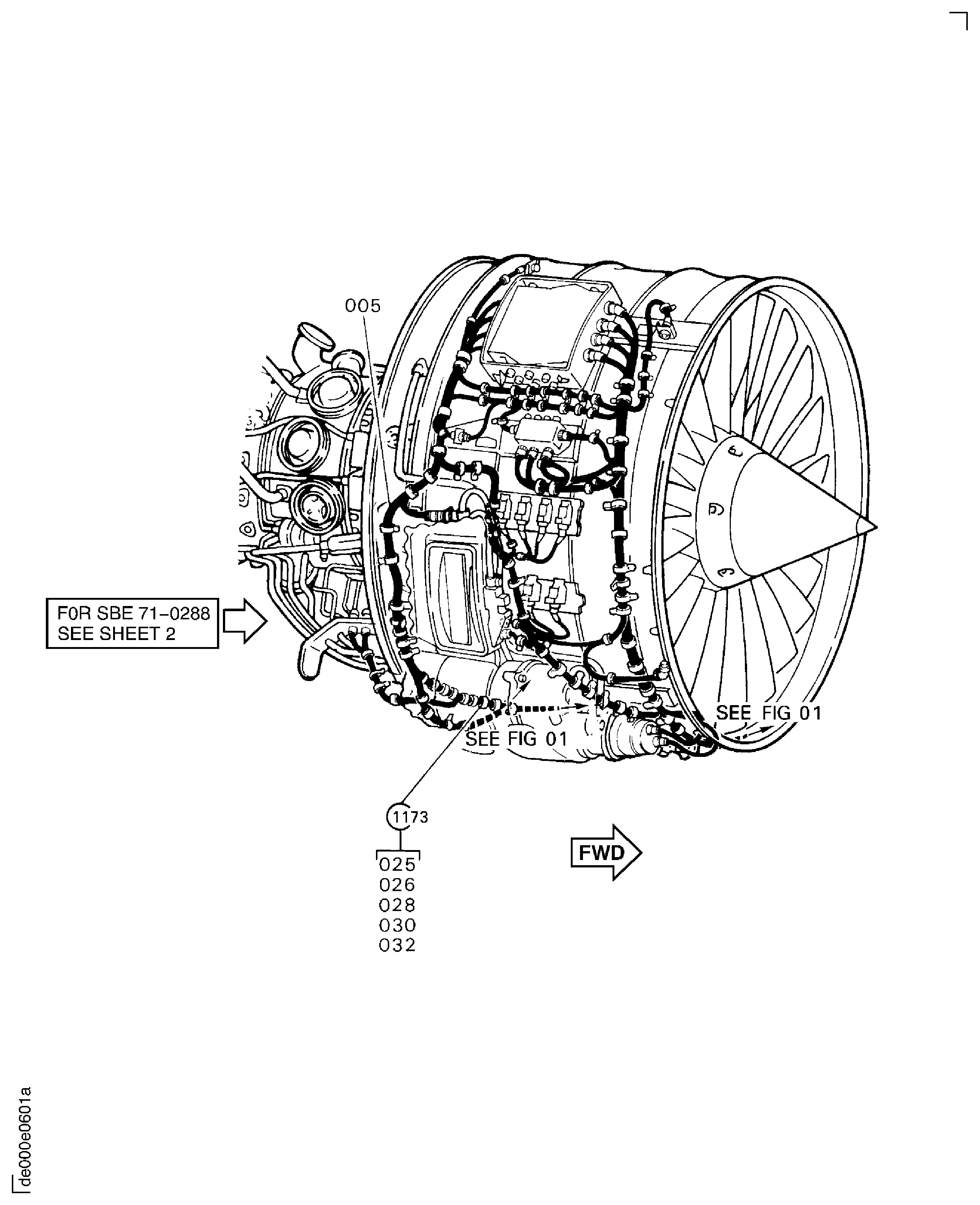

Figure: POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN
EEC HARNESS FAN
EEC HARNESS FAN
