DMC:V2500-A5-71-51-49-01A-941A-DIssue No:003.00Issue Date:2017-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B71514901 | POWER PLANT-RELAY BOX, PRE SBE71-0113 | aa | |
| - | SBE0113-01 | POWER PLANT-RELAY BOX, PRE SBE70-0568 | ab | |
| - | SBE0568-01 | POWER PLANT-RELAY BOX, PRE SBE73-0140 | ac | |
| - | SBE0140-01 | POWER PLANT-RELAY BOX, PRE SBE71-0287 | ad | |
| - | SBE0287-01 | POWER PLANT-RELAY BOX | ae | |
| 100 | 005RL03 | • BOX, RELAY K8081 PRE SBE71-0287 | aa-ad/01 | 1 |
| 100A | 005RL05 | • BOX - RELAY, IGNITION K8081 POST SBE71-0287 | ae/01 | 1 |
| 102 | 4W0115 | • BOLT - .190 DIA X 1.250 | aa-ae/01 | 4 |
| 104 | 4W2621 | • WASHER | aa-ae/01 | 4 |
| 310 | 6A2821 | • BRACKET | aa-ae/02 | 1 |
| 310A | 6A5445 | • BRACKET | aa-ae/02 | 1 |
| 312 | AS21010 | • BOLT - .250 DIA X .625 U1653 | aa-ae/02 | 2 |
| 316 | 4W0002 | • NUT - .250 DIA | aa-ae/02 | 2 |
| 330 | 5A9127 | • BRACKET, SUPPORT, ASSEMBLY OF | aa-ae/02 | 1 |
| 332 | 4W0102 | • BOLT - .190 DIA X .438 | aa-ae/02 | 2 |
| 370 | 5A0835 | • BRACKET, SUPPORT PRE SBE73-0140 | aa-ac/01 | 1 |
| 370A | 6A7432 | • BRACKET POST SBE73-0140 | ad-ae/01 | 1 |
| 380 | 6A3105 | • BRACKET | aa-ae/02 | 1 |
| 382 | 4W0002 | • NUT - .250 DIA | aa-ae/02 | 1 |
| 384 | AS21011 | • BOLT, 0.25 DIA X 0.6875 U1653 | aa-ae/02 | 1 |
| 390 | 5W0089 | • BRACKET | aa-ae/02 | 1 |
| 390A | 6A4669 | • BRACKET PRE SBE70-0568 | aa-ab/01 | 1 |
| 390B | 6A4669 | • BRACKET POST SBE70-0568 | ac-ae/01 | 1 |
| -390C | 5W0089 | • BRACKET POST SBE70-0568 | ac-ae/01 | REF |
| 394 | 4W0103 | • BOLT - .190 DIA X .500 | aa-ae/02 | 2 |
| 400 | 6A4132 | • BRACKET, ASSEMBLY OF PRE SBE71-0113 | aa/02 | 1 |
| 400A | 6A5626 | • BRACKET, MOUNTING - RELAY POST SBE71-0113 | ab-ae/02 | 1 |
| 402 | AS21011 | • BOLT - BIHEX HD, .250 DIA X .6875 U1653 | aa-ae/02 | 1 |
| 403 | 4W0164 | • BOLT - .250 DIA X .625 | aa-ae/02 | 2 |
| 404 | AS21009 | • BOLT - .250 DIA X .562 U1653 | aa-ae/01 | 2 |
| 410 | 4W0044 | • NUT - .250 DIA | aa-ae/01 | 2 |
| 413 | 4W0002 | • NUT - .250 DIA | aa-ae/02 | 2 |
| 414 | 4W0002 | • NUT - .250 DIA | aa-ae/02 | 1 |
| 416 | 4W0002 | • NUT - .250 DIA | aa-ae/02 | 1 |
| 417 | AS21011 | • BOLT - BIHEX HD, .250 DIA X .6875 U1653 | aa-ae/02 | 1 |
| 418 | 4W2622 | • WASHER | aa-ae/01 | 2 |
| 420 | AS16087 | • • RIVET, SOLID UNIVERSAL HD U1653 | aa-ae/02 | 4 |
| 422 | AS16446 | • • RIVET - SOLID CSK HEAD, 2,4MM(.094) DIA U1653 | aa-ae/02 | 20 |
| 424 | 4W0038 | • • NUT - .190 DIA | aa-ae/02 | 10 |
| -436 | NND5476 | BRACKET, MOUNTING - RELAY POST SBE71-0113 | ab-ae/01 | REF |
| -436A | NND5476 | BRACKET, MOUNTING - RELAY | aa-ae/02 | REF |
| -440 | NND5477 | BRACKET, MOUNTING - RELAY POST SBE71-0113 | ab-ae/01 | REF |
| -440A | NND5477 | BRACKET, MOUNTING - RELAY | aa-ae/02 | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

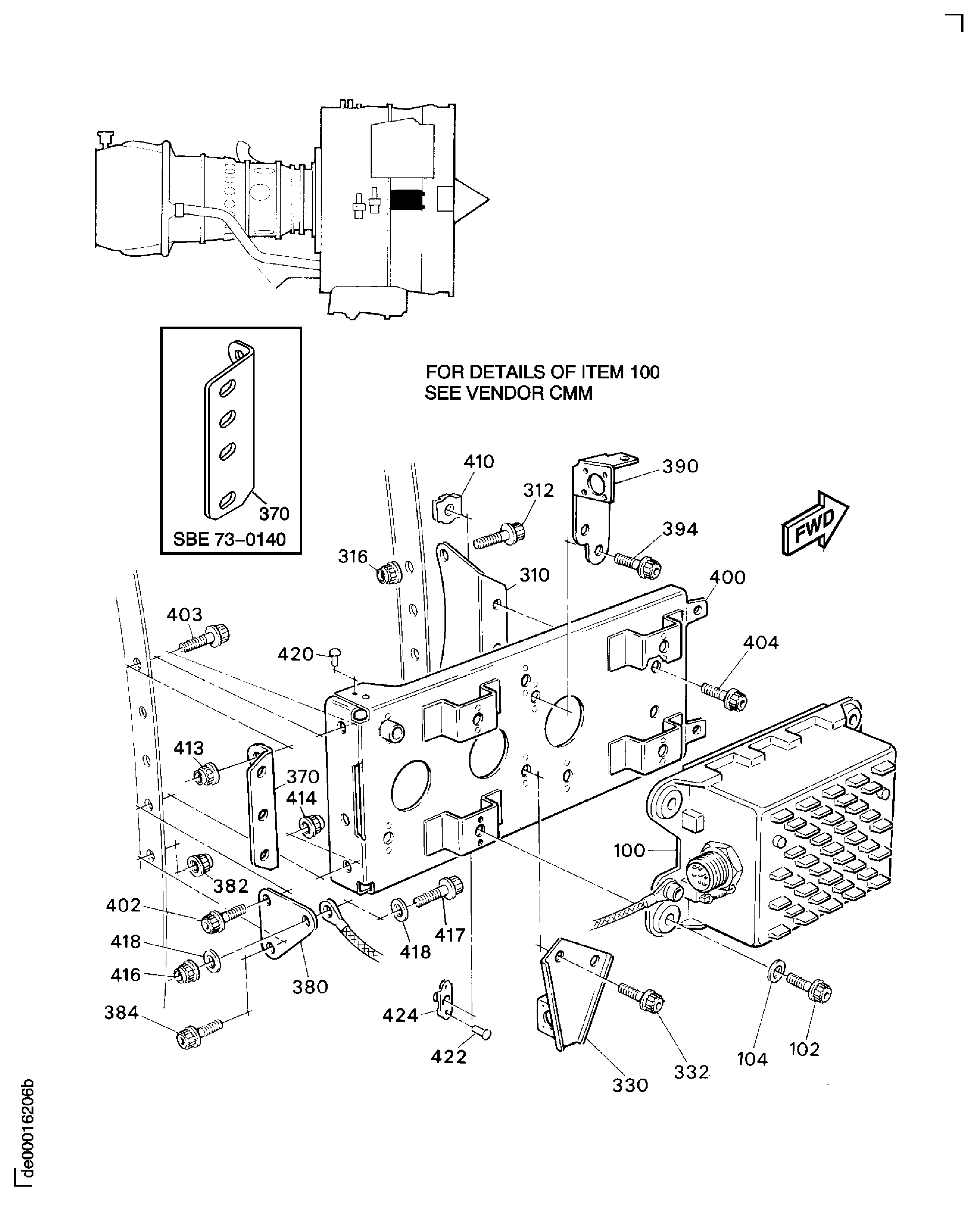

Figure: Ignition Relay Box
Ignition Relay Box
