DMC:V2500-A5-71-52-41-02A-941A-DIssue No:003.00Issue Date:2020-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B71524102 | ELECTRICAL HARNESS - FIRE DETECTION (A) AND CABIN SERVICE, PRE SBN70-0289 | aa | ||
| SBN0289-01 | ELECTRICAL HARNESS - FIRE DETECTION (A) AND CABIN SERVICE, PRE SBE72-0189 | ab | ||
| SBE0189-01 | ELECTRICAL HARNESS - FIRE DETECTION (A) AND CABIN SERVICE, PRE SBE70-0487 | ac | ||
| SBE0487-01 | ELECTRICAL HARNESS - FIRE DETECTION (A) AND CABIN SERVICE, PRE SBN70-0664 | ad | ||
| SBN0664-01 | ELECTRICAL HARNESS - FIRE DETECTION (A) AND CABIN SERVICE, PRE SBN70-0730 | ae | ||
| SBN0730-01 | ELECTRICAL HARNESS - FIRE DETECTION (A) AND CABIN SERVICE, PRE SBN70-0738 | af | ||
| SBN0738-01 | ELECTRICAL HARNESS - FIRE DETECTION (A) AND CABIN SERVICE, PRE SBN71-0273 | ag | ||
| SBN0273-01 | ELECTRICAL HARNESS - FIRE DETECTION (A) AND CABIN SERVICE, PRE SBN70-0745 | ah | ||
| SBN0745-01 | ELECTRICAL HARNESS - FIRE DETECTION (A) AND CABIN SERVICE, PRE SBN71-0295 | ai | ||
| SBN0295-01 | ELECTRICAL HARNESS - FIRE DETECTION (A) AND CABIN SERVICE | aj | ||
| -001 | 745-5967-501 | HARNESS - CORE SERVICES 51563 | aa-aj | REF |
| -001A | 745-5967-505 | HARNESS - CORE SERVICES 51563 PRE SBE72-0189 | aa-ab | REF |
| -001B | 745-5967-507 | HARNESS - CORE SERVICES 51563 POST SBE72-0189 PRE SBE70-0487 | ac | REF |
| -001C | 745-5967-507 | HARNESS - CORE SERVICES 51563 POST SBE72-0189 PRE SBE70-0487 | ac | REF |
| -001D | 745-5967-509 | HARNESS - CORE SERVICES 51563 POST SBE70-0487 PRE SBN70-0730 | ad-ae | REF |
| -001E | 745-5967-511 | HARNESS - CORE SERVICES 51563 POST SBN70-0730 PRE SBN70-0738 | af | REF |
| -001F | 745-5967-513 | HARNESS - CORE SERVICES 51563 POST SBN70-0738 PRE SBN71-0273 | ag | REF |
| -001G | 745-5967-515 | HARNESS - CORE SERVICES 51563 POST SBN71-0273 PRE SBN71-0295 | ag-ai | REF |
| -001H | 745-5967-517 | HARNESS - CORE SERVICES 51563 POST SBN71-0295 | ag-aj | REF |
| -010 | 745-5861-501 | • HARNESS - FIRE DETECT 51563 (SYSA) PRE SBE70-0487 | aa-ac | REF |
| -010A | 745-5861-503 | • HARNESS - FIRE DETECT 51563 (SYSA) POST SBE70-0487 PRE SBN70-0730 | ad-ae | REF |
| -010B | 745-5861-505 | • HARNESS - FIRE DETECT 51563 (SYSA) POST SBN70-0730 PRE SBN70-0738 | REF | |
| -010C | 745-5861-507 | • HARNESS - FIRE DETECT 51563 (SYSA) POST SBN70-0738 PRE SBN71-0273 | ag | REF |
| -010D | 745-5861-509 | • HARNESS - FIRE DETECT 51563 (SYSA) POST SBN71-0273 PRE SBN71-0295 | ag-ai | REF |
| -010E | 745-5861-511 | • HARNESS - FIRE DETECT 51563 (SYSA) POST SBN71-0295 | ag-aj | REF |
| 015 | 387AS008M1204A2 | • • BACKSHELL 06324 (FIN 4001WD1) PRE SBE70-0487 | aa-ac | 1 |
| 015A | 387AH008M1204A2 | • • BACKSHELL 06324 POST SBE70-0487 | aa-aj | 1 |
| 015B | ESC77E14 | • • CLAMP - BACKSHELL U1653 POST SBN70-0664 | ae-aj | 1 |
| 030 | 892-26K14S5SN | • • CONNECTOR F0225 (FIN 4001WD1) PRE SBN70-0664 | aa-ad | 1 |
| 030A | MS3459KS14S5S | • • CONNECTOR - ELECTRICAL 96906 POST SBN70-0664 | ae-aj | 1 |
| 050 | 387AS008M1204A2 | • • BACKSHELL 06324 (FIN 4008KS) | aa-aj | 1 |
| 065 | BSK12F1203SD | • • CONNECTR 51563 (FIN 4008KS) PRE SBN70-0289 | aa | 1 |
| 065A | ESC10SE61203SN | • • • CONNECTOR K0378 POST SBN70-0289 | aa-aj | 1 |
| 065B | ESC10SE61203SN0 | • • • CONNECTR K0378 POST SBN70-0745 | ai-aj | 1 |
| 085 | 387AS008M1406A2 | • • BACKSHELL 06324 (FIN 452VC) | aa-aj | 1 |
| 100 | E0442SE14-07P8 | • • CONNECTOR F0225 | aa-aj | 1 |
| 120 | 323161 | • • TERMINAL - LUG EARTH K1636 PRE SBN70-0730 | aa-ae | 2 |
| 120A | 321894 | • • TERMINAL K1636 POST SBN70-0730 PRE SBN70-0738 | af | 2 |
| 120B | 322338 | • • TERMINAL K1636 POST SBN70-0738 | ag-aj | 2 |
| -200 | 745-5863-501 | • HARNESS - CABIN SERVICES 51563 | aa-aj | REF |
| -200A | 745-5863-505 | • HARNESS 51563 PRE SBN70-0730 | aa-ae | REF |
| -200B | 745-5863-507 | • HARNESS 51563 POST SBN70-0730 PRE SBN70-0738 | af | REF |
| -200C | 745-5863-509 | • HARNESS 51563 POST SBN70-0738 | ag-aj | REF |
| 210 | 387AJ008M1004A | • • BACKSHELL 06324 (FIN 4000HA) | aa-aj | 1 |
| 225 | E0442SE10-05SN | • • CONNECTOR F0225 (FIN 4000HA) | aa-aj | 1 |
| 240 | 387AC078M1006A1 | • • BACKSHELL 06324 | aa-aj | 1 |
| 255 | E0442SE10-05S6 | • • CONNECTOR F0225 (FIN 4001HA) | aa-aj | 1 |
| 275 | 387AS008M1206A2 | • • BACKSHELL 06324 (FIN 450VC) | aa-aj | 1 |
| 290 | E0442SE12-12PN | • • CONNECTOR F0225 (FIN 450VC) | aa-aj | 1 |
| 310 | 323161 | • • TERMINAL - LUG EARTH K1636 PRE SBN70-0730 | aa-ae | 2 |
| 310A | 321894 | • • TERMINAL K1636 POST SBN70-0730 PRE SBN70-0738 | af | 2 |
| 310B | 322338 | • • TERMINAL K1636 POST SBN70-0738 | ag-aj | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

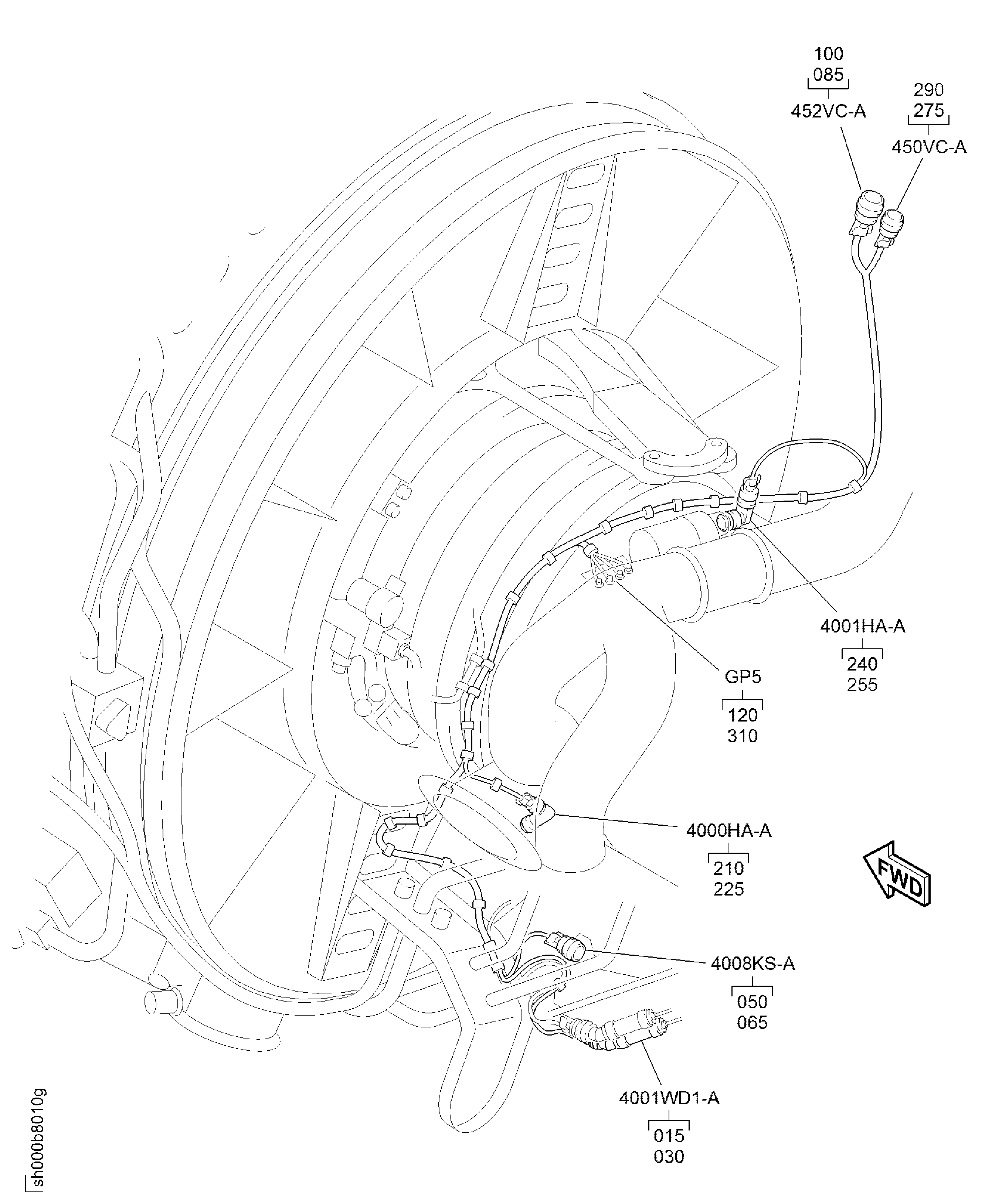

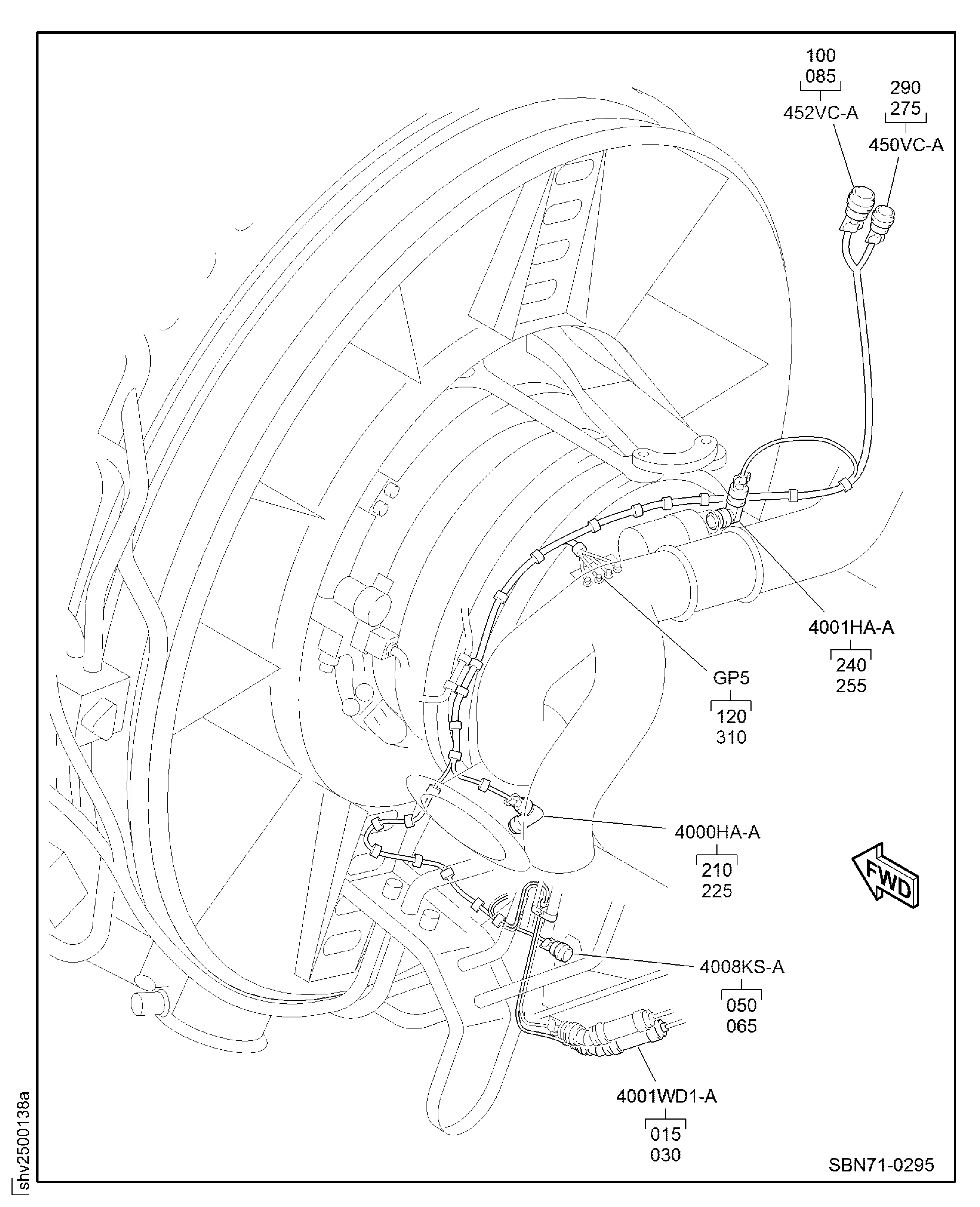

Figure: ELECT HARNESS-FIRE DETECTION (A) & CABIN SERVICE
HARNESS CORE SERVICES
HARNESS CORE SERVICES
