DMC:V2500-A5-71-52-43-05A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 05 | ||||
| - | B71524305 | ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE | ||
| 100 | 5W2176 | • RACEWAY, ASSEMBLY OF | aa/03 | 1 |
| 241 | 5W0104 | • • LUG | aa/02 | 4 |
| -940A | 5W2166 | • BRACKET PRE SBE71-0111 | *****/01 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

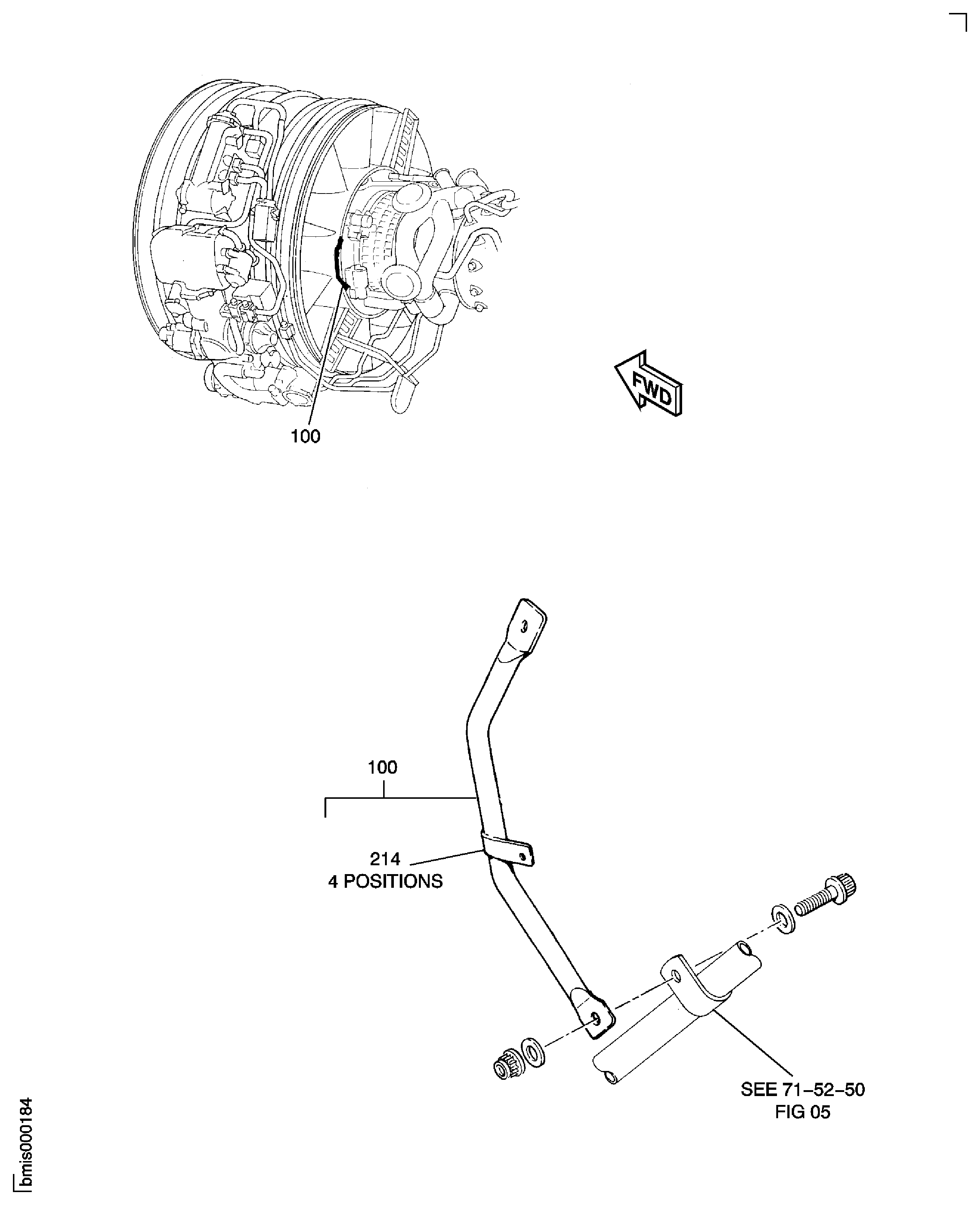

Figure: EEC Core Harness And Voltage Divider Harness Assembly
EEC Core Harness And Voltage Divider Harness Assembly
