DMC:V2500-A5-71-52-44-03A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 03 | ||||
| - | B71524403 | ELECT HARNESS-LIGHT DUTY-EEC LINK HARNESS-CORE, PRE SBE70-0270 | aa | |
| - | SBE0270-01 | ELECT HARNESS-LIGHT DUTY-EEC LINK HARNESS-CORE, PRE SBE70-0374 | ab | |
| - | SBE0374-01 | ELECT HARNESS-LIGHT DUTY-EEC LINK HARNESS-CORE, PRE SBE75-0081 | ac | |
| - | SBE0081-01 | ELECT HARNESS-LIGHT DUTY-EEC LINK HARNESS-CORE | ad | |
| 010 | G9312S16BNFD3 | • • BACKSHLL U0419 PRE SBE70-0374 | aa-ab/01 | 1 |
| 010A | ESC65E16 | • • CLAMP - BACKSHELL POST SBE70-0374 | ac-ad/01 | 1 |
| 010B | ESC65E16 | • • CLAMP - BACKSHELL | aa-ad/02 | 1 |
| 030 | G9311A11BNFD | • • BACKSHLL U0419 PRE SBE70-0374 | aa-ab/01 | 1 |
| -030A | 388HH104E11 | • • CLAMP - BACKSHELL ASSY U0419 ALT 273E11 | aa-ad/01 | REF |
| -030B | 388HH104E11 | • • CLAMP - BACKSHELL ASSY U0419 ALT 273E11 POST SBE70-0374 | ac-ad/01 | REF |
| -030C | 273E11 | • • CLAMP - BACKSHELL ASSY U2824 ALT 1021444 POST SBE70-0374 | ac-ad/01 | REF |
| -030D | 273E11 | • • CLAMP - BACKSHELL ASSY U2824 ALT 1021444 | aa-ad/01 | REF |
| 030E | 1021444 | • • CLAMP, BACKSHELL, ASSEMBLY ALT 388HH104E11 92H3-11-13-8JCCAD PRE SBE75-0081 | aa-ac/01 | 1 |
| 030F | 1021444 | • • CLAMP, BACKSHELL, ASSEMBLY ALT 388HH104E11 92H3-11-13-8JCCAD POST SBE70-0374 PRE SBE75-0081 | ac/02 | 1 |
| 716 | 2A1416-3 | • • HOLD, BAND 77445 | aa-ad/03 | 4 |
| 721 | 2A1421 | • • BAND, PROTECTIVE | aa-ad/03 | 2 |
| 722 | 2A1422 | • • BAND, IDENTIFICATION | aa-ad/03 | 2 |
| 742 | 2A1442 | • • SEPERATOR | aa-ad/03 | 2 |
| 743 | 2A1443 | • • SLEEVE | aa-ad/03 | 12 |
| 760 | 20-90970-2 | • • TUBE - HEAT SHRINKABLE PTFE 77445 PRE SBE70-0374 | aa-ab/01 | 1 |
| 776 | RT1146-1-2 | • • TUBING - HEAT SHRINKABLE, SIZE 1/2" DIA. K1010 PRE SBE70-0374 | aa-ab/01 | 1 |
| 784 | 2A1422 | • • BAND, IDENTIFICATION POST SBE70-0374 PRE SBE75-0081 | ac/01 | 4 |
| 784A | 2A1422 | • • BAND, IDENTIFICATION PRE SBE75-0081 | aa-ac/02 | 4 |
| 784B | 2A1422 | • • BAND, IDENTIFICATION POST SBE75-0081 | ad/03 | 3 |
| 815 | SF56 | • • BUSHING K7823 ALT ESC53-32 POST SBE75-0081 | ad/03 | 1 |
| 815A | ESC53-32 | • • BUSHING ALT SF56 POST SBE75-0081 | ad/03 | 1 |
| 930 | 3M64 | • • TAPE - GLASS FABRIC 77445 PRE SBE70-0270 | aa/01 | 1 |
| 931 | S792 | • • TUBE, GLASS FABRIC 77445 PRE SBE70-0270 | aa/01 | 1 |
| 931A | S792 | • • TUBE, GLASS FABRIC 77445 ALT MILI18746 POST SBE70-0270 PRE SBE70-0374 | ab/01 | 1 |
| 931B | MILI18746 | • • TAPE, GLASS | aa-ad/02 | 1 |
| 931C | MILI18746 | • • TAPE, GLASS POST SBE70-0270 | ab-ad/01 | 1 |
| 931D | MILI18746 | • • TAPE, GLASS ALT S792 POST SBE70-0374 | ac-ad/01 | 1 |
| 970 | U440036 | • • TAPE - 33ME,108FT REEL ALT U322742 (BULK STOCK U322742) POST SBE75-0081 | ad/03 | 1 |
| -970A | U322742 | • • TAPE - WHITE - 0.500 WIDE ALT U440036 (SPARE IS U440036) SCOTCH BOY 69 POST SBE75-0081 | ad/03 | REF |
| 995 | AS44725-1 | • • WIRE - LOCKING, 0.5 MM DIA U1653 POST SBE70-0374 | ac-ad/01 | 1 |
| 995A | AS44725-1 | • • WIRE - LOCKING, 0.5 MM DIA U1653 | aa-ad/02 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

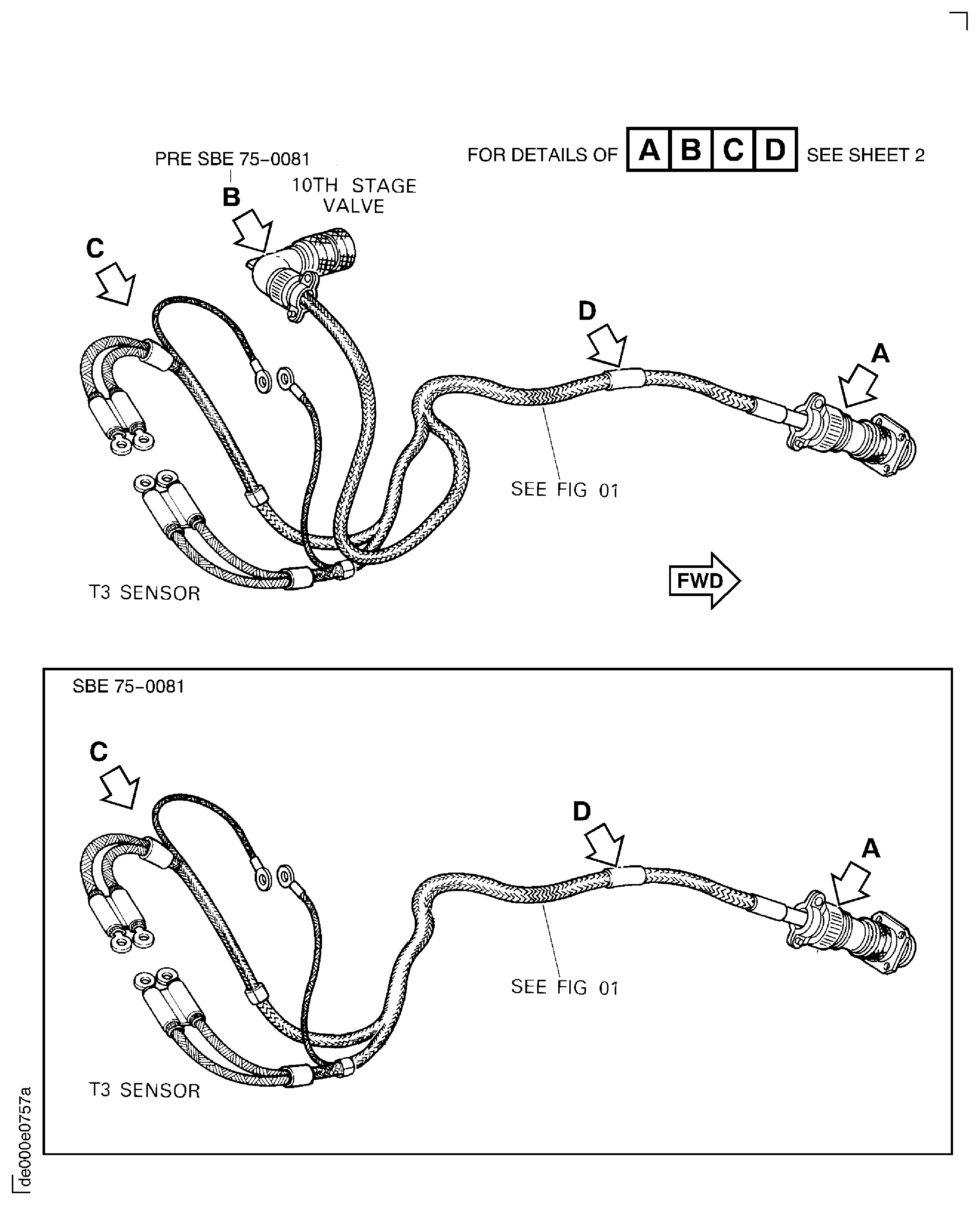

Figure: EEC Link Core Harness

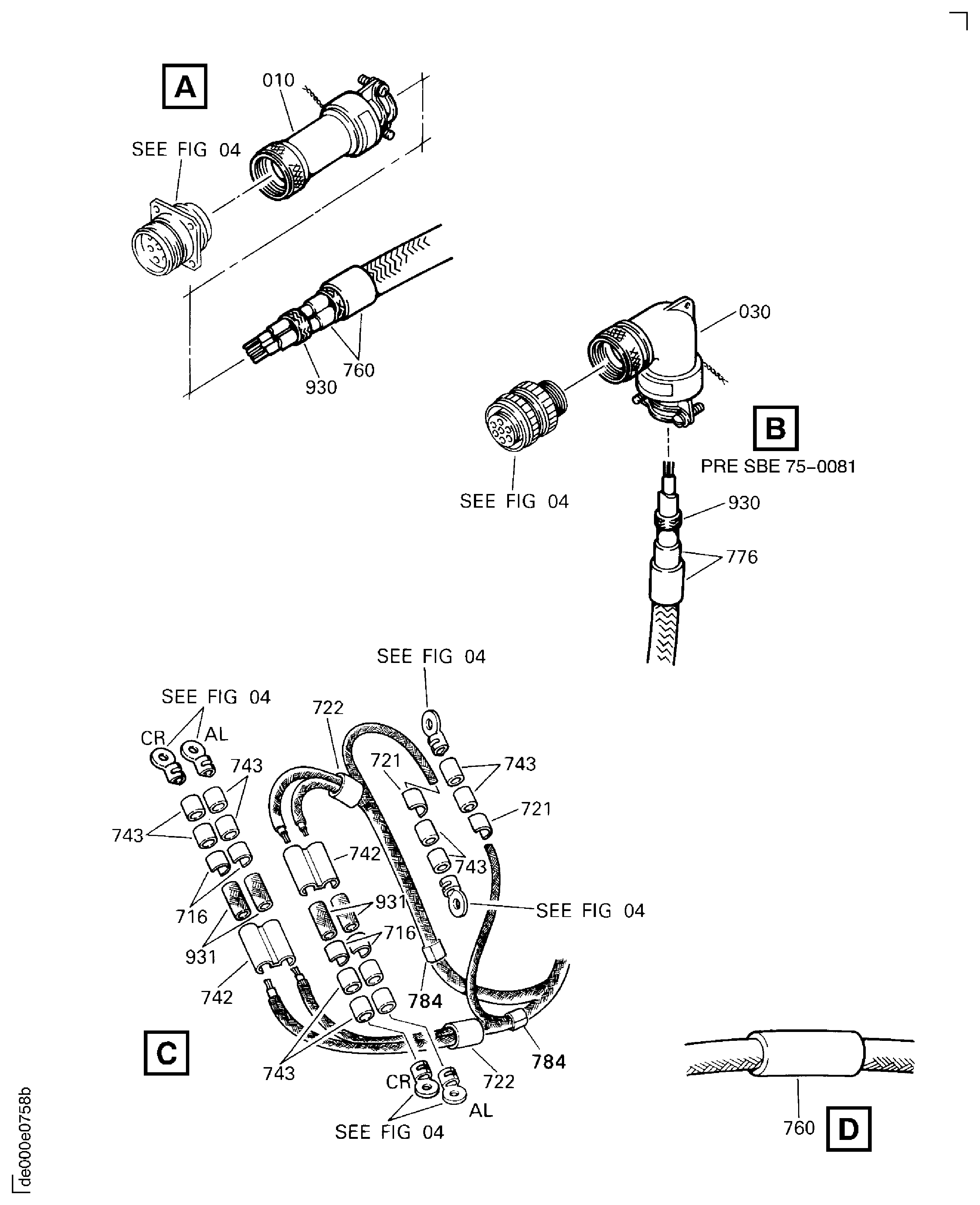

EEC Link Core Harness
EEC Link Core Harness
