DMC:V2500-A5-71-52-44-05A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 05 | ||||
| - | B71524405 | ELECTRICAL HARNESS - LIGHT DUTY - EEC, LINK HARNESS - CORE, PRE SBE71-0162 | aa | |
| - | SBE0162-01 | ELECTRICAL HARNESS - LIGHT DUTY - EEC, LINK HARNESS - CORE, PRE SBE72-0329 | ab | |
| - | SBE0329-01 | ELECTRICAL HARNESS - LIGHT DUTY - EEC, LINK HARNESS - CORE | ac | |
| 950 | 6A3991 | • BRACKET, ASSEMBLY OF PRE SBE71-0162 | aa/01 | 1 |
| 950A | 6A5907 | • BRACKET, ASSEMBLY OF POST SBE71-0162 | ab-ac/02 | 1 |
| 950B | 6A5907 | • BRACKET, ASSEMBLY OF PRE SBE71-0162 | aa/01 | 1 |
| 952A | AS20907 | • BOLT, 0.19 DIA X 0.438 U1653 | aa-ac/02 | 1 |
| 954 | AS41104 | • NUT U1653 PRE SBE72-0329 | aa-ab/01 | 1 |
| 954A | 4W0001 | • NUT - .190 DIA POST SBE72-0329 | ac/02 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

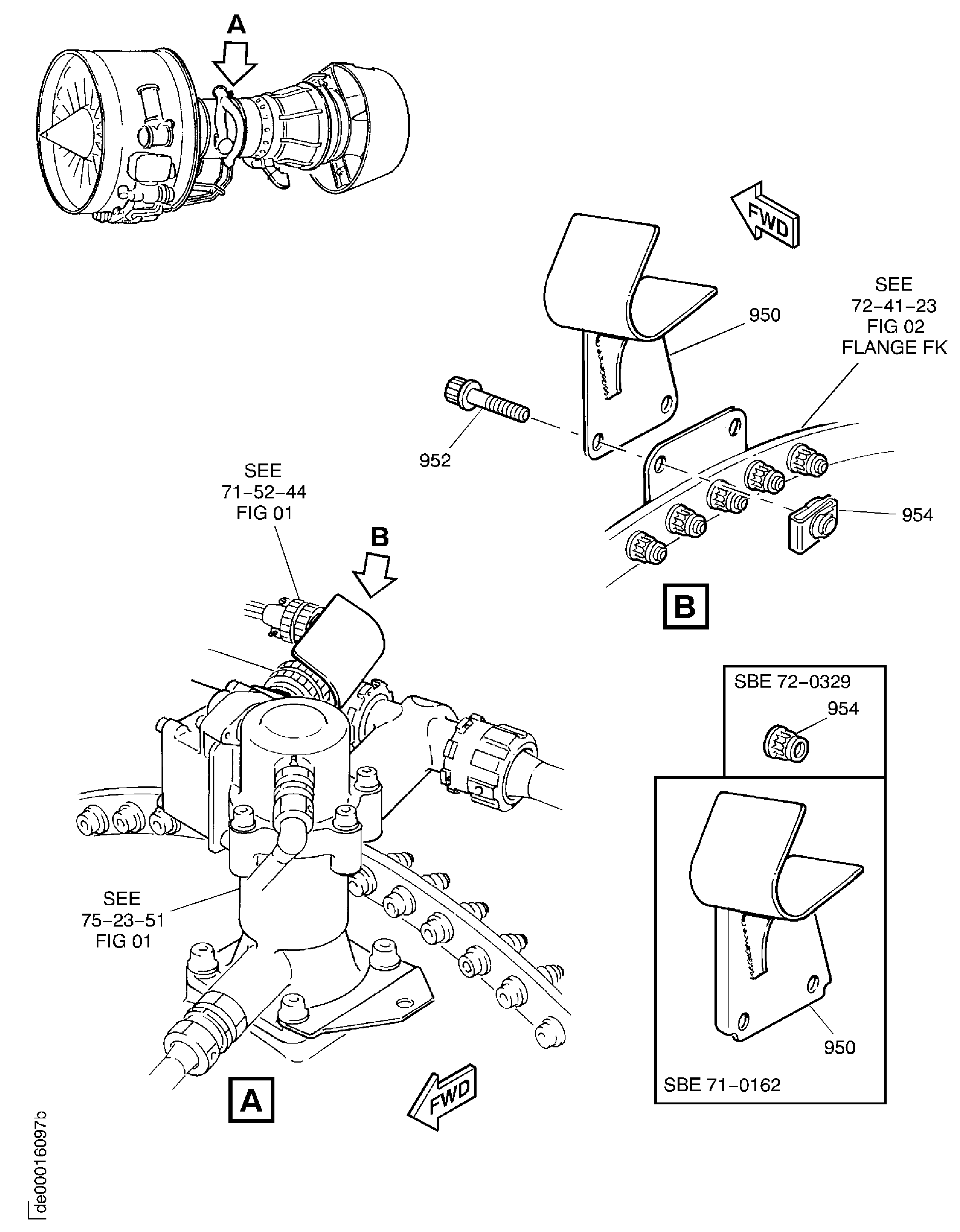

Figure: EEC Link Core Harness
EEC Link Core Harness
