DMC:V2500-A5-71-52-45-04A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 04 | ||||
| - | B71524504 | ELECTRICAL HARNESS-LIGHT DUTY-EGT HARNESS, PRE SBE70-0374 | aa | |
| - | SBE0374-01 | ELECTRICAL HARNESS-LIGHT DUTY-EGT HARNESS | ab | |
| 010 | ESC10KE01407PN0 | • • CONNECTR (FIN 4007VC) | aa-ab/01 | 1 |
| 015 | ESC30P16BC | • • CONTACT, PLUG | aa-ab/01 | 3 |
| 027 | ESC30P16NC | • • CONTACT | aa-ab/01 | 2 |
| 028 | ESC30P16NA | • • CONTACT | aa-ab/01 | 2 |
| 029 | MS27488-16 | • • PLUG, SEALING 96906 | aa-ab/01 | 3 |
| 740 | 2A1440 | • • TERMINAL, CR | aa-ab/01 | 2 |
| 741 | 2A1441 | • • TERMINAL, AL | aa-ab/01 | 2 |
| 750 | 323751 | • • TERMINAL K1636 | aa-ab/01 | 2 |
| 867 | 2A0767 | • • CABLE, AL/CR PRE SBE70-0374 | aa/02 | 1 |
| 867A | 2A0767 | • • CABLE, AL/CR POST SBE70-0374 | ab/03 | 1 |
| 867B | 2A0767 | • • CABLE, AL/CR | aa-ab/04 | 1 |
| 883 | 2A1463 | • • WIRE, STEEL, 18 - 8 | aa-ab/01 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

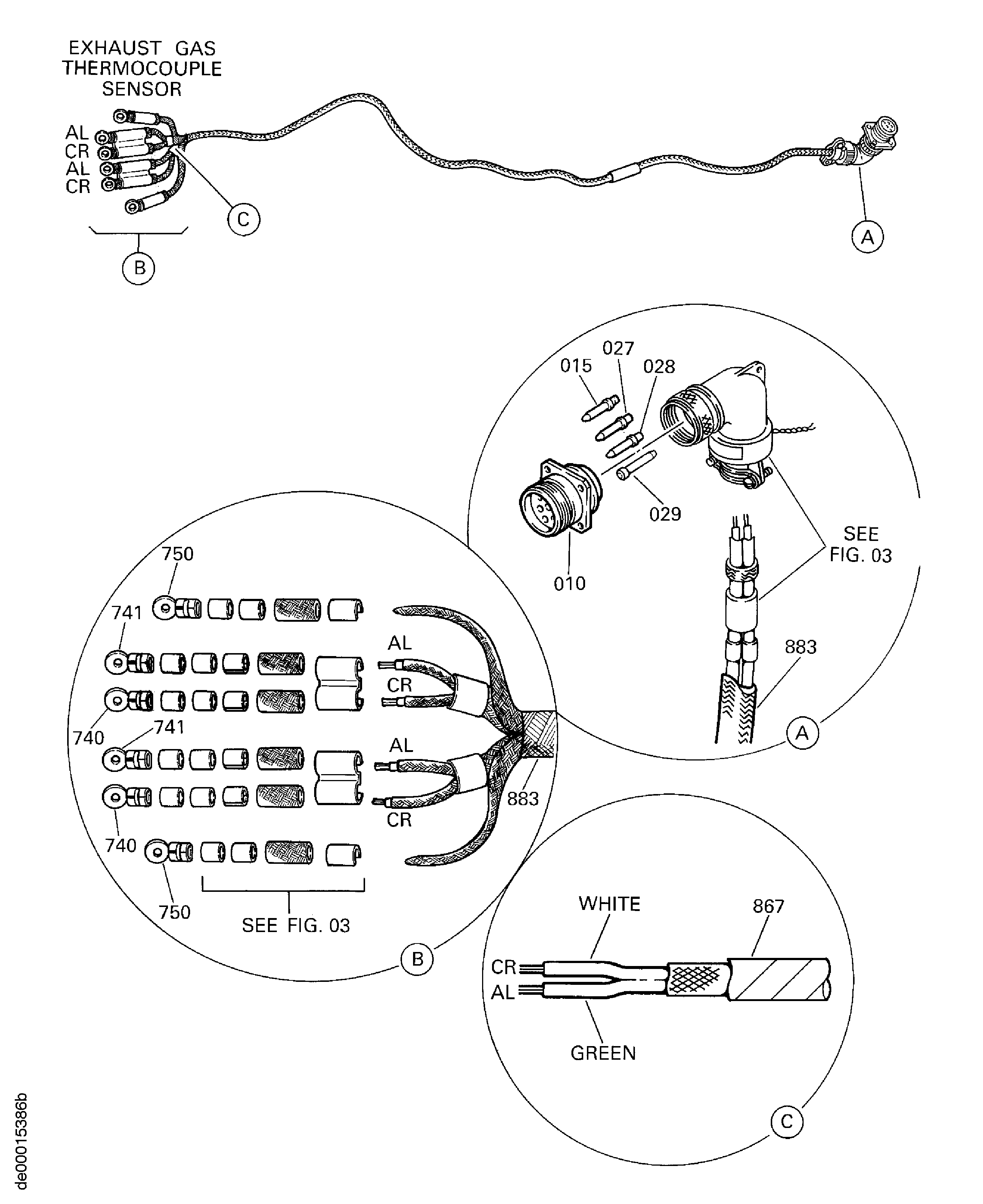

Figure: Exhaust Gas Temperature (EGT) Harness
Exhaust Gas Temperature (EGT) Harness
