POWER PLANT-FUEL DRAIN TUBES-POWER PLANT

DMC:V2500-A5-71-71-48-01A-941A-D|Issue No:003.00|Issue Date:2018-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
000B71714801POWER PLANT - FUEL DRAIN TUBES - POWER PLANTaa
100100740-5790-507• TUBE - DRAIN, ASSEMBLY OF
51563		aa1
125125AS21421• BOLT - 0.19 DIA X 1.312
U1653		aa1
125125AAS21421• BOLT - 0.19 DIA X 1.312
U1653
ALT MS9556-19		aa1
-125125BMS9556-19• BOLT
96906
ALT AS21421		aaREF
127127400WSS4• CLIP
83930		aa1
128128ST1698D50• SPACER
77445		aa1
129129SP154D• WASHER - 0.190 DIA
K7766		aa1
131131AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa1
133133AS21408• BOLT - .190 DIA X .500
U1653		aa1
133133AAS21408• BOLT - .190 DIA X .500
U1653
ALT MS9556-06		aa1
-133133BMS9556-06• BOLT
96906
ALT AS21408		aaREF
135135400WSS4• CLIP
83930		aa1
136136400WSS16• CLIP
83930		aa1
137137SP154D• WASHER - 0.190 DIA
K7766		aa1
139139AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa1
141141AS21411• BOLT, .190 DIA X .688
U1653		aa1
143143ST1698D47• SPACER
77445		aa1
145145400WSS4• CLIP
83930		aa1
147147SP154D• WASHER - 0.190 DIA
K7766		aa1
148148AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa1
1501504W0103• BOLT - .190 DIA X .500aa1
151151400WSS4• CLIP
83930		aa1
153153SP154D• WASHER - 0.190 DIA
K7766		aa1
155155AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa1
200200AS21418• BOLT - MACHINE, DOUBLE HEXAGON - 0.190 DIA X 1.125
U1653		aa1
200200AAS21418• BOLT - MACHINE, DOUBLE HEXAGON - 0.190 DIA X 1.125
U1653
ALT MS9556-16		aa1
-200200BMS9556-16• BOLT - DOUBLE HEXAGON
96906
ALT AS21418		aaREF
201201ST1698D49• SPACER
77445		aa1
202202400WSS16• CLIP
83930		aa1
203203SP154D• WASHER - 0.190 DIA
K7766		aa1
2042044W0001• NUT, OPTION - .190 DIA
Optional Part
4W0001		aa1
500500740-5791-505• TUBE - DRAIN, ASSEMBLY OF
51563		aa1
527527400WSS4• CLIP
83930		aa1
535535400WSS4• CLIP
83930		aa1
543543AS21408• BOLT - .190 DIA X .500
U1653		aa1
543543AAS21408• BOLT - .190 DIA X .500
U1653
ALT MS9556-06		aa1
-543543BMS9556-06• BOLT
96906
ALT AS21408		aaREF
545545400WSS4• CLIP
83930		aa1
547547SP154D• WASHER - 0.190 DIA
K7766		aa1
549549AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa1
550550AS21408• BOLT - .190 DIA X .500
U1653		aa1
551551400WSS4• CLIP
83930		aa1
553553SP154D• WASHER - 0.190 DIA
K7766		aa1
557557AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

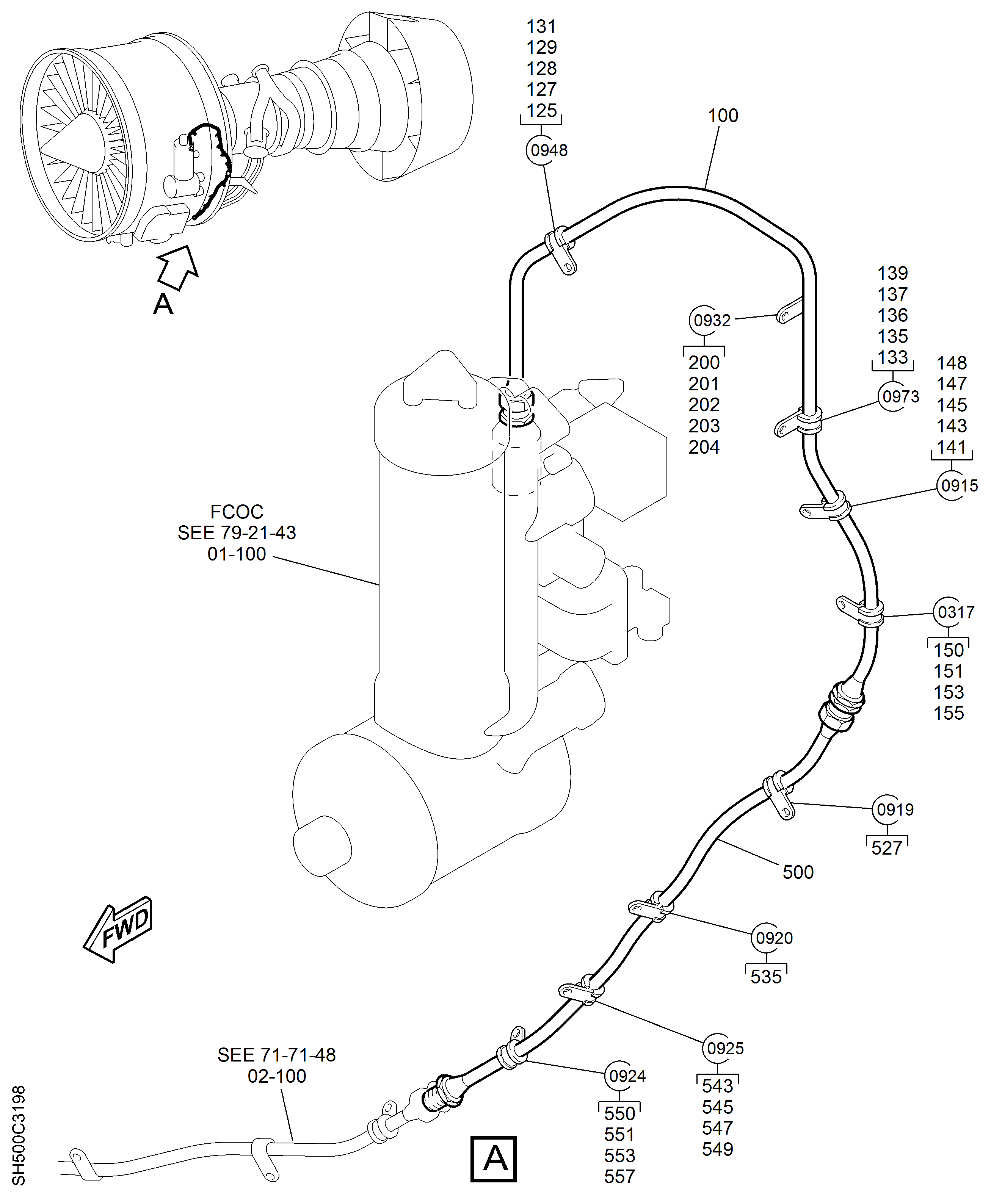

Figure: POWER PLANT-FUEL DRAIN TUBES-POWER PLANT

TUBES FUEL DRAIN

Change Type:

Removed Incorrect SB Reference And Corrected Applicability.

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:51563
Enterprise Name:ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:ROHR INC, A COLLINS AEROSPACE COMPANY
Street:850 LAGOON DRIVE
City:CHULA VISTA
State:CA
Zip Code:91910-2098
Country:USA
Phone Number:1-619-691-2089
Fax Number:1-619-691-6195
Manufacturer Code:77445
Enterprise Name:PRATT AND WHITNEY
BU Name:PRATT & WHITNEY
Street:400 MAIN STREET
City:EAST HARTFORD
Country:USA
Phone Number:8605657700
Manufacturer Code:83930
Enterprise Name:TRANSDIGM INC
BU Name:TRANSDIGM INC
Department:ADEL FASTENERS
Building:SANDWELL INDUSTRIAL ESTATE
Street:5000 TRIGGS STREET
City:LOS ANGELES
State:WEST MIDLANDS
Zip Code:B66 1QJ
Country:USA
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:K7766
Enterprise Name:K7766
BU Name:British Standards Institution
Street:2 Park Street
City:London
Zip Code:AW1A 2BS
Country:England
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:400WSS16
Part Name:CLIP
Manufacturer Code:83930
Part Number:400WSS4
Part Name:CLIP
Manufacturer Code:83930
Optional Parts
Part NumberPart NameManufacturer
AS62404CLIP - 6.35 MM (0.250)U1653
Part Number:4W0001
Part Name:NUT, OPTION - .190 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS20624NUT, SELF LOCKING DBL HEX - .190 DIAU1653
Part Number:4W0103
Part Name:BOLT - .190 DIA X .500
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21408BOLT - 0.19 DIA X 0.500U1653
Part Number:740-5790-507
Part Name:TUBE - DRAIN, ASSEMBLY OF
Manufacturer Code:51563
Part Number:740-5791-505
Part Name:TUBE - DRAIN, ASSEMBLY OF
Manufacturer Code:51563
Part Number:AS20624
Part Name:NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:U1653
Part Number:AS21408
Part Name:BOLT - 0.19 DIA X 0.500
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
MS9556-06BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.50096906
Part Number:AS21411
Part Name:BOLT - 0.19 DIA X 0.688
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
MS9556-09BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.68896906
Part Number:AS21418
Part Name:BOLT - MACHINE, DOUBLE HEXAGON - 0.190 DIA X 1.125
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
MS9556-16BOLT - DOUBLE HEXAGON96906
Part Number:AS21421
Part Name:BOLT - 0.19 DIA X 1.312
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9556-19BOLT - MACHINE, DOUBLE HEXAGON96906
Part Number:AS62404
Part Name:CLIP - 6.35 MM (0.250)
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
400WSS4CLIP83930
Part Number:MS9556-06
Part Name:BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500
Manufacturer Code:96906
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
AS21408BOLT - 0.19 DIA X 0.500U1653
Part Number:MS9556-09
Part Name:BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.688
Manufacturer Code:96906
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
AS21411BOLT - 0.19 DIA X 0.688U1653
Part Number:MS9556-16
Part Name:BOLT - DOUBLE HEXAGON
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
AS21418BOLT - MACHINE, DOUBLE HEXAGON - 0.190 DIA X 1.125U1653
Part Number:MS9556-19
Part Name:BOLT - MACHINE, DOUBLE HEXAGON
Manufacturer Code:96906
Part Number:SP154D
Part Name:WASHER - 0.190 DIA
Manufacturer Code:K7766
Part Number:ST1698D47
Part Name:SPACER
Manufacturer Code:77445
Part Number:ST1698D49
Part Name:SPACER
Manufacturer Code:77445
Part Number:ST1698D50
Part Name:SPACER
Manufacturer Code:77445
