| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B71714802 | POWER PLANT - FUEL DRAIN TUBES - POWER PLANT, PRE SBN71-0273 | aa | ||
| SBN0273-01 | POWER PLANT - FUEL DRAIN TUBES - POWER PLANT | ab | ||
| 100 | 740-5261-507 | • TUBE - DRAIN, ASSEMBLY OF 51563 | aa-ab | 1 |
| 124 | 4W0106 | • BOLT - .190 DIA X .688 Optional Part 4W0106 | aa-ab | 1 |
| 125 | 5W1086 | • WASHER PRE SBN71-0273 | aa | 1 |
| 126 | 400WSS4 | • CLIP 83930 PRE SBN71-0273 | aa | 1 |
| 127 | ST1698D47 | • SPACER (5MM) K4585 PRE SBN71-0273 | aa | 1 |
| 132 | 4W0001 | • NUT, OPTION - .190 DIA PRE SBN71-0273 | aa | 1 |
| 134 | AS21408 | • BOLT - .190 DIA X .500 U1653 | aa-ab | 1 |
| 134A | AS21411 | • BOLT, .190 DIA X .688 U1653 ALT MS9556-09 | aa-ab | 1 |
| -134B | MS9556-09 | • BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.688 96906 ALT AS21411 | aa-ab | REF |
| 136 | SP154D | • WASHER - 0.190 DIA K7766 | aa-ab | 1 |
| 137 | ST1698D47 | • SPACER (5MM) 51563 | aa-ab | 1 |
| 138 | 400WSS4 | • CLIP 83930 | aa-ab | 1 |
| 139 | AS20624 | • NUT, SELF LOCKING DBL HEX - .190 DIA U1653 | aa-ab | 1 |
| 145 | AS21414 | • BOLT - .190 DIA x.875 U1653 | aa-ab | 1 |
| 146 | SP154D | • WASHER - 0.190 DIA K7766 PRE SBN71-0273 | aa | 1 |
| 148 | 400WSS4 | • CLIP 83930 PRE SBN71-0273 | aa | 1 |
| 152 | ST1698D48 | • SPACER (10MM) K4585 | aa-ab | 1 |
| 155 | AS20624 | • NUT, SELF LOCKING DBL HEX - .190 DIA U1653 PRE SBN71-0273 | aa | 1 |
| 164 | 400WSS4 | • CLIP 83930 POST SBN71-0273 | ab-ab | 1 |
| 500 | 745-5700-503 | • TUBE - DRAIN,FMU, ASSEMBLY OF 51563 | aa-ab | 1 |
| 525 | AS21409 | • BOLT - 0.190 DIA X 0.562 U1653 | aa-ab | 1 |
| 525A | AS21409 | • BOLT - 0.190 DIA X 0.562 U1653 ALT MS9556-07 | aa-ab | 1 |
| -525B | MS9556-07 | • BOLT - MACHINE, DOUBLE HEXAGON, EXTERNAL WASHER HEAD, 0.190 - 32 X 0.562 96906 ALT AS21409 | aa-ab | REF |
| 527 | 400WSS4 | • CLIP 83930 | aa-ab | 1 |
| 529 | SP154D | • WASHER - 0.190 DIA K7766 | aa-ab | 1 |
| 531 | AS20624 | • NUT, SELF LOCKING DBL HEX - .190 DIA U1653 | aa-ab | 1 |
| 533 | AS21409 | • BOLT - 0.190 DIA X 0.562 U1653 | aa-ab | 1 |
| 535 | 400WSS4 | • CLIP 83930 | aa-ab | 1 |
| 537 | SP154D | • WASHER - 0.190 DIA K7766 | aa-ab | 1 |
| 539 | AS20624 | • NUT, SELF LOCKING DBL HEX - .190 DIA U1653 | aa-ab | 1 |
| 545 | 4W0108 | • BOLT, MACHINE DOUBLE HEX - .190 DIA X .812 Optional Part AS21413 | aa-ab | 1 |
| 547 | 400WSS4 | • CLIP 83930 | aa-ab | 1 |
| 550 | ST1698D47 | • SPACER (5MM) K4585 | aa-ab | 1 |
| 552 | SP154D | • WASHER - 0.190 DIA K7766 | aa-ab | 1 |
| 554 | 4W0001 | • NUT, OPTION - .190 DIA Optional Part AS20624 | aa-ab | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

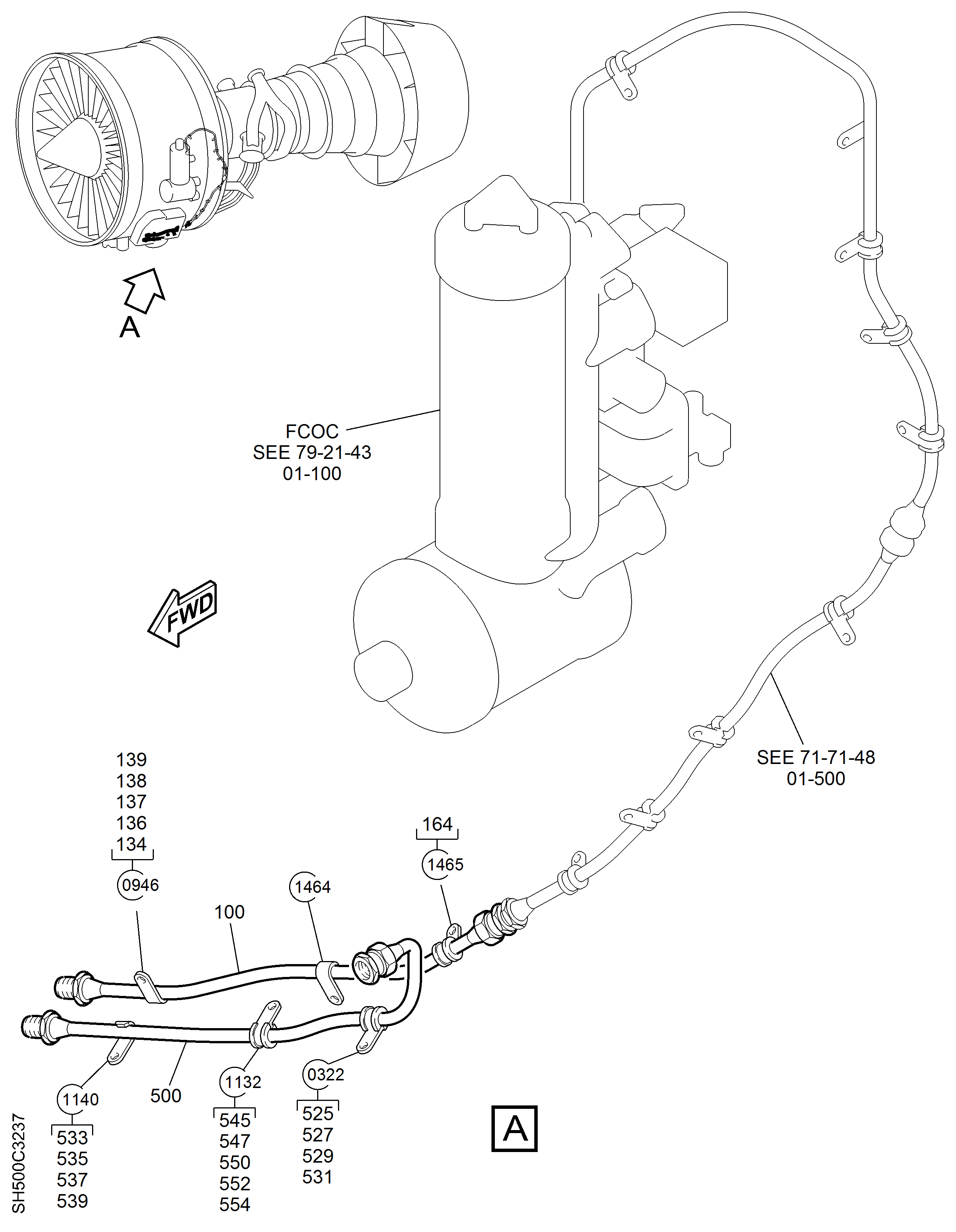

Figure: POWER PLANT-FUEL DRAIN TUBES-POWER PLANT
TUBES FUEL DRAIN
