| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B71714901 | POWER PLANT - FUEL DRAIN TUBES-ENGINE, PRE SBE72-0189 | aa | |
| - | SBE0189-01 | POWER PLANT - FUEL DRAIN TUBES-ENGINE, PRE SBE79-0088 | ab | |
| - | SBE0088-02 | POWER PLANT - FUEL DRAIN TUBES-ENGINE | ac | |
| 100 | 740-5276-503 | • TUBE - DRAIN, ASSEMBLY OF 51563 ALT 745-5276-501 | aa-ac/01 | 1 |
| 100A | 745-5276-501 | • TUBE - ASSEMBLY DRAIN 51563 ALT 740-5276-503 | aa-ac/01 | 1 |
| 100B | 745-5276-501 | • TUBE - ASSEMBLY DRAIN 51563 | aa-ac/02 | 1 |
| 160 | 400WSS4 | • CLIP 83930 | aa-ac/03 | 1 |
| 500 | 740-5277-505 | • TUBE - DRAIN, ASSEMBLY OF 51563 PRE SBE72-0189 | aa/01 | 1 |
| 500A | 740-5277-507 | • TUBE - ASSEMBLY DRAIN 51563 PRE SBE79-0088 | aa-ab/01 | 1 |
| 500B | 740-5277-507 | • TUBE - ASSEMBLY DRAIN 51563 POST SBE72-0189 PRE SBE79-0088 | ab/02 | 1 |
| 500C | 740-5277-509 | • TUBE - DRAIN, ASSEMBLY OF 51563 POST SBE79-0088 | ac/03 | 1 |
| 533 | AS21408 | • BOLT - .190 DIA X .500 U1653 PRE SBE79-0088 | aa-ab/03 | 1 |
| 534 | SP154D | • WASHER - 0.190 DIA K7766 PRE SBE79-0088 | aa-ab/03 | 1 |
| 536 | 400WSS8 | • CLIP 83930 PRE SBE72-0189 | aa/01 | 1 |
| 536A | 400WSS4 | • CLIP 83930 POST SBE72-0189 PRE SBE79-0088 | ab/01 | 1 |
| 536B | 400WSS4 | • CLIP 83930 PRE SBE79-0088 | aa-ab/02 | 1 |
| 540 | 4W0001 | • NUT, OPTION - .190 DIA PRE SBE79-0088 | aa-ab/03 | 1 |
| 545 | 400WSS4 | • CLIP 83930 POST SBE72-0189 PRE SBE79-0088 | ab/01 | 1 |
| 545A | 400WSS4 | • CLIP 83930 PRE SBE79-0088 | aa-ab/02 | 1 |
| 550 | 4W0103 | • BOLT - .190 DIA X .500 (SEE APPENDIX 5) POST SBE79-0088 | ac/03 | 1 |
| 551 | SP154D | • WASHER - 0.190 DIA K7766 POST SBE79-0088 | ac/03 | 1 |
| 553 | 400WSS4 | • CLIP 83930 POST SBE79-0088 | ac/03 | 1 |
| 557 | 4W0001 | • NUT, OPTION - .190 DIA (SEE APPENDIX 5) POST SBE79-0088 | ac/03 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

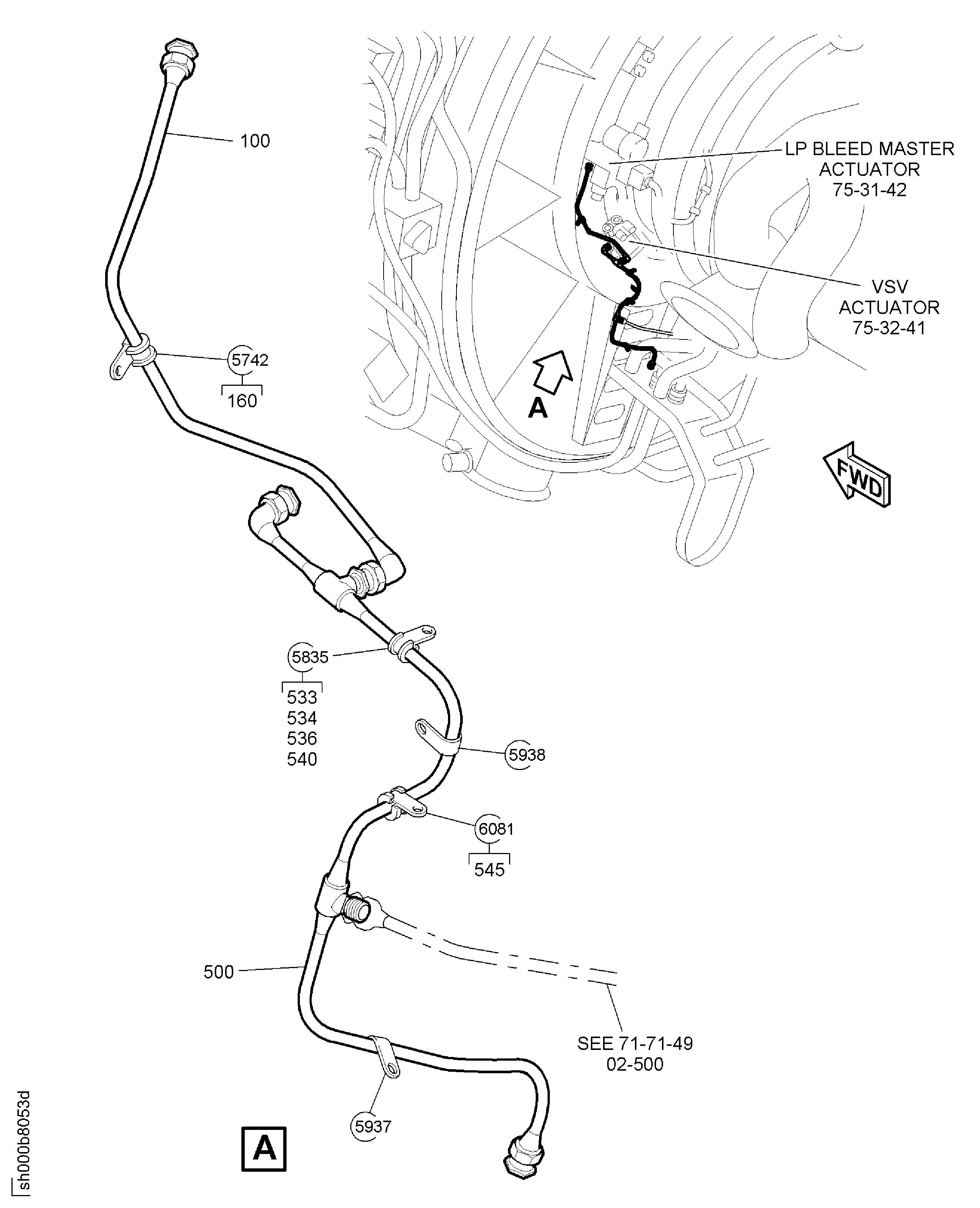

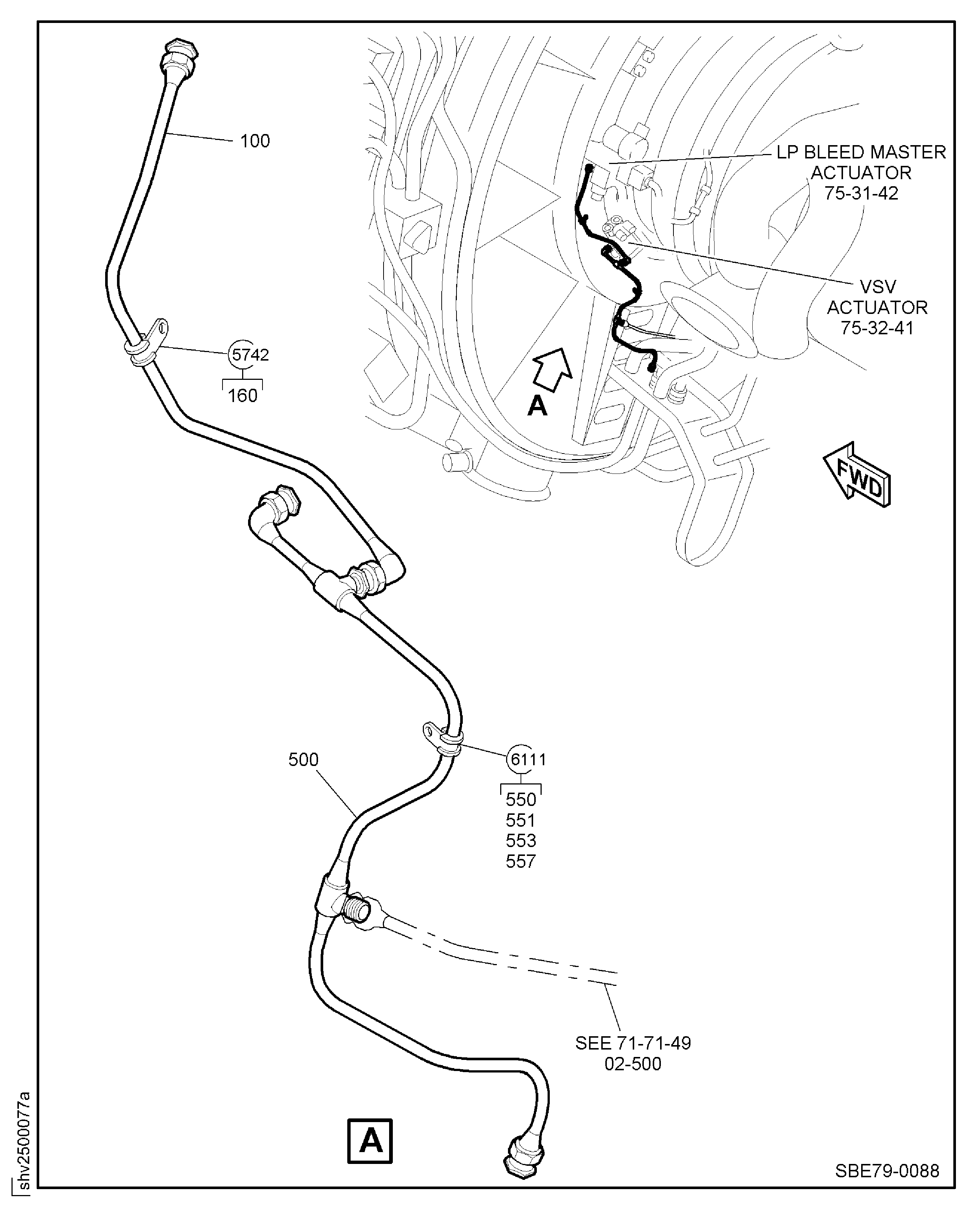

Figure: POWER PLANT-FUEL DRAIN TUBES-ENGINE
