DMC:V2500-A5-71-73-48-02A-941A-DIssue No:005.00Issue Date:2018-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B71734802 | OIL - HYDRAULIC AND WATER DRAIN TUBES - POWER PLANT | aa | ||
| 100 | 740-5696-507 | • TUBE - ASSY, DRAIN,AIR STARTER 51563 | aa | 1 |
| 101 | 740-5705-501 | • UNION 51563 | aa | 1 |
| 105 | MS28778-06 | • PACKING - PREFORMED 96906 | aa | 1 |
| 105A | MS28778-6 | • RING - SEAL, 11,89 MM I/D X 1,98 MM 96906 | aa | 1 |
| 125 | AS21408 | • BOLT - .190 DIA X .500 U1653 | aa | 1 |
| 125A | AS21408 | • BOLT - .190 DIA X .500 U1653 ALT MS9556-06 | aa | 1 |
| -125B | MS9556-06 | • BOLT 96906 ALT AS21408 | aa | REF |
| 127 | 400WSS4 | • CLIP 83930 | aa | 1 |
| 129 | SP154D | • WASHER - 0.190 DIA K7766 | aa | 1 |
| 131 | AS20624 | • NUT, SELF LOCKING DBL HEX - .190 DIA U1653 | aa | 1 |
| 133 | AS21408 | • BOLT - .190 DIA X .500 U1653 | aa | 1 |
| 133A | AS21408 | • BOLT - .190 DIA X .500 U1653 ALT MS9556-06 | aa | 1 |
| -133B | MS9556-06 | • BOLT 96906 ALT AS21408 | aa | REF |
| 135 | 400WSS4 | • CLIP 83930 | aa | 1 |
| -137 | 740-5713-503 | • BRACKET 51563 SEE 72-60-10 | aa | REF |
| 500 | 740-5792-517 | • TUBE ASSY,DRAIN IDG 51563 | aa | 1 |
| 501 | HTE640019 | • COUPLING,BANJO U9084 | aa | 1 |
| 505 | AS43003-906 | • SEAL, RING U1653 | aa | 1 |
| 510 | 400WSS5 | • SEAL, RING 83930 | aa | 1 |
| -900 | 740-5714-507 | • BRACKET 51563 SEE 72-60-10-01-456 PRE SBN71-0273 | ***** | REF |
| -910 | 740-5640-503 | • BRACKET 51563 SEE 72-60-10 | aa | REF |
| -920 | 740-5713-503 | • BRACKET 51563 SEE 72-60-10 | aa | REF |
| -930 | 740-5641-503 | • BRACKET 51563 SEE 72-60-10 | aa | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

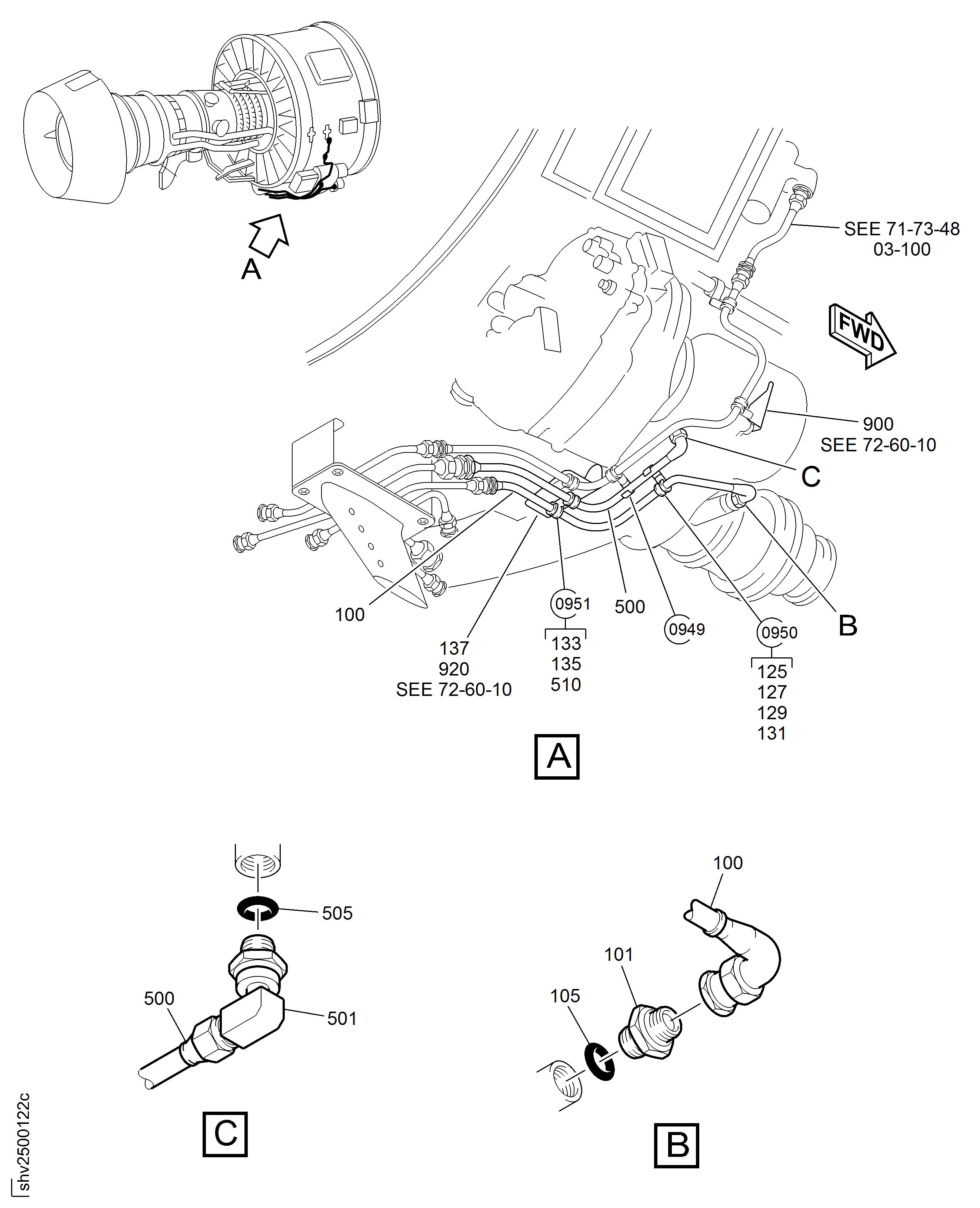

Figure: TUBES OIL HYDRAULIC WATER
TUBES OIL HYDRAULIC WATER
