TASK 72-00-00-300-012 HPC Off-Wing Replacement Repair for Loose, Worn, and Missing VSV System Bushings, Repair-012 (VRS9344)
Effectivity
FIG/ITEM | PART NO. |
|---|---|
02-440 | 6A7580 |
02-440 | 6A7849 |
02-440 | 6A7899 |
02-440 | 6A8075 |
02-540 | 6A7584 |
02-540 | 6A7851 |
02-540 | 6A7901 |
02-540 | 6A8077 |
03-440 | 6A7588 |
03-440 | 6A7861 |
03-440 | 6A7863 |
03-440 | 6A7903 |
03-440 | 6A8115 |
03-440 | 6A8117 |
03-540 | 6A7590 |
03-540 | 6A7865 |
03-540 | 6A7906 |
03-540 | 6A8119 |
04-440 | 6A7596 |
04-440 | 6A7868 |
04-440 | 6A7888 |
04-440 | 6A8121 |
04-540 | 6A7599 |
04-540 | 6A7890 |
05-440 | 6A7605 |
05-440 | 6A7894 |
05-440 | 6A8086 |
05-440 | 6A8088 |
05-540 | 6A7607 |
05-540 | 6A7896 |
General
This repair is to replace the VSV bushings, when the bushings have become loose or worn.
For price and availability, Refer to International Aero Engines (IAE).
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
NONESpares
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| BUSHING - SLEEVE | 0AM53 | BRR12496 | ||
| BUSHING | 0AM53 | UP10815 | ||
| BUSHING | 0AM53 | UP11069 | ||
| BUSHING - SLEEVE | 0AM53 | UP12206 |
Safety Requirements
NONEProcedure
Remove residual bushing material. Use standard workshop equipment.
Remove the nut.
Remove the lever.
Do not remove the adjusting spacer.
If missing bushing(s) are located on unison ring connector, remove VSV or VIGV actuating levers:
Remove the affected lever arm.
If missing bushing is located on unison ring:
If so, reject the engine.
Determine if a bushing hole has any indications of wear and damage on unison ring.
If so, reject the unison ring connector.
Determine if a bushing hole has any indications of wear and damage on unison ring connector.
Visually examine the bushing holes.
If damaged or wear evident, replace the VSV lever.
Visually inspect VSV levers and pins for evidence of wear or damage.
Examine VSV levers and pins.
SUBTASK 72-00-00-220-180 Examine Bushings, Unison Rings, VSV Levers and Pins
Visually inspect to confirm that bushings are installed correctly.
Use 0.001 in. (0.0254 mm) feeler gauge to ensure that the bushings are correctly seated and safety features are engaged.
Visually examine the bushings.
Place the actuating lever into position on the vane spindle.
Install the nut.
Install any removed VSV or VIGV actuating levers.
SUBTASK 72-00-00-350-061 Installation of Replacement Bushings and Unison Ring Connector
Make a record of VRS9344 in the applicable engine documentation.
SUBTASK 72-00-00-350-062 Conclude the Repair

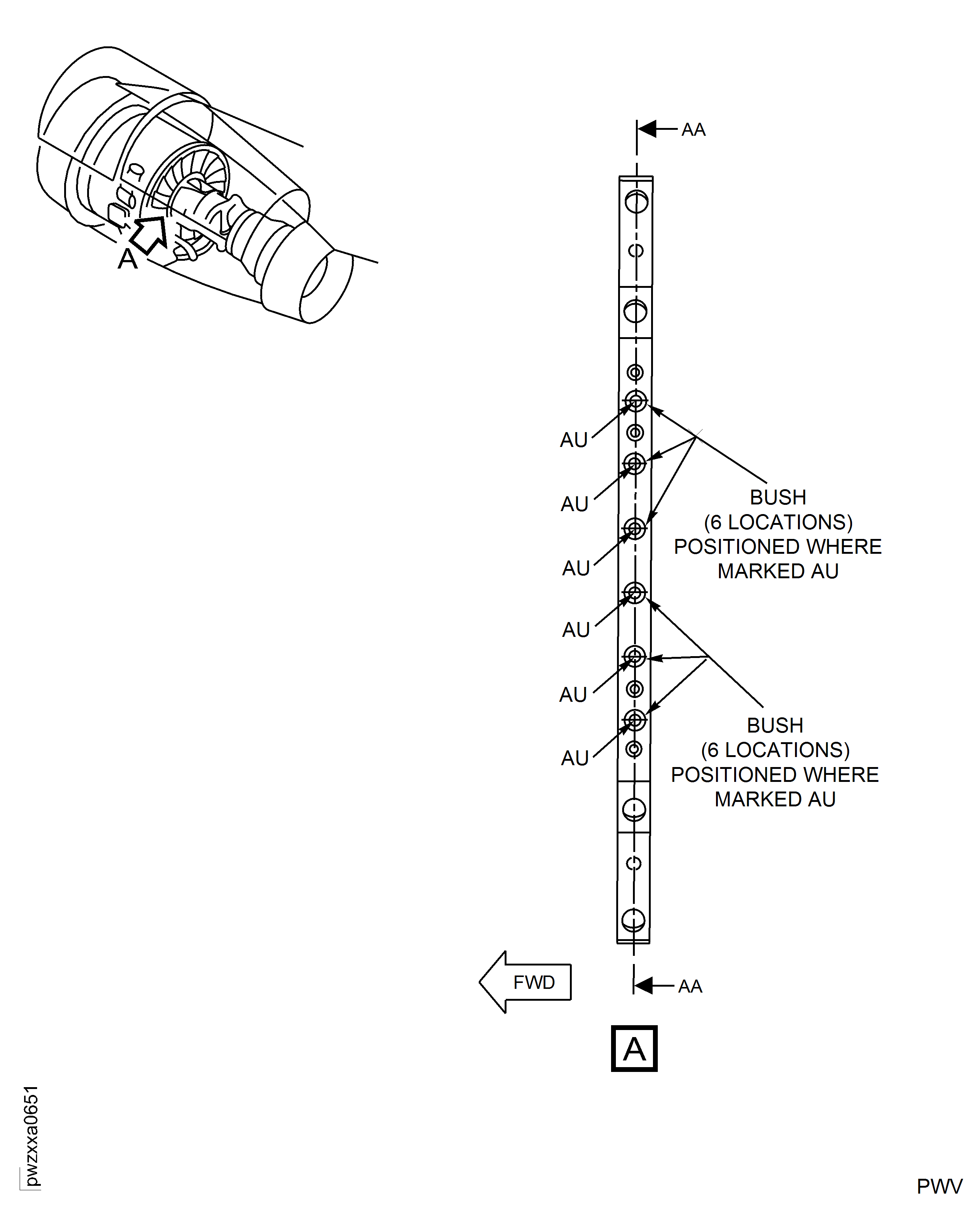

Figure: High Pressure (HP) Compressor VSV Unison Ring
High Pressure (HP) Compressor VSV Unison Ring

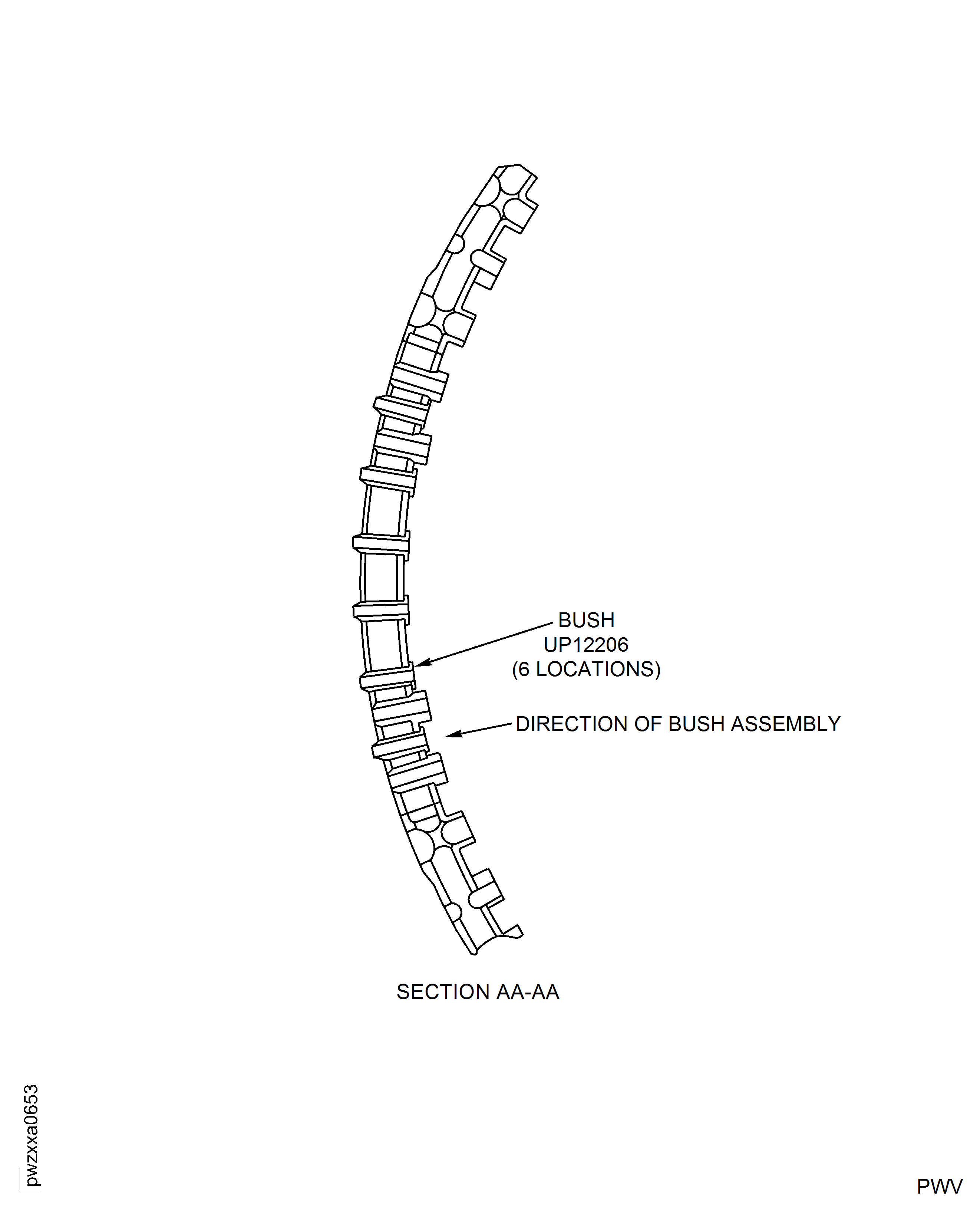

Figure: High Pressure (HP) Compressor VSV Unison Ring Connector (Pre SB 72-0418)
High Pressure (HP) Compressor VSV Unison Ring Connector (Pre SB 72-0418)

Figure: High Pressure (HP) Compressor VSV Unison Ring Connector (Post SB 72-0418)
High Pressure (HP) Compressor VSV Unison Ring Connector (Post SB 72-0418)

Figure: Section AA, VIGV Pre SB 72-0418 Installation Of Bushings
Section AA, VIGV Pre SB 72-0418 Installation Of Bushings

Figure: Section AA, VIGV Post SB 72-0418 Installation Of Bushings
Section AA, VIGV Post SB 72-0418 Installation Of Bushings

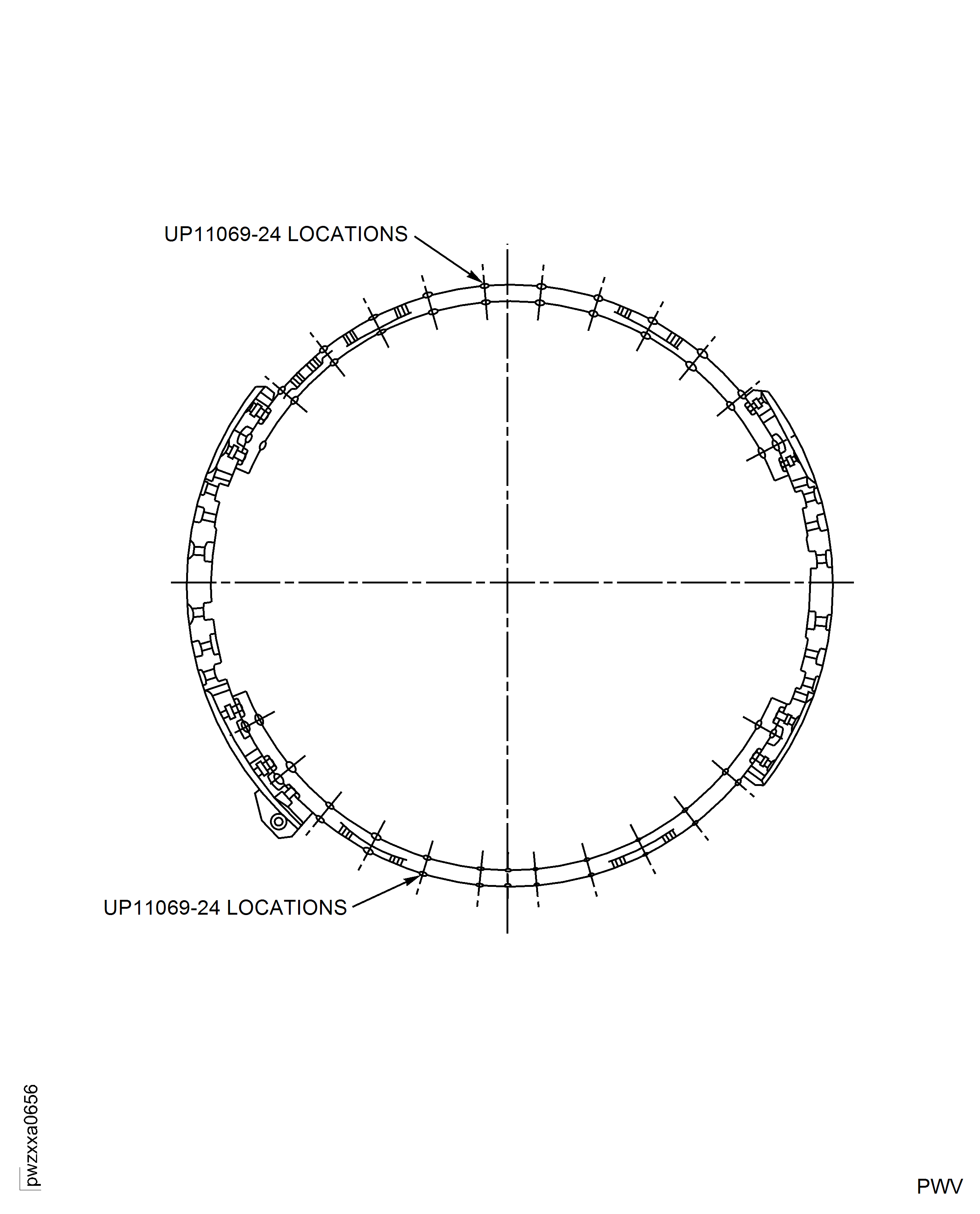

Figure: Stage 3 Pre SB 72-0418 Installation Of Bushings
Stage 3 Pre SB 72-0418 Installation Of Bushings

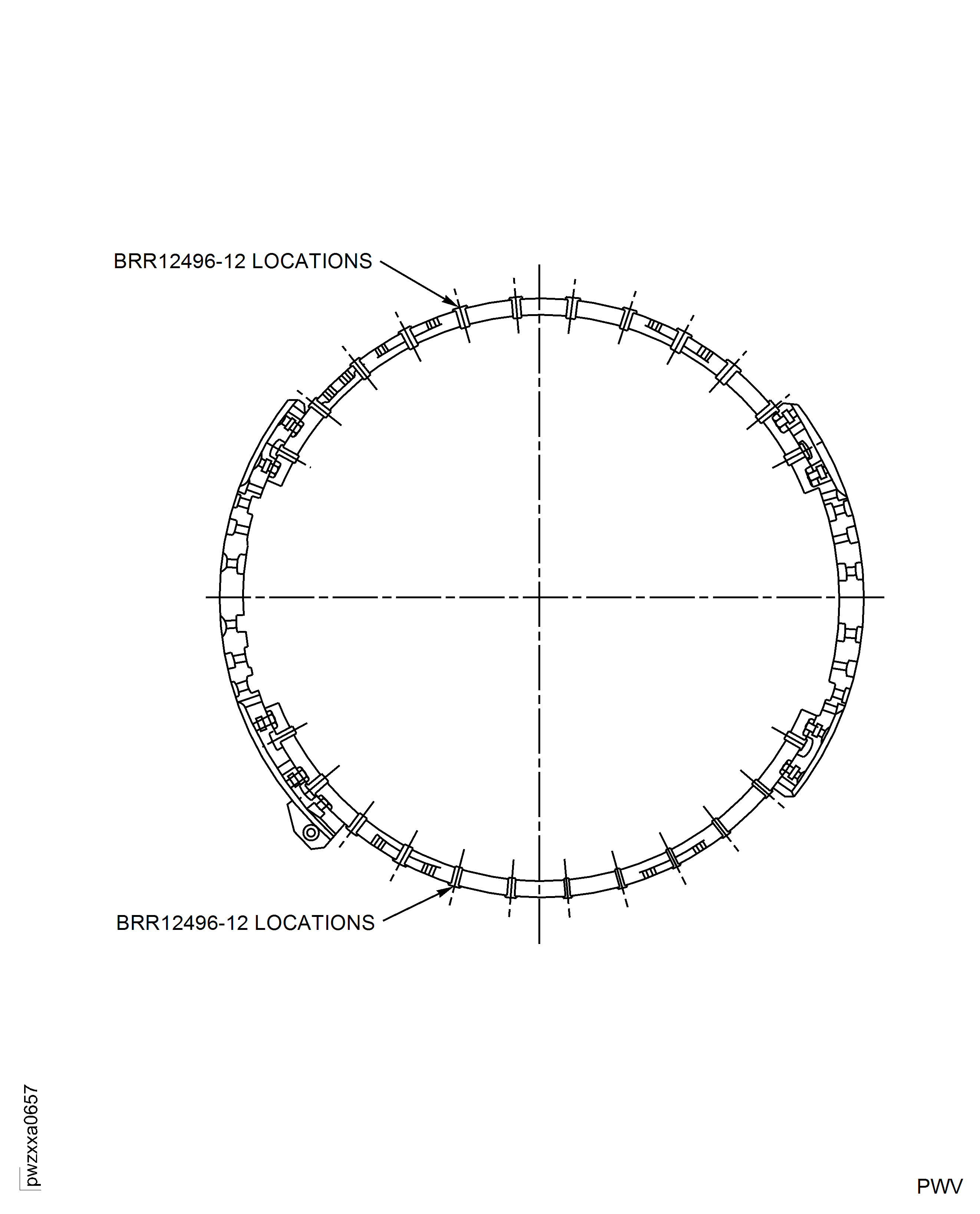

Figure: Stage 3 Post SB 72-0418 Installation Of Bushings
Stage 3 Post SB 72-0418 Installation Of Bushings

Figure: Stage 4 Pre SB 72-0418 Installation Of Bushings
Stage 4 Pre SB 72-0418 Installation Of Bushings

Figure: Stage 4 Post SB 72-0418 Installation Of Bushings
Stage 4 Post SB 72-0418 Installation Of Bushings

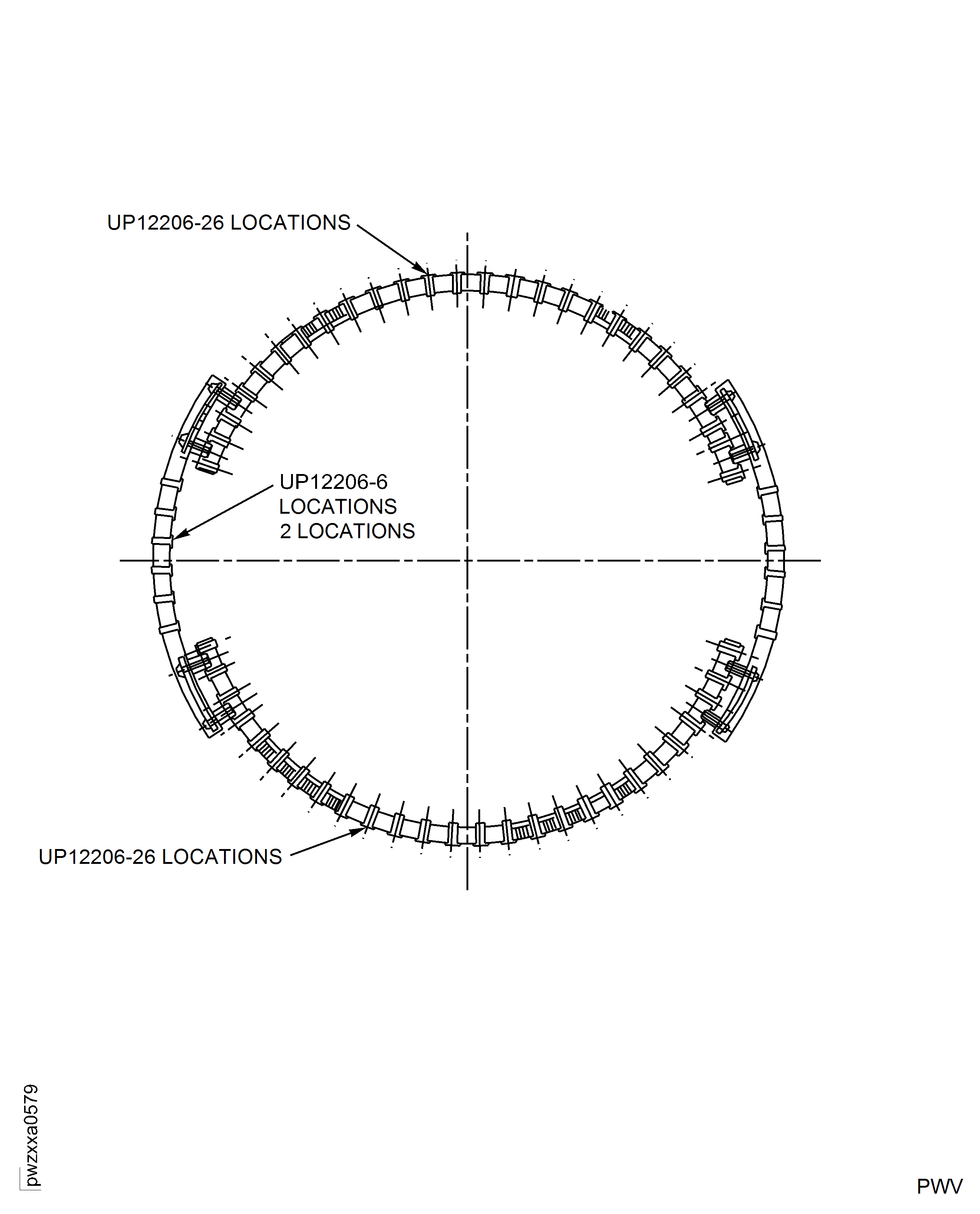

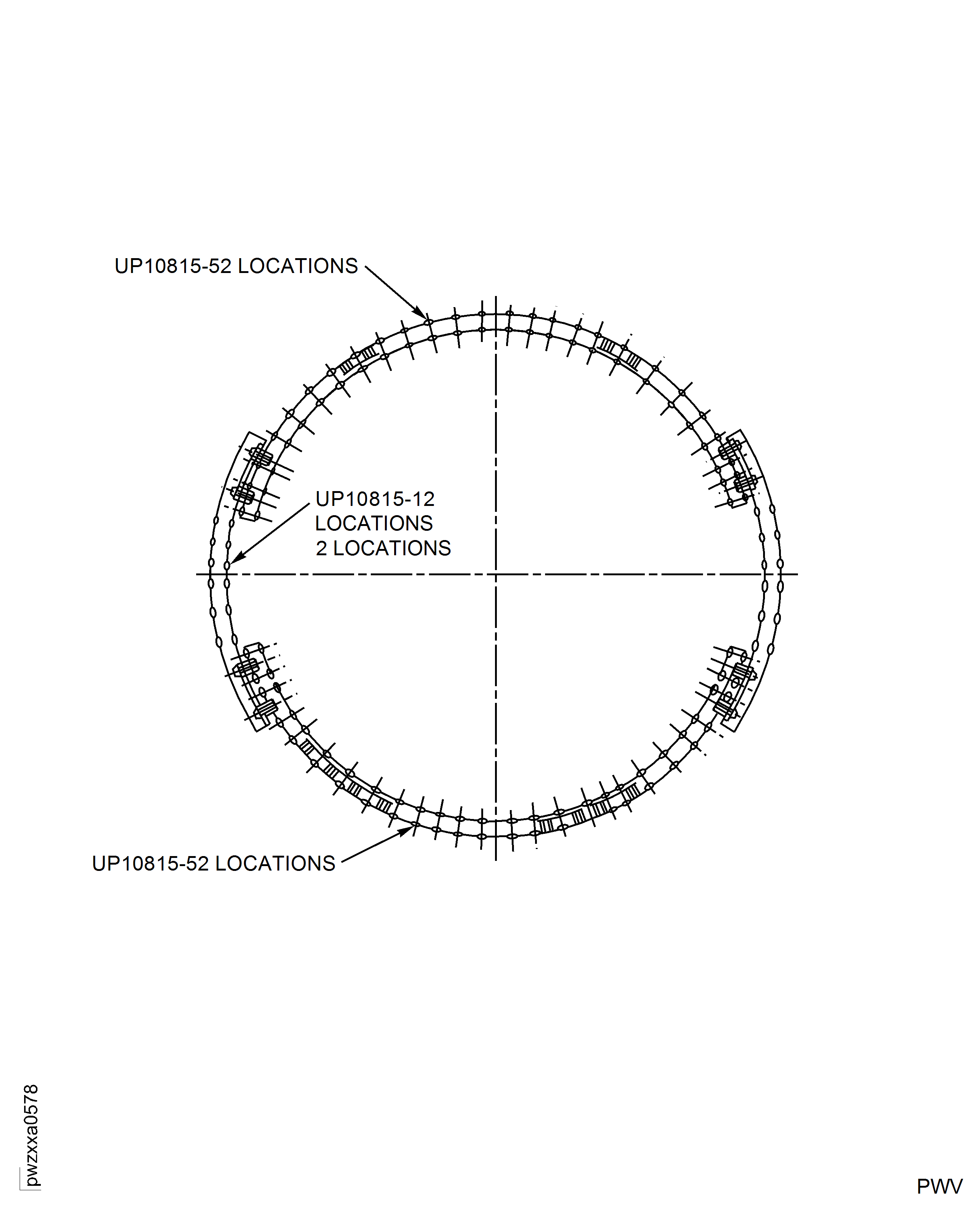

Figure: Section AD, Stage 5 Pre SB 72-0418 Installation Of Bushings
Section AD, Stage 5 Pre SB 72-0418 Installation Of Bushings

Figure: Section AD, Stage 5 Post SB 72-0418 Installation Of Bushings
Section AD, Stage 5 Post SB 72-0418 Installation Of Bushings
