TASK 72-00-32-450-023-B00 LPC/Intermediate Case Module Components - Install The Data Entry Plug Assembly On The Fan Case, Installation-030

DMC:V2500-A5-72-00-3250-20C-720A-B|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Common Information

TASK 72-00-32-450-023-B00 LPC/Intermediate Case Module Components - Install The Data Entry Plug Assembly On The Fan Case, Installation-030

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Collar1

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-00-32-450-083 Install the Data Entry Plug Assembly (73-22-35,01-100) on the Fan Case

    1. Refer to Figure.

    2. CAUTION

      FAILURE TO INSTALL THE CORRECT DATA ENTRY PLUG TO THE APPLICABLE ENGINE CAN CAUSE THE ENGINE TO GIVE MORE OR LESS THRUST THAN IS NEEDED.

      Make sure that the engine serial number on the data entry plug backshell is correct for the engine you put it on (see the engine identification plate for the correct engine serial number).

    3. Install pin EEC Data Entry Plug (73-22-35, 01-114) through the data entry plug assembly connecting cable hole and through the rear side of hole No. 14 located on Flange FC.

    4. Install the collar EEC Data Entry Plug (73-22-35, 01-110) on the pin and tighten with your fingers.

    5. Hold the pin with a wrench in the hexagon opening.

    6. Tighten the hexagon nut on the collar in a clockwise direction until the hexagon nut is sheared off. Discard the sheared hexagon nut.

    7. Make sure the protective cap or a clean dry bag is on the data entry plug assembly.

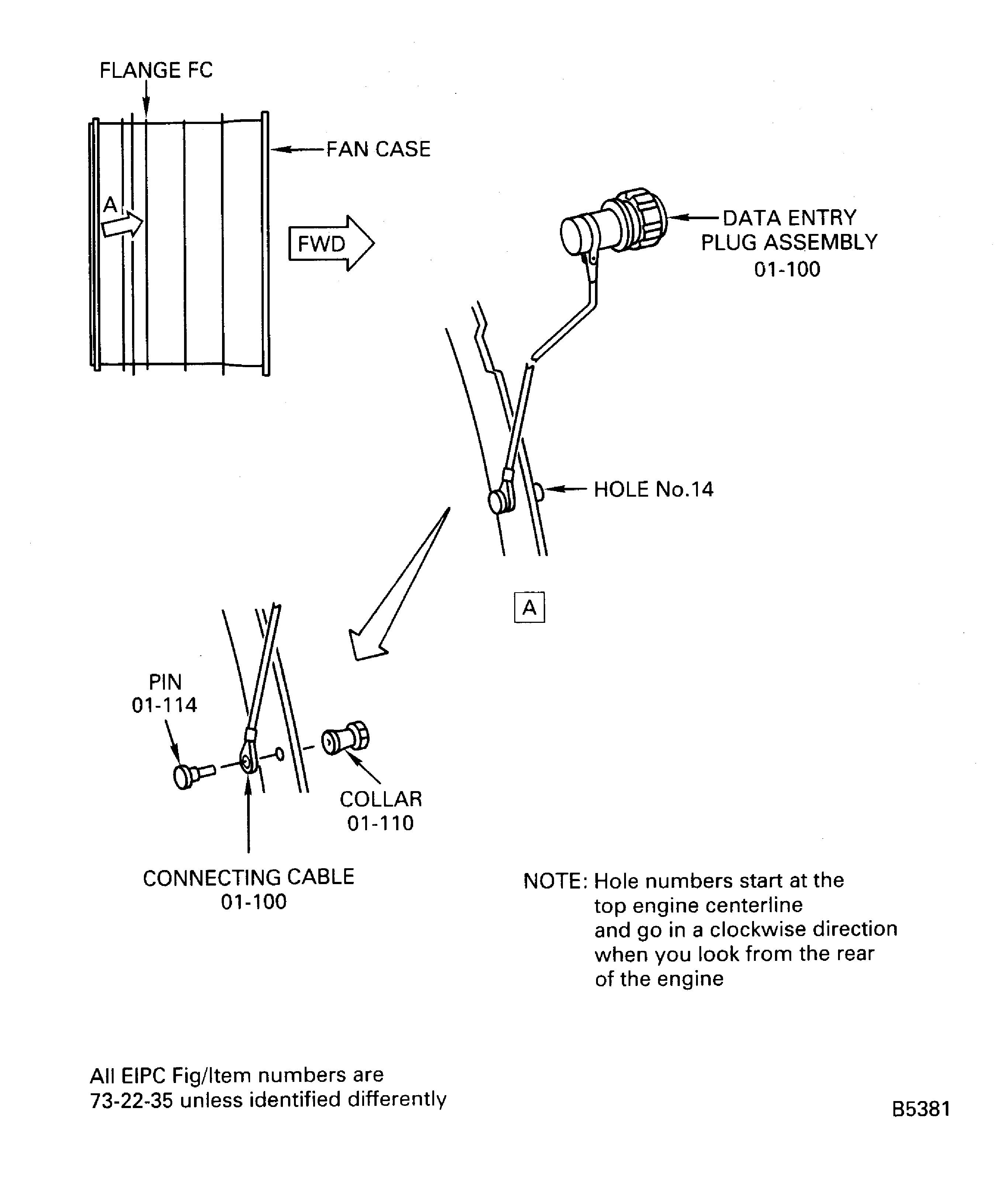

    2. Figure: Install the data entry plug assembly to the fan case

    Install the data entry plug assembly to the fan case
